ALCATEL DRYTEL 31 is an oil-free turbo drag high vacuum pumping system. The Drytel 31 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-6 Mbar. Simple one button operation.
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Overview:

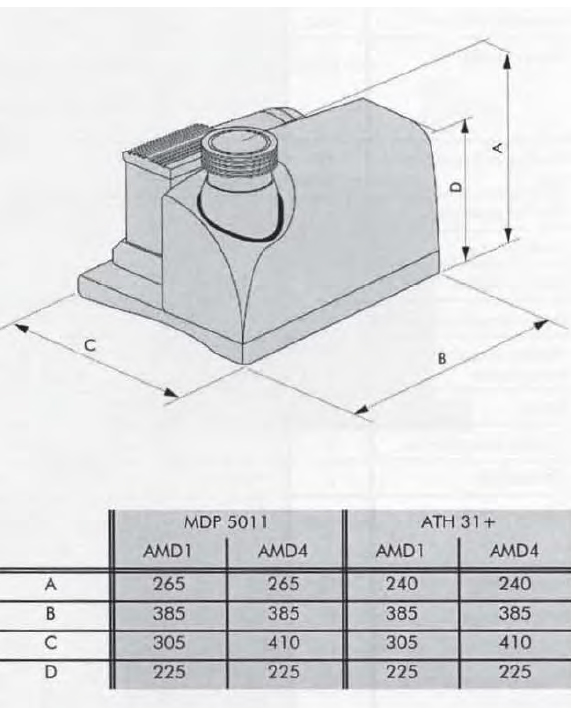

The Adixen Drytel 1025 series of products are dry pumping systems that include an Alcatel MDP 5011 or also known as Adixen MDP5011 Turbo molecular drag pump (MDP) or a hybrid turbo pump (AMH) and an oil-free forepump. Designed to be used on a bench top or easily integrated into a system, these units provide a dry, clean vacuum from atmosphere to 10-6 mbar (Torr).
Please note: System is curently set to U.S. 115 VAC, it can be changed to high 220 VAC.
Alcatel Drytel 1025 Station has a complete offer of tiny dry pumping groups for high vacuum applications.
The Drytel 1025 System Includes:
Please note: System does not include Venting valve or remote control connector.
The two pumping stages working in series (MDP5011 and AMD 4 diaphragm pump) don’t require any lubricant to operate, permitting use on ultra-clean processes.
The Drytel 1025 Pumping Station series is the least expensive solution to achieve a clean vacuum down to 10-6 mbar.
The Drytel1025 series is recommended for all applications where a dry, clean vacuum is required, such as in industry:
Adixen 1025 Station can also be used in various other types of applications:
A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service Alcatel Drytel 1025 Turbo Pumping Stations, Drytel 30, Drytel 31, Drytel 100, Adixen Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Overview:

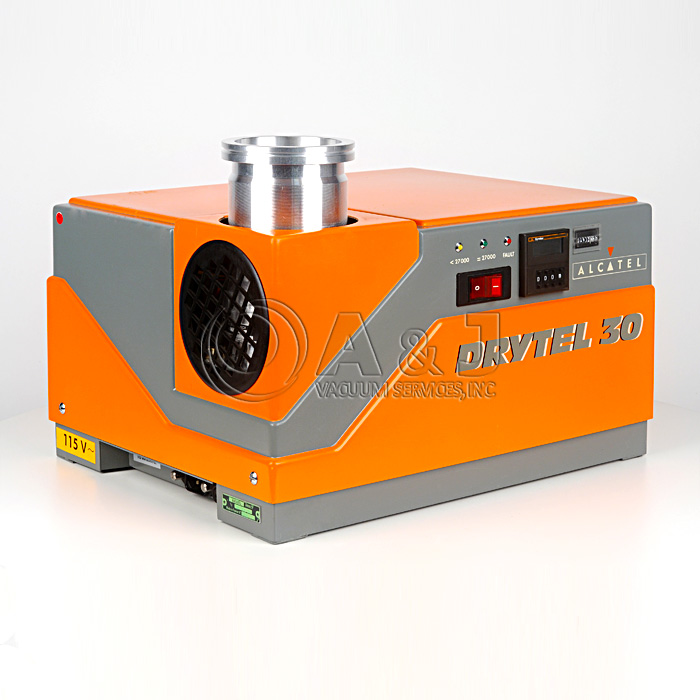

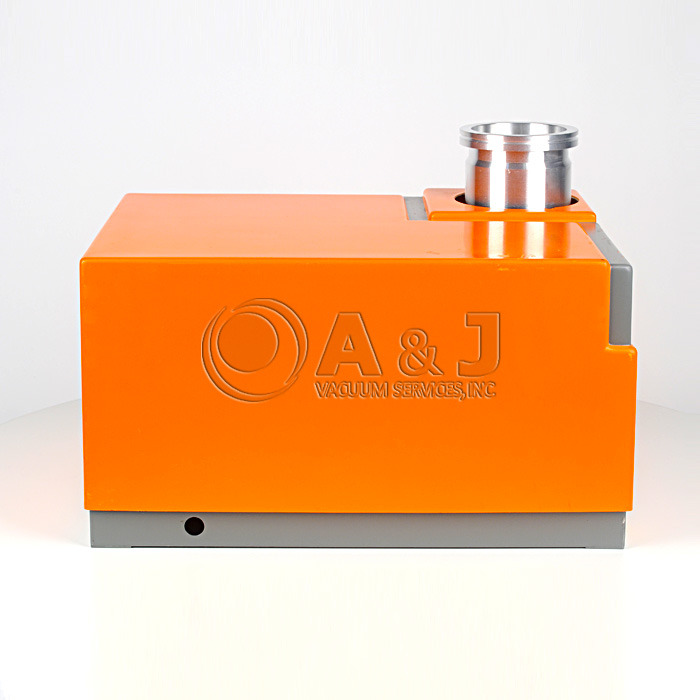

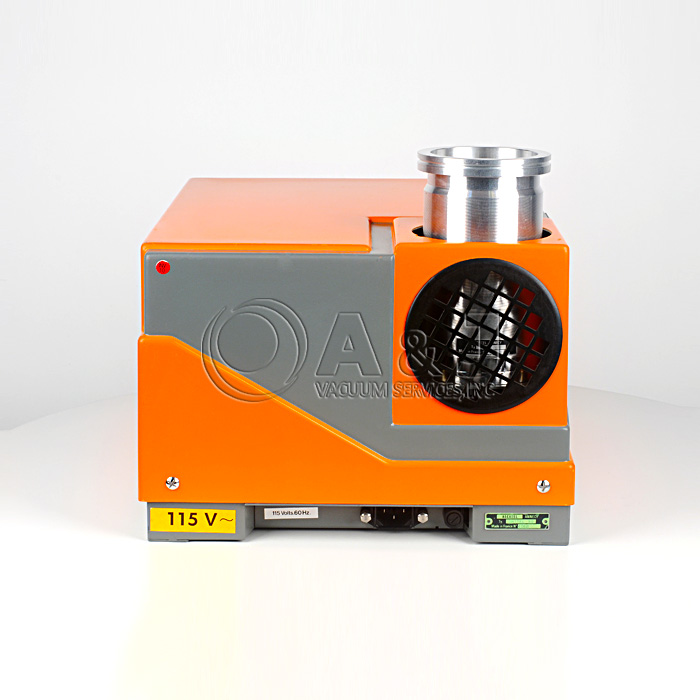

Alcatel Drytel 30 is an oil-fee turbo drag high vacuum pumping system, with delayed turbo pump start. The Alcatel Drytel 30 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5 x 10-6 mbar.
Alcatel Drytel 30 high vacuum pumping system is composed of a turbo drag pump backed with a diaphragm pump. The Alcatel MDP5010 turbo drag pump is the primary high vacuum pump with DN-63-ISO inlet flange, Alcatel Drytel 30 system produce outstanding high vacuum flow rates.
The Alcatel Drytel 30 comes standard with a solid-state frequency converter, electronic controls and an automatic valve to vent diaphragm pump to atmosphere.
Alcatel Drytel 30 oil-free turbo drag high vacuum pumping system is fully air cooled with an internal cooling fan, no additional cooling is required.
Drytel 30 is designed for use with high vacuum chambers as a bench top unit. They are ideal for dry high vacuum applications & high vacuum instruments.
Alcatel Drytel 30 usual applications: university research, space research, physics research laboratories, semiconductor process, analytical instruments, analytical laboratories, pharmaceutical research, chemical research, development laboratories, solar industry, space simulation, mass spectrometry, leak detection, surface analysis, ion pump evacuation, vacuum gauge calibration, helium leak testing, along with many other high vacuum application.
If you are not sure if this system will meet your application requirements, please contact one of our Technical Specialist to discuss all technical questions. Our knowledgeable staff will be happy to assist you.
A&J Vacuum Rrepair / Rebuild and Rervice all Alcatel Adixen Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Alcatel Drytel 100 is an oil-free turbo drag high vacuum pumping system, with delayed turbo pump start. The Drytel 100 is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-6 Mbar. Simple one button operation.
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Turbomolecular Pumping Systems are the most reliable and cost-effective way of producing high vacuum. They are portable, fast-starting, and require minimal time to install.
This Adixen Turbo Pumping Station includes the following:
Due to a flexible design, the Adixen Turbomolecular Pumping Systems are available in a wide variety of system configurations and performance options.
Adixen Turbomolecular Pumping Systems combine an Adixen Turbomolecular Pump (ATP Series) from 80-400 l/s and a Pascal Series Rotary Vane Pump from 5-21m3/h or an ACP dry pump from 15-40 m3/h. These components have an excellent reputation for performance, low vibration, reliability and easy field maintainability.
Features:
Applications:
Overview:
The Alcatel Drytel 1025 series of products are dry pumping systems that include an Alcatel MDP 5011 or also known as Adixen MDP5011 Turbo molecular drag pump (MDP) or a hybrid turbo pump (AMH) and an oil-free forepump. Designed to be used on a bench top or easily integrated into a system, these units provide a dry, clean vacuum from atmosphere to 10-8mbar (Torr).
Please note: System is curently set to U.S. 115 VAC, it can be changed to high 220 VAC.
Alcatel Drytel 1025 Station has a complete offer of tiny dry pumping groups for high vacuum applications.
The Drytel 1025 System Includes:
Bonus Components !!!
The two pumping stages working in series (MDP5011 and AMD1 diaphragm pump) don’t require any lubricant to operate, permitting use on ultra-clean processes.
The Drytel 1025 Pumping Station series is the least expensive solution to achieve a clean vacuum down to 10-8mbar (Torr).
The Drytel1025 series is recommended for all applications where a dry, clean vacuum is required, such as in industry:
Adixen 1025 Station can also be used in various other types of applications:
A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service Alcatel Drytel 1025 Turbo Pumping Stations, Drytel 30, Drytel 31, Drytel 100, Adixen Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

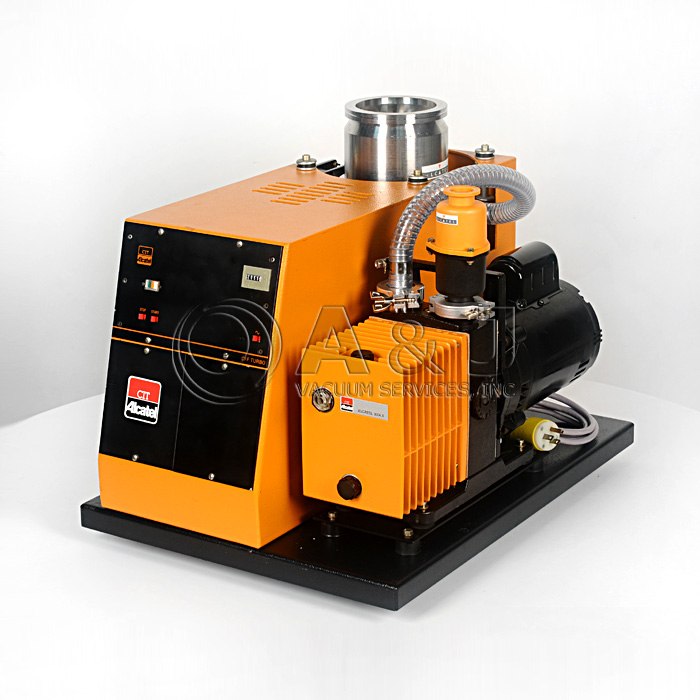

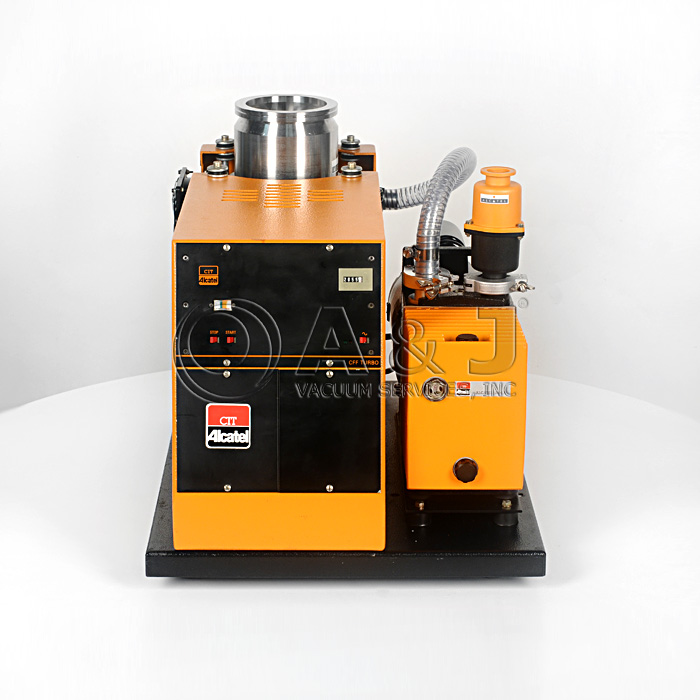

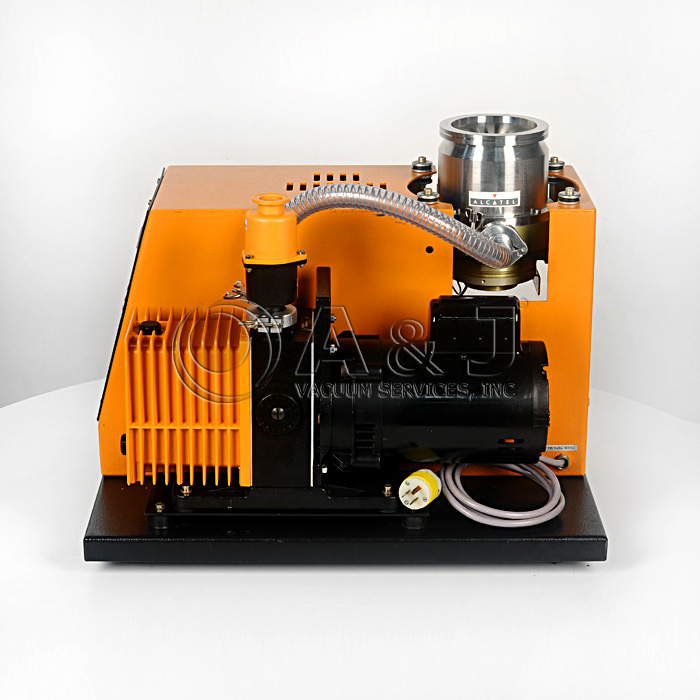

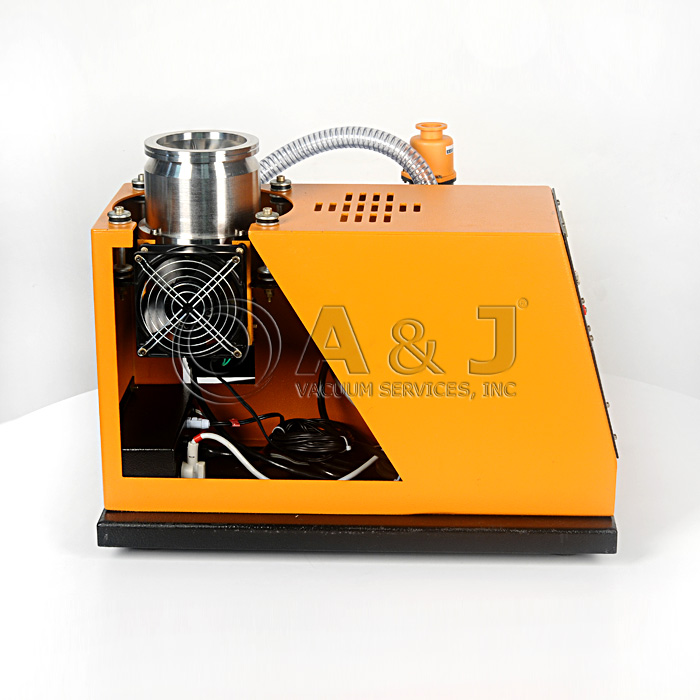

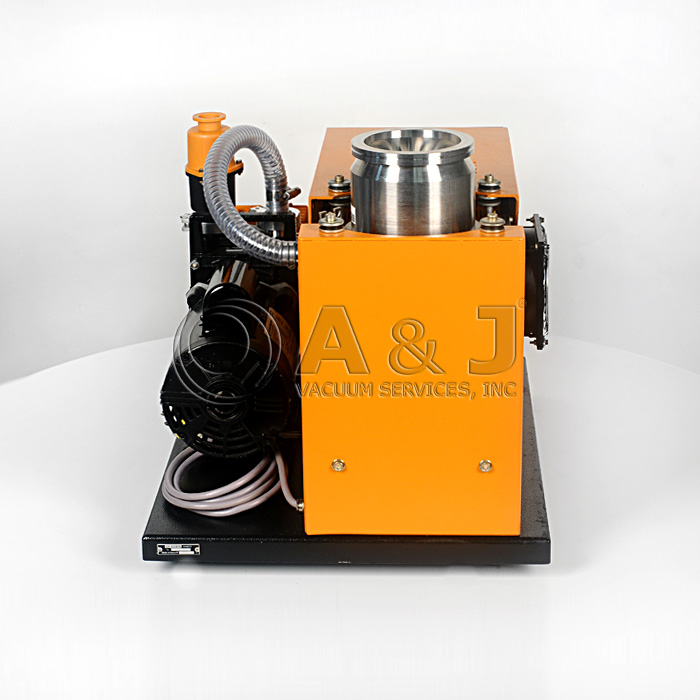

Alcatel Turbo Pumping System. This System contains the following components:
This is a fully automatic pumping system with a DN 100 ISO inlet flange and DN 35 KF outlet flange.

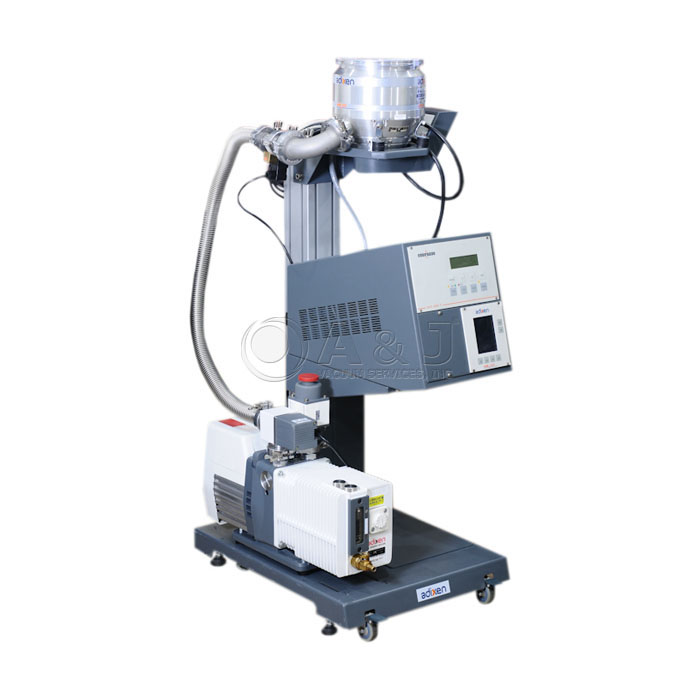

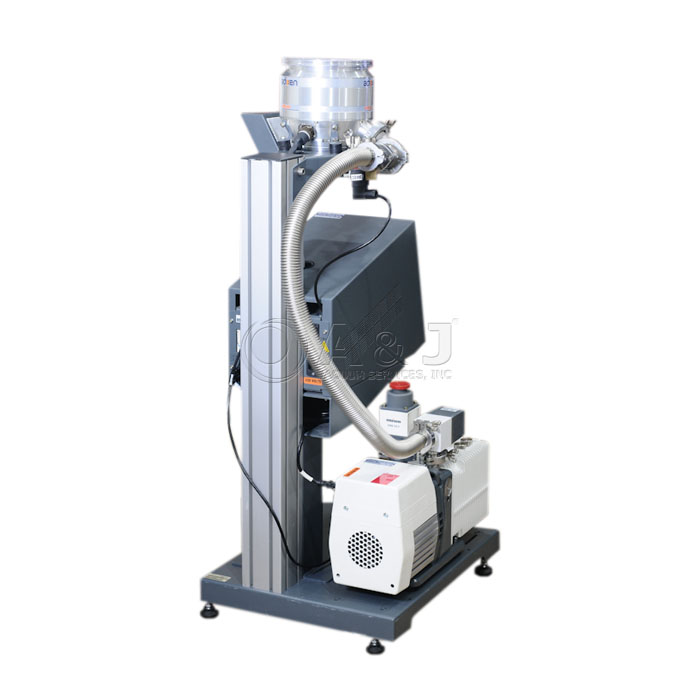

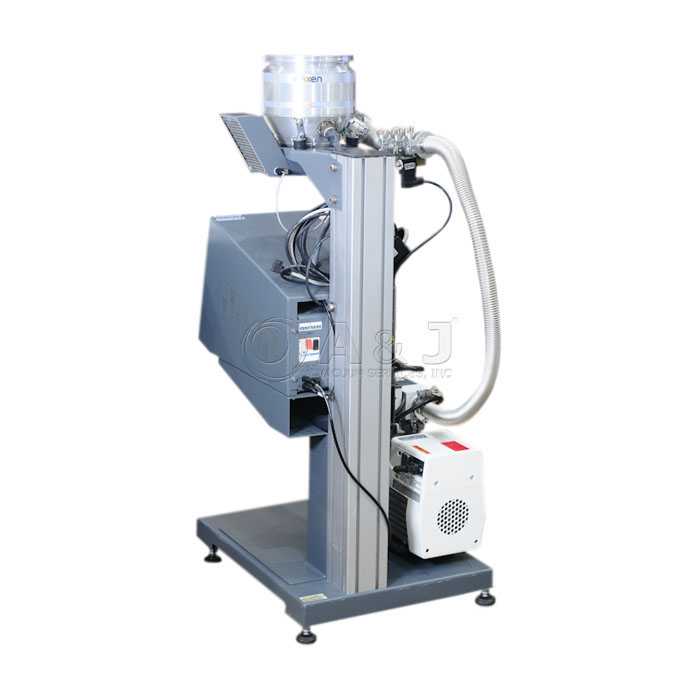

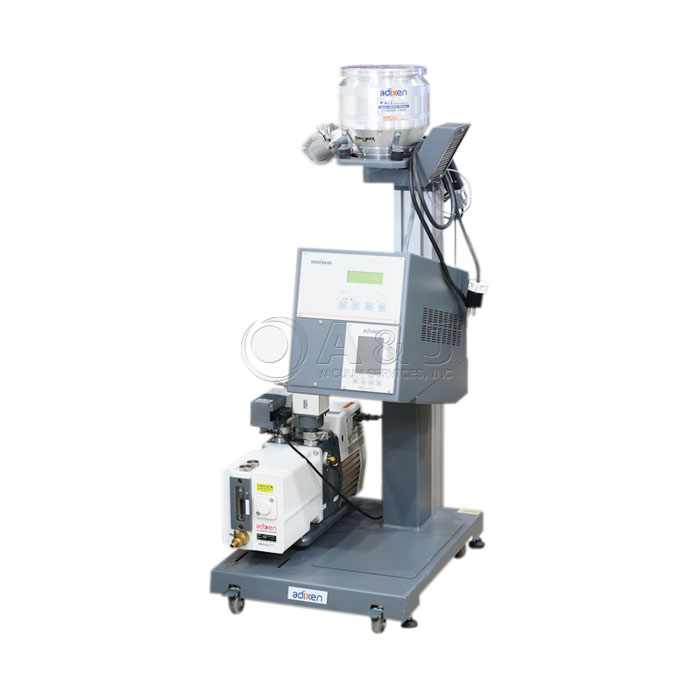

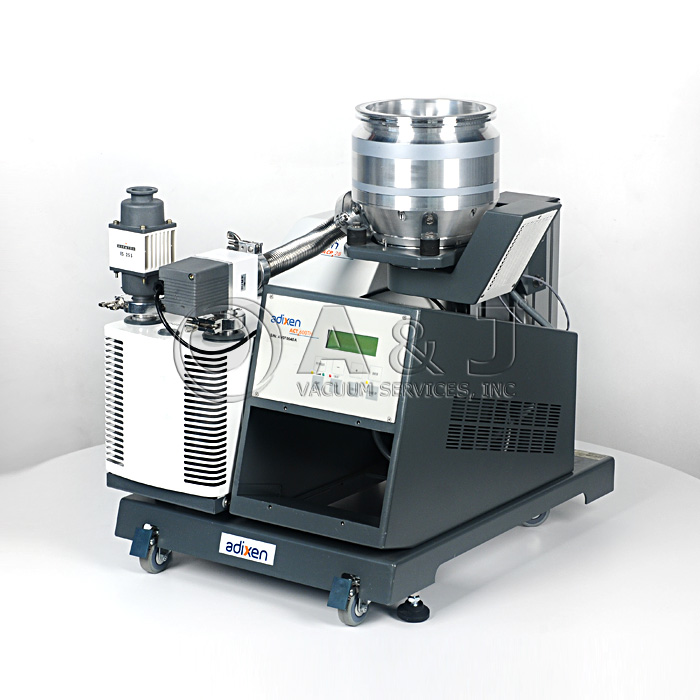

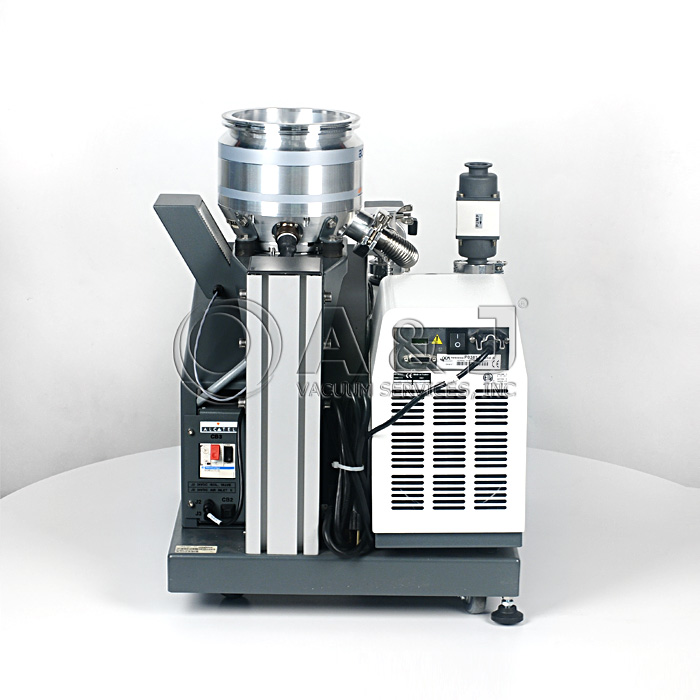

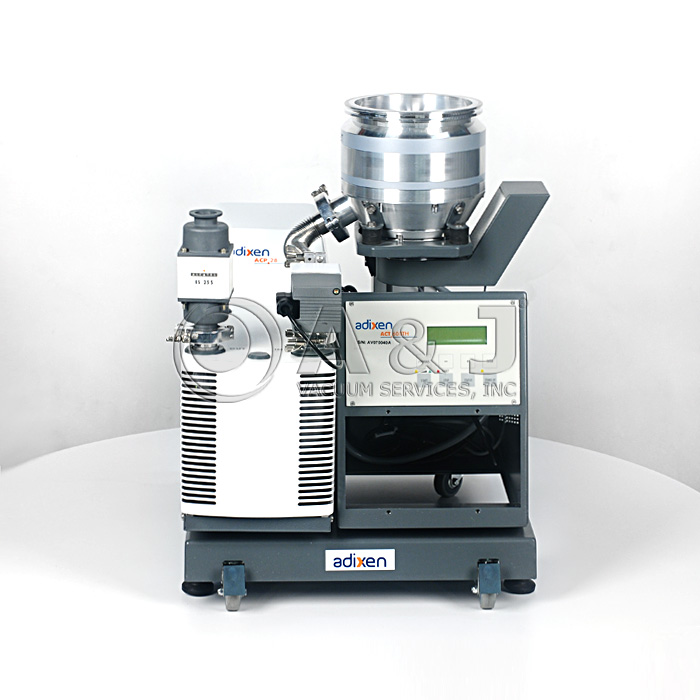

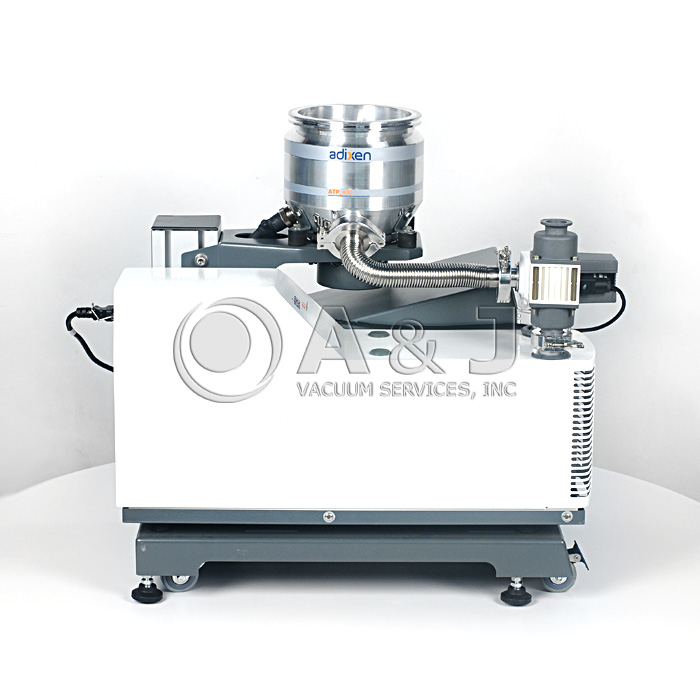

Fully Remanufactured Adixen Turbo Dry Vacuum Pumping System, 400 l/sec, 110/130 VAC, 50/60 Hz TurboStand, GSDANASN0FB
Adixen Turbomolecular Pumping Systems are the most reliable and cost-effective way of producing high vacuum. They are portable, fast-starting, and require minimal time to install.
This Adixen Turbostand Pumping System includes the following:
ATP 400 Turbo Pump
2021 SD Rotary Vane Vacuum Pump
ACT 600 T Pump Controller
Turbo Pump Cooling Fan
Automatic Vent Valve
Backing Pump Mist Eliminator
Backing Pump Isolation Valve
Mains cable
ACM 2000 Vacuum Gauge with PBR Vacuum Sensor

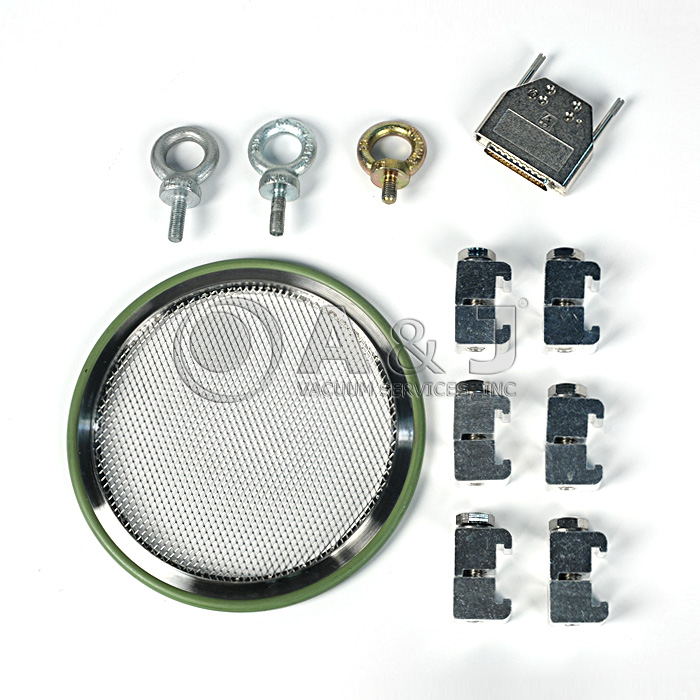

The Adixen Turbostand Vacuum Pumping System is equipped with inclet screen, which is 2.5 mm mesh that prevents foreign material from entering the Turbomolecular pump. The oil mist eliminator prevents the release of Rotary Vane Pump oil mist to atmosphere. The frame of this Turbostand Vacuum System consists of casters and leveling pads, or rubber pads; it is compact and its height can be adjusted. There's an optional vent valve that enables to softly vent back to the Turbomelcular pump to atmosphere. Also, there's an optional isolation valve, which enables isolation of the Rotary Vane Pump from the Turbomolecular pump and the vacuum chamber.
The ACM 2000 controller used with the Adixen Turbomolecular Dry Vacuum Pumping System, provides a digital display of the pressure or data through the graph function. It can operate up to 3 gauges and has 2 set-points per channel.
Due to a flexible design, the Adixen Turbomolecular Pumping Systems are available in a wide variety of system configurations and performance options.
Adixen Turbomolecular Pumping Systems combine an Adixen Turbomolecular Pump (ATP Series) from 80-400 l/s and a Pascal Series Rotary Vane Pump from 5-21m3/h or an ACP dry pump from 15-40 m3/h. These components have an excellent reputation for performance, low vibration, reliability and easy field maintainability.
Adixen Turbostand Features:
Compact - for installation on a workbench or inside an instrument
Adjustable - for easy integration
Robust - enough to incorporate valves, a vacuum chamber, gauges, etc...
Portable - for movement throughout your plant or lab
Applications:
R&D
Instrumentation
Industry
Aerospace
Optical Systems
Click Here for Adixen Turbostand Vacuum Pumping System Operating Instructions
Click Here for Adixen Turbostand Vacuum Pumping System Product Brochure
A&J Vacuum Rrepair / Rebuild and Service Adixen Turbo Pumping System Turbostand and Turbopack, Adixen Vacuum pumps, Adixen Dry Stations along with all other Adixen Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Adixen Turbomolecular Pumping Systems are the most reliable and cost-effective way of producing high vacuum. They are portable, fast-starting, and require minimal time to install.
This Adixen Turbostand Pumping System includes the following:
ATP 400 Turbo Pump
2021 SD Rotary Vane Vacuum Pump
ACT 600 T Pump Controller
Turbo Pump Cooling Fan
Automatic Vent Valve
Backing Pump Mist Eliminator
Backing Pump Isolation Valve
Mains cable
ACM 2000 Vacuum Gauge with PBR Vacuum Sensor
The Adixen Turbostand Vacuum Pumping System is equipped with inclet screen, which is 2.5 mm mesh that prevents foreign material from entering the Turbomolecular pump. The oil mist eliminator prevents the release of Rotary Vane Pump oil mist to atmosphere. The frame of this Turbostand Vacuum System consists of casters and leveling pads, or rubber pads; it is compact and its height can be adjusted. There's an optional vent valve that enables to softly vent back to the Turbomelcular pump to atmosphere. Also, there's an optional isolation valve, which enables isolation of the Rotary Vane Pump from the Turbomolecular pump and the vacuum chamber.
The ACM 2000 controller used with the Adixen Turbomolecular Dry Vacuum Pumping System, provides a digital display of the pressure or data through the graph function. It can operate up to 3 gauges and has 2 set-points per channel.
Due to a flexible design, the Adixen Turbomolecular Pumping Systems are available in a wide variety of system configurations and performance options.
Adixen Turbomolecular Pumping Systems combine an Adixen Turbomolecular Pump (ATP Series) from 80-400 l/s and a Pascal Series Rotary Vane Pump from 5-21m3/h or an ACP dry pump from 15-40 m3/h. These components have an excellent reputation for performance, low vibration, reliability and easy field maintainability.
Adixen Turbostand Features:
Compact - for installation on a workbench or inside an instrument
Adjustable - for easy integration
Robust - enough to incorporate valves, a vacuum chamber, gauges, etc...
Portable - for movement throughout your plant or lab
Applications:
R&D
Instrumentation
Industry
Aerospace
Optical Systems
Click Here for Adixen Turbostand Vacuum Pumping System Operating Instructions
Click Here for Adixen Turbostand Vacuum Pumping System Product Brochure
A&J Vacuum Rrepair / Rebuild and Service Adixen Turbo Pumping System Turbostand and Turbopack, Adixen Vacuum pumps, Adixen Dry Stations along with all other Adixen Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

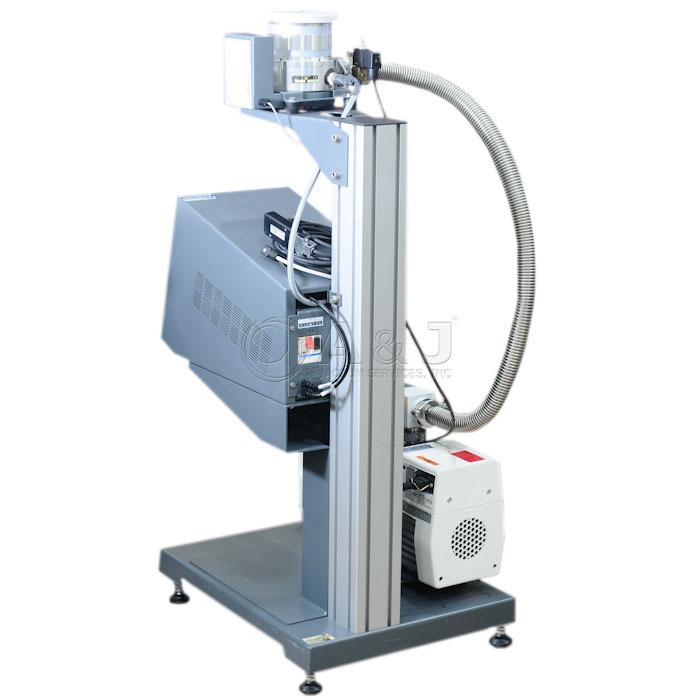

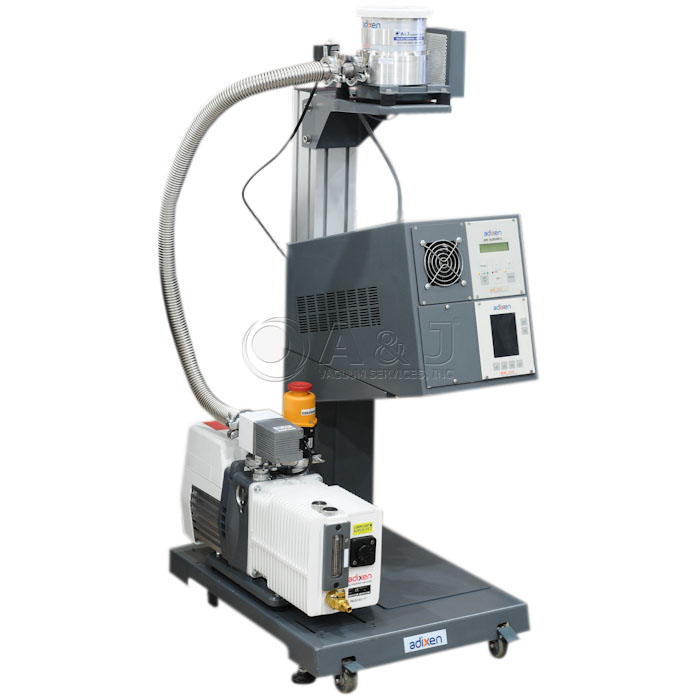

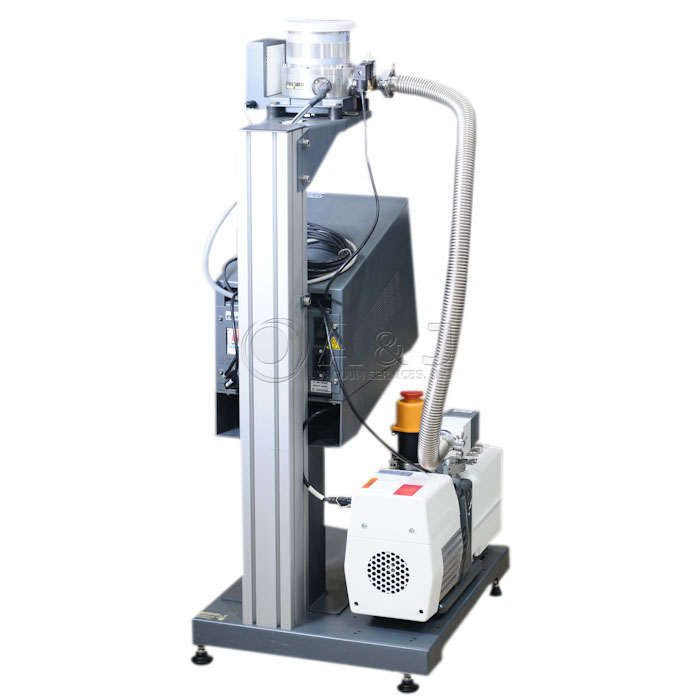

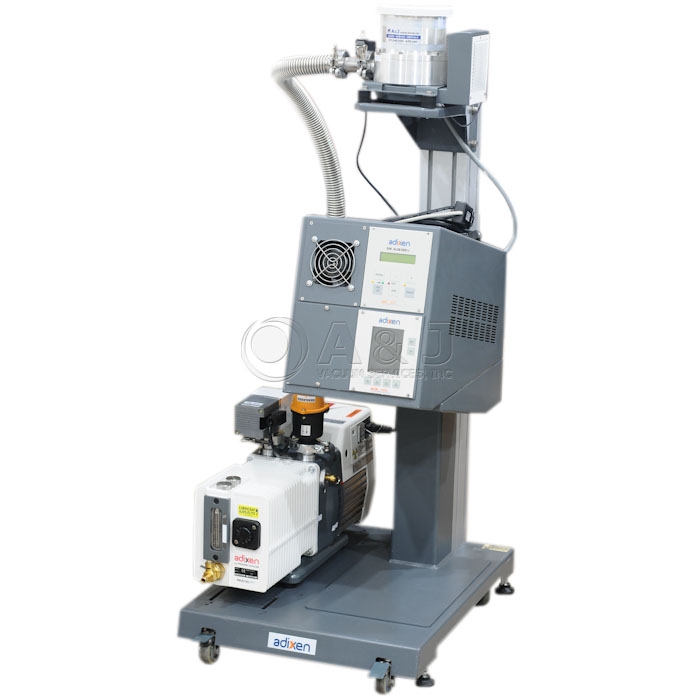

Adixen Turbo Dry Vacuum Pumping System, 100 l/sec, 110/115 VAC, 50/60 Hz TurboStand ATP 100, PN22245
Adixen Turbomolecular Pumping Systems are the most reliable and cost-effective way of producing high vacuum. They are portable, fast-starting, and require minimal time to install.
This Adixen Turbostand Pumping System includes the following:
ATP 100 Turbo Pump
2021 SD Rotary Vane Vacuum Pump
ACT 600 T Pump Controller
Turbo Pump Cooling Fan
Automatic Vent Valve
Backing Pump Mist Eliminator
Backing Pump Isolation Valve
Mains cable
ACM 2000 Vacuum Gauge with PBR Vacuum Sensor
The Adixen Turbostand Vacuum Pumping System is equipped with inclet screen, which is 2.5 mm mesh that prevents foreign material from entering the Turbomolecular pump. The oil mist eliminator prevents the release of Rotary Vane Pump oil mist to atmosphere. The frame of this Turbostand Vacuum System consists of casters and leveling pads, or rubber pads; it is compact and its height can be adjusted. There's an optional vent valve that enables to softly vent back to the Turbomelcular pump to atmosphere. Also, there's an optional isolation valve, which enables isolation of the Rotary Vane Pump from the Turbomolecular pump and the vacuum chamber.
The ACM 2000 controller used with the Adixen Turbomolecular Dry Vacuum Pumping System, provides a digital display of the pressure or data through the graph function. It can operate up to 3 gauges and has 2 set-points per channel.
Due to a flexible design, the Adixen Turbomolecular Pumping Systems are available in a wide variety of system configurations and performance options.
Adixen Turbomolecular Pumping Systems combine an Adixen Turbomolecular Pump (ATP Series) from 80-400 l/s and a Pascal Series Rotary Vane Pump from 5-21m3/h or an ACP dry pump from 15-40 m3/h. These components have an excellent reputation for performance, low vibration, reliability and easy field maintainability.
Adixen Turbostand Features:
Compact - for installation on a workbench or inside an instrument
Adjustable - for easy integration
Robust - enough to incorporate valves, a vacuum chamber, gauges, etc...
Portable - for movement throughout your plant or lab
Applications:
R&D
Instrumentation
Industry
Aerospace
Optical Systems
Click Here for Adixen Turbostand Vacuum Pumping System Operating Instructions
Click Here for Adixen Turbostand Vacuum Pumping System Product Brochure
