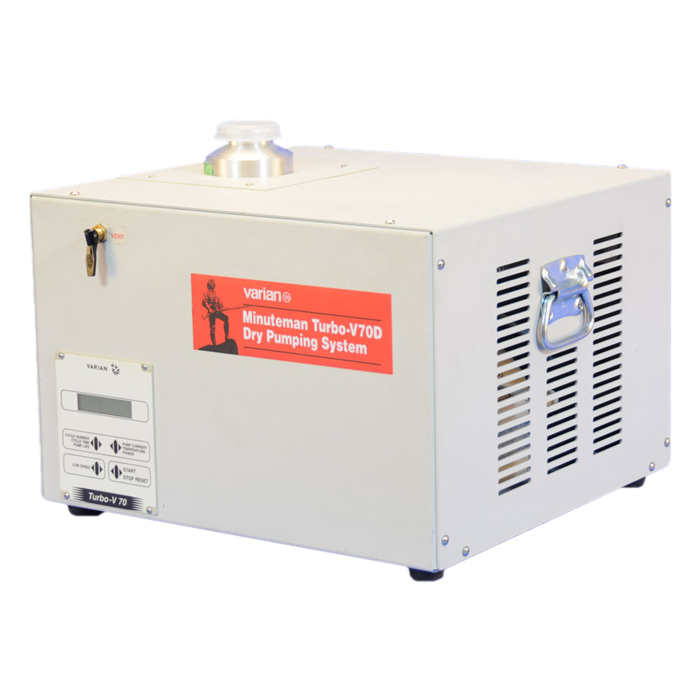

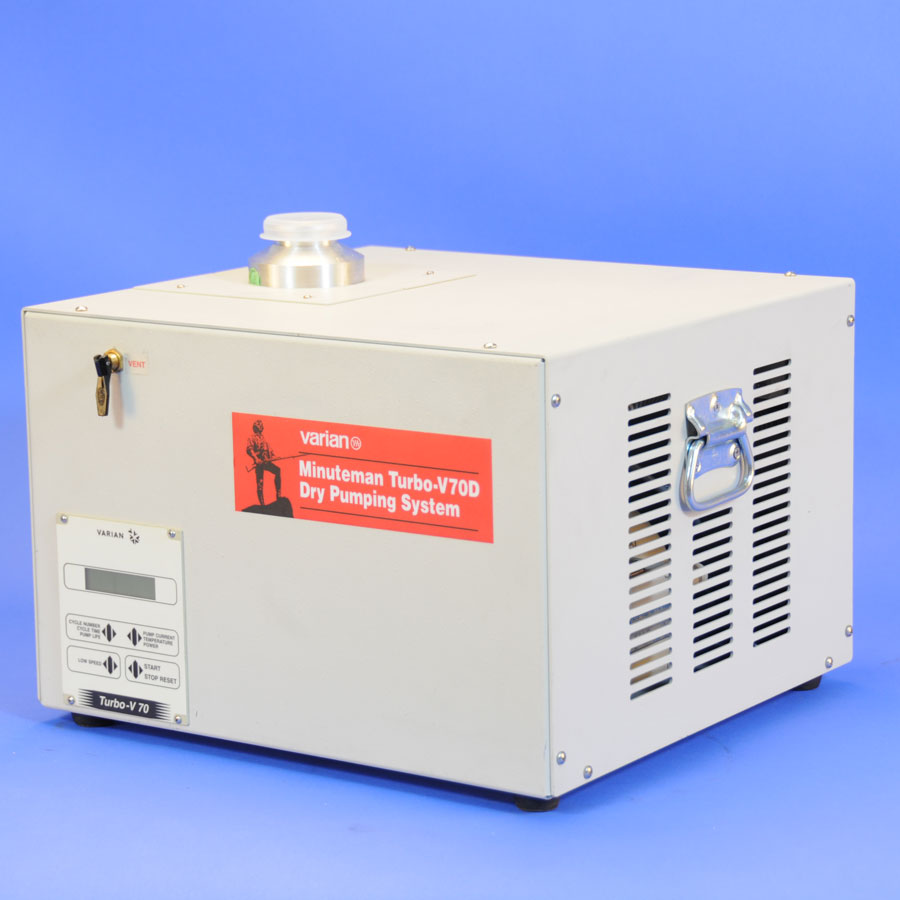

Varian Minuteman Turbo V-70D Dry is an oil-free turbomolecular high vacuum pumping system. The Varian Minuteman Turbo V-70D Dry is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-6 Mbar with Pumping speed of 65 l/sec. Simple one button operation.

Varian Minuteman Turbo V-70D Dry high vacuum pumping system is composed of a turbo drag pump backed with diaphragm pump. The Varian V70 turbomolecular pump is the primary high vacuum pump with DN-63-ISO inlet flange, Varian Minuteman Turbo V-70D Dry system produce outstanding high vacuum flow rates. Varian Minuteman Turbo V-70D Dry comes standard with a solid-state frequency converter, electronic controls and an automatic valve to vent diaphragm pump to atmosphere.

Varian Minuteman Turbo V-70D Dry oil-free turbo drag high vacuum pumping system is fully air cooled with an internal cooling fan, no additional cooling is required. Varian Minuteman Turbo V-70D Dry is designed for use with high vacuum chambers as a bench top unit. They are ideal for dry high vacuum applications & high vacuum instruments.

Varian Minuteman Turbo V-70D Dry usual applications: space research, university research, physics , research laboratories, semiconductor process, analytical instruments, analytical laboratories, pharmaceutical research, chemical research, development laboratories, solar indusry, space simulation, mass spectrometry, leak detection, surface analysis, ion pump evacuation, vacuum gauge calibration, helium leak testing, along with many other high vacuum application.

If you are not sure if this system will meet your application requirements, please contact one of our Technical Specialist to discuss all technical questions.

Our knowledgeable staff will be happy to assist you.

Varian Minuteman Turbo V-70D comes with full 12-Months Warranty !

A&J Vacuum Services, inc provides full services on all Varian Minuteman Turbo V-70D turbo pump stations Varian Minuteman Turbo V-70D repair service.

Condition: Remanufactured Out of Stock

Varian Task V 301 Dry Turbo Pumping System, DN 100 CFF, 120 V, 50/60 Hz, 9698911

Item#: PN17563 Mfr Part#: 9698911 Manufacturer: Agilent Technologies / Varian

Price upon request

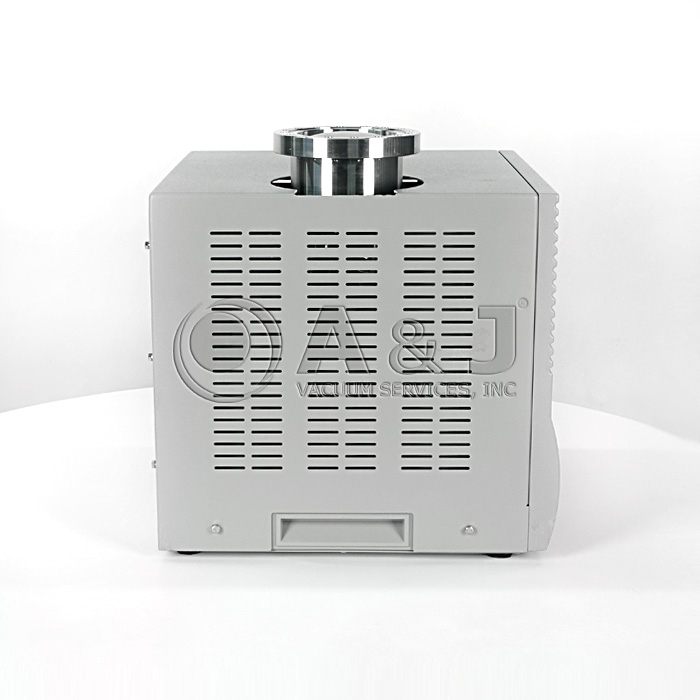

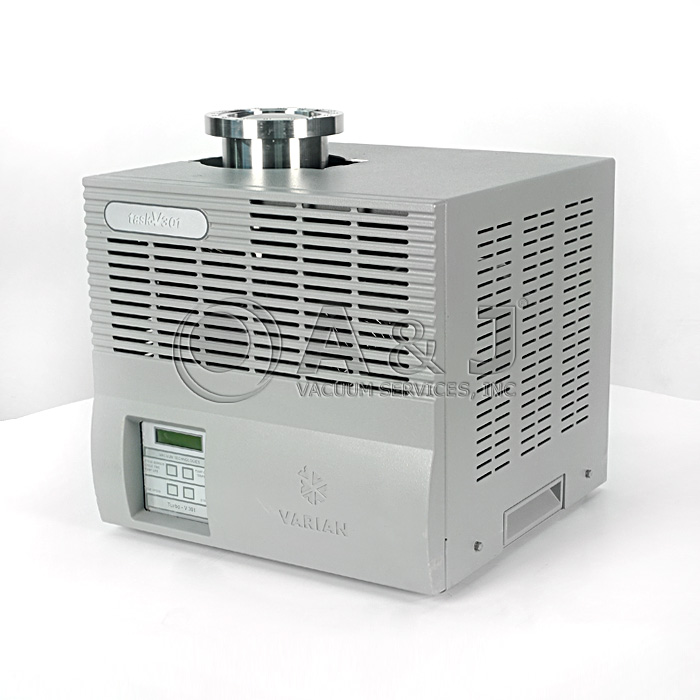

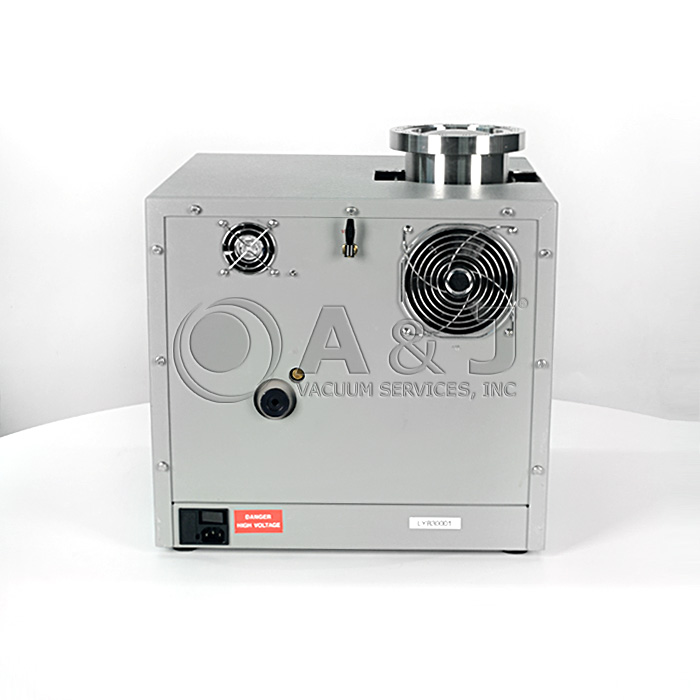

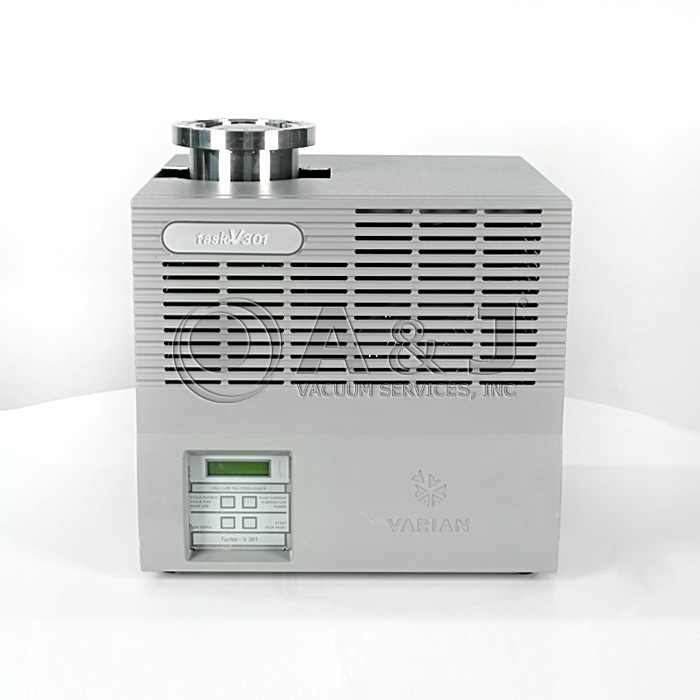

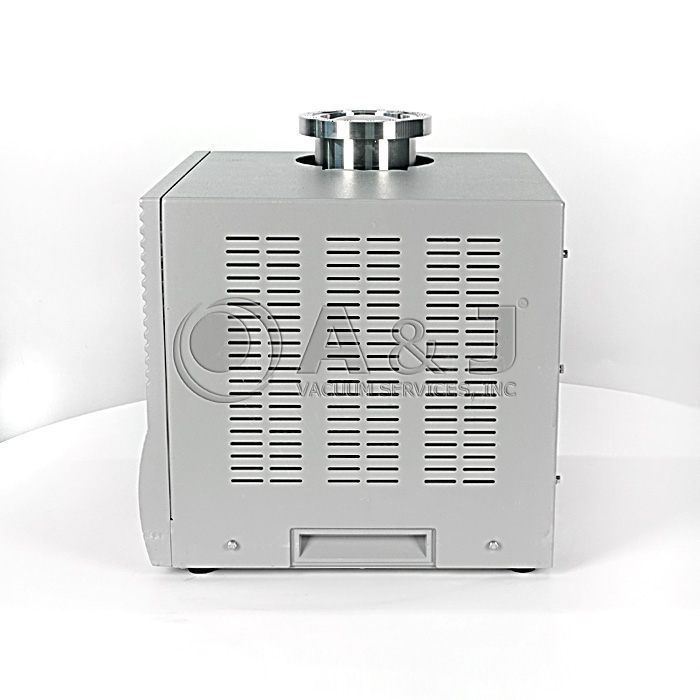

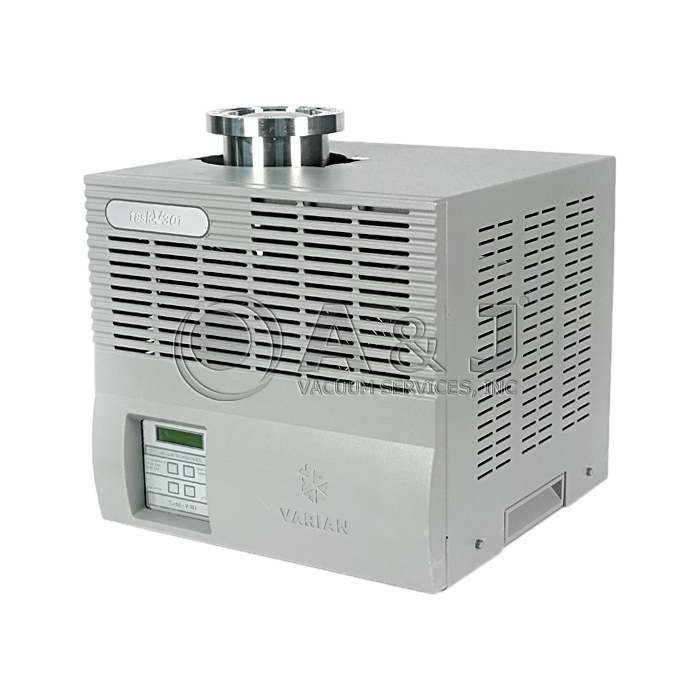

The Varian Task Dry V 301 is an indoor, bench-top turbo pumping system that is comprised of an SH-110 scroll backing pump, V 301 turbo pump and V 301 AG turbo pump controller. The Task produces an oil-free high vacuum, while maintaining one button operation. The system features a DN 100 CFF inlet flange.

The SH 110 scroll pump is a hermetic, dry scroll vacuum pump suitable for pumping air or inert gases. The pump is not intended to pump toxic, corrosive, explosive, or particulate-forming gases.

The V 301 AG controller is a microprocessor-based frequency converter with self-diagnostic and protection features to ensure the highest degree of reliability. It displays all of the relevant operating parameters and pump status information.

Features:

One button operation
120 VAC, 50/60 Hz
Oil free high vacuum performance
CE and CSA approvals
Lifting hand holds
Manual turbo vent valve
Compact console
Air-cooled vented case

Condition: Remanufactured Out of Stock

Varian DRYVAR 150 Dry Turbo Pumping System, 150 l/sec, DN 63 ISO, 120 V, 50/60 Hz, 969-9163

Item#: PN20436 Mfr Part#: 9699163 Manufacturer: Agilent Technologies / Varian

Price upon request

Varian DRYVAR 150 Dry Turbo Pumping System, 150 l/sec, DN 63 ISO, 120 V, 50/60 Hz, 969-9163

The DRYVAR 150 pumping system consists of a pump with an integrated controller and a forepump and is available in four models which differ only in the high vacuum ISO63 Inlet flange with pumping speed of 150 l/sec.

The Varian DRYVAR150 is an indoor, bench-top turbo pumping system that is comprised of an diaphragm backing pump. The DRYVAR 150 produces an oil-free high vacuum, while maintaining one button operation. The system features a DN 63 ISO inlet flange.

Turbo Pump Description

The turbopump consists of a high frequency motor driving a turbine fitted with 8 bladed stages and 6 Macrotorr stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block. Proceeding from the high vacuum to the for vacuum
region, the turbine stages sequence is: 1 stage with a blade angle of 42°, 1 stage with a
blade angle of 28°, 3 stages with a blade angle of 20°, and 3 final stages with a blade angle of 10°. The Macrotorr stages are in the form of six discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed
on the forevacuum side of the pump.

The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of selfpositioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy. During normal operation, the motor is fed with a voltage of 120 Vac three-phase at 1050 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a
higher initial voltage/frequency ratio. The pump is cooled by means of the integrated
fan. A thermistor sensor is mounted near the lower bearing to prevent the pump from overheating. The pump is balanced after assembly with a residual vibration amplitude less than 0.01 μm. The pump can operate in any position and can be
supported on the high vacuum flange.

Diaphragm Forepump Description

The pump consists of an electric DC motor driving an eccentric which moves an elastic diaphragm. The pump has two heads connected in series.The compression chamber is hermetically separated from the drive mechanism by means of the diaphragm. The pump transfers, evacuates and compresses completely oil-free. During normal operation, the motor is supplied with a voltage between 7 and 24 Vdc according to the gas load in order to increase the pump life.

Controller Description

The integrated controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of a PCB which includes a power supply with a 3-phase AC output and a DC output to supply the internal diaphragm forepump, analog and input/output section, microprocessor and digital section. The controller recognizes the mains presence and converts the single phase AC mains supply into a 3-phase, medium frequency output which is required to power the pump, and into a DC, low voltage, output to supply the diaphragm forepump.The controller can be operated by a remote host computer via the serial connection.

DRYVAR 150 Features:

One button operation
120 VAC, 50/60 Hz
Oil free high vacuum performance
Manual turbo vent valve
Compact console
Air-cooled vented case

A&J Vacuum Repair / Rebuild and Service Varian DRYVAR Turbo VACUUM PUMPS along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Turbomolecular Pumps repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
