Pfeiffer -Balzers TSH 065D is an oil-free turbo drag high vacuum pumping system, with delayed turbo pump start. Pfeiffer TSH 065D is a compact bench top, light weight and very quiet system that can operate from atmosphere to 5x10-8 Mbar with Pumping Speed of 56 l/sec. Simple one button operation.
Pfeiffer-Balzers TSH 065D high vacuum pumping system is composed of a turbo drag pump backed with diaphragm pump. The Pfieffer-Balzers TMH -065 turbomolecular drag pump is the primary high vacuum pump with DN-63-ISO inlet flange, Pfeiffer-Balzers TSH 064Dsystem produce outstanding high vacuum flow rates. Pfeiffer-Balzers TSH 065D comes standard with a solid-state frequency converter, electronic controls and an automatic valve to vent diaphragm pump to atmosphere.
Pfeiffer-Balzers TSH 065D oil-free turbo drag high vacuum pumping system is fully air cooled with an internal cooling fan, no additional cooling is required. Pfeiffer-Balzers TSH 065D is designed for use with high vacuum chambers as a bench top unit. They are ideal for dry high vacuum applications & high vacuum instruments.
Pfeiffer-Balzers TSH 065D typical applications: university research, space research, physics research laboratories, semiconductor process, analytical instruments, analytical laboratories, pharmaceutical research, chemical research, development laboratories, solar industry, space simulation, mass spectrometry, leak detection, surface analysis, ion pump evacuation, vacuum gauge calibration, helium leak testing, along with many other high vacuum application.
If you are not sure if this system will meet your application requirements, please contact one of our Technical Specialist to discuss all technical questions. Our knowledgeable staff will be happy to assist you.
Pfeiffer-Balzers TSH 065D comes with full 12-Months Warranty !
A&J Vacuum Services, inc provides full services on all Pfeiffer-Balzers TSH 065D turbo pump stations Pfeiffer-Balzers TSH 065D repair service.
Overview:

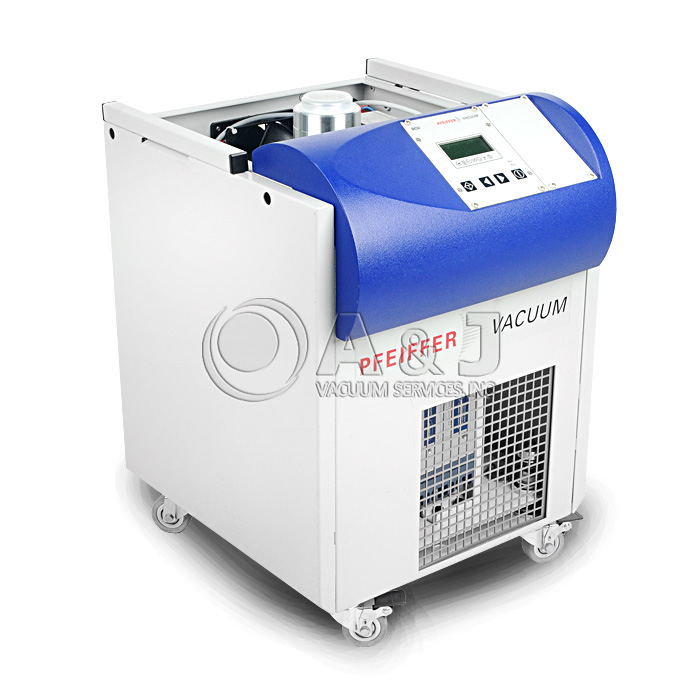

The Pfeiffer Vacuum TSH 071 Turbo Cube Drag Pumping Station is an oil-free turbomolecular drag high vacuum pumping system with delayed turbo pump start.
The TSH 071 is a compact bench top, light weight and very quiet system.
The TSH 071 comes standard with a solid-state frequency converter, electronic controls and an automatic valve to vent diaphragm pump to atmosphere.
The plug and play type pumping stations are fully automatic operating pumping units.
The integrated power part with the Display And Operating Unit DCU 001 serves to control and monitor the pumping station and works in conjunction with the Electronic Drive Unit TC 600.
The turbomolecular pumping stations may only be used for the purpose of generating vacuum.
The turbomolecular pumping stations may only be operated in the existing configuration.
Pfeiffer TSH261 Turbo Pumping Station, Including TMH261 Turbo Pump with MVP055 Diaphragm Vacuum Pump and DCU 001 Controller, 115 VAC, TSH 261 PMS0705100
Pfeiffer Vacuum Turbo Pumping system includes the following;
- Pfeiffer TMH 261P Turbo Pump
- Pfeiffer MVP 055 Diaphragm backing Pump
- DCU 001 Digital Control Unit
Pfeiffer TSH 261 Turbo Pumping System is the complete one button operation Vacuum System.
The plug and play type pumping stations are fully automatically operating pumping units.
The integrated power part with the Display And Operating Unit DCU 001 serves to control and monitor the pumping station and works in conjunction with the Electronic Drive Unit TC 600.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).
The Pfeiffer Vacuum TMH261 YPX unit has a wear free permanent magnetic bearing at the high vacuum side and an oil lubricated ceramic bearing at the backing side.
The Pfeiffer 261 YPX Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
- TMH261YPX comes with DN100 ISO-K Inlet Flange
- TMU261YPX comes with DN100 CF-F Inlet Flange
The built in Pfeiffer TMH 261 YPX turbo pumps may only be used for the purpose of generating vacuum. They may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved. If the process produces dust, the maintenance intervals must be specified accordingly and sealing gas must be used (only for version "P").
If the TMH 261 YP pump is to be operated with more than 50 percent of the permissible gas load, sealing gas must be used (only for version "P").
Click Here for Pfeiffer TSH 071, TSH 261, TSH 521 Operation Manual https://www.ajvs.com/library/Pfeiffer_Vacuum_TSH_071_261_521.pdf_2_Manual.pdf
Click Here for Pfeiffer TMH 261 YPX Operation Manual PMP03534 https://www.ajvs.com/library/Pfeiffer_Vacuum_TMH_261_261_P_Manual.pdf
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum TMH261 Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The plug and play type pumping stations are fully automatically operating pumping units.
The integrated power part with the Display And Operating Unit DCU 001 serves to control and monitor the pumping station and works in conjunction with the Electronic Drive Unit TC 600.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).

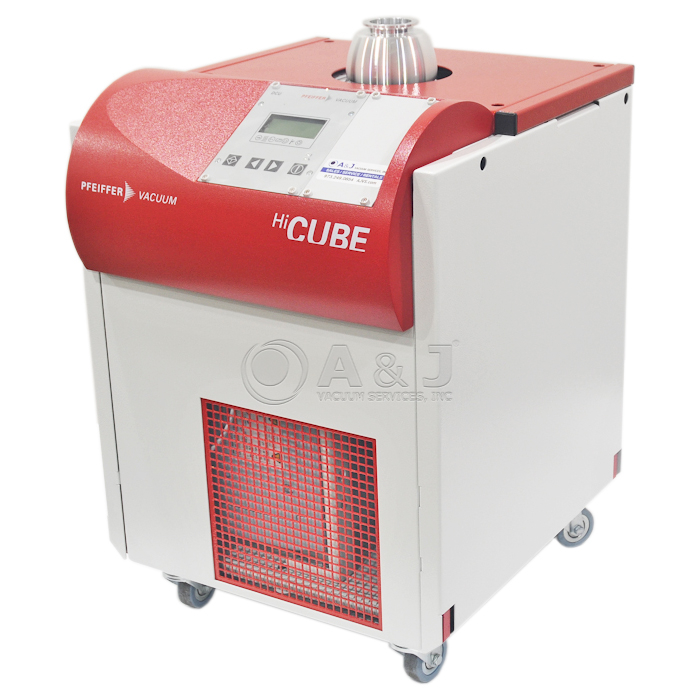

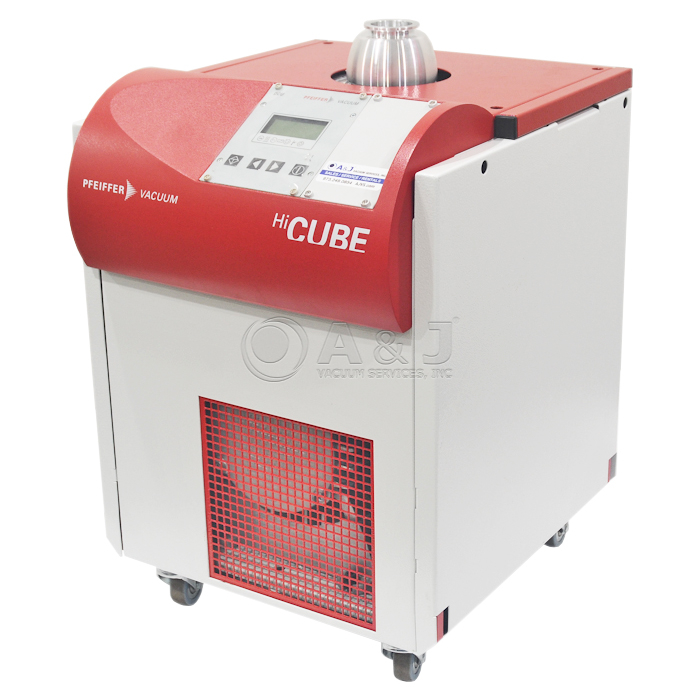

Overview:

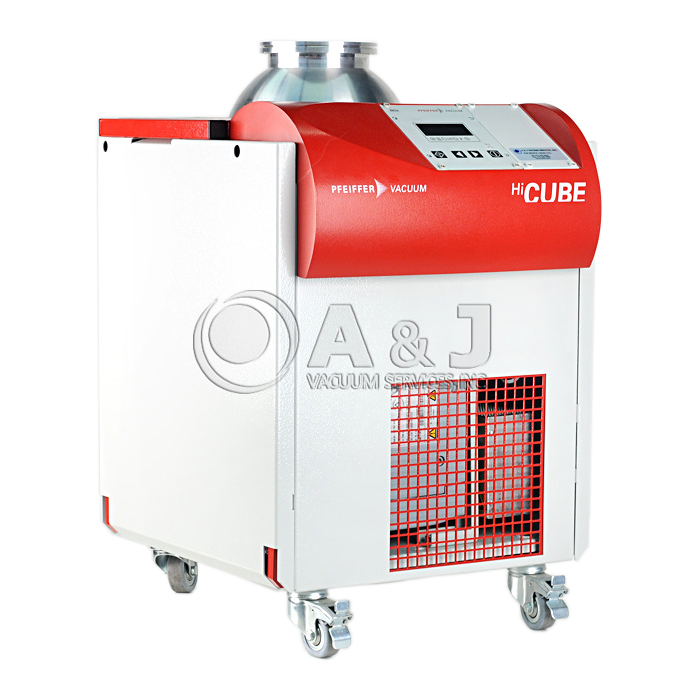

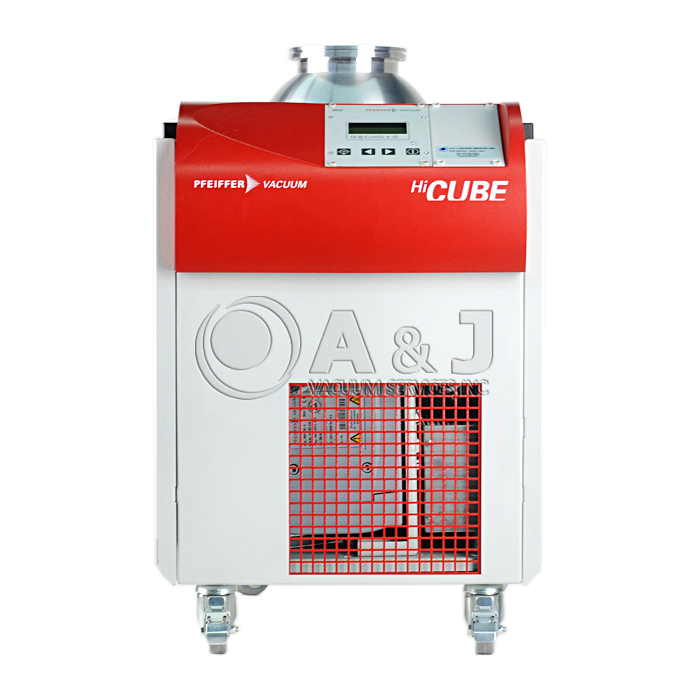

The HiCube Classic pumping stations are suitable for all high and ultra high vacuum applications and are available with dry and oil-sealed backing pumps having pumping speeds of up to 685 l/s. Available for selection as backing pumps are dry diaphragm pumps with pumping speeds of up to 4.3 m3 / h or rotary vane pumps with pumping speeds of up to 6 m3 / h.
With the modular design principle of the new HiCube series, the never-before-seen versatility will satisfy the widest range of requirements in the pumping speed range from 35 l/s to 685 l/s. Fully configured and ready for immediate employment, the turbopump and backing pump offer a perfect interplay: “Plug and Play” the way you want it.

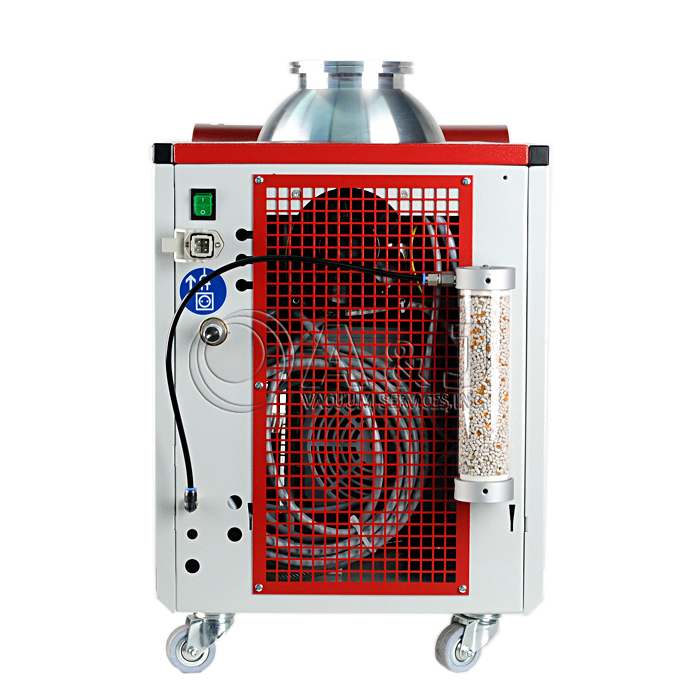

The HiCube mobile turbopumping station sets new standards: It offers a convincing combination that consists of a new turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. Pfeiffer Vacuum offers you the new HiCube in Pro and Classic versions; available with dry or oil-sealed backing pump and an ultimate pressure of up to 5 • 10-10 mbar. Available as a version within the HiCube series that offers especially compact dimensions is the HiCube Eco with pumping speeds of 35 l/s to 67 l/s.
- Combination pumping station incorporating turbopump and backing pump for all high vacuum applications

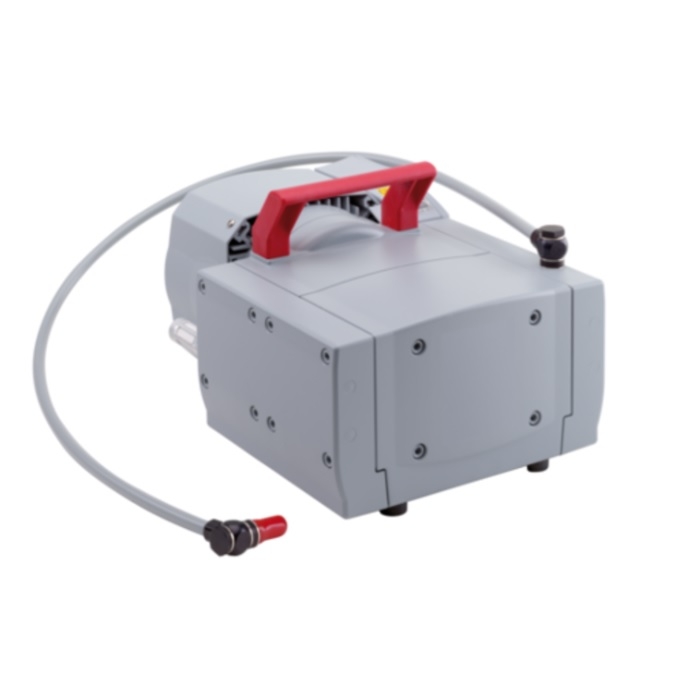

- Air-cooled and ready for operation with HiPace 400 and MVP 070-3 dry diaphragm backing pump
Unit is NEW and comes with a FULL 12-MONTH WARRANTY!

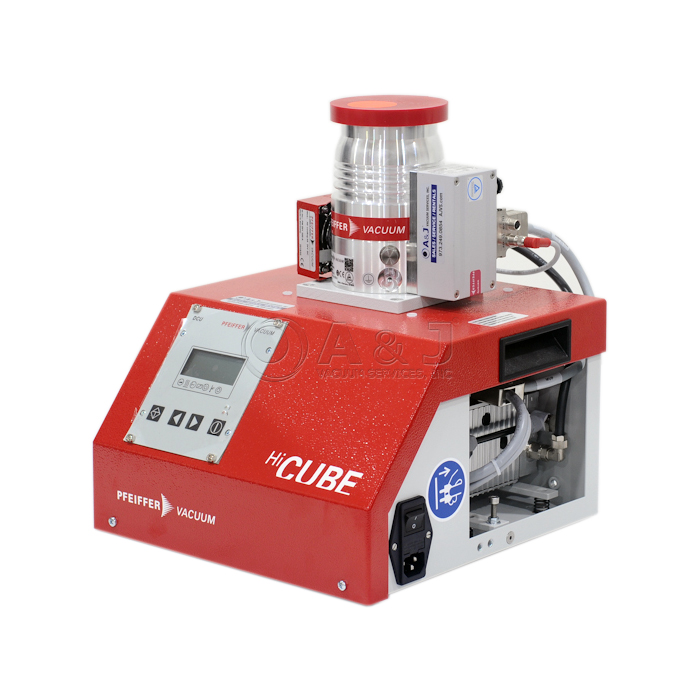

Pfeiffer HiCube80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), MVP015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PMS03556, PM015887-T
The Pfeiffer Vacuum HiCube80 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).
The Hicube 80 Station has a modern design with the latest turbo pump and electronics technology.
Features:
- Compact series of pumping stations for all high vacuum applications

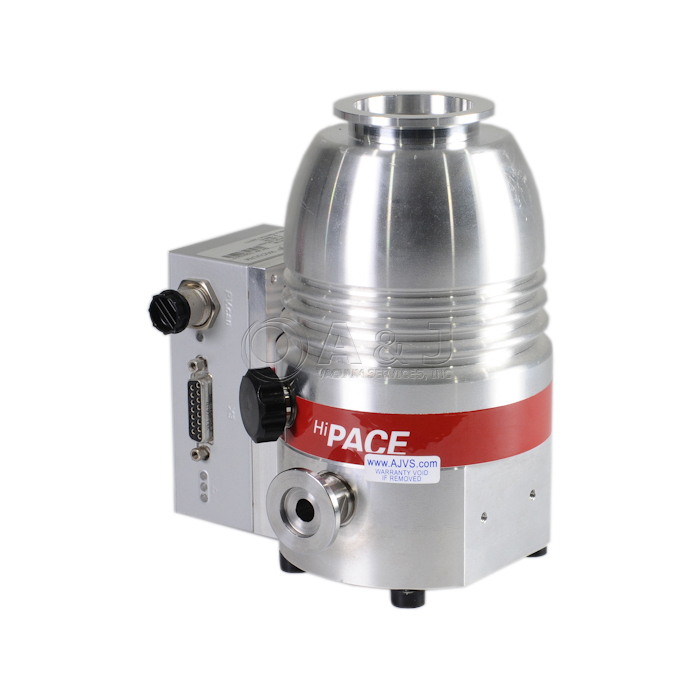

- Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015 Dry Diaphragm Backing Pump

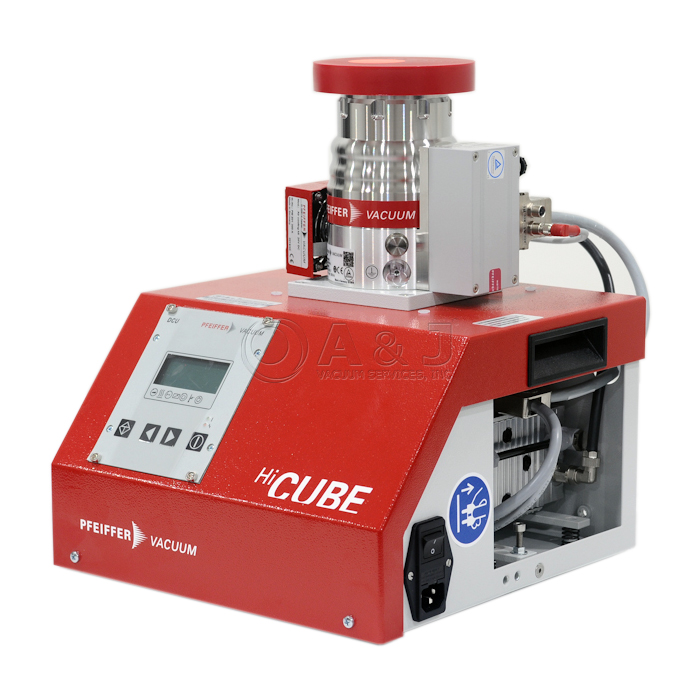

- Pfeiffer HiCube 80 Eco comes with DN 63 CF-F inlet flange
- DCU 002 Control Unit
- Pfieffer HiCube 80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
Typical High Vacuum Hicube80 Eco Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum also repair / rebuild and service all Pfeiffer TMH Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

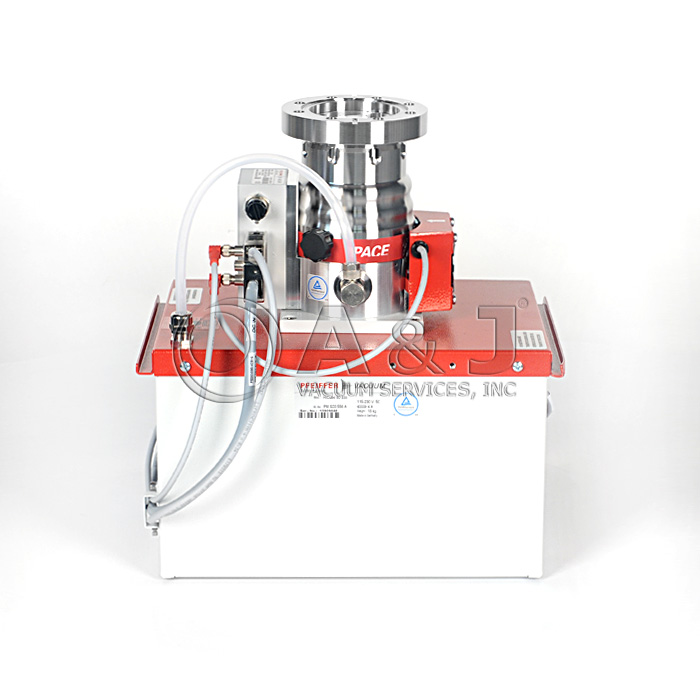

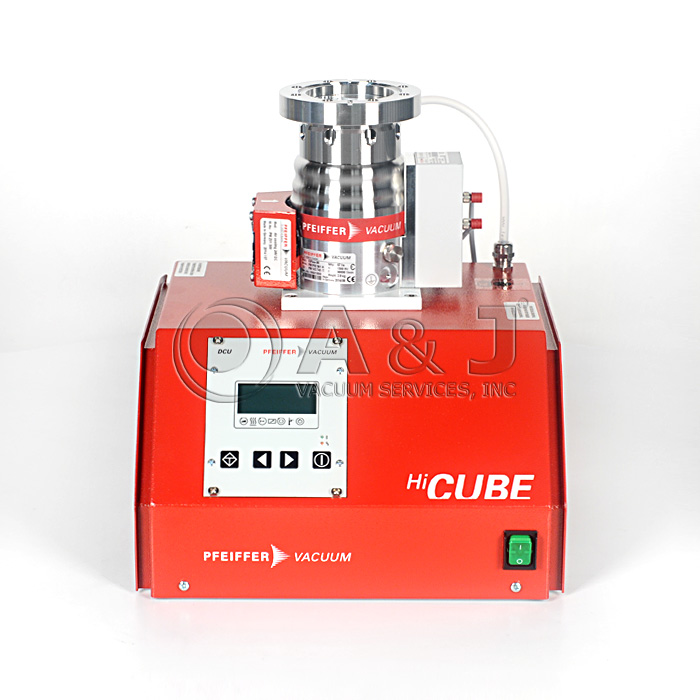

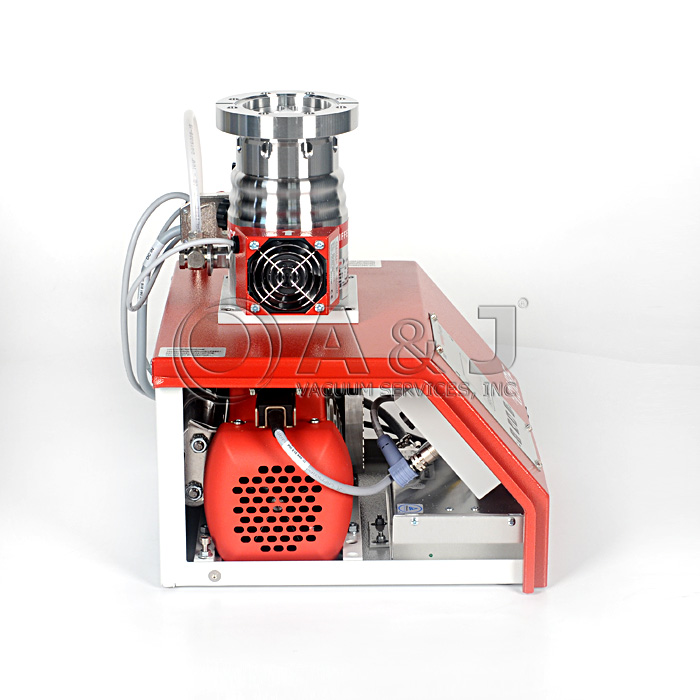

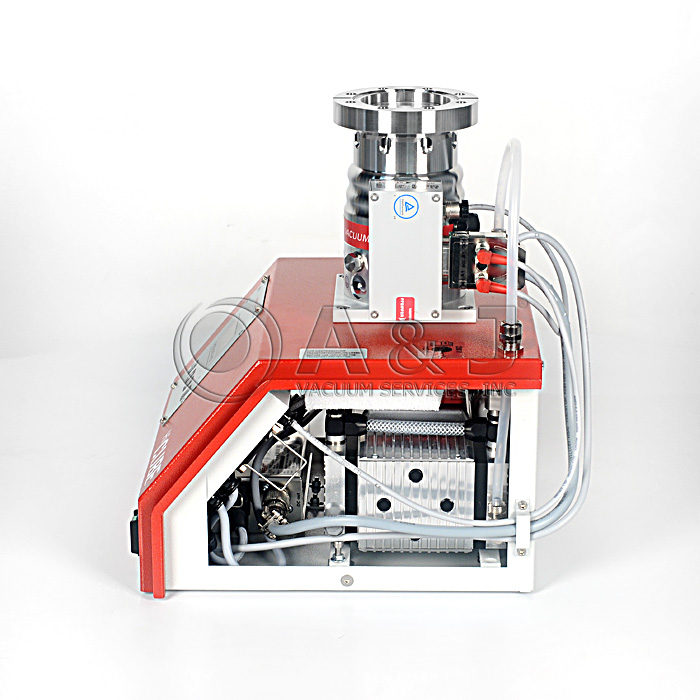

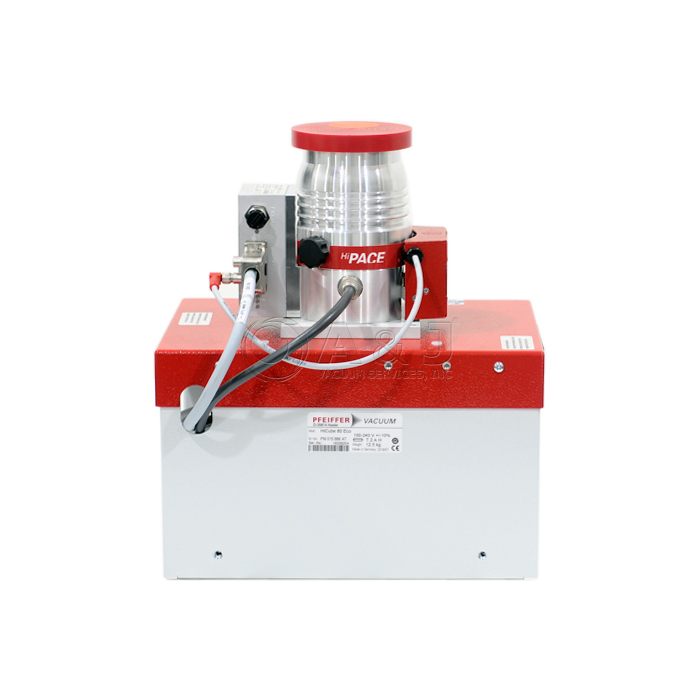

Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 ISO-K), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM015886-T / PMS03555
The Pfeiffer Vacuum HiCube80 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. ISO-K Inlet Flange makes this system trully High Vacuum (HV).
The Hicube 80 Station has a modern design with the latest turbo pump and electronics technology.
Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015 Dry Diaphragm Backing Pump

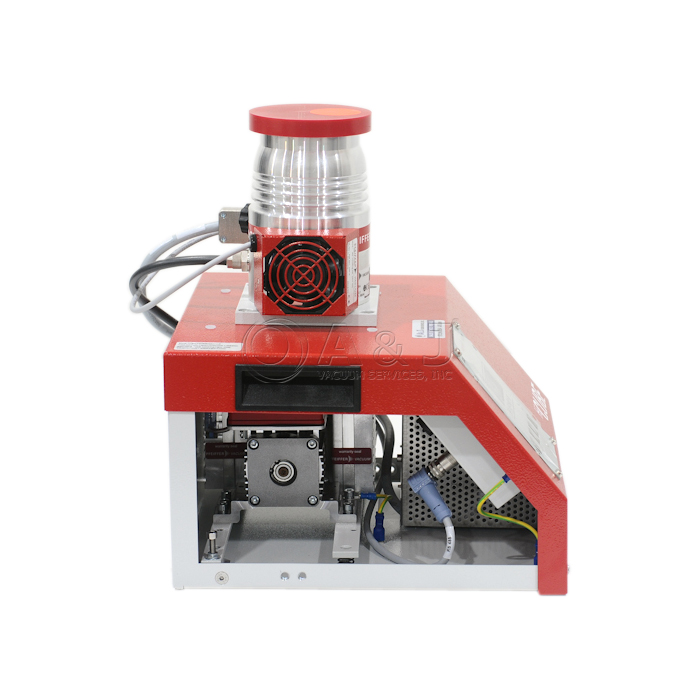

- Pfeiffer HiCube 80 Eco comes with DN 63 ISO-K inlet flange
- DCU 002 Control Unit
- Pfieffer HiCube 80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
Typical High Vacuum Hicube80 Eco Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum also repair / rebuild and service all Pfeiffer TMH Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 40 ISO-K), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PMS03557, PM015888-T
The Pfeiffer Vacuum HiCube80 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. ISO-K Inlet Flange makes this system trully High Vacuum (HV).
The Hicube 80 Station has a modern design with the latest turbo pump and electronics technology.
Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015 Dry Diaphragm Backing Pump
- Pfeiffer HiCube 80 Eco comes with DN 40 ISO-K inlet flange
- DCU 002 Control Unit
- Pfieffer HiCube 80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
Typical High Vacuum Hicube80 Eco Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum also repair / rebuild and service all Pfeiffer TMH Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer Turbo Station TSU065 Turbo, Fully Remanufactured TSU Turbo Pump with MVP055 Diaphragm Vacuum Pump, 115 VAC, TSU 065, ISO 63 Inlet Flange, PMK01608
Pfeiffer Vacuum Turbo Pumping system includes the following;
- Pfeiffer TMU 065 Turbo Pump / Pumping Speed 65 l/sec
- Pfeiffer MVP 055 Diaphragm backing Pump / Nominal Volume Flow Rate: 3.0 m3/h (50 Hz); 3.5 m3/h (60 Hz)
- TCP 015 Control Unit
Pfeiffer TSU 065 Turbo Pumping System is the complete one button operation Vacuum System.
The plug and play type pumping stations are fully automatically operating pumping units.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).
The Pfeiffer TMU 065 Pump has a wear free permanent magnetic bearing at the high vacuum side and an oil lubricated ceramic bearing at the backing side.
The Pfeiffer 065 Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
- TSH-065 comes with DN63 ISO-K Inlet Flange
- TSU-065 comes with DN63 CF-F Inlet Flange
The built in Pfeiffer TMU065 turbo pumps may only be used for the purpose of generating vacuum. They may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved. If the process produces dust, the maintenance intervals must be specified accordingly and sealing gas must be used (only for version "P").
If the TMU065 pump is to be operated with more than 50 percent of the permissible gas load, sealing gas must be used (only for version "P").
A&J Vacuum repair / rebuild and service all Pfeiffer TSU 065 / TSH 065 Turbo Pumping Systems along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Fully Remanufactured Pfeiffer TSH 521 Dry Turbo Pumping Station, ISO160 Including TMH521 Turbo Pump with MVP055 Diaphragm Vacuum Pump and DCU 001 Controller, 115 VAC, TSH 521 PMS1105100 with casters.
Pfeiffer PKR 251 High Vacuum Gauge Sensor and DN 160 ISO Inlet Screen included within this special package !
Pfeiffer Vacuum Turbo Pumping system includes the following;
- Pfeiffer TMH 521P Turbo Pump / Pumping Speed 500 l/sec
- Pfeiffer MVP 055 Diaphragm backing Pump / Nominal Volume Flow Rate: 3.0 m3/h (50 Hz); 3.5 m3/h (60 Hz)
- DCU 001 Digital Control Unit
Pfeiffer TSH 521 Turbo Pumping System is the complete one button operation Vacuum System.
The plug and play type pumping stations are fully automatically operating pumping units.
The Pfeiffer TSH integrated power part with the Display And Operating Unit DCU 001 serves to control and monitor the pumping station and works in conjunction with the Electronic Drive Unit TC 600.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).
The Pfeiffer TMH-521 Pump has a wear free permanent magnetic bearing at the high vacuum side and an oil lubricated ceramic bearing at the backing side.
The Pfeiffer 521 Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
- TSH-521 comes with DN160 ISO-K Inlet Flange
- TSU-521 comes with DN160 CF-F Inlet Flange
The built in Pfeiffer TMH 521 P turbo pumps may only be used for the purpose of generating vacuum. They may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved. If the process produces dust, the maintenance intervals must be specified accordingly and sealing gas must be used (only for version "P").
If the TMH 521 P pump is to be operated with more than 50 percent of the permissible gas load, sealing gas must be used (only for version "P").
The plug and play type pumping stations are fully automatically operating pumping units.
The integrated power part with the Display And Operating Unit DCU 001 serves to control and monitor the pumping station and works in conjunction with the Electronic Drive Unit TC 600.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).
Click Here for Pfeiffer TSH 071, TSH 261, TSH 521 Operation Manual https://www.ajvs.com/library/Pfeiffer_Vacuum_TSH_071_261_521.pdf_2_Manual.pdf
A&J Vacuum repair / rebuild and service all Pfeiffer TSH 521 / TMH521 Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Pfeiffer Vacuum TSU 261 Turbo Pumping Station, TMU261 Turbo Pump with MVP 055 Diaphragm Vacuum Pump, 115 VAC, PMS0801100
Pfeiffer Vacuum Turbo Pumping system includes the following;
- Pfeiffer TMU 261P Turbo Pump
- Pfeiffer MVP 055 Diaphragm backing Pump
- DCU 001 Digital Control Unit
Pfeiffer TSH 261 Turbo Pumping System is the complete one button operation Vacuum System.
The plug and play type pumping stations are fully automatically operating pumping units.
The integrated power part with the Display And Operating Unit DCU 001 serves to control and monitor the pumping station and works in conjunction with the Electronic Drive Unit TC 600.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).
The Pfeiffer Vacuum TMH261 YPX unit has a wear free permanent magnetic bearing at the high vacuum side and an oil lubricated ceramic bearing at the backing side.
The Pfeiffer 261 YPX Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
- TMH261YPX comes with DN100 ISO-K Inlet Flange
- TMU261YPX comes with DN100 CF-F Inlet Flange
The built in Pfeiffer TMH 261 YPX turbo pumps may only be used for the purpose of generating vacuum. They may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved. If the process produces dust, the maintenance intervals must be specified accordingly and sealing gas must be used (only for version "P").
If the TMH 261 YP pump is to be operated with more than 50 percent of the permissible gas load, sealing gas must be used (only for version "P").
Click Here for Pfeiffer TSH 071, TSH 261, TSH 521 Operation Manual https://www.ajvs.com/library/Pfeiffer_Vacuum_TSH_071_261_521.pdf_2_Manual.pdf
Click Here for Pfeiffer TMH 261 YPX Operation Manual PMP03534 https://www.ajvs.com/library/Pfeiffer_Vacuum_TMH_261_261_P_Manual.pdf
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum TMH261 Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The plug and play type pumping stations are fully automatically operating pumping units.
The integrated power part with the Display And Operating Unit DCU 001 serves to control and monitor the pumping station and works in conjunction with the Electronic Drive Unit TC 600.
Cooling:
Standard type: Air cooling integrated in the casing
(up to 35 °C ambient temperature).
