- Fully Dry Turbo Pumping System
- Hiscroll 6 Scroll pump with Hipace 80 Turbo Pump
- Turbo Pumping speed (N2): 67 l/s
- Scroll Pumping speed 3.59 CFM
Remanufactured Pfeiffer Vacuum HiCube 80 Classic Turbo Station, with Hipace 80 Turbo Pump Hiscroll 6 Scroll Pump, DN 40 KF, 110 V AC
Pfeiffer HiCube 80 Classic Overview
The HiCube 80 Classic pumping station is equipped with Hiscroll 6 dry scroll backing pump with pumping speed of 3.59 CFM and Hipace 80 Turbo pump with DN 40 KF Inlet flange and pumping speed (N2): 67 l/s.
Fiully air cooled system with 4 guiding rollers with 2 brakes are included.
System is also equipped with automatic venting valve.
With the modular design principle of the new Pfeiffer HiCube 80 series, the never-before-seen versatility will satisfy the widest range of requirements in the pumping speeds
Fully configured and ready for immediate employment, the turbopump and backing pump offer a perfect interplay: “Plug and Play” the way you want it.
The HiCube mobile turbopumping station sets new standards: It offers a convincing combination that consists of a new turbopump from the HiPace series and a backing pump designed for the user’s specific application needs.
Pfeiffer HiCube 80 Classic Features
- 10-10 mbar. Available as a version within the HiCube series that offers especially compact dimensions is the HiCube Eco with pumping speeds of 67 l/s.
- HiCube 80 Clasic Station is a Combination pumping station incorporating turbopump and backing pump for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 and Hiscroll 6 dry backing pump
Pfeiffer HiCube 80 Classic Product Description
Pfeiffer HiCube 80 Classic Dimensions
Click Here for Pfeiffer HiCube Classic Turbo Station Manual
Click Here for Pfeiffer MVP 040 Diaphragm Pump Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S22 240 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Remanufactured Pfeiffer Vacuum HiCube 80 Classic Turbo Station, with Hipace 80 Turbo Pump Hiscroll 6 Scroll Pump, DN 40 KF, 110 V AC
Pfeiffer HiCube 80 Classic Technical Data
Pfeiffer Backing pump Hiscroll 6 / PD S10 000 B / PDS10000B
- Pumping speed 3.59 CFM
Pfeiffer Turbo Pump Hipace 80 / PM P03 942 / PMP03942
- Pumping speed (N2): 67 l/s
- Inlet flange: DN 40 ISO-KF
- Compression ratio (N2): > 1 x 10-11
- Integrated TC 110 Drive Electronics
Pfeiffer DCU 001 Contrller / PM 061 348-T / PM061348
Pfeiffer TPS 110 / PM 061 340 / PM061340
Click Here for Pfeiffer HiCube Classic Turbo Station Manual
Click Here for Pfeiffer MVP 040 Diaphragm Pump Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S22 240 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

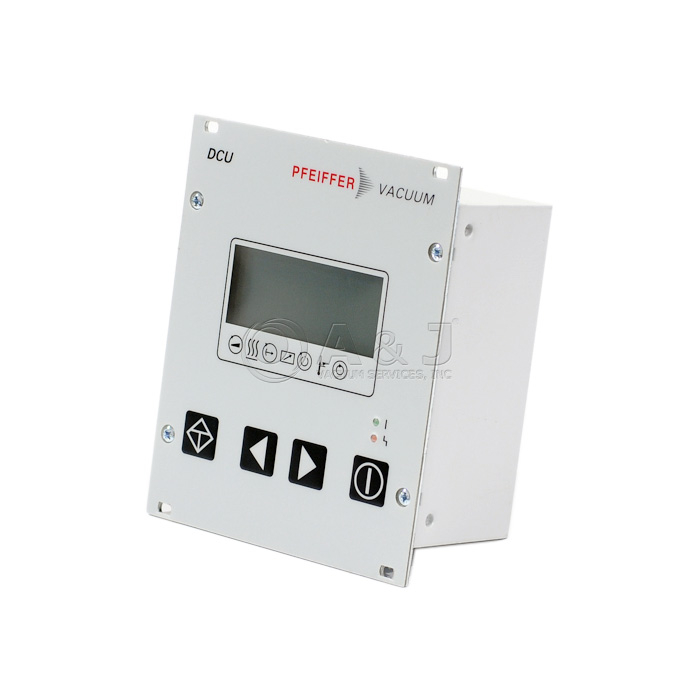

Pfeiffer DCU 002, DCU 110, DCU 180, DCU 310, DCU 400
Pfeiffer HiCube Classic Series User Manual
Pfeiffer HiPace 80 Operation Manual
Pfeiffer Hiscroll 6 Pump manual, Hi Scroll 6 Dry pump, PDS10000
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Remanufactured Pfeiffer Vacuum HiCube 80 Classic Turbo Station, with Hipace 80 Turbo Pump Hiscroll 6 Scroll Pump, DN 40 KF, 110 V AC
Pfeiffer HiCube 80 Classic Overview
The HiCube 80 Classic pumping station is equipped with Hiscroll 6 dry scroll backing pump with pumping speed of 3.59 CFM and Hipace 80 Turbo pump with DN 40 KF Inlet flange and pumping speed (N2): 67 l/s.
Fiully air cooled system with 4 guiding rollers with 2 brakes are included.
System is also equipped with automatic venting valve.
With the modular design principle of the new Pfeiffer HiCube 80 series, the never-before-seen versatility will satisfy the widest range of requirements in the pumping speeds
Fully configured and ready for immediate employment, the turbopump and backing pump offer a perfect interplay: “Plug and Play” the way you want it.
The HiCube mobile turbopumping station sets new standards: It offers a convincing combination that consists of a new turbopump from the HiPace series and a backing pump designed for the user’s specific application needs.
Pfeiffer HiCube 80 Classic Features
- 10-10 mbar. Available as a version within the HiCube series that offers especially compact dimensions is the HiCube Eco with pumping speeds of 67 l/s.
- HiCube 80 Clasic Station is a Combination pumping station incorporating turbopump and backing pump for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 and Hiscroll 6 dry backing pump
Pfeiffer HiCube 80 Classic Product Description
Pfeiffer HiCube 80 Classic Dimensions
Click Here for Pfeiffer HiCube Classic Turbo Station Manual
Click Here for Pfeiffer MVP 040 Diaphragm Pump Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S22 240 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Specifications
Remanufactured Pfeiffer Vacuum HiCube 80 Classic Turbo Station, with Hipace 80 Turbo Pump Hiscroll 6 Scroll Pump, DN 40 KF, 110 V AC
Pfeiffer HiCube 80 Classic Technical Data
Pfeiffer Backing pump Hiscroll 6 / PD S10 000 B / PDS10000B
- Pumping speed 3.59 CFM
Pfeiffer Turbo Pump Hipace 80 / PM P03 942 / PMP03942
- Pumping speed (N2): 67 l/s
- Inlet flange: DN 40 ISO-KF
- Compression ratio (N2): > 1 x 10-11
- Integrated TC 110 Drive Electronics
Pfeiffer DCU 001 Contrller / PM 061 348-T / PM061348
Pfeiffer TPS 110 / PM 061 340 / PM061340
Click Here for Pfeiffer HiCube Classic Turbo Station Manual
Click Here for Pfeiffer MVP 040 Diaphragm Pump Manual
Click Here for Pfeiffer HiPace 80 Turbo Pump Manual
A&J Vacuum repair / rebuild and service all Pfeiffer Hicube80 Classic Turbo Pumping Stations PM S22 240 00 along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
