Pfeiffer Vacuum HiPace 300 Turbo Pump with TC 110 Controller and OPS 100 Power Supply, DN 100 CF-F, 2000015240 / PM P04 331 / PMP04331
Pfeiffer HiPace 300 Features:
- Rugged, powerful turbopump with a pumping speed of up to 260 l/s für N2
- DN 100 CF-F flange
- Drive electronics TC 110 and power supply OPS 100 integrated
- Ideal for analytical and industrial applications
- For installation in any orientation
- Extensive accessories expand the range of applications
HiPace 300 / PMP04331 Overview:
The Pfeiffer HiPace 300 PMP04331 DN 100 CF-F is a complete line of compact yet powerful turbopump featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation.
The Pfeiffer Hipace 300 Turbo Vacuum Pump's proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The turbopump HiPace 300 forms a complete unit together with the electronic drive unit TC 110. This turbopump offers water as well as air cooling. This pump has not integrated power supply. This HiPace 300 PM P04 331 Pfeiffer Vacuum Pump comes with TC 110 Controller and OPS 100 Power Supply.
Complete Operating Instruction for HiPace 300 PM P04 331 is available in PDF format below.
HiPace300 Scope of Delivery:
- Turbopump with electronic drive unit
- Protective cover for the high vacuum connection
- Protective cover for the fore-vacuum connection
- Operating instructions
HiPace300 Applications:
- Automotive and Transport
- Battery
- Chemical
- Fish farming
- Hydrogen Economy
- Medical
- Metallurgy
- Pharma and Biotech
- Power Generation
- R&D
- Refrigeration and Air Condition
- Scientific Instruments
- Semiconductor
- Technical Gases
- Thin Film Coating
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 PM P04 331 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum HiPace 300 Turbo Pump with TC 110 Controller and OPS 100 Power Supply, DN 100 CF-F, 2000015240 / PM P04 331 / PMP04331
Pfeiffer HiPace 300 Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | 1 · 1011 |
| Compression ratio for H2 | 9 · 105 |
| Compression ratio for He | 1 · 108 |
| Compression ratio for N2 | 1 · 1011 |

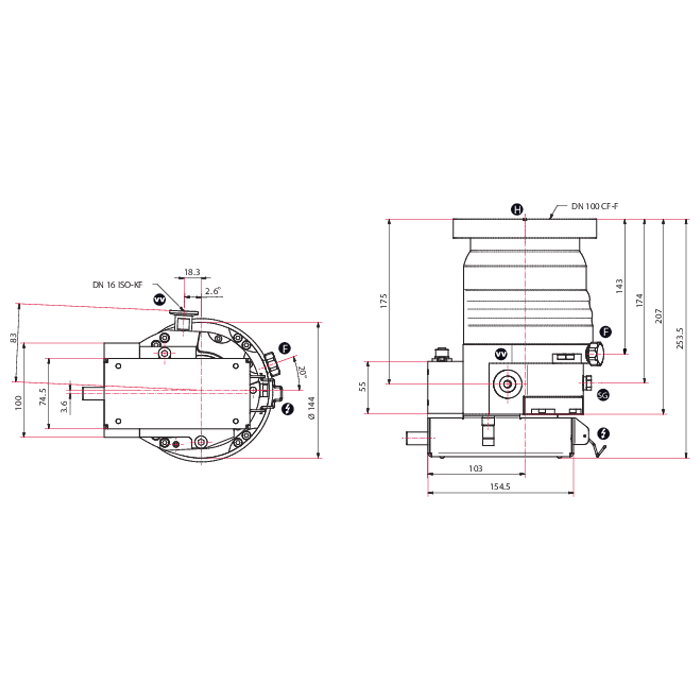

| Connection flange | DN 100 CF-F / DN 16 ISO-KF | G 1/4" Thread |
| Connection flange (in) | DN 100 CF-F |
| Connection flange (out) | DN 16 ISO-KF | G ¼" |
| Cooling method | Natural convection |
| Cooling method, optional | Air (forced convection) |
| Current, max. | 3.8 A |
| Electronic drive unit | TC 110 |
| Emission sound pressure level (EN ISO 2151) | ≤50 dB(A) |
| Fore-vacuum max. for N2 | 11 hPa | 8.25 Torr | 11 mbar |
| Gas throughput at final rotational speed for Ar | 0.5 hPa·l/s |
| Gas throughput at final rotational speed for H2 | 5 hPa·l/s |
| Gas throughput at final rotational speed for He | 1.8 hPa·l/s |
| Gas throughput at final rotational speed for N2 | 0.9 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Input voltage(s) | 24 V DC (±10 %) |
| Integral leak rate | 1 · 10-8 Pa m³/s | 7.5 · 10-8 Torr l/s | 1 · 10-7 mbar l/s |
| Interfaces, extended | Profibus DeviceNet E74 |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Mounting orientation | Arbitrary |
| Permissible magnetic field max. | 5.5 mT |
| Position of power supply pack | Integrated power supply pack |
| Power consumption max. | 100 W |
| Protection degree | IP30 |
| Pumping principle | Dry |

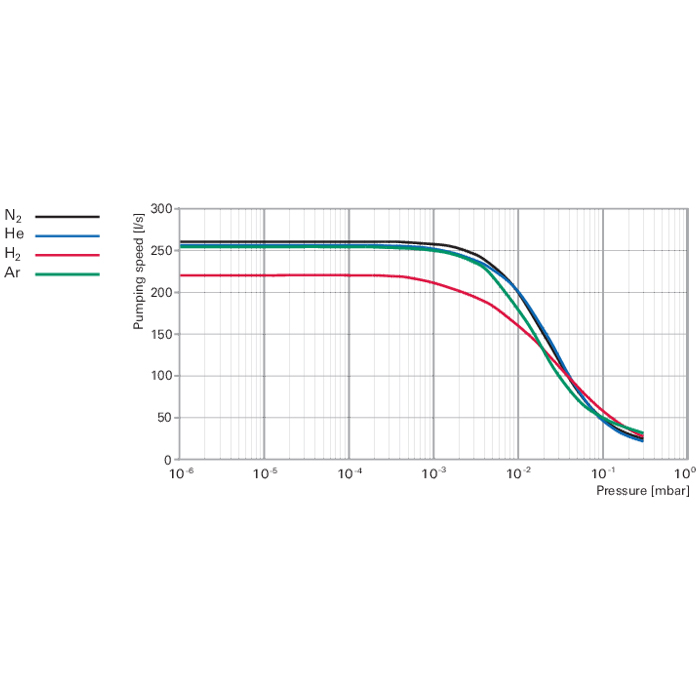

| Pumping speed | 792 – 936 m³/h | 466.17 – 550.93 cfm | 13,200.03 – 15,600.03 l/min |
| Pumping speed for Ar | 255 l/s |
| Pumping speed for H2 | 220 l/s |
| Pumping speed for He | 255 l/s |
| Pumping speed for N2 | 260 l/s |
| Rotation speed variable | 35 - 100 % |
| Rotation speed ± 2 % | 60,000 rpm | 60,000 min-1 |
| Run-up time | 4 min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | 5 · 10-10 hPa | 3.75 · 10-10 Torr | 5 · 10-10 mbar |
| Venting connection | G 1/8" |
| Weight | 8.9 kg | 19.62 lb |
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 PM P04 331 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer HiPace 300 Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
