- Nominal diameter DN 25 ISO-KF
- Measurement range 1 · 10-4 – 1.2 · 103 hPa
- Filament Tungsten
- Materials in contact with media Stainless steel, Tungsten, gold, silicon oxide, glass
Shopping Cart ( )

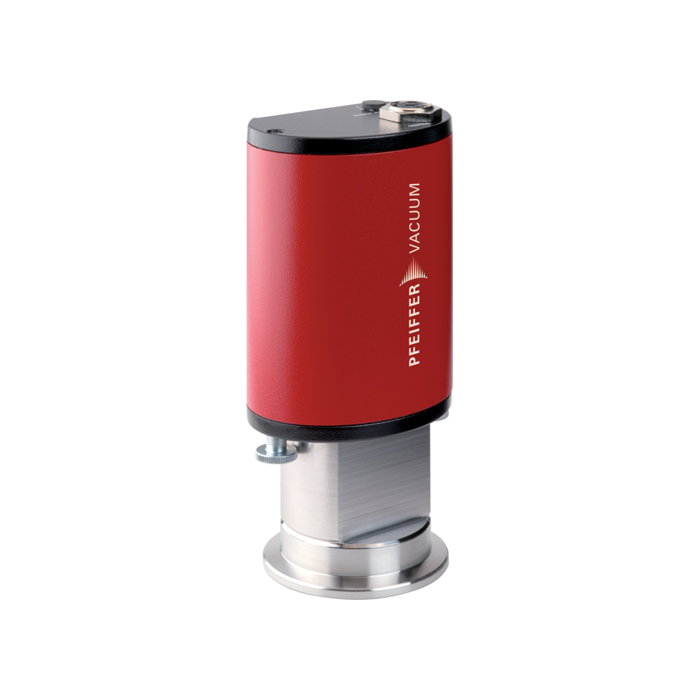

Pfeiffer Vacuum HPT 200 AR Digital Pirani/Bayarrd-Alpert Combination Gauge, RS-485, Analog 0-10 V, DN 25 ISO-KF, 2000006360 / PT R39 141 A / PTR39141A
Condition:
New
Item#:PN23061
Mfr Part#:2000006360 / PT R39 141 A / PTR39141A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum HPT 200 AR Digital Pirani/Bayarrd-Alpert Combination Gauge, RS-485, Analog 0-10 V, DN 25 ISO-KF, 2000006360 / PT R39 141 A / PTR39141A
Overview:
The Pfeiffer Vacuum HPT 200 gauge affords accurate measurements from 5 · 10-10 hPa to atmospheric pressure. With its rugged metallic case and digital interface it is particularly suited for operation in vacuum and other systems.
PPT200 Pirani Gauge Measurement range from 5 · 10-10–1000 hPa. Increased accuracy up to ±10 %
The HPT200 Pirani gauge has a combined Pirani and Bayard-Alpert sensor
Dimensions:
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
A&J Vacuum services and repairs Pfeiffer Vacuum Measurement, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum HPT 200 AR Digital Pirani/Bayarrd-Alpert Combination Gauge, RS-485, Analog 0-10 V, DN 25 ISO-KF, 2000006360 / PT R39 141 A / PTR39141A
Technical Data:
| Accuracy: 1 · 10-8 – 1 hPa | ± 10 % |
| Accuracy: 20 – 1000 hPa | ± 30 % |
| Ambient temperature | 5-60 °C | 41-140 °F | 278-333 K |
| Bakeout temperature at the flange | 180 °C | 356 °F | 453 K |
| Filament | Iridium coated with Y2O3 |
| I/O interfaces | RS-485, Analog 0-10 V |
| Materials in contact with media | Tungsten, stainless steel, nickel, glass, ceramics |
| Measurement range | 5 · 10-10 – 1 · 103 hPa |
| Measuring cycle | 10 ms |
| Method of measurement | Pirani/Bayard-Alpert |
| Nominal diameter | DN 25 ISO-KF |
| Number of filaments | 2 |
| Pressure max. | 4,000 hPa | 3,000 Torr | 4,000 mbar |
| Protection category | IP54 |
| Repeatability: 1 · 10-2 – 10 hPa | ± 2 % |
| Repeatability: 1 · 10-8 – 1 · 10-2hPa | ± 5 % |
| Seal | Metal |
| Sensor cable length min. | 100 m |
| Supply: power consumption | 9 W |
| Supply: Power consumption max. | 9 W |
| Temperature: Storage | -40-60 °C | -40-140 °F | 233-333 K |
| Weight | 475 g |
A&J Vacuum services and repairs Pfeiffer Vacuum Measurement, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
