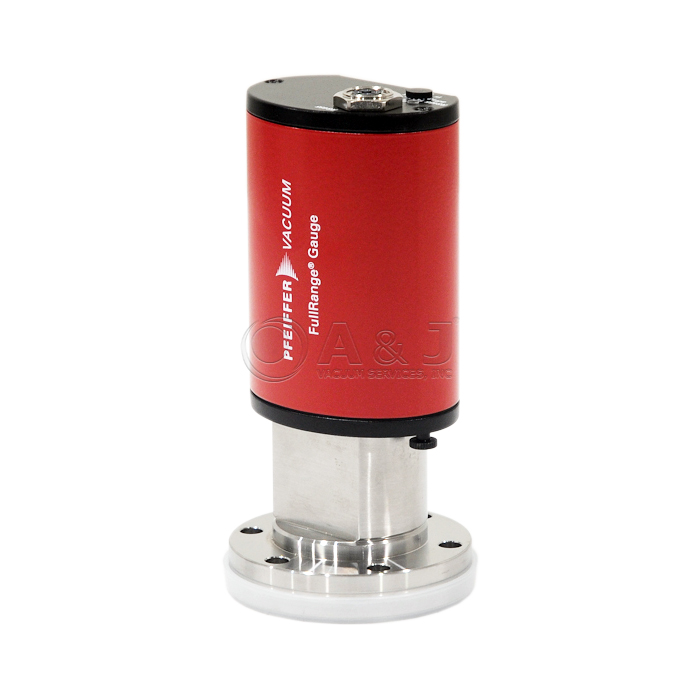

Pfeiffer Vacuum HPT 200, Digital Pirani/Bayarrd-Alpert Combination Gauge, RS-485, DN 40 CF-F, 2000006386 / PT R39 350 A / PTR39350A
Condition:
New
Item#:PN23068
Mfr Part#:2000006386 / PT R39 350 A / PTR39350A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum HPT 200, Digital Pirani/Bayarrd-Alpert Combination Gauge, RS-485, DN 40 CF-F, 2000006386 / PT R39 350 A / PTR39350A
HPT 200 / 2000006386 Overview:
The Pfeiffer Vacuum HPT 200 gauge affords accurate measurements from 5 · 10-10 hPa to atmospheric pressure. With its rugged metallic case and digital interface it is particularly suited for operation in vacuum and other systems.
PPT200 Pirani Gauge Measurement range from 5 · 10-10–1000 hPa. Increased accuracy up to ±10 %.
The HPT200 Pirani gauge has a combined Pirani and Bayard-Alpert sensor.
A&J Vacuum services and repairs Pfeiffer Vacuum Measurement, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum HPT 200, Digital Pirani/Bayarrd-Alpert Combination Gauge, RS-485, DN 40 CF-F, 2000006386 / PT R39 350 A / PTR39350A
Pfeiffer HPT 200 Technical Data:
| Ambient temperature | 5 – 60 °C | 41 – 140 °F | 278.15 – 333.15 K |
| Bake-out temperature, at the flange (supply voltage switched off) | 180 °C | 356 °F | 453.15 K |
| Connecting flange | DN 40 CF-F |
| Dimensions (L x W x H) | 145 x 66 x 45 mm | 5.71 x 2.6 x 1.77 inch |
| Electrical connection | RS485, M12, 5-polig, A, female |
| Filament | Iridium coated with Y2O3 |
| Flange, material | Stainless steel 1.4307 (AISI 304L) |
| I/O interfaces | RS-485 |
| Input voltage(s) | 24 V DC |
| Leakage rate | 5 · 10-10 mbar l/s |
| Materials in contact with media | Ni Glass Y2O3 Platinum/iridium Stainless steel 1.4307 (AISI 304L) W |
| Measurement accuracy in range 1 | 10 % (of measured value) (1E-8 hPa – 1E1 hPa) |
| Measurement accuracy in range 2 | 30 % (of measured value) (1E1 hPa – 1E3 hPa) |
| Measurement cable length | 100 m |
| Measurement method | Bayard-Alpert Pirani |
| Measurement range | 5E-10 – 1E3 hPa | 3.75 · 10-10 – 750 Torr | 5 · 10-10 – 1,000 mbar |
| Measuring cycle | 10 ms |
| Mounting orientation | Arbitrary |
| Number of filaments | 2 |
| Power consumption max. | 9 W |
| Pressure max. | 4 · 103 hPa | 3,000 Torr | 4,000 mbar |
| Protection degree | IP54 |
| Repeatability in range 1 | 5 % (of measured value) (1E-8 hPa – 1E-2 hPa) |
| Repeatability in range 2 | 2 % (of measured value) (1E-2 hPa – 10 hPa) |
| Response time | 50 ms |
| Seal | Metal |
| Weight | 0.67 kg | 1.48 lb |
