Pfeiffer Vacuum MPT 200 AR, Digital Pirani / Compact Cold Cathode Vacuum Gauge with Display Metal Sealed, DN 25 ISO-KF, Analog, 2000006447 / PT R45 141 / PTR45141

Main image
Image 1 Image 2 Image 3 Image 4
Condition: New
Item#:PN31567
Mfr Part#:2000006447 / PT R45 141 / PTR45141
Manufacturer:Pfeiffer Vacuum
PRICE:
$2,200.00
YOU PAY:
$2,224.80
Request a repair estimate Request sales quote Financing available
New Pfeiffer Vacuum MPT 200 AR, Digital Pirani / Compact Cold Cathode Vacuum Gauge with Display Metal Sealed, DN 25 ISO-KF, Analog, 2000006447 / PT R45 141 / PTR45141
Features:
  • Flange Size: DN 25 ISO-KF
  • Measurement Range From 5 x 10-9 to 1000 hPa
  • Interface Digital RS-485, Analog 0-10 V, Display
  • Two Gauge Heads in One PT R40 350
  • Overview
  • Specifications
  • Manuals
  • MFR Brochures
  • Spare Parts
  • Accessories
  • Service & Repair
12 months warranty

Pfeiffer Vacuum MPT 200 AR, Digital Pirani / Compact Cold Cathode Vacuum Gauge with Display Metal Sealed, DN 25 ISO-KF, Analog, 2000006447 / PT R45 141 / PTR45141



Pfeiffer MPT 200 AR Features:

  • Flange Size: DN 25 ISO-KF
  • Accuracy : % of measurement 1x10-8 - 2x10-3 hpa
  • Measurement Range max 1000 hPa - 750 torr - 1000 mbar
  • Measurement Range min 5 x 10-9 hPa - 3.75 x 10-9 torr - 5 x 10-9 mbar
  • Two Gauge Heads (Pirani and cold cathode) in a Single Case (inverted magnetron)
  • Measuring Cycle; 10ms
  • Corrosion-Resistant
  • Maximum Pressure 4,000 hpa - 3,000 Torr - 4,000 mbar
  • Interface Digital RS-485, M12 f 5-pole
  • Materials in contact with media; Tungsten, Steinless Steel, Nickel, Molybdenum, Glass
  • Bakeout Temperature max; 180*C - 356*F - 453K
  • Weight 555g

MPT 200 AR / 2000006447 Overview:

The Pfeiffer Vacuum MPT200 Gauge has been designed for vacuum measurement of gases in a pressure range of 5 x 10-9 through 1 x 10 3 hPa.

MPT200 Digital Pirani gauge must not be used for measuring flammable or combustible gases in mixtures containing oxidants (e.g. atmospheric oxygen) within the explosion range.

The MPT200 Digital Pirani gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one uniform measurement signal is output.

This item is non-returnable/non-refundable

Pfeiffer Vacuum MPT 200 AR, Digital Pirani / Compact Cold Cathode Vacuum Gauge with Display Metal Sealed, DN 25 ISO-KF, Analog, 2000006447 / PT R45 141 / PTR45141



Pfeiffer MPT 200 AR Technical Data:

Ambient temperature 5 – 60 °C  |  41 – 140 °F |  278.15 – 333.15 K
Anode Mo
Bake-out temperature, at the flange (supply voltage switched off) 160 °C |  320 °F |  433.15 K
Connecting flange DN 25 ISO-KF

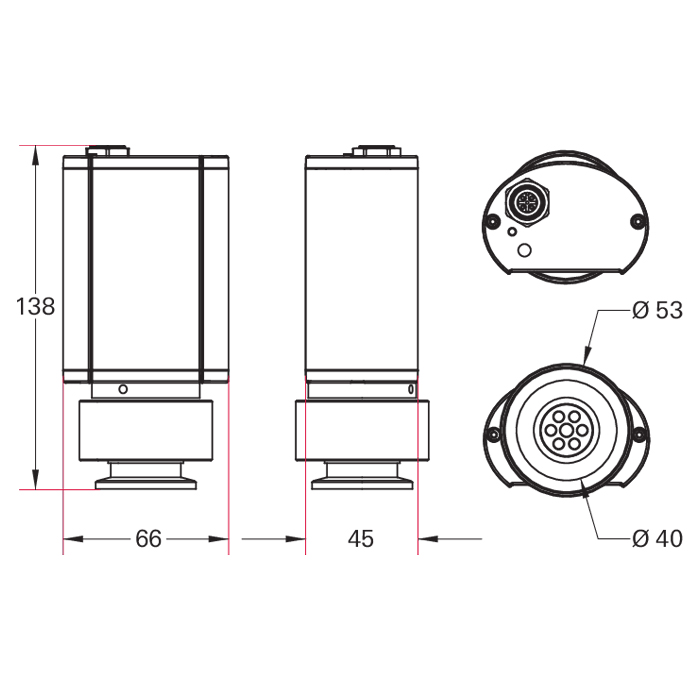

Dimensions (L x W x H) 138 x 66 x 45 mm  |  5.43 x 2.6 x 1.77 inch
Display LCD, backlit
Electrical connection RS485, M12, 5-polig, A, female or Analog, M12, 8-polig, A, female
Flange, material Stainless steel 1.4307 (AISI 304L)
I/O interfaces RS-485, analog 0 – 10 V, display
Input voltage(s) 20 – 30 V DC
Leakage rate 5 · 10-10 mbar l/s
Materials in contact with media Glass
Ni
Ceramic (Al2O3 = 99.5 %)
Mo
Stainless steel 1.4307 (AISI 304L)
W
Measurement accuracy in range 1 25 % (of measured value) (1E-8 hPa – 2E-3 hPa)
Measurement accuracy in range 2 10 % (of measured value) (2E-3 hPa – 1E1 hPa)
Measurement accuracy in range 3 30 % (of measured value) (1E1 hPa – 1E3 hPa)
Measurement cable length 100 m
Measurement method Cold cathode
Pirani
Measurement range 5E-9 – 1E3 hPa  |  3.75 · 10-9 – 750 Torr |  5 · 10-9 – 1,000 mbar
Measuring cycle 10 ms
Mounting orientation Arbitrary
Output signal: Measuremen range 1.82 – 8.6 V
Output signal: Minimum load 10 kΩ
Power consumption max. 3.9 W
Pressure max. 1 · 104 hPa |  7,500 Torr |  10,000 mbar
Protection degree IP54
Relay: number 2 pcs.
Relay: switching voltage 30 V DC / 49 V AC
Repeatability in range 1 7 % (of measured value) (1E-8 hPa – 1E-2 hPa)
Repeatability in range 2 2 % (of measured value) (1E-2 hPa – 10 hPa)
Response time 50 ms
Seal Metal
Special feature Cold Cathode sensor can be switched on and off via interface
User interface Display
Weight 0.555 kg  |  1.22 lb
