Found 5 products
Item#: PN19696 Mfr Part#: PTR40140 Manufacturer: Pfeiffer Vacuum
PRICE: $2,750.00
WEB SAVINGS: $600.00
YOU PAY: $2,150.00

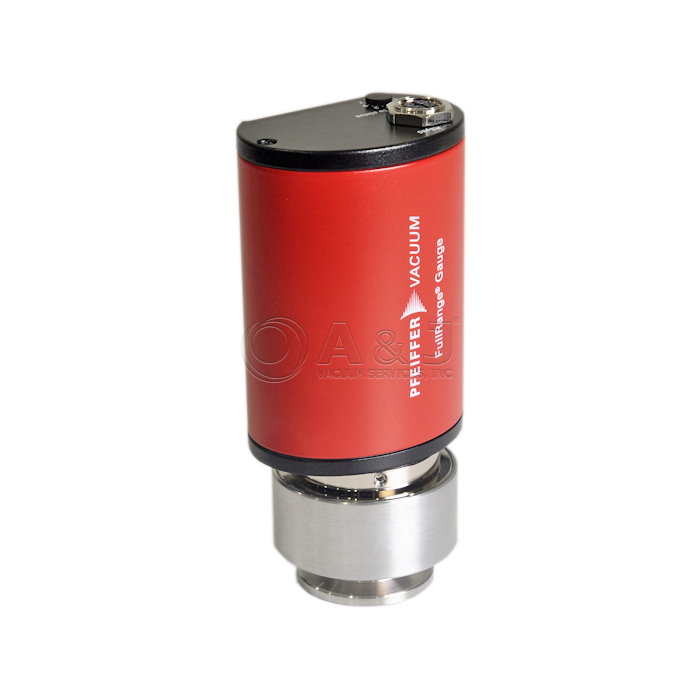

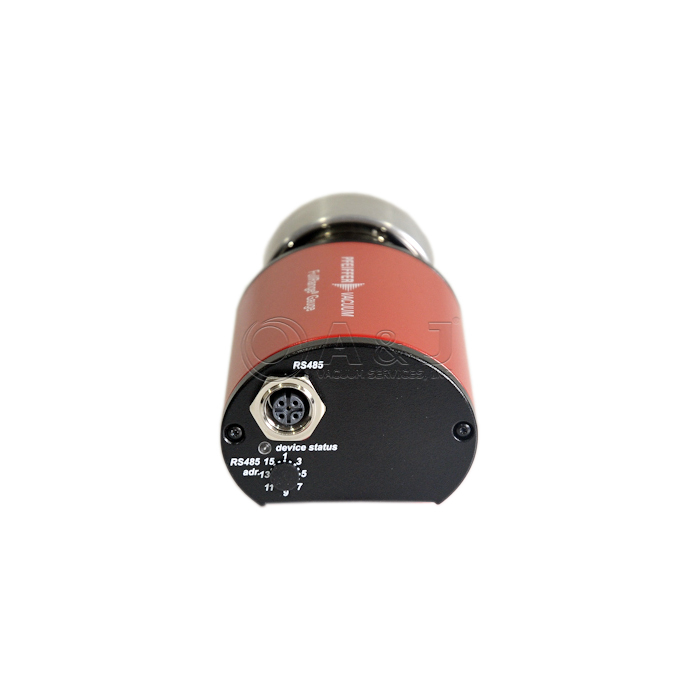

Pfeiffer Vacuum MPT 200 Digital Pirani / Compact Cold Cathode Vacuum Gauge, Metal Sealed, DN 25 ISO-KF, PTR40140

Pfeiffer MPT 200 Gauge Overview:

The Pfeiffer Vacuum MPT200 Gauge has been designed for vacuum measurement of gases in a pressure range of 5 x 10-9 through 1000 mbar.

MPT200 Digital Pirani gaugemust not be used for measuring flammable or combustible gases in mixtures containing oxidants (e.g. atmospheric oxygen) within teh explosion range.

The MPT200 Digital Pirani gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one uniform measurement signal is output.

Features:

  • Flange Size: DN 25 ISO-KF
  • Accuracy : % of measurement 1x10-8 - 2x10-3 hpa
  • Measurement Range max 1000 hPa - 750 torr - 1000 mbar
  • Measurement Range min 5 x 10-9 hPa - 3.75 x 10-9 torr - 5 x 10-9 mbar
  • Two Gauge Heads (Pirani and cold cathode) in a Single Case (inverted magnetron)
  • Measuring Cycle; 10ms
  • Corrosion-Resistant
  • Maximum Pressure 4,000 hpa - 3,000 Torr - 4,000 mbar
  • Interface Digital RS-485, M12 f 5-pole
  • Materials in contact with media; Tungsten, Steinless Steel, Nickel, Molybdenum, Glass
  • Bakeout Temperature max; 180*C - 356*F - 453K
  • Weight 555g

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New In Stock
Item#: PN23073 Mfr Part#: PT R40 141 / PTR40141 Manufacturer: Pfeiffer Vacuum
PRICE: $2,700.00
WEB SAVINGS: $470.00
YOU PAY: $2,230.00

Pfeiffer Vacuum MPT 200 AR, Pirani/Cold cathode Combination Gauge, RS-485, Analog 0-10 V, DN 25 ISO-KF, PT R40 141 / PTR40141



Pfeiffer MPT200AT Gauge Overview:


The Pfeiffer Vacuum MPT200 / PT R40 141 / PTR40141 Gauge has been designed for vacuum measurement of gases in a pressure range of 5 x 10-9 through 1000 mbar.

MPT200 Digital Pirani gaugemust not be used for measuring flammable or combustible gases in mixtures containing oxidants (e.g. atmospheric oxygen) within teh explosion range.

The MPT200 Digital Pirani gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one uniform measurement signal is output.



Dimensions:






*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*




A&J Vacuum services and repairs Pfeiffer Vacuum Measurement, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
Item#: PN23074 Mfr Part#: PTR40142 Manufacturer: Pfeiffer Vacuum
PRICE: $2,255.00
WEB SAVINGS: $205.00
YOU PAY: $2,050.00

Pfeiffer Vacuum MPT 200 PB, Pirani/Cold cathode Combination Gauge, RS-485, Profibus DP, DN 25 ISO-KF, PTR40142



Overview:


The Pfeiffer Vacuum MPT200 Gauge has been designed for vacuum measurement of gases in a pressure range of 5 x 10-9 through 1000 mbar.

MPT200 Digital Pirani gaugemust not be used for measuring flammable or combustible gases in mixtures containing oxidants (e.g. atmospheric oxygen) within teh explosion range.

The MPT200 Digital Pirani gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one uniform measurement signal is output.



Dimensions:






*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*




A&J Vacuum services and repairs Pfeiffer Vacuum Measurement, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN23075 Mfr Part#: PTR40143 Manufacturer: Pfeiffer Vacuum
PRICE: $2,167.00
WEB SAVINGS: $197.00
YOU PAY: $1,970.00

Pfeiffer Vacuum MPT 200 DN, Pirani/Cold cathode Combination Gauge, RS-485, DeviceNet, DN 25 ISO-KF, PTR40143



Overview:


The Pfeiffer Vacuum MPT200 Gauge has been designed for vacuum measurement of gases in a pressure range of 5 x 10-9 through 1000 mbar.

MPT200 Digital Pirani gaugemust not be used for measuring flammable or combustible gases in mixtures containing oxidants (e.g. atmospheric oxygen) within teh explosion range.

The MPT200 Digital Pirani gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one uniform measurement signal is output.



Dimensions:






*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*




A&J Vacuum services and repairs Pfeiffer Vacuum Measurement, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN31567 Mfr Part#: PTR45141 / PT R45 141 Manufacturer: Pfeiffer Vacuum
PRICE: $2,050.00
WEB SAVINGS: $150.00
YOU PAY: $1,900.00

Pfeiffer Vacuum MPT 200 Digital Pirani / Compact Cold Cathode Vacuum Gauge with Display Metal Sealed, DN 25 ISO-KF, PTR45141 / PT R45 141

Pfeiffer MPT 200 with Display Gauge Overview:

The Pfeiffer Vacuum MPT200 Gauge has been designed for vacuum measurement of gases in a pressure range of 5 x 10-9 through 1 x 10 3 hPa

MPT200 Digital Pirani gaugemust not be used for measuring flammable or combustible gases in mixtures containing oxidants (e.g. atmospheric oxygen) within teh explosion range.

The MPT200 Digital Pirani gauge consists of two separate measurement systems (Pirani and cold cathode system) the signals of which are combined in such a way that one uniform measurement signal is output.

Features:

  • Flange Size: DN 25 ISO-KF
  • Accuracy : % of measurement 1x10-8 - 2x10-3 hpa
  • Measurement Range max 1000 hPa - 750 torr - 1000 mbar
  • Measurement Range min 5 x 10-9 hPa - 3.75 x 10-9 torr - 5 x 10-9 mbar
  • Two Gauge Heads (Pirani and cold cathode) in a Single Case (inverted magnetron)
  • Measuring Cycle; 10ms
  • Corrosion-Resistant
  • Maximum Pressure 4,000 hpa - 3,000 Torr - 4,000 mbar
  • Interface Digital RS-485, M12 f 5-pole
  • Materials in contact with media; Tungsten, Steinless Steel, Nickel, Molybdenum, Glass
  • Bakeout Temperature max; 180*C - 356*F - 453K
  • Weight 555g

*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*


Condition: New
