- Pumping speed: 2.5 m3/h
- Integrated gas ballast
- Dry and oil-free
- Robust and high performance
Shopping Cart ( )
Pfeiffer MVP 040-2 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, Pumping Speed 2.5 m³/h, 2000020677 / PK T01 210 A / PKT01210A
Condition:
New
In Stock
Item#:PN07409
Mfr Part#:2000020677 / PK T01 210 A / PKT01210A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer MVP 040-2 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, Pumping Speed 2.5 m³/h, 2000020677 / PK T01 210 A / PKT01210A
Pfeiffer MVP 040-2 Features:
- Robust and high-performance diaphragm pump with a pumping speed of up to 2.5 m3/h
- For mains voltage: 90-126/180-254 V, 50/60 Hz
- Integrated gas ballast valve allows few amounts of humidity
- Ideal for applications where a dry and oil-free vacuum is required
- Low noise level
MVP 040-2 / PKT01210A Overview:

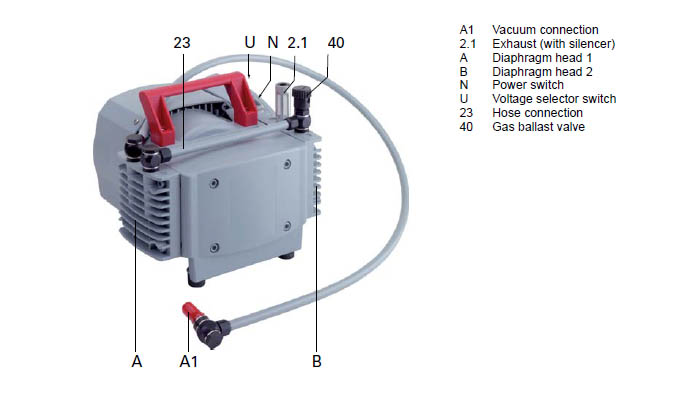

The Pfeiffer Vacuum MVP 040-2 series are two stage, dry compressor vacuum pumps. The pumps are positive displacement pumps with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
A&J Vacuum repairs, rebuilds, and services Pfeiffer Vacuum Pumps, including Diaphragm Pumps and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer MVP 040-2 Diaphragm Dry Vacuum Pump, 100-115 V, 50/60 Hz; 120 V, 60 Hz; 200-230 V, 50/60 Hz, Pumping Speed 2.5 m³/h, 2000020677 / PK T01 210 A / PKT01210A
Pfeiffer MVP 040-2 Technical Data:
| Ambient temperature | 10 – 40 °C | 50 – 104 °F | 283.15 – 313.15 K |
| Certification | cTUVus certified according to UL / CSA 61010-1 |
| Connecting flange | G ¼" Thread / G ¼" Silencer |

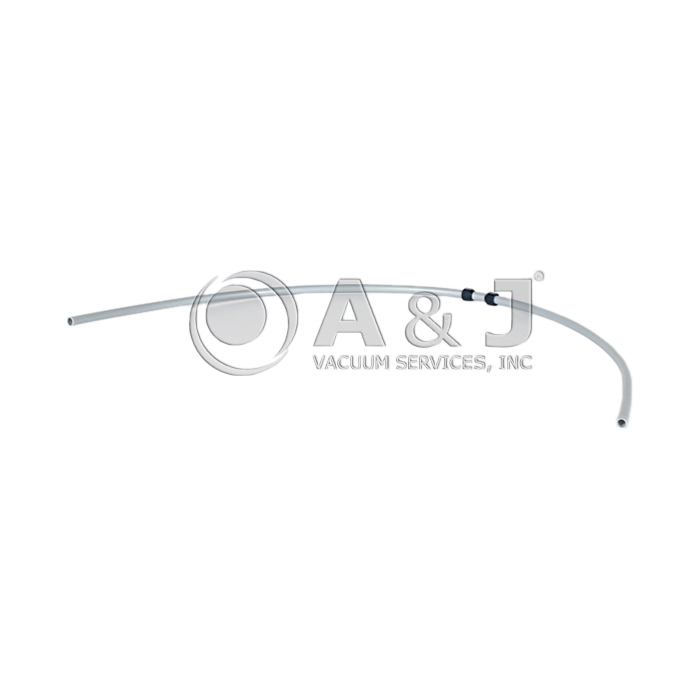

| Connection | Elbow union with enclosed hose 10/8, 1000 mm with elbow union in G ¼" thread at end |
| Connection flange (in) | G ¼'' |
| Connection flange (out) | 1/4" thread with silencer |
| Cooling method | Air (Forced convection) |
| Current max. | 3.4 A |

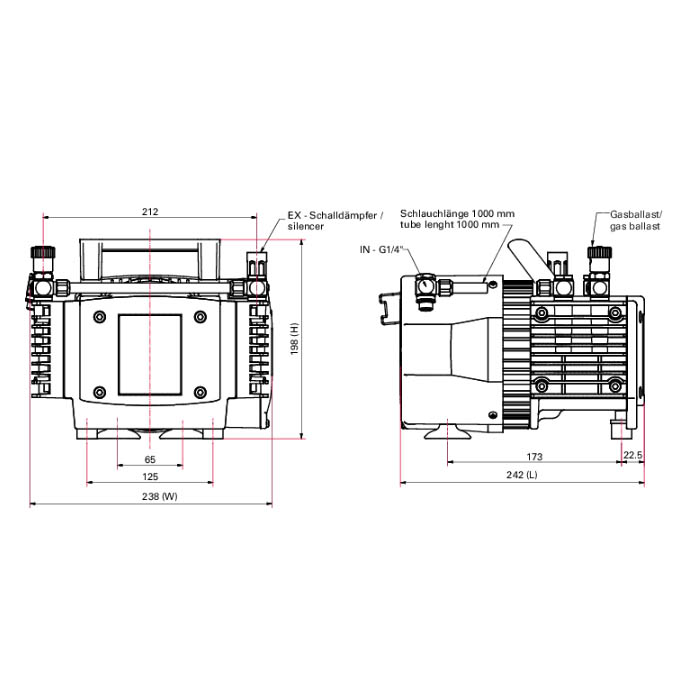

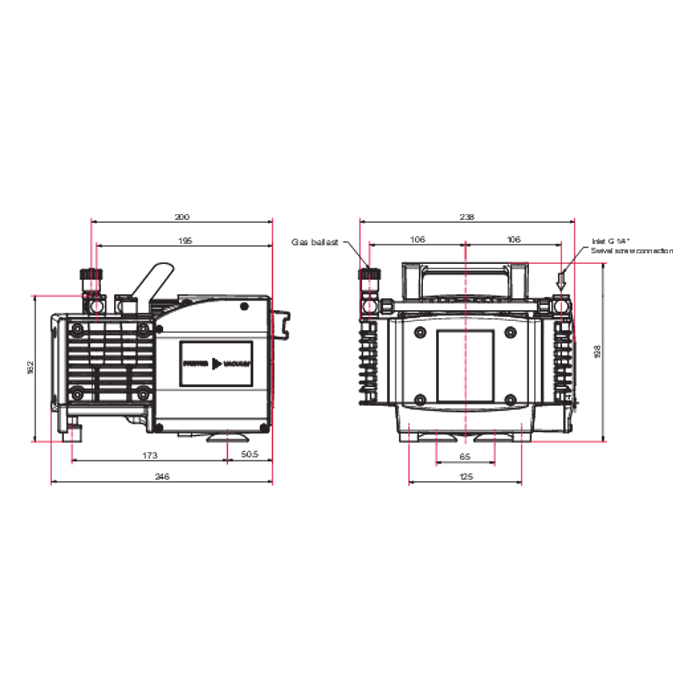

| Dimensions (L x W x H) | 246 x 238 x 198 mm | 9.69 x 9.37 x 7.8 inch |
| Emission sound pressure level (EN ISO 2151) | 53 dB(A) |
| Exhaust pressure max. | 1100 hPa | 825 Torr | 1,100 mbar |
| Gas ballast | Yes |
| Inlet pressure max. | 1100 hPa | 825 Torr | 1,100 mbar |
| Input voltage(s) | 100 – 115 / 200 – 230 V AC, 50 Hz | 100 – 115 / 120 / 200 – 230 V AC (±10 %), 60 Hz |
| Integral leakage rate | 2 · 10-3 Pa m³/s | 1.5 · 10-2 Torr l/s | 2 · 10-2 mbar l/s |
| Mains cable | No |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Motor for region | Worldwide |
| Motor protection | Thermal winding protection |
| Motor type | 1-phase motor |
| Number of pumping stages | Two stage |
| Operating altitude max. | 2000 m |
| Protection degree | IP40 |
| Pumping principle | Dry |

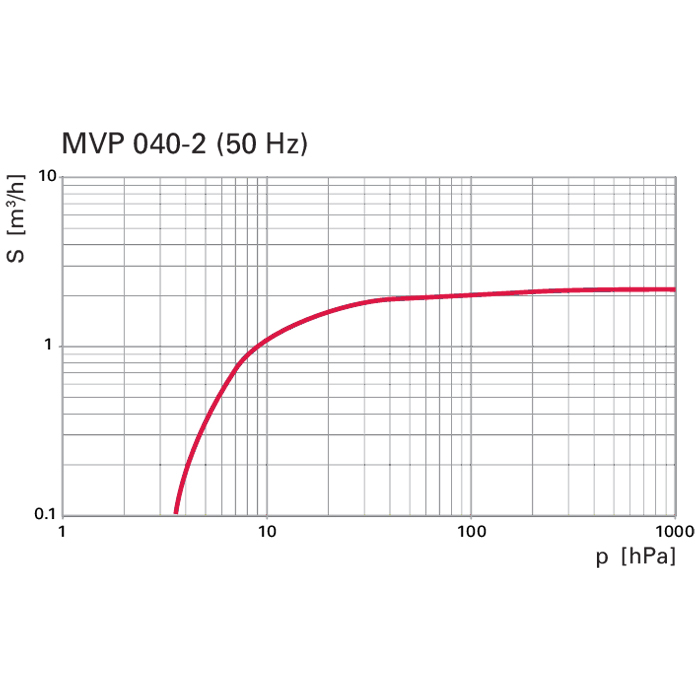

| Pumping speed, 50 Hz | 2.3 m³/h | 1.35 cfm | 38.33 l/min |

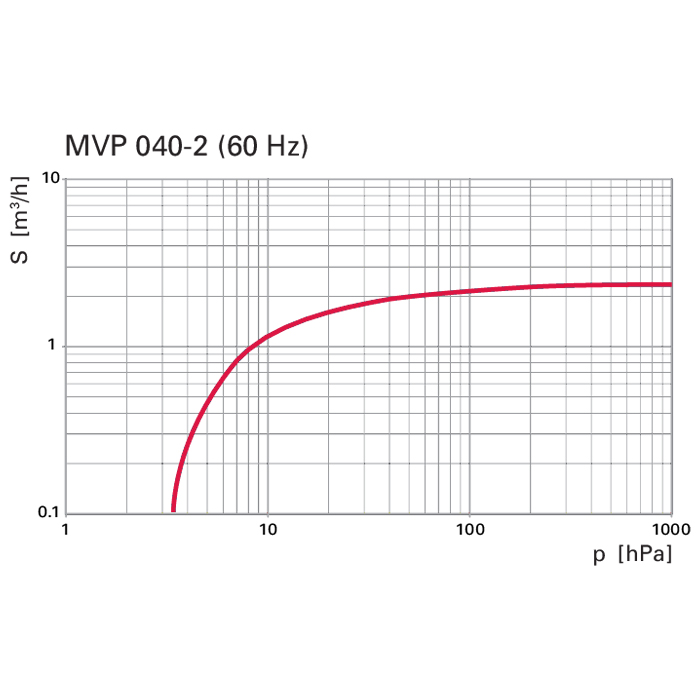

| Pumping speed, 60 Hz | 2.5 m³/h | 1.47 cfm | 41.67 l/min |
| Rotational speed, 50 Hz | 1500 rpm | 1,500 min-1 |
| Rotational speed, 60 Hz | 1800 rpm | 1,800 min-1 |
| Switch | Yes |
| Ultimate pressure | 4 hPa | 3 Torr | 4 mbar |
| Ultimate pressure with gas ballast | 5 hPa | 3.75 Torr | 5 mbar |
| Weight | 11.4 kg | 25.13 lb |
