Pfeiffer Vacuum Pressure Measurement System, OmniControl 200 Table Top Unit, DigiLine Single Gauge with (1) PPT 200, DN 16 ISO-KF, 2000007752 / PT 446 020 -T / PT446020-T
Condition:
New
Item#:PN24521
Mfr Part#:2000007752 / PT 446 020-T / PT446020-T
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum Pressure Measurement System, OmniControl 200 Table Top Unit, DigiLine Single Gauge with (1) PPT 200, DN 16 ISO-KF, 2000007752 / PT 446 020 -T / PT446020-T
Measurment Package Includes:
- Table Top Omnicontrol Measurement unit PE E52 100 0 / PEE520000
- DigiLineLine Pirani Transmitter PPT 200 / PT R38 130 / PTR38130
- Connecting Cable Length: 3 m / PM 061 283

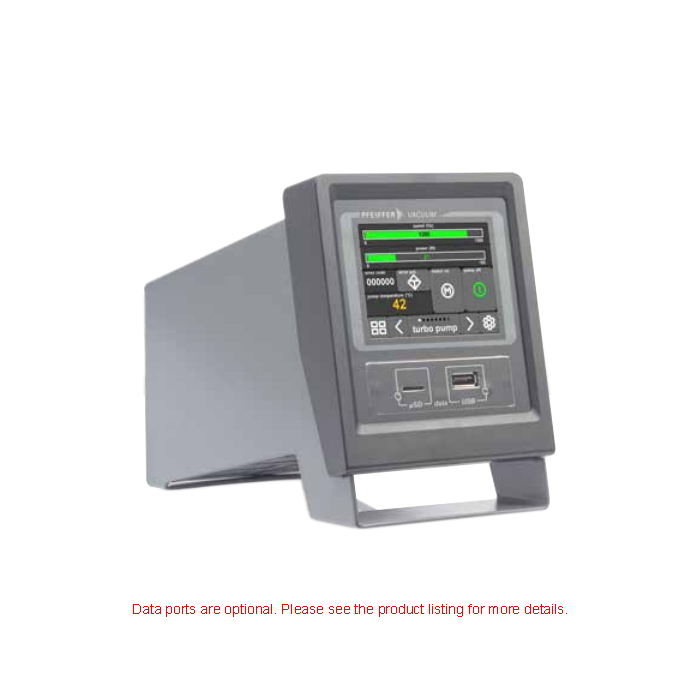

Pfeiffer Vacuum Pressure Measuring System OmniControl PEE520000) is a univeraslal control device for all Pfeiffer Vacuum products with RS-485 Protocol.
Pfeiffer OmniControl provides easy operation via 3.5" touch screen display. OmniControl offers easy data collection and processing between Pfeiffer Vacuum devices.
Pfeiffer Vacuum OmniControl is the newest and most advanced controllers on the market, Once controller for all Pfeiffer pumps with RS-485 port.

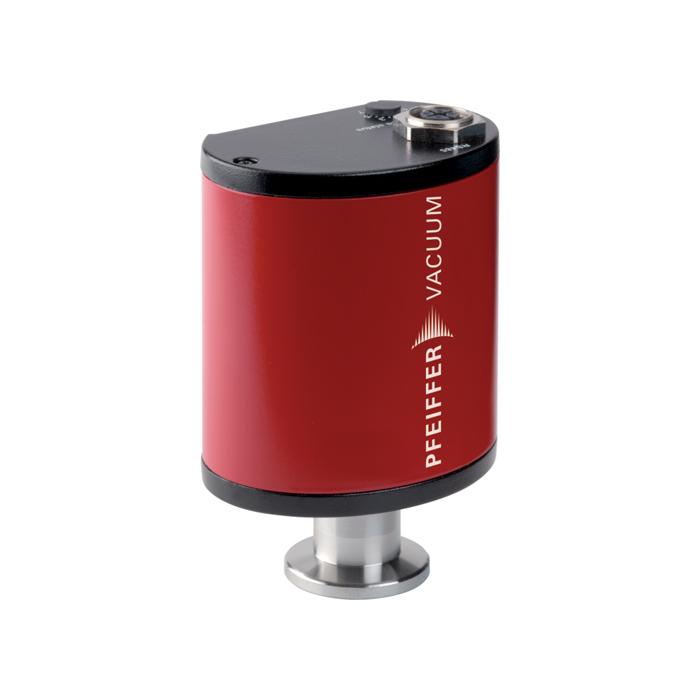

Single Gauge and Data module OmniControl controller combined with one (1) PPT 200 (PTR38130A, KF 16) compact pirani gauge and 3 meter cable.
Pfeiffer PPT 200 Vacuum Gauge offers outstanding Tungstern filament to provide long lasting.
Measurement from 1000 to 1x10-4 mbar.
Measuring cycle: 10 ms
Power cable is not inlcuded.
A&J Vacuum services Service and Repair all Pfeiffer Vacuum gauges, Vacuum Controllers, along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum Pressure Measurement System, OmniControl 200 Table Top Unit, DigiLine Single Gauge with (1) PPT 200, DN 16 ISO-KF, 2000007752 / PT 446 020 -T / PT446020-T
Technical Data OmniControl 200:
| Ambient Temperature | 0-50 °C | 32-122 °F | 273-323 K |
| Mains Connection | 100 -240 V AC +- 10% |
| Mains Connection: frequency range | 47 -63 Hz |
| Mains Requirement: Power Consumption | 300 W |
| Measuring Channel | 1 pcs |
| Module Slot 1 | Data |
| Module Slot 2 | Gauge I/O |
| Output current | 11.4 A |
| Output Voltage | 24 V DC |
| Measuring Channel | 1 Pcs. |
| Protection Category | IP20 |
Technical Data PPT 200 Gauge:
| Accuracy: 10^(-3) to 102 mbar | ± 10 % |
| Bakeout Temperature | 125°C |
| Ambient temperature | 5-60 °C | 41-140 °F | 278-333 K |
| Method of measurement | Pirani |
| Filament | Tungsten |
| Flange (Material) | Stainless Steel |
| Flange Model (In) | DN 16 ISO-KF |
| Measurement Range Max. | 1000 mbar |
| Measurement Range Min. | 1 * 10^(-4) mbar |
| Response Time | 80 ms |
| Seal (Material) | Metal |
| Sensor Cable Length Max. | 100 m |
| Supply: Power Consumption Max. | 2.5 W |
| Storage Temperature | -40 - 65 °C |
| Weight | 80 g |
A&J Vacuum services and repairs Pfeiffer Vacuum (One Gauge) Controllers, along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
