- Complete Vacuum Gauge package
- Omnicontrol 200 / PEE521000 Controller
- Cable 3m

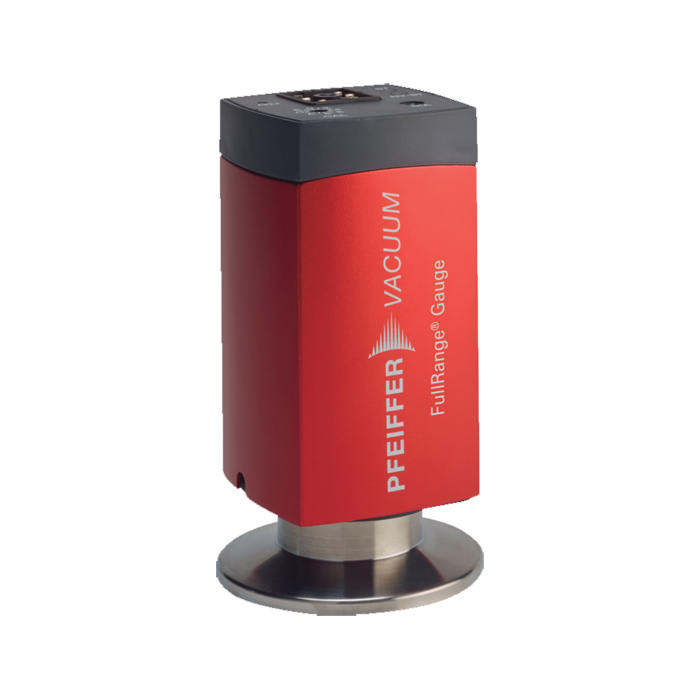

- PKR 361 / DN 40 ISO-KF / PTT03150010 Vacuum Sensor
Shopping Cart ( )
Pfeiffer Vacuum Pressure Measurement System, OmniControl 200 Table Top Unit with Full range Gauge PKR 361, DN 40 ISO-KF, 2000007621 / PT 440 956 -T / PT440956-T
Condition:
New
Item#:PN24523
Mfr Part#:2000007621 / PT 440 956 -T / PT440956-T
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum Pressure Measurement System, OmniControl 200 Table Top Unit with Full range Gauge PKR 361, DN 40 ISO-KF, 2000007621 / PT 440 956 -T / PT440956-T
Measurment Package Includes:
- Table Top Omnicontrol Measurement unit PE E52 100 0 / PEE521000
- ActiveLine Full Range Gauge PKR 361 / DN 40 ISO-KF / PTT03150010
- Connecting Cable Length: 3 m
Pfeiffer Vacuum Pressure Measuring System OmniControl PEE521000) is a univeraslal control device for all Pfeiffer Vacuum products with RS-485 Protocol.
Pfeiffer OmniControl provides easy operation via 3.5" touch screen display. OmniControl offers easy data collection and processing between Pfeiffer Vacuum devices.
Pfeiffer Vacuum OmniControl is the newest and most advanced controllers on the market, Once controller for all Pfeiffer pumps with RS-485 port.
Single Gauge and Data module OmniControl controller combined with one (1) PKR 361 ( PTT03150010, KF 40) Full range gauge and 3 meter cable.
Pfeiffer PKR 361 Vacuum Gauge offers
Two Gauge Heads (Pirani & Cold Cathode) Within a Single Case (Utilizing Inverted Magnetron)
- Measurement Range From 5 x 10^(-9) to 1000 hPa
Power cable is not inlcuded.
A&J Vacuum services Service and Repair all Pfeiffer Vacuum gauges, Vacuum Controllers, along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum Pressure Measurement System, OmniControl 200 Table Top Unit with Full range Gauge PKR 361, DN 40 ISO-KF, 2000007621 / PT 440 956 -T / PT440956-T
Technical Data OmniControl 200:
| Ambient Temperature | 0-50 °C | 32-122 °F | 273-323 K |
| Mains Connection | 100 -240 V AC +- 10% |
| Mains Connection: frequency range | 47 -63 Hz |
| Mains Requirement: Power Consumption | 300 W |
| Measuring Channel | 1 pcs |
| Module Slot 1 | Data |
| Module Slot 2 | Gauge I/O |
| Output current | 11.4 A |
| Output Voltage | 24 V DC |
| Measuring Channel | 1 Pcs. |
| Protection Category | IP20 |
Technical Data PKR 361:
- 25 Millimeter Flange Size: DN 40 ISO-KF / PTT03150010
- Measurement Range From 5 x 10^(-9) to 1000 hPa
- Two Gauge Heads (Pirani & Cold Cathode) Within a Single Case (Utilizing Inverted Magnetron)
- A Single Flange From Atmospheric Pressure to UHV
- Maximum Pressure Refers to Inhert Gases and Temperatures of Less Than 55°C
A&J Vacuum services and repairs Pfeiffer Vacuum (One Gauge) Controllers, along with all other Pfeiffer Vacuum Controllers and Measurement Devices available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
