- PM C01 830 AT
- Connection Voltage: 24 V DC
- Connection Panel: Standard (X3)
- Turbo Pump HiPace: 80, 300
Shopping Cart ( )
Pfeiffer Vacuum TC110 PB Profibus Turbo Pump Controller, 2000017036 / PM C01 830 AT / PMC01830AT
Condition:
New
Item#:PN21035
Mfr Part#:2000017036 / PM C01 830 AT / PMC01830AT
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TC110 PB Profibus Turbo Pump Controller, 2000017036 / PM C01 830 AT / PMC01830AT
Pfeiffer Vacuum TC110 PB Features:
- M12 casing socket with screw coupling and LED for Pfeiffer Vacuum Service purposes
- D-sub 15 pole female socket for the connection of a remote control
- Casing socket on the rear side of the electronic drive unit for the connection to the turbo pump
TC110 PB / PMC01830AT Overview:
The Pfeiffer TC-110 PB Profibus HiPace80 / PM P04260 / PMP04261 Pump Controller is an integrated component of the turbo pump. It's purpose is to drive, monitor and control the entire pump.
To correctly identify the product when communicating with Pfeiffer Vacuum, always have the information from the rating plate available.
All functions-revelant variables of a turbopump are anchored in the electronic drive unit as parameters. Each parameter has a three-digit number and a designation. Parameters can be used via Pfeiffer Vacuum display and control units or via RS-485 with the Pfeiffer Vacuum protocol.
A&J Vacuum repair / rebuild and service Pfeiffer HiPace Turbo Pumps, Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Vacuum TC110 PB Profibus Turbo Pump Controller, 2000017036 / PM C01 830 AT / PMC01830AT

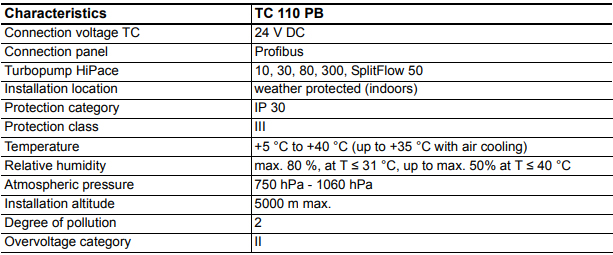

Pfeiffer Vacuum TC110 PB Technical Data:
A&J Vacuum repair / rebuild and service Pfeiffer HiPace Turbo Pumps, Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
