- Inlet flange: DN 63 ISO-K
- Outlet flange: DN 16 ISO-KF
- Pumping speed (N2): 67 l/s
- Compression ratio (N2): > 1 x 1011
Shopping Cart ( )

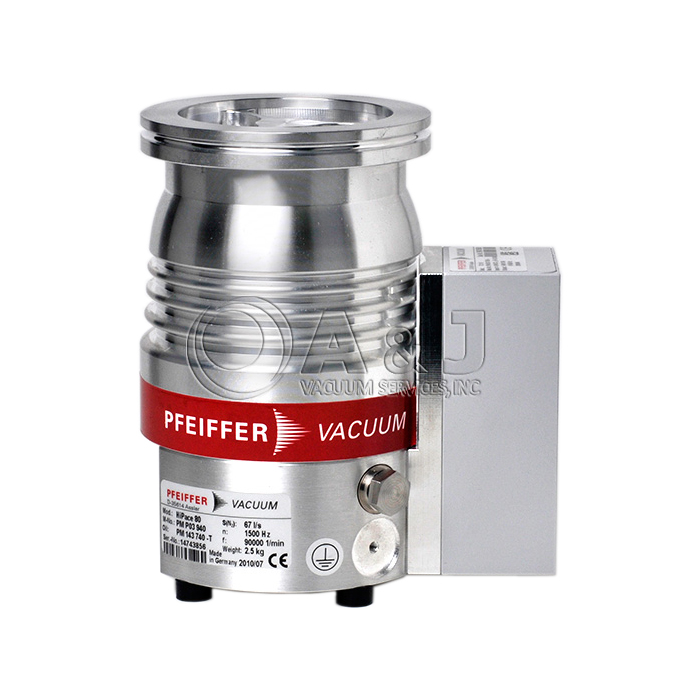

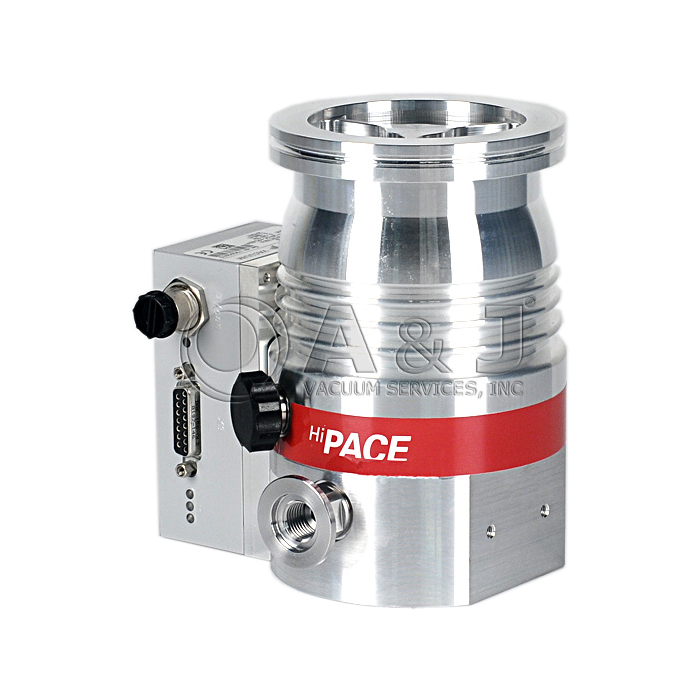

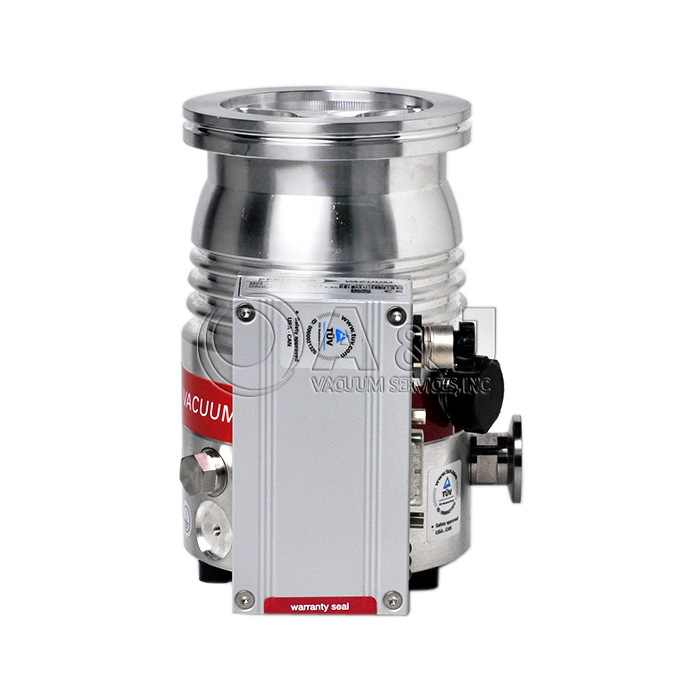

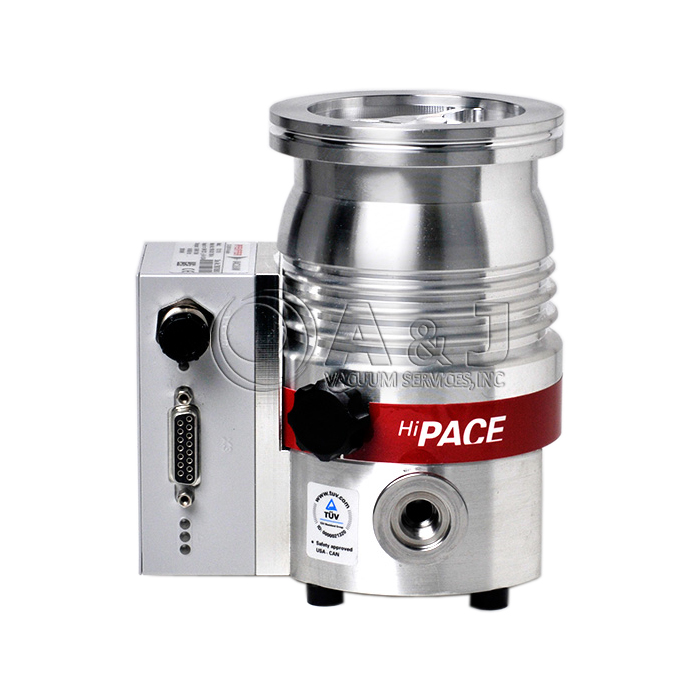

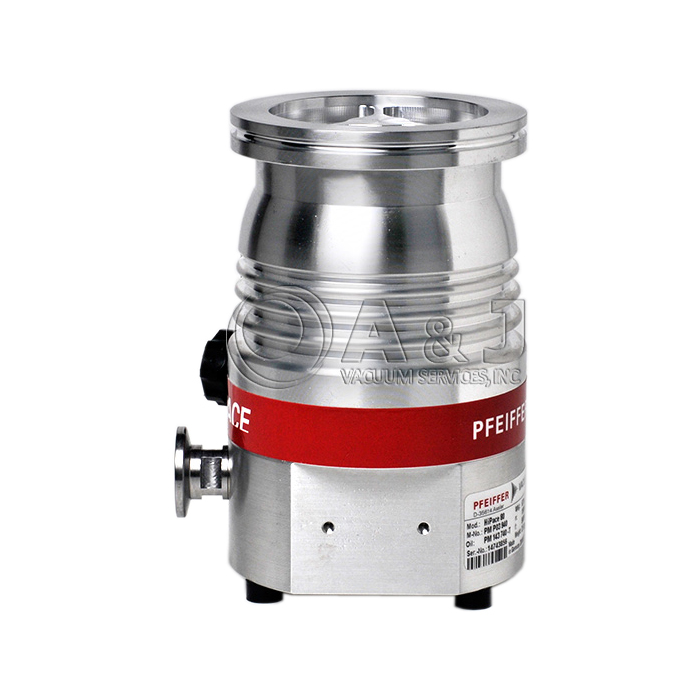

Pfeiffer HiPace 80 Turbo Pump with TC 110 Controller, DN 63 ISO-K, PMP03940 / PM P03 940
Condition:
Remanufactured
Call us for Availability
Item#:PN00002
Mfr Part#:PMP03940 / PM P03 940
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiPace 80 Turbo Pump with TC 110 Controller, DN 63 ISO-K, PMP03940 / PM P03 940
Pfeiffer HiPace 80 Features:
- Powerful Turbo Pump w/ Pumping Speed of up to 67 l/s (N2)
- Ideal for Dependable Systems Integration
- Installation in Any Orientation Available
- Extensive Accessories Available
HiPace 80 / PMP03940 Overview:
The Pfeiffer HiPace Series is a complete line of compact, yet powerful turbo pumps featuring pumping speeds ranging from 10 - 2,000 liters per second (L/s). The Pfeiffer Vacuum HiPace 80 Turbo Pump models are cost-effective and offer flexible installation within any orientation. The proven bearing system of the HiPace 80 provides unrivaled dependability, while the sophisticated rotor design of the pump enables superior pumping speeds, greater backing pump compatibility, higher gas throughputs, and enables the compression of light gasses.
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer HiPace 80 Turbo Pump with TC 110 Controller, DN 63 ISO-K, PMP03940 / PM P03 940
Pfeiffer HiPace 80 Technical Data:
| Inlet Flange: | DN 63 ISO-K |
| Outlet Flange: | DN 16 ISO-KF / G 1/4" |
| Pumping Speed: |
N2: 67 l/s |
|
He: 88 l/s |
|
|
H2: 48 l/s |
|
|
Ar: 66 l/s |
|
| Compression Ratio: |
N2: 1 x 1011 |
|
He: 1.3 x 107 |
|
|
H2: 1.4 x 105 |
|
|
Ar: 1. 1011 |
|
| Rotational Speed: | 90000 min-1 (+/- 2%) |
| Weight: | 2.4 kg / 5 lbs |
A&J Vacuum services and repairs Pfeiffer Vacuum HiPace 80, HiPace 300, HiPace 700 Turbo Pumps, along with all additional varieties of Pfeiffer Vacuum turbo pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
AJVS_Pfeiffer_HiPace_80_PMP03940_Sales_and_Repair.pdf
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
Item#:PN06783
Mfr Part#:2000017873 / PM 143 740 -T / PM143740-T
Condition: In Stock
New
In Stock
$189.99
Item#:PN06203
Mfr Part#:2000018755 / PM 061 340 -T / PM061340-T
Condition: Out of Stock
New
$749.99
Item#:PN07058
Mfr Part#:2000018771 / PM061350-T / PM 061 350 -T
Condition: Out of Stock
New
$375.00
Item#:PN07059
Mfr Part#:2000018772 / PM061351-T / PM 061 351 -T
Condition: In Stock
New
In Stock
$479.00
Item#:PN07588
Mfr Part#:KF25CRVS
Condition: In Stock
New
In Stock
$9.50
Item#:PN07791
Mfr Part#:ISO63KA25
Condition: In Stock
New
In Stock
$245.00
Item#:PN07792
Mfr Part#:ISO63KA40
Condition: In Stock
New
In Stock
$233.00
Item#:PN07793
Mfr Part#:ISO63KA50
Condition: In Stock
New
In Stock
$235.00
Item#:PN15149
Mfr Part#:ISO63OCRVAA
Condition: In Stock
New
In Stock
$35.28
Item#:PN17960
Mfr Part#:PN17960
Condition: In Stock
New
In Stock
$141.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
