- Volume Flow Rate (l/s): N2: 1400
- Compression Ratio: N2: >1 x 108
- Maximum Fore-Vacuum Pressure (mbar): N2: 1.5
- DN 250 ISO-K
Shopping Cart ( )

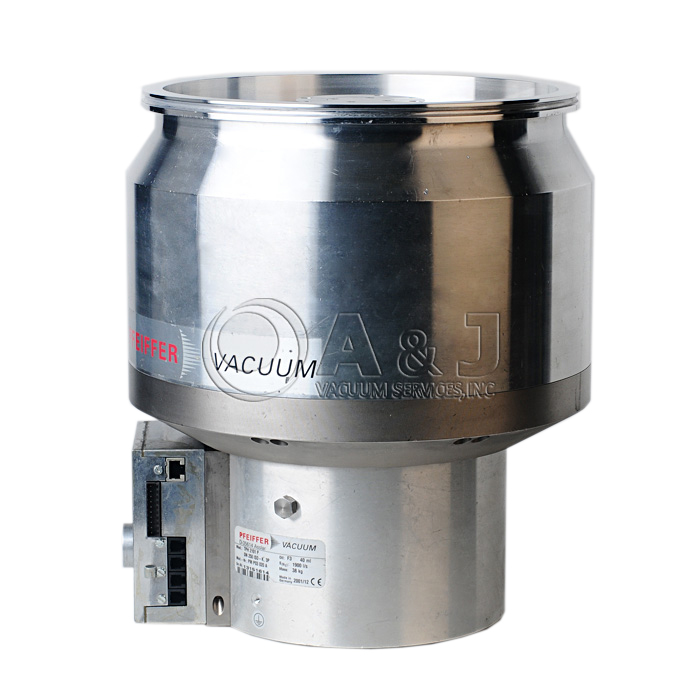

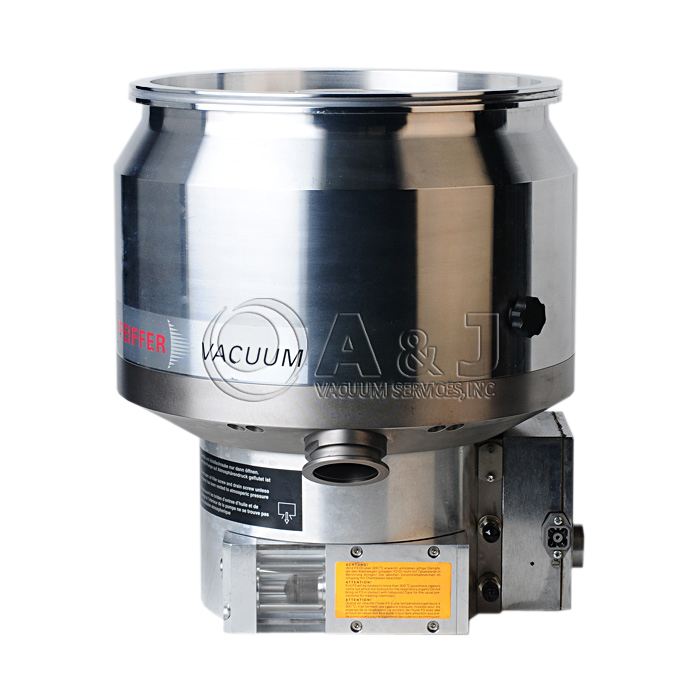

Pfeiffer Vacuum TPH 2101P Turbo Pump, DN 250 ISO-K, TC 750, PMP03020A / PMC01691
Condition:
Remanufactured
Call us for Availability
Item#:PN07169
Mfr Part#:PMP03020A / PMC01691
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum TPH 2101P Turbo Pump, DN 250 ISO-K, TC 750, PMP03020A / PMC01691
TPH 2101P / PMP03020A Overview:
Pfeiffer Vacuum Turbopumps TPH/TPU 2101 P/P C with the TC 750 form a complete unit. Voltage is supplied by a separate power unit.
The Turbomolecular Pumps TPH/TPU 2101 P and TPH/TPU 2101 P C may only be used for the purpose of generating vacuum.
The Turbomolecular Pumps TPH/TPU 2101 P C are designed to pump corrosive gases and vapours. Where corrosive gas processes are involved, gas bonding and particles which can damage the surfaces of the pump can be produced. The motor and bearing compartments have to be protected with sealing gas.
The turbopumps may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved.
If the process produces dust, the maintenance intervals must be specified accordingly and sealing gas must be used.
If the pump is to be operated with more than 50% of the permissible gas load then sealing gas should be used to ensure rotor cooling.
The turbopump must be connected to a backing pump.
Only PFEIFFER power units may be used to operate the TC 750. The use of other power units requires the prior agreement of the manufacturer and equalisation with the valid specification.
The pumps may only be operated providing the ambient conditions in compliance with Protection Type IP 30 are observed.
A&J Vacuum Services offers full repair/service of Pfeiffer TPH 2101 P Pump, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum TPH 2101P Turbo Pump, DN 250 ISO-K, TC 750, PMP03020A / PMC01691

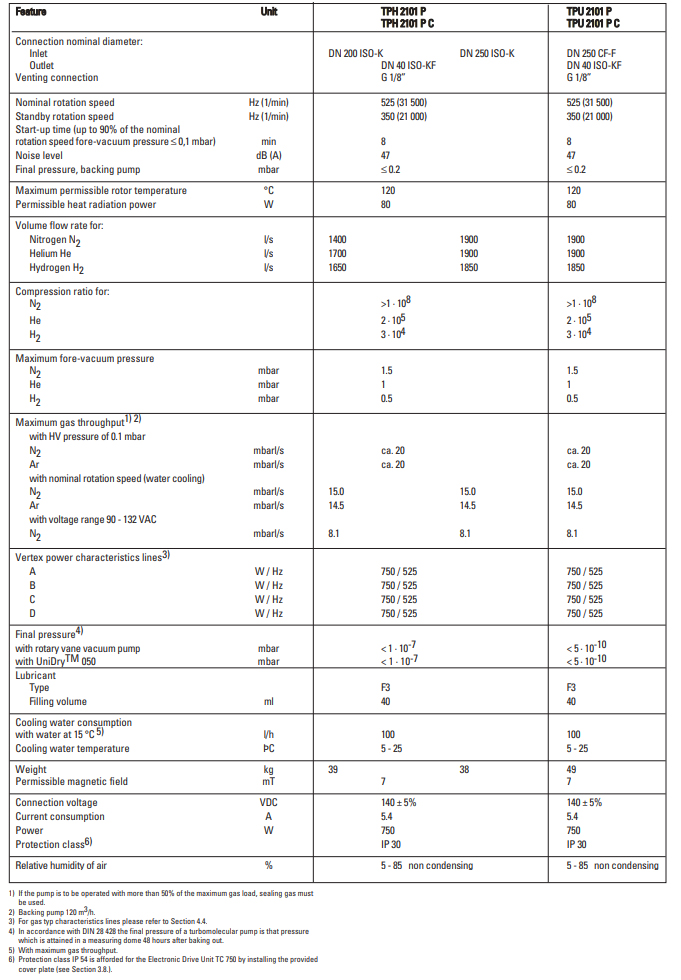

Pfeiffer TPH 2101P Technical Data:
A&J Vacuum Services offers full repair/service of Pfeiffer TPH 2101 P Pump, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
