- Pumping speed: 1450 l/sec for N2
- Inlet Flange: DN 250 CF-F
- Outlet Flange: DN 40 ISO-KF
- Ultimate pressure with rotary vane pump <1 x 10-10 Mbar
Shopping Cart ( )

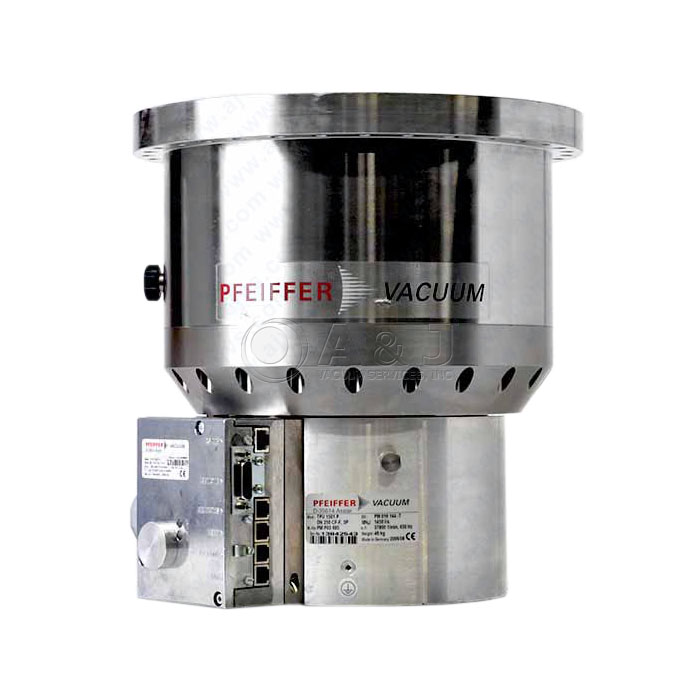

Pfeiffer Vacuum TPU 1501 PC Turbo Pump, with TC 750 E74, DN250-CF, PMP03695 / PM P03 695
Condition:
Remanufactured
In Stock
Item#:PN00167
Mfr Part#:PMP03695 / PM P03 695
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TPU 1501 PC Turbo Pump, with TC 750 E74, DN250-CF, PMP03695 / PM P03 695
TPU 1501 PC / PMP03695 Overview:
This TPU1501 PC Turbomolecular Drag Pump has a pumping velocity of 1450 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TPU 1501 PC Turbo Pump comes with an entire 12-Month Warranty.
This Pfeiffer Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
TPU1501PC Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum repair / rebuild and service Pfeiffer TPU1501PC Turbo Pumps, PMP03695 Pfeiffer Diaphragm Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPU 1501 PC Turbo Pump, with TC 750 E74, DN250-CF, PMP03695 / PM P03 695
Pfeiffer TPU 1501 PC Technical Data:
| Inlet: | DN 250 CF-F |
| Outlet: | DN 40 ISO-KF |
| Pumping speed: | 1450 l/sec for N2 |
| Ultimate pressure with rotary vane pump | <1 x 10-10 Mbar |
A&J Vacuum repair / rebuild and service Pfeiffer TPU1501PC Turbo Pumps, PMP03695 Pfeiffer Diaphragm Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPU 1501 PC Turbo Pump
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
