- Ultimate Vacuum: 0.020 mbar
- Inlet Flange: NW 25
- Exhaust Flange: NW 25
- Pumping Speed 3.6 CFM
-
Overview
-
Specifications
-
Manuals
-
MFR Brochures
-
AJVS Brochures
-
Videos
-
Spare Parts
-
Accessories
-
Service & Repair

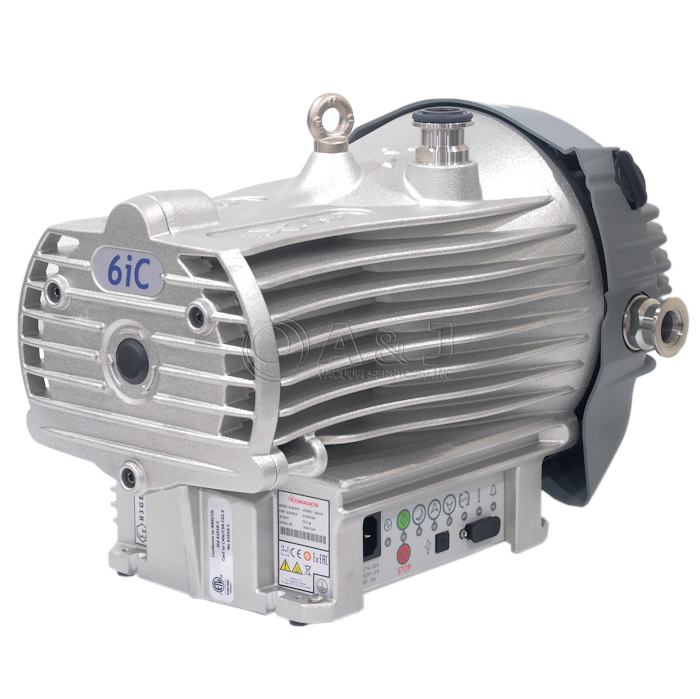

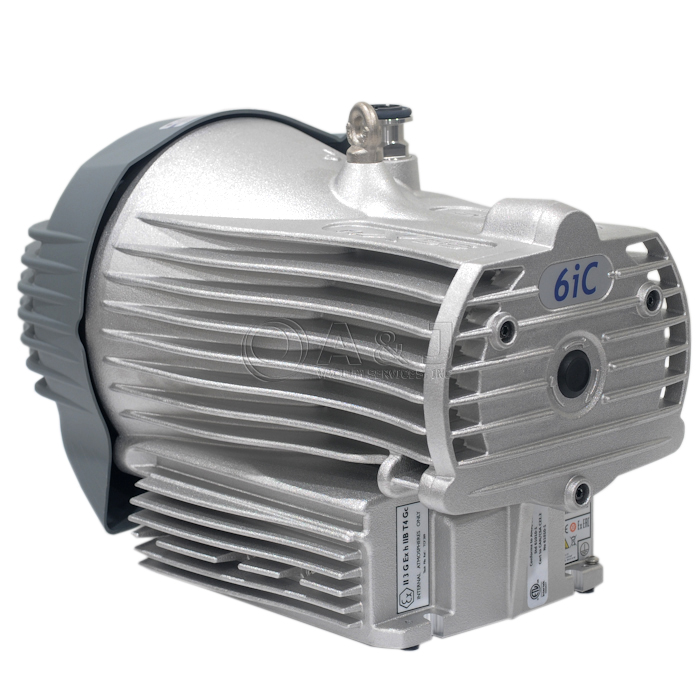

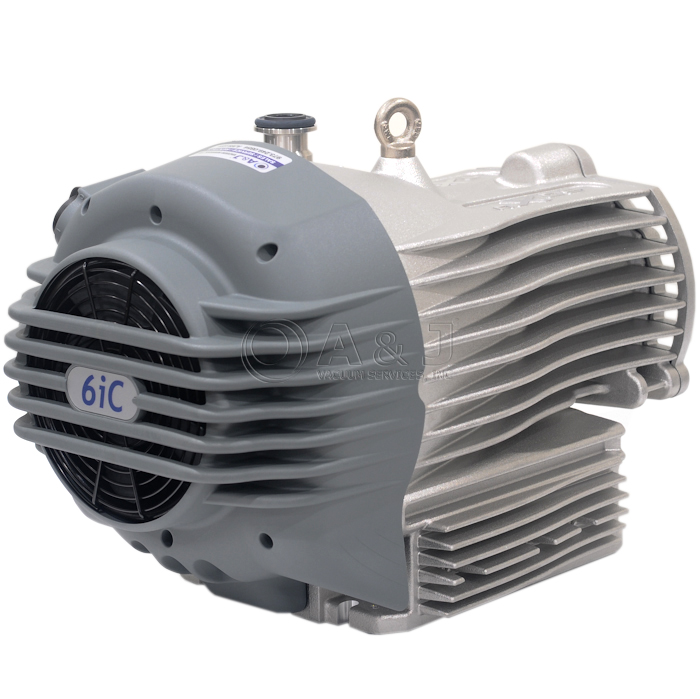

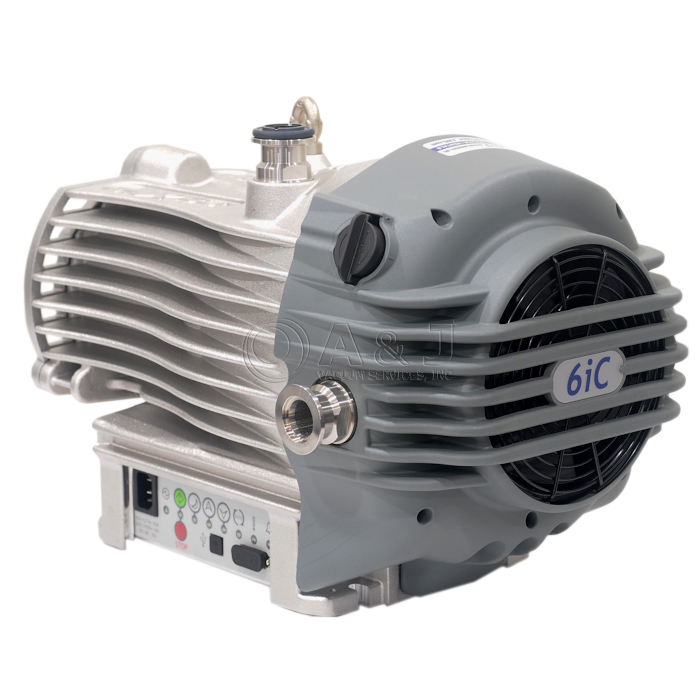

Edwards nXDS6 iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A735-02-983, 73502983 EDWARDS NXDS 6iC
Edwards nXDS 6iC Overview:
The Edwards nXDS6iC is the next generation in completely oil free, dry scroll pumps and replaces the Edwards nXDS6iC.
Edwards nXDS6iC improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.
Edwards nXDS6iC pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS6iC pumps are designed to be completely field serviceable.
Edwards nXDS 6iC Characteristic:
Edwards nXDS 6iC Features:
- Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
- Thermaly controlled fan for reduced noise
- No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
- Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
- Improved motor and drive efficiencies for reduced power and cost of ownership
- Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485
Edwards nXDS 6iC Front Panel:
Edwards nXDS 6iC Dimensions (mm):
Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:
- PN17767 Exhaust Filter Silencer for XDS5, XDS10, nXDS6i, nXDS10i, nXDS15i, A50597000, Click Here
- PN17799 Replacement Element for Exhaust Filter Silencer A50597800, Click Here
- PN17735 Vacuum Inlet Filter for Edwards XDS5, XDS10, nXDS6i, nXDS10i, nXDS15i, Click Here
- PN15792 Edwards Tip Seal Kit Service Kit for nXDS6i, nXDS10i, nXDS15i, nXDS20i Dry Scroll Pumps, A73501801 Click Here
- PN17503 Edwards Gas Gallast Adaptor for nXDS6i, nXDS10i, nXDS15i, and nXDS20i Scroll Pump, A73501809, Click Here
- PN17493 Edwards Bearing Replacement Kit for nXDS6i, nXDS10i, and nXDS15i Dry Scroll Pumps, A73501802, Click Here
Click here for Edwards nXDS6iC Operation Manual A73502983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf
Click here for Edwards nXDS6iC Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards nXDS6 iC Dry Scroll Vacuum Pump, Corrosive, 3.6 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A735-02-983, 73502983 EDWARDS NXDS 6iC
Edwards nXDS 6iC Technical Data:
|
Inlet Flange: |
NW 25 |
|
Exhaust Flange: |
NW 25 |
|
Rotational Speed: |
1800 rpm |
|
Input Voltage: |
100-127, 200-240 |
|
Voltage Frequency: |
50/60 Hz |
|
Pumping Speed: |
6.2 m3h-1 |
|
Total Pressure: |
0.020 mbar |
|
Weight: |
26.2 kg / 58 lbs |
Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:
- PN17767 Exhaust Filter Silencer for XDS5, XDS10, nXDS6i, nXDS10i, nXDS15i, A50597000, Click Here
- PN17799 Replacement Element for Exhaust Filter Silencer A50597800, Click Here
- PN17735 Vacuum Inlet Filter for Edwards XDS5, XDS10, nXDS6i, nXDS10i, nXDS15i, Click Here
- PN15792 Edwards Tip Seal Kit Service Kit for nXDS6i, nXDS10i, nXDS15i, nXDS20i Dry Scroll Pumps, A73501801 Click Here
- PN17503 Edwards Gas Gallast Adaptor for nXDS6i, nXDS10i, nXDS15i, and nXDS20i Scroll Pump, A73501809, Click Here
- PN17493 Edwards Bearing Replacement Kit for nXDS6i, nXDS10i, and nXDS15i Dry Scroll Pumps, A73501802, Click Here
Click here for Edwards nXDS6iC Operation Manual 73502983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf
Click here for Edwards nXDS6iC Dry Scroll Vacuum Pump Broshure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or Click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards nXDS6i nXDS6R nXDS6iR nXDS6iC Dry Scroll Vacuum Pump
AJVS_Edwards_nXDS6iC_Sales_and_Repair.pdf
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
