Pfeiffer HiPace 2300 U C Turbo Pump with TC 1200 Controller, Upside Down Version, Corrosive, DN 250 ISO-F, PMP03929
Condition:
Discontinued
Item#:PN00039
Mfr Part#:PMP03929
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Vacuum HiPace 2300UC Turbo Vacuum Pump with TC 1200 Turbo Pump Controller, Upside Down Version, Corrosive, DN 250 ISO-F, PMP03929

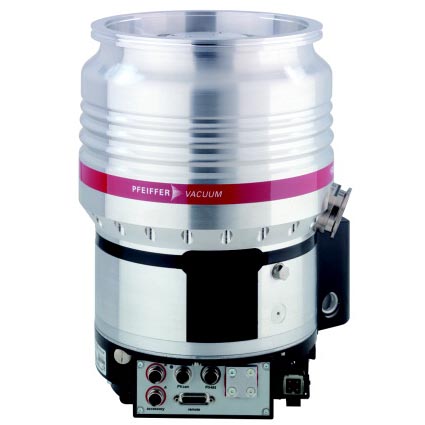

Pfeiffer 2300 UC Overview:
The Pfeiffer HiPace Series is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
Pfeiffer 2300 UC Features:
- Powerful Turbo Pump with a pumping speed of up to 1900 l/s (N2)
- Integrated TC 1200 Drive Electronics with Power Supply
- Water Cooling
- Integrated sealing gas system with electric sealing gas valve - 24 V DC
- Interfaces: RS-485, Remote (Profibus/DeviceNet on request)
- Extensive Accessories Available

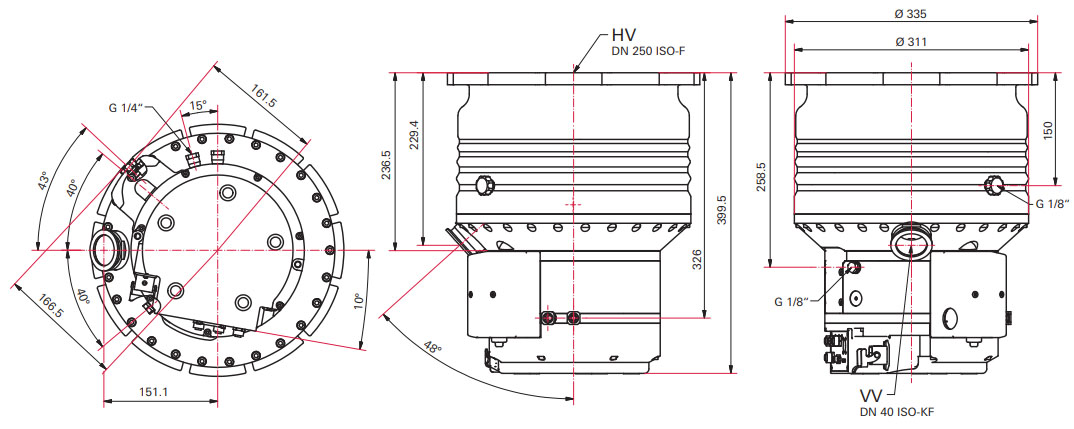

Pfeiffer HiPace 2300 UC Dimensions:
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum HiPace 2300UC Turbo Vacuum Pump with TC 1200 Turbo Pump Controller, Upside Down Version, Corrosive, DN 250 ISO-F, PMP03929
Pfeiffer 2300 UC Technical Data:
| Inlet Flange: | DN 250 ISO-F |
| Outlet Flange: | DN 40 ISO-KF |
| Pumping Speed: |
N2: 1900 l/s |
|
He: 2000 l/s |
|
|
H2: 1850 l/s |
|
|
Ar: 1800 l/s |
|
| Compression Ratio: |
N2: > 1 x 108 |
|
He: 3 x 105 |
|
|
H2: 2 x 104 |
|
|
Ar: > 1 x 108 |
|
| Rotational Speed: | 31500 min-1 (+/- 2%) |
| Weight: | 34 kg / 75 lbs |
