Found 2 products
Item#: PN06608 Mfr Part#: PMP03933 / PM P03 933 Manufacturer: Pfeiffer Vacuum
Price upon request

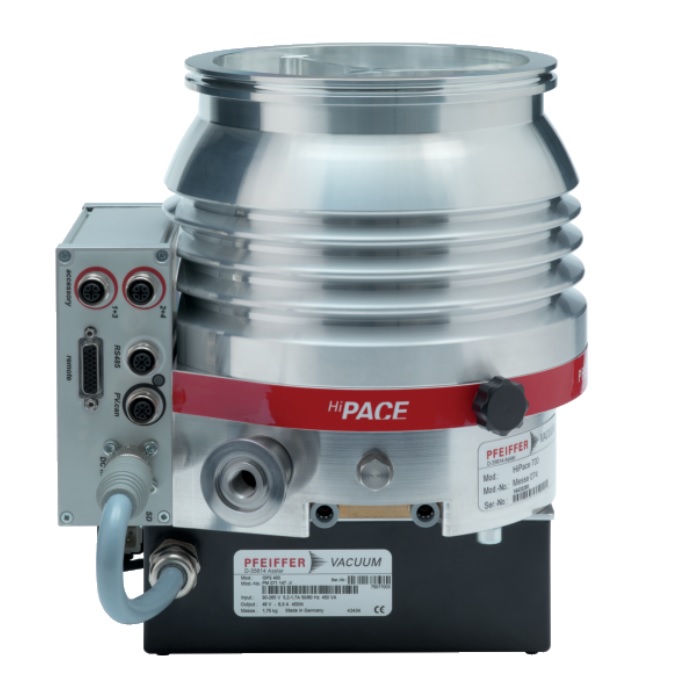

Pfeiffer Vacuum HiPace700 Turbo Vacuum Pump with TC400 Turbo Pump Controller, DN 160 ISO-K, PMP03933, PM P03 933



Pfeiffer HiPace 700 Overview:


The Pfeiffer HiPace 700 PMP03933 is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation.

The Pfeiffer HiPace 700 proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.

The turbopump HiPace 700 forms a complete unit together with the electronic drive unit TC 400. This turbopump offers water as well as air cooling (optional). This pump has not integrated power supply.

Complete Operating Instruction for HiPace 700 PM P03 933 is available in PDF format below.



Pfeiffer Hipace 700 Features:


  • Minimum footprint and maximum reliability
  • High gas throughput and high pumping speed
  • Suitable for industrial environments - Protection class IP54
  • Semi S2- and UL/CSA certification
  • Maximum reliability through monitoring of operating data
  • Easy installation for quick application and operation
  • Components optimally matched for real “plug and play”
  • Compact yet powerful turbopump with a pumping speed of up to 685 l/s for N2
  • Maximum vacuum performance with minimum power consumption
  • For installation in any orientation
  • External TCP 400 drive electronics
  • Integrated, powerful cooling system



Pfeiffer HiPace 700 Characteristic:


Pfeiffer HiPace 700 Characteristic, PMP04253



Pfeiffer HiPace 700 Dimensions:


Pfeiffer HiPace 700 Dimensions, PMP04253




Click Here to view Pfeiffer Vacuum HiPace 700 Turbo Pump Operating Instructions


A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum  Hipace 700 Turbo  Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: Out of Stock
Item#: PN23888 Mfr Part#: PMP03933 / PM P03 933 Manufacturer: Pfeiffer Vacuum
Price upon request

Complete Package Pfeiffer HiPace 700 Turbo Pump with TPS 400 Power Supply and 1 M Connecting Cable, DN 160 ISO-K, PMP03933, PM061343T, PM061524

Package includes the following:

Pfeiffer Hipace 700 Turbo Pump / PM P03 933 with TC400 Controller Installed

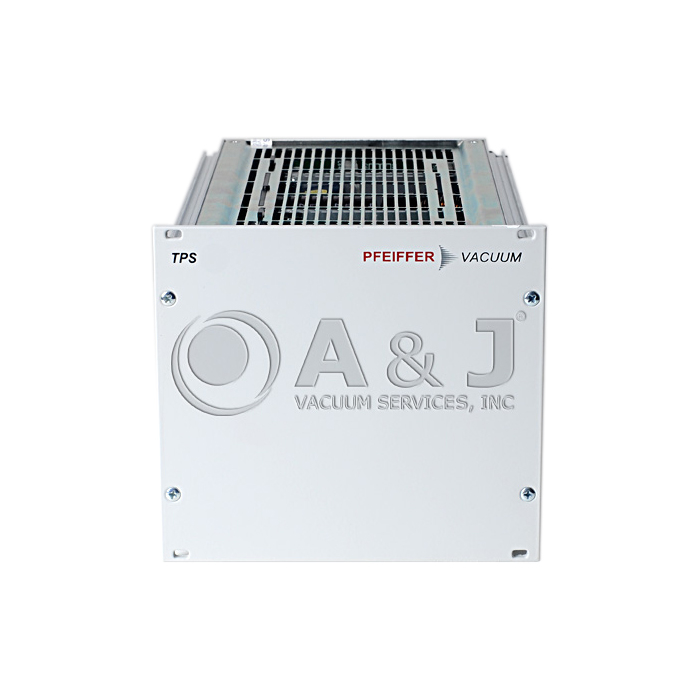

Pfeiffer TPS 400 (Turbo Pump Power Supply) PM 061 343-T

1 M Connecting Cable / PM 061 524

115 VAC Mains Cable

Pfeiffer HiPace700 / PMP03933 Overview:


The Pfeiffer Vacuum HiPace 700 PMP03933 is a complete line of compact yet powerful turbo pumps featuring pumping speeds that range from 10 - 2,000 liters per second. These models are cost-effective and offer flexible installation in any orientation.

The Pfeiffer HiPace700 proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.

The turbopump HiPace 700 forms a complete unit together with the electronic drive unit TC 400. This turbopump offers water as well as air cooling (optional). This pump has not integrated power supply.

Complete Operating Instruction for HiPace 700 PM P03 933 is available in PDF format below.



Pfeiffer Vacuum Hipace 700 Features:


  • Minimum footprint and maximum reliability
  • High gas throughput and high pumping speed
  • Suitable for industrial environments - Protection class IP54
  • Semi S2- and UL/CSA certification
  • Maximum reliability through monitoring of operating data
  • Easy installation for quick application and operation
  • Components optimally matched for real “plug and play”
  • Compact yet powerful turbopump with a pumping speed of up to 685 l/s for N2
  • Maximum vacuum performance with minimum power consumption
  • For installation in any orientation
  • External TCP 400 drive electronics
  • Integrated, powerful cooling system



Pfeiffer HiPace 700 Characteristic:


Pfeiffer HiPace 700 Characteristic, PMP04253



Pfeiffer HiPace 700 Dimensions:


Pfeiffer HiPace 700 Dimensions, PMP04253




Click Here to view Pfeiffer Vacuum HiPace 700 Turbo Pump Operating Instructions


A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum  Hipace 700 Turbo  Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.


Condition: New
