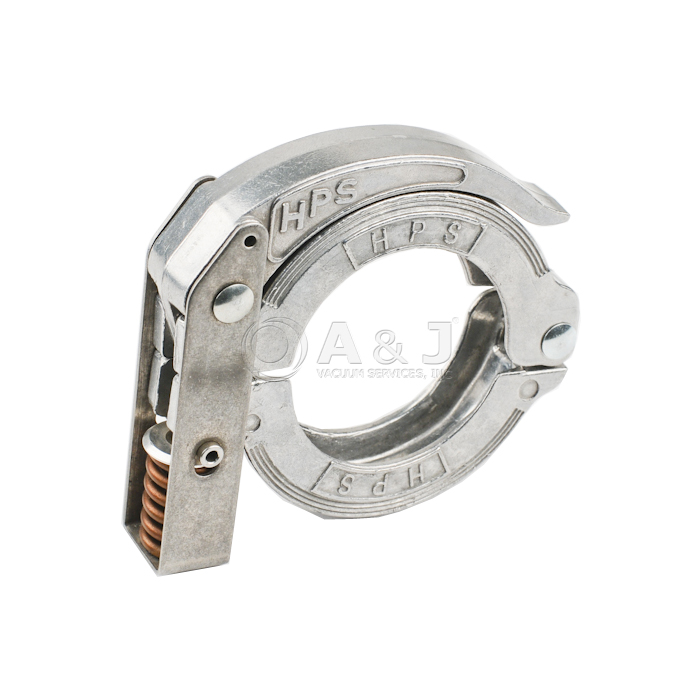

Toggle Clamp (Quick Clamp) KF50 Flange NW50, QF50 Aluminum, Spring Loaded, PN20006
Condition:
New
In Stock
Item#:PN20006
Mfr Part#:100318806 / PN20006
Manufacturer:AJVS
Features:
Toggle Clamp (Quick Clamp) KF50 Flange NW50, Aluminum, Spring Loaded, PN20006
KF-50 Toggle Clamp Overview:
The Toggle Clamp (Quick Release KF Clamp) is used to connect vacuum plumbing and process systems in combination with vacuum pumps or vacuum components. Toggle Clamp has the advantage of quick release and quick locking back onto KF-50, NW-50 or QF50 Flange.
The Toggle Clamp is used in conjunction with a centering ring with a fitted O-ring for mating KF50 and NW50 vacuum flanges.
The Toggle Spring Loaded Clamps are available in the following sizes: NW 10/50, NW 25, NW 40, NW 50
The Toggle Clamps are made out of Aluminum
KF Flanges (also referred to as NW Flange) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Toggle Clamps are assembled with Cotter Pin to prevent accidental release of the toggle lever.
A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
Toggle Clamp (Quick Clamp) KF50 Flange NW50, Aluminum, Spring Loaded, PN20006 Technical Data:
- Material: Aluminum with Steel spring
- Cotter Pin Installed
- KF50, NW50, QF50
