Found 3 products
Item#: PN23745 Mfr Part#: PM025017-AT / PM 025 017 AT Manufacturer: Pfeiffer Vacuum
PRICE: $12,600.00
WEB SAVINGS: $2,485.00
YOU PAY: $10,115.00

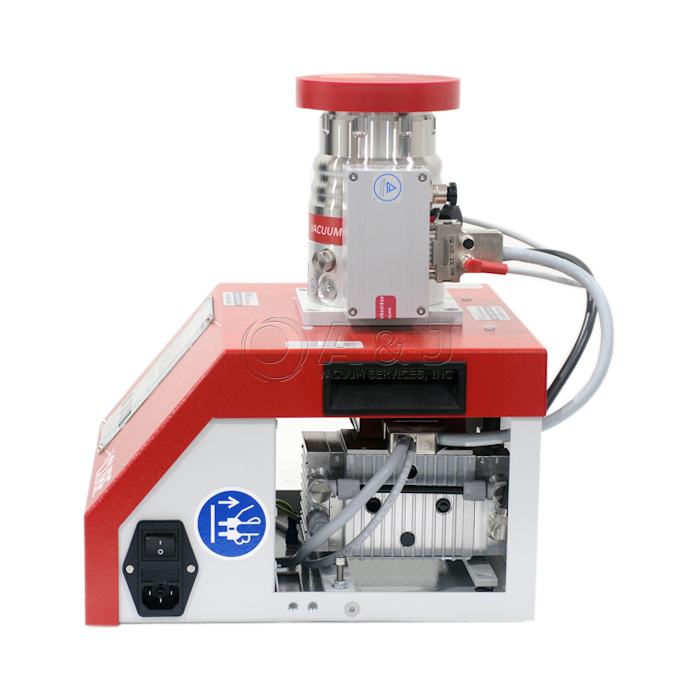

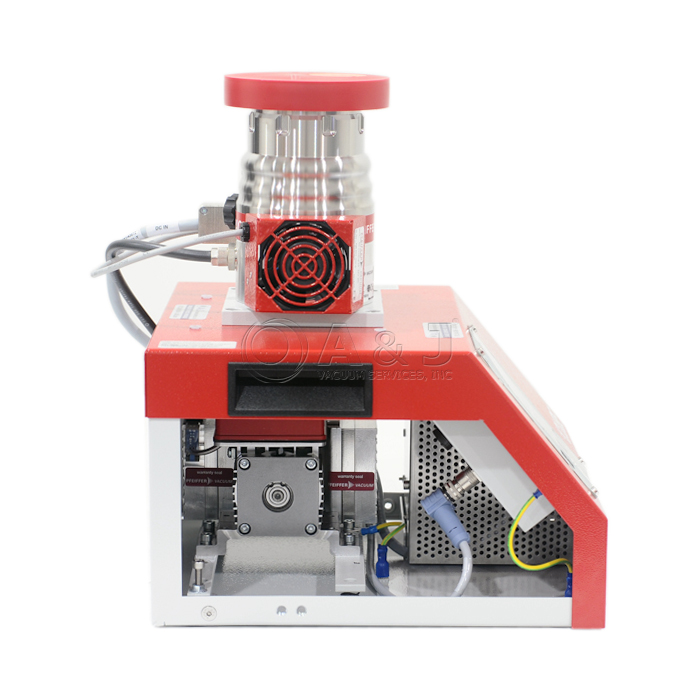

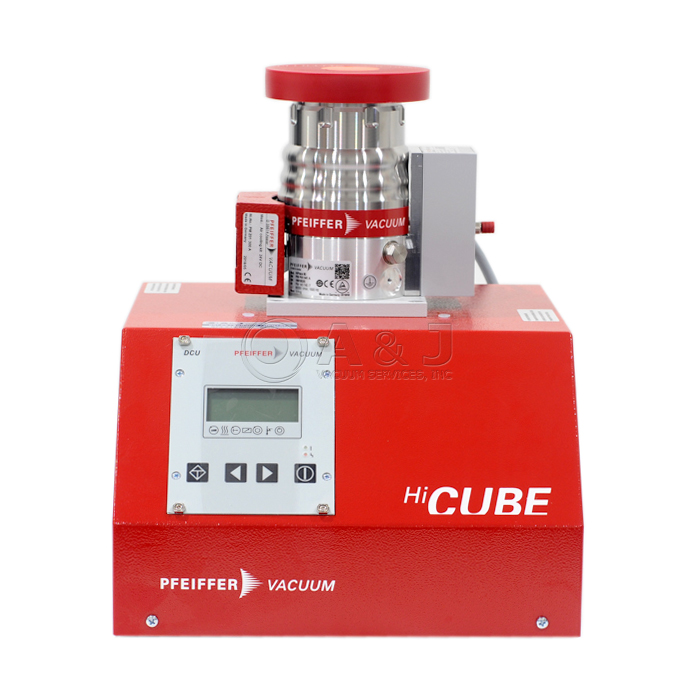

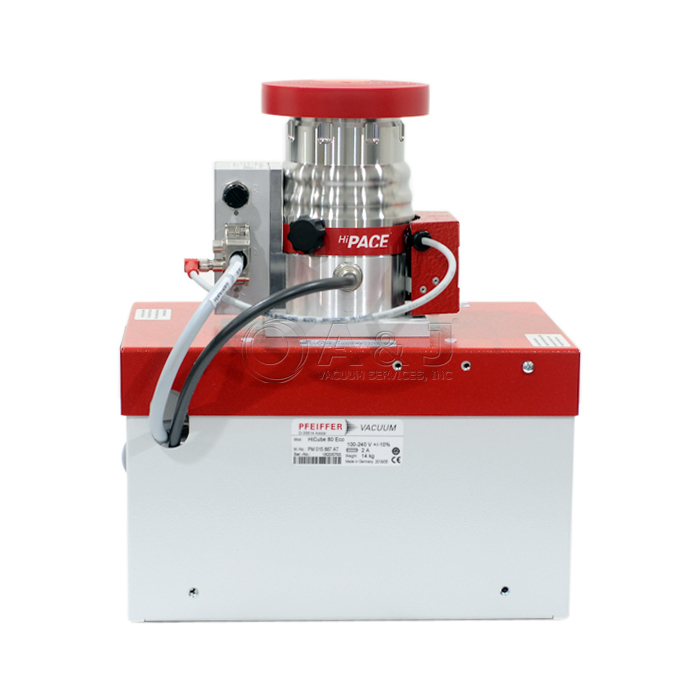

Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), MVP 015-4 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM025017-AT / PM 025 017 AT



Pfeiffer HiPace 80 Overview:


The Pfeiffer Vacuum HiCube80 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).

The Hicube 80 Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.

The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

All HiCube Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.



Pfeiffer HiPace 80 Features:


  • Compact series of pumping stations for all high vacuum applications
  • Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015-4 Dry Diaphragm Backing Pump
  • Pfeiffer HiCube 80 Eco comes with DN 63 CF-F inlet flange
  • DCU 002 Control Unit
  • Pfieffer HiCube 80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz



Pfeiffer HiPace 80 Eco Product Description:


Pfeiffer HiCube 80 Eco Turbo Pumping Station PM025017-AT / PM 025 017 AT, Product Overview



Typical High Vacuum Hicube80 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiCube 80 Dimensions:


Pfeiffer HiCube 80 Dimensions, PM025017-AT / PM 025 017 AT


Click Here for Pfeiffer HiCube 80 Manual

Click Here for Pfeiffer HiPace 80 Manual

Click Here for Pfeiffer MVP 015-4 Manual


A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube 80 ECO Pumping Stations along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN23746 Mfr Part#: PM025016-AT / PM 025 016 AT Manufacturer: Pfeiffer Vacuum
PRICE: $12,760.00
WEB SAVINGS: $2,645.00
YOU PAY: $10,115.00

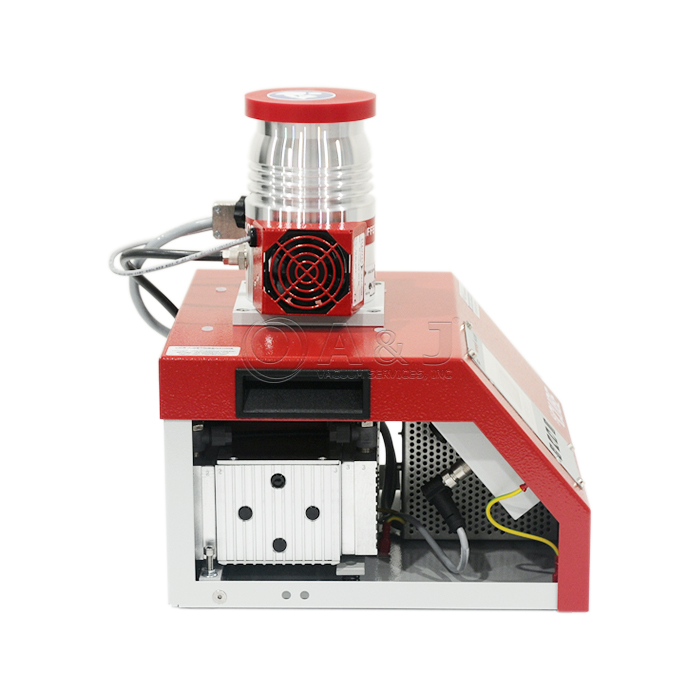

Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 ISO-K), MVP 015-4 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM025016-AT / PM 025 016 AT



Pfeiffer HiPace 80 Overview:


The Pfeiffer Vacuum HiCube80 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).

The Hicube 80 Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.

The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

All HiCube Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.



Pfeiffer HiPace 80 Features:


  • Compact series of pumping stations for all high vacuum applications
  • Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015-4 Dry Diaphragm Backing Pump
  • Pfeiffer HiCube 80 Eco comes with DN 63 ISO-K inlet flange
  • DCU 002 Control Unit
  • Pfieffer HiCube 80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz



Pfeiffer HiPace 80 Eco Product Description:


Pfeiffer HiCube 80 Eco Turbo Pumping Station PM025016-AT / PM 025 016 AT, Product Overview



Typical High Vacuum Hicube80 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiCube 80 Dimensions:


Pfeiffer HiCube 80 Dimensions, PM025016-AT / PM 025 016 AT


Click Here for Pfeiffer HiCube 80 Manual

Click Here for Pfeiffer HiPace 80 Manual

Click Here for Pfeiffer MVP 015-4 Manual


A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube 80 ECO Pumping Stations along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: New In Stock
Item#: PN23747 Mfr Part#: PM025018-AT / PM 025 018 AT Manufacturer: Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale

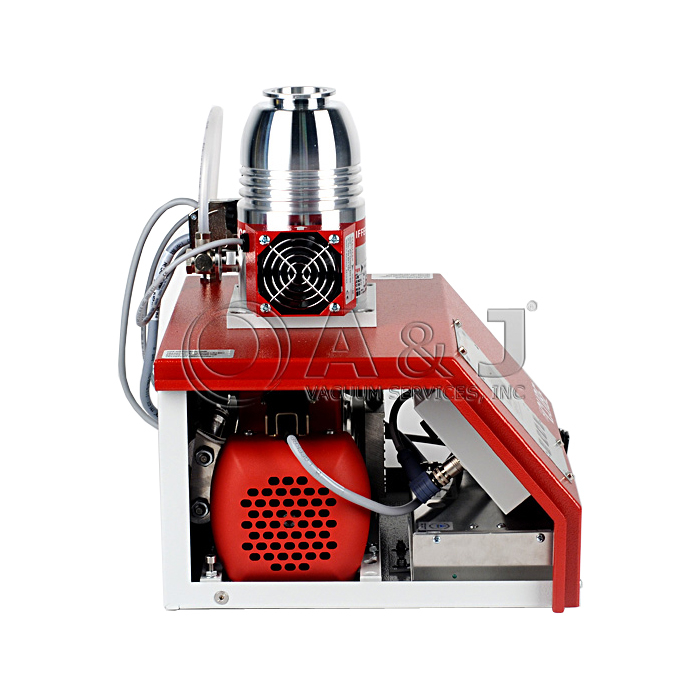

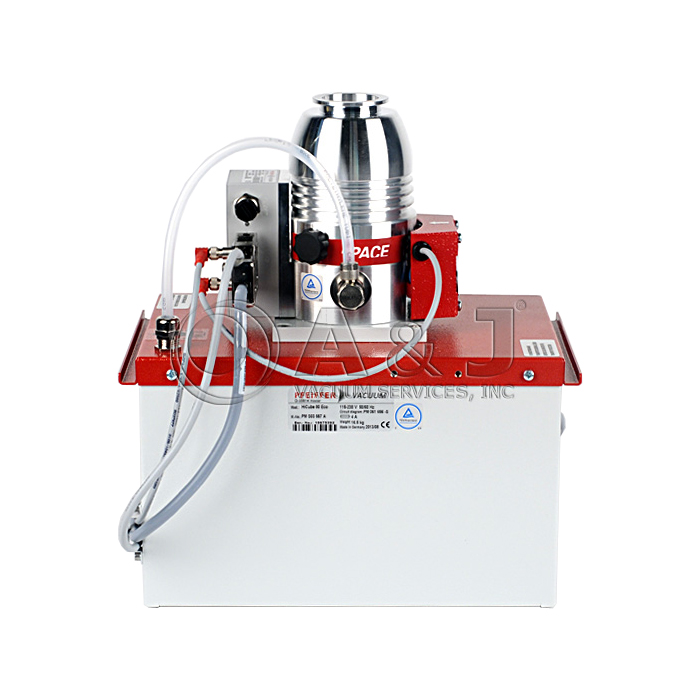

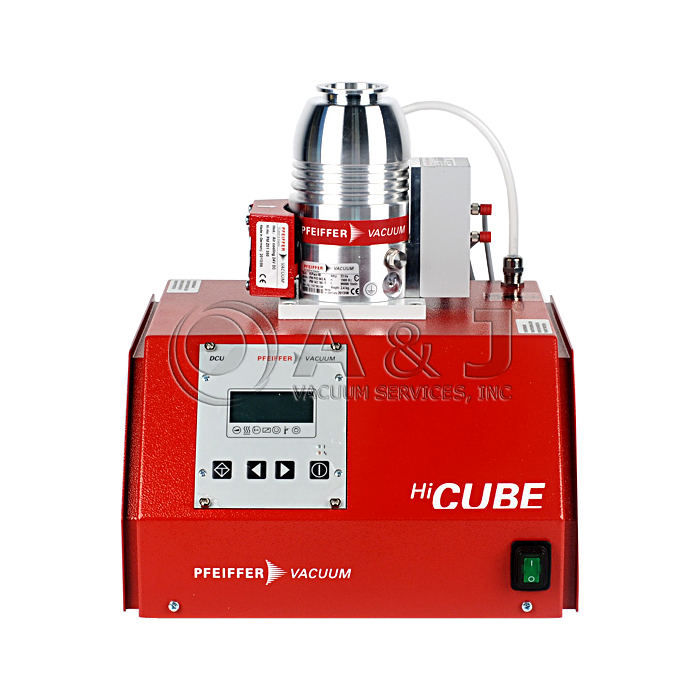

Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 40 ISO-KF), MVP 015-4 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM025018-AT / PM 025 018 AT



Pfeiffer HiPace 80 Overview:


The Pfeiffer Vacuum HiCube80 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).

The Hicube 80 Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.

The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

All HiCube Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.



Pfeiffer HiPace 80 Features:


  • Compact series of pumping stations for all high vacuum applications
  • Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015-4 Dry Diaphragm Backing Pump
  • Pfeiffer HiCube 80 Eco comes with DN 40 ISO-KF inlet flange
  • DCU 002 Control Unit
  • Pfieffer HiCube 80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz



Pfeiffer HiPace 80 Eco Product Description:


Pfeiffer HiCube 80 Eco Turbo Pumping Station PM025018-AT / PM 025 018 AT, Product Overview



Typical High Vacuum Hicube80 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiCube 80 Dimensions:


Pfeiffer HiCube 80 Dimensions, PM025018-AT / PM 025 018 AT


Click Here for Pfeiffer HiCube 80 Manual

Click Here for Pfeiffer HiPace 80 Manual

Click Here for Pfeiffer MVP 015-4 Manual


A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube 80 ECO Pumping Stations along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Discontinued
