Found 3 products
Item#: PN16008 Mfr Part#: B82200101 Manufacturer: Edwards Vacuum
PRICE: $13,858.00
WEB SAVINGS: $100.00
YOU PAY: $13,758.00

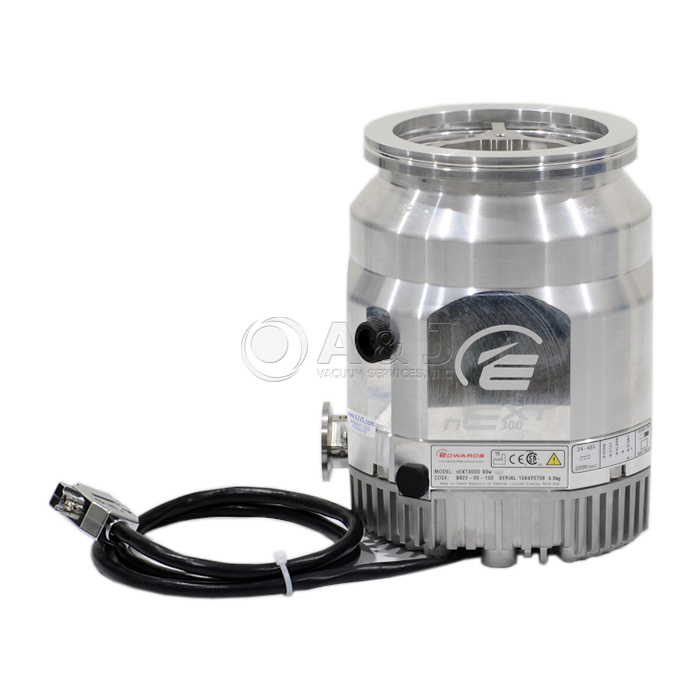

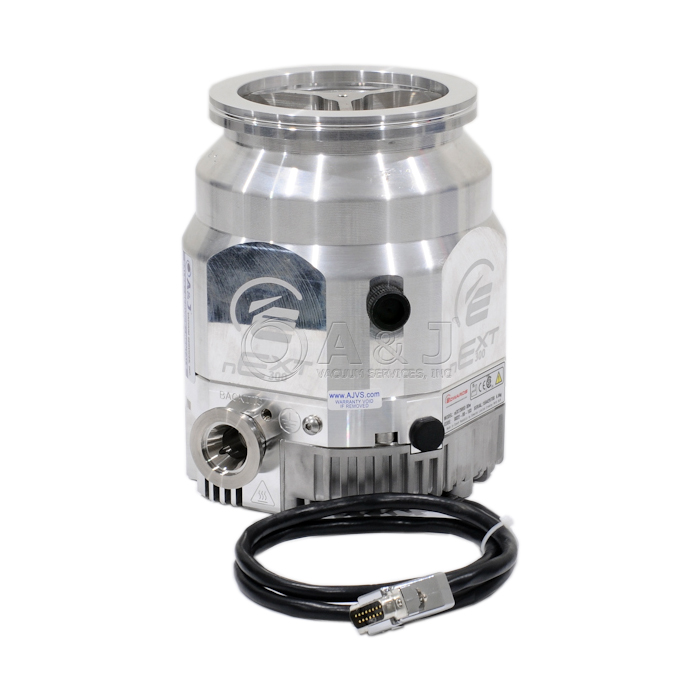

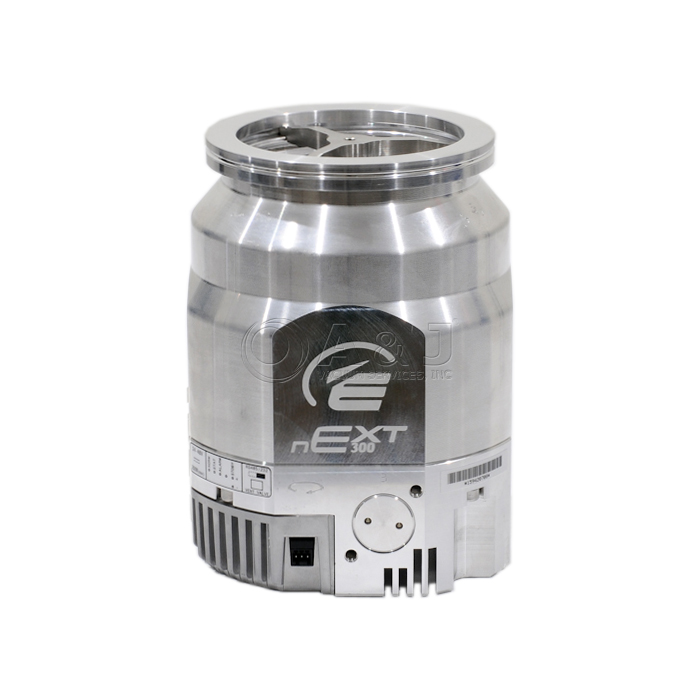

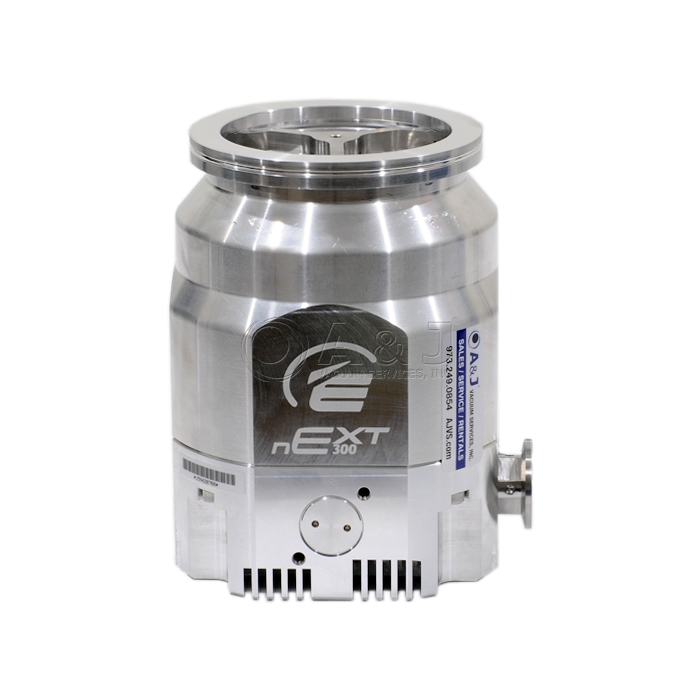

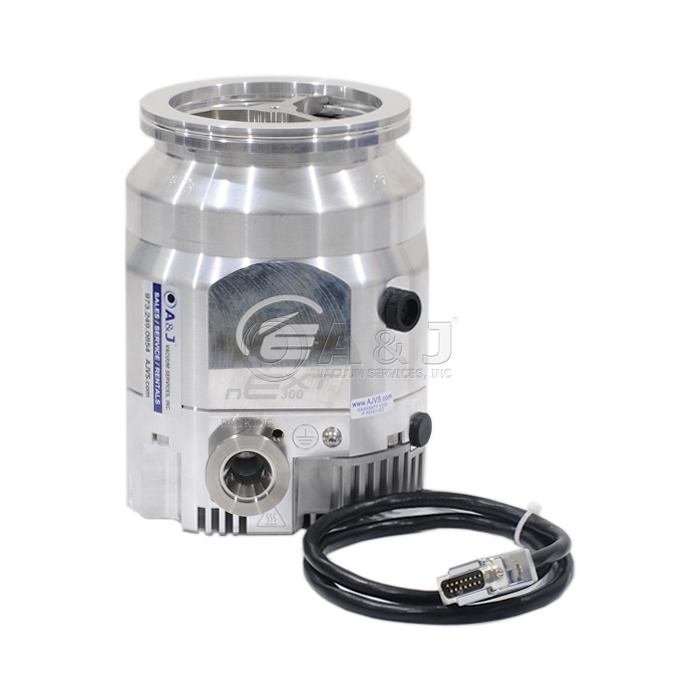

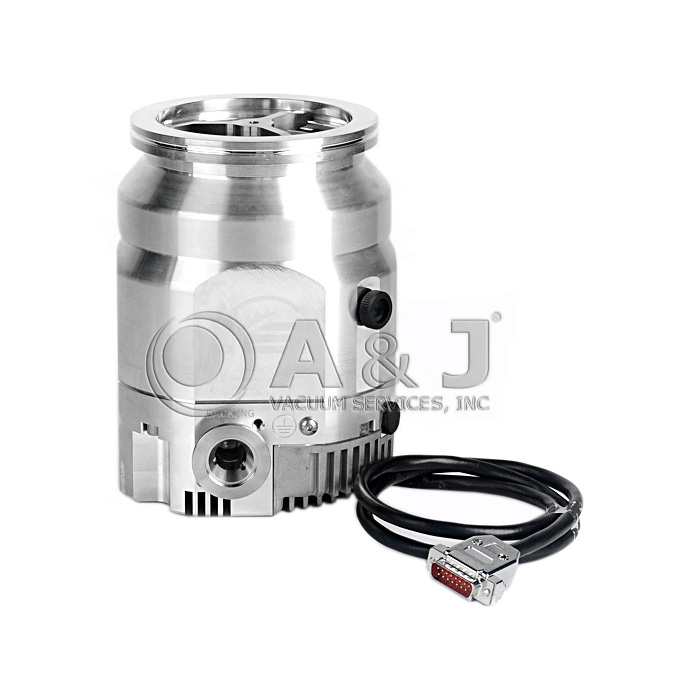

Edwards nEXT 300 D Turbomolecular Vacuum Pump, DN 100 ISO-K, 80 W, B82200101



Edwards nEXT300D Overview


The nEXT 300D pumps consist of the turbomolecular pump with a permanently attached controller containing drive electronics.

The controller controls the electrical supply to the pump with the exception of standby speed control. It has no manual controls and can only be operated through the logic interface. To operate the nEXT-300 D pump you must connect it to your own control equipment and power supply or alternatively use the Edwards TIC Turbo Instrument Controller or TIC Turbo Controller.

nEXT 300D pumps are supllied with an inlet-screen fitted into the centering O-ring for ISO version pumps and into envelope for CF version pumps. nEXT300 (B82200101) pumps with an NW 25 interstage-port are supplied with an inlet-strainer that fits into the interstage-port. The inlet-screen and inlet-strainer protect the pump against damage that would be caused by debris entering the pump.

The nEXT 300 pumps have a vent-port for venting the pump and vacuum system to atmospheric pressure. The pump is supplied with a manual vent-vavle fitted; this can be replaced with a TAV5 or TAV6 solenoid-operated vent-valve. The TAV valve can be directly controlled by the on-board controller.

The nEXT B82200101 pumps have a purge-port: an inert purge gas can be introduced protect the bearing and motor from corrosion. An optional vent-port adapter and purge restrictor can be fitted to the purge-port to control the flow rate of the purge gas and to filter the gas supply.

Air-coolers and a water-cooling block are available.



Edwards nEXT300D Features

  • Multiple drag stages for higher compression ratios and greater backing pressure tolerance
  • Sensorless drive for high efficiency and compactness with reduced stray magnetic fields
  • Patented bearing suspension system minimises noise and vibration transmitted to vacuum system.
  • User replaceable oil cartridge for a speedy interim service
  • Regenerative stage ‘Boost’ port option for reduced pump numbers in differentially pumped systems for maximum system rationalisation
  • Permanent magnet upper bearing for a hydrocarbon free vacuum, reduced vibration and minimum wear
  • Advanced simulation tool derived rotor design to give better speed and compression performance
  • Manual vent port with automatic valve accessories for rapid venting and quick cycle times
  • Purge port for safe operation of pump with specialised gases
  • Manual as well as serial setting of standby speed for flexible system tuning
  • Simple parallel operation or more sophisticated serial control in both RS232 and RS485 protocols
  • Automatic Wide operating voltage range from 24 V to 48 V dc for versatility in system integration



Edwards nEXT is available in four sizes


The pump name refers to the true peak pumping speed for nitrogen gas.

The nEXT platform brings a high level of modularity to offer maximum flexibility for customer application and requirements. Each pump is available in two different internal configurations to offer differing performance

Duplex - “D” - variants with both turbomolecular and drag stages for improved tolerance to higher backing line pressures.

Triplex - “T” - variants with turbo, drag and Edwards unique fluid dynamic stages for the ultimate in compression ratio and Boost technology for maximum vacuum system rationalisation.



Edwards nEXT300D Pumping Speed


Edwards nEXT300D next 300d next-300d Pumping Speed, b81200101



Edwards nEXT300D Dimensions


Edwards nEXT300D next 300d next-300d Dimensions, b81200101


Click Here for Edwards nEXT240 nEXT300 nEXT 400 Manual

Click Here for Edwards nEXT Turbo Pump Brochure

Click Here for Edwards nEXT Turbo Pump Accessories


A&J Vacuum Services offers full repair/service of Edwards nEXT Turbo Pumps, along with all other brands offered on our website. AJVS also services Edwards Vacuum Pump. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN16009 Mfr Part#: B82200201 Manufacturer: Edwards Vacuum
PRICE: $12,548.37
WEB SAVINGS: $246.05
YOU PAY: $12,302.32

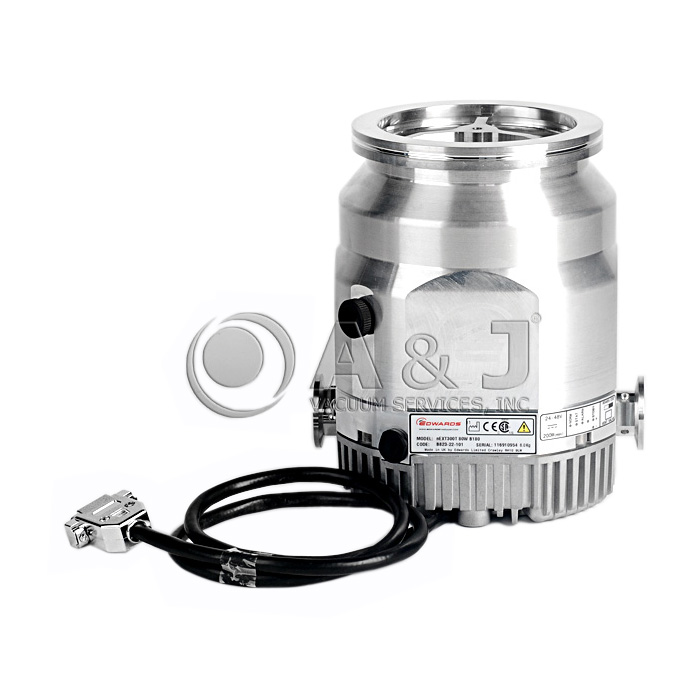

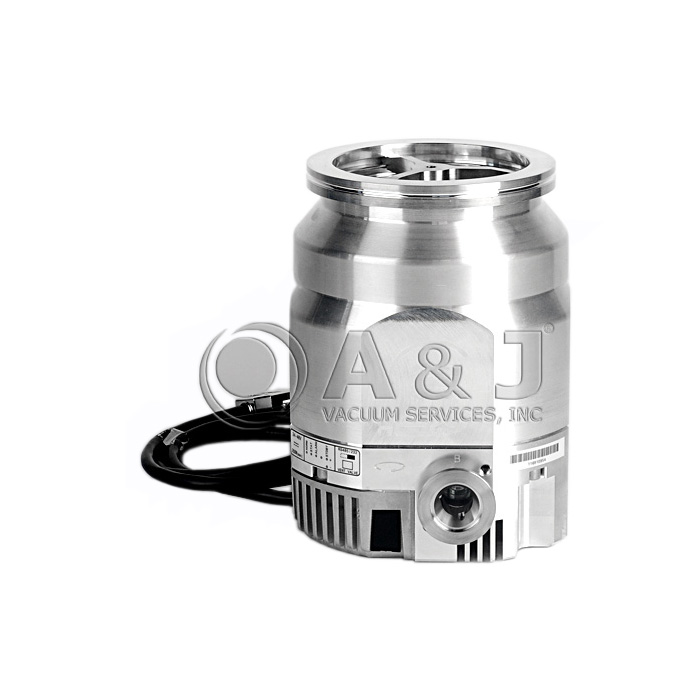

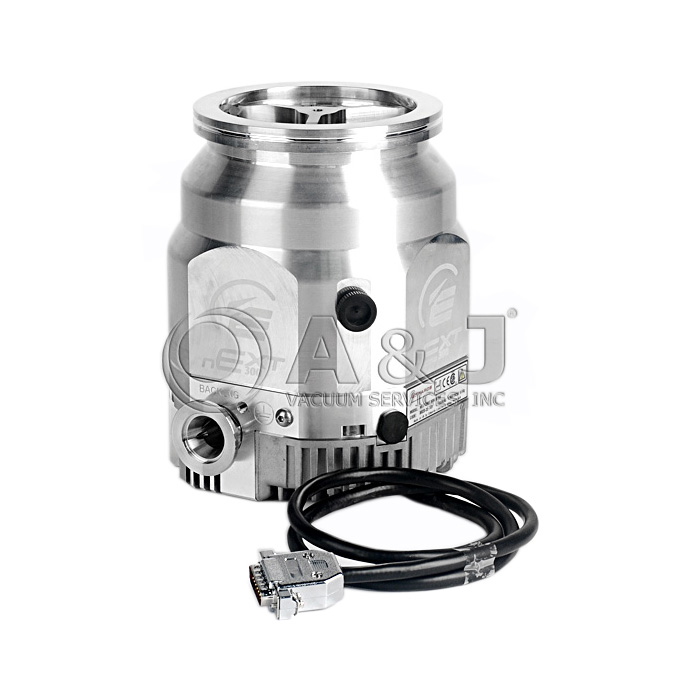

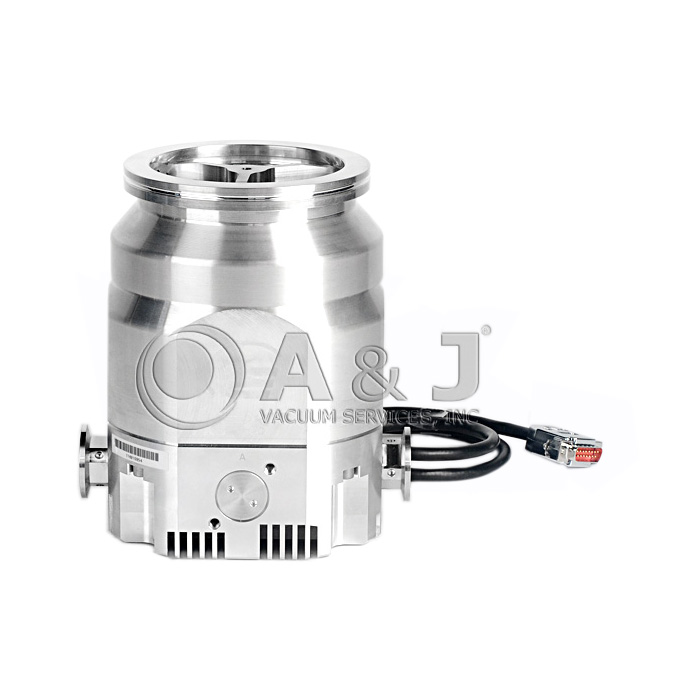

Edwards nEXT 300 D Turbomolecular Vacuum Pump, DN 100 ISO-CF, 80 W, B82200201



Edwards nEXT300D Overview


The nEXT 300D pumps consist of the turbomolecular pump with a permanently attached controller containing drive electronics.

The controller controls the electrical supply to the pump with the exception of standby speed control. It has no manual controls and can only be operated through the logic interface. To operate the nEXT-300 D pump you must connect it to your own control equipment and power supply or alternatively use the Edwards TIC Turbo Instrument Controller or TIC Turbo Controller.

nEXT 300D pumps are supllied with an inlet-screen fitted into the centering O-ring for ISO version pumps and into envelope for CF version pumps. nEXT300 (B82200201) pumps with an NW 25 interstage-port are supplied with an inlet-strainer that fits into the interstage-port. The inlet-screen and inlet-strainer protect the pump against damage that would be caused by debris entering the pump.

The nEXT 300 pumps have a vent-port for venting the pump and vacuum system to atmospheric pressure. The pump is supplied with a manual vent-vavle fitted; this can be replaced with a TAV5 or TAV6 solenoid-operated vent-valve. The TAV valve can be directly controlled by the on-board controller.

The nEXT B82200201 pumps have a purge-port: an inert purge gas can be introduced protect the bearing and motor from corrosion. An optional vent-port adapter and purge restrictor can be fitted to the purge-port to control the flow rate of the purge gas and to filter the gas supply.

Air-coolers and a water-cooling block are available.



Edwards nEXT300D Features

  • Multiple drag stages for higher compression ratios and greater backing pressure tolerance
  • Sensorless drive for high efficiency and compactness with reduced stray magnetic fields
  • Patented bearing suspension system minimises noise and vibration transmitted to vacuum system.
  • User replaceable oil cartridge for a speedy interim service
  • Regenerative stage ‘Boost’ port option for reduced pump numbers in differentially pumped systems for maximum system rationalisation
  • Permanent magnet upper bearing for a hydrocarbon free vacuum, reduced vibration and minimum wear
  • Advanced simulation tool derived rotor design to give better speed and compression performance
  • Manual vent port with automatic valve accessories for rapid venting and quick cycle times
  • Purge port for safe operation of pump with specialised gases
  • Manual as well as serial setting of standby speed for flexible system tuning
  • Simple parallel operation or more sophisticated serial control in both RS232 and RS485 protocols
  • Automatic Wide operating voltage range from 24 V to 48 V dc for versatility in system integration



Edwards nEXT is available in four sizes


The pump name refers to the true peak pumping speed for nitrogen gas.

The nEXT platform brings a high level of modularity to offer maximum flexibility for customer application and requirements. Each pump is available in two different internal configurations to offer differing performance

Duplex - “D” - variants with both turbomolecular and drag stages for improved tolerance to higher backing line pressures.

Triplex - “T” - variants with turbo, drag and Edwards unique fluid dynamic stages for the ultimate in compression ratio and Boost technology for maximum vacuum system rationalisation.



Edwards nEXT300D Pumping Speed


Edwards nEXT300D next 300d next-300d Pumping Speed, b81200201



Edwards nEXT300D Dimensions


Edwards nEXT300D next 300d next-300d Dimensions, b81200201


Click Here for Edwards nEXT240 nEXT300 nEXT 400 Manual

Click Here for Edwards nEXT Turbo Pump Brochure

Click Here for Edwards nEXT Turbo Pump Accessories


A&J Vacuum Services offers full repair/service of Edwards nEXT Turbo Pumps, along with all other brands offered on our website. AJVS also services Edwards Vacuum Pump. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN40747 Mfr Part#: B82200100 Manufacturer: Edwards Vacuum
PRICE: $14,750.00
WEB SAVINGS: $892.00
YOU PAY: $13,858.00

Edwards nEXT300D Turbo Pump, DN 100 ISO-K, 160 W, B822-00-100



Edwards nEXT300D Overview


The nEXT 300D pumps consist of the turbomolecular pump with a permanently attached controller containing drive electronics.

The controller controls the electrical supply to the pump with the exception of standby speed control. It has no manual controls and can only be operated through the logic interface. To operate the nEXT-300 D pump you must connect it to your own control equipment and power supply or alternatively use the Edwards TIC Turbo Instrument Controller or TIC Turbo Controller.

nEXT 300D pumps are supllied with an inlet-screen fitted into the centering O-ring for ISO version pumps and into envelope for CF version pumps. nEXT300 (B82200100) pumps with an NW 25 interstage-port are supplied with an inlet-strainer that fits into the interstage-port. The inlet-screen and inlet-strainer protect the pump against damage that would be caused by debris entering the pump.

The nEXT 300 pumps have a vent-port for venting the pump and vacuum system to atmospheric pressure. The pump is supplied with a manual vent-vavle fitted; this can be replaced with a TAV5 or TAV6 solenoid-operated vent-valve. The TAV valve can be directly controlled by the on-board controller.

The nEXT B82200100 pumps have a purge-port: an inert purge gas can be introduced protect the bearing and motor from corrosion. An optional vent-port adapter and purge restrictor can be fitted to the purge-port to control the flow rate of the purge gas and to filter the gas supply.

Air-coolers and a water-cooling block are available.



Edwards nEXT300D Features

  • Multiple drag stages for higher compression ratios and greater backing pressure tolerance
  • Sensorless drive for high efficiency and compactness with reduced stray magnetic fields
  • Patented bearing suspension system minimises noise and vibration transmitted to vacuum system.
  • User replaceable oil cartridge for a speedy interim service
  • Regenerative stage ‘Boost’ port option for reduced pump numbers in differentially pumped systems for maximum system rationalisation
  • Permanent magnet upper bearing for a hydrocarbon free vacuum, reduced vibration and minimum wear
  • Advanced simulation tool derived rotor design to give better speed and compression performance
  • Manual vent port with automatic valve accessories for rapid venting and quick cycle times
  • Purge port for safe operation of pump with specialised gases
  • Manual as well as serial setting of standby speed for flexible system tuning
  • Simple parallel operation or more sophisticated serial control in both RS232 and RS485 protocols
  • Automatic Wide operating voltage range from 24 V to 48 V dc for versatility in system integration



Edwards nEXT is available in four sizes


The pump name refers to the true peak pumping speed for nitrogen gas.

The nEXT platform brings a high level of modularity to offer maximum flexibility for customer application and requirements. Each pump is available in two different internal configurations to offer differing performance

Duplex - “D” - variants with both turbomolecular and drag stages for improved tolerance to higher backing line pressures.

Triplex - “T” - variants with turbo, drag and Edwards unique fluid dynamic stages for the ultimate in compression ratio and Boost technology for maximum vacuum system rationalisation.



Edwards nEXT300D Pumping Speed


Edwards nEXT300D next 300d next-300d Pumping Speed, b81200101



Edwards nEXT300D Dimensions


Edwards nEXT300D next 300d next-300d Dimensions, b81200101


Click Here for Edwards nEXT240 nEXT300 nEXT 400 Manual

Click Here for Edwards nEXT Turbo Pump Brochure

Click Here for Edwards nEXT Turbo Pump Accessories


A&J Vacuum Services offers full repair/service of Edwards nEXT Turbo Pumps, along with all other brands offered on our website. AJVS also services Edwards Vacuum Pump. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
