Pfeiffer ASI 35 Modular Leak Detector's Splitflow 50 Turbo Pump, with TC 110 Turbo Controller, 2000014683 / PM P05 187 / PMP05187

ASI 35 Modular Leak Detector's Splitflow 50 Turbo Pump / PMP05187 Overview:

This Pfeiffer Splitflow 50 has been designed especially for Pfeiffer Adixen's ASI35 series modular leak detectors.

This Splitflow 50 is brand new, and ready to be installed inside Pfeiffer Adixen's ASI35 leak detector. It also comes with the TC 110 Turbo Pump controller.

The Splitflow 50 operates on 24VDC and is designed to be used with ASI35's Internal Power supply.

• Pumping Speed: 50 l/s for N2
• Special Turbo Pump with interstage pumping port
• Special ASI 35 Flange mount configuration
• Ultimate pressure with Rotary Vane Pump: < 1 x 10-10 mbar

Pfeiffer ADIXEN Splitflow 50 fits the following ASI 35 Leak Detectors;

• ASI 35 (without integrated backing pump)

A&J Vacuum also repair / rebuild and service all Pfeiffer Adixen Splitflow 50 Turbo Pumps, PM P05 187YP,  along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

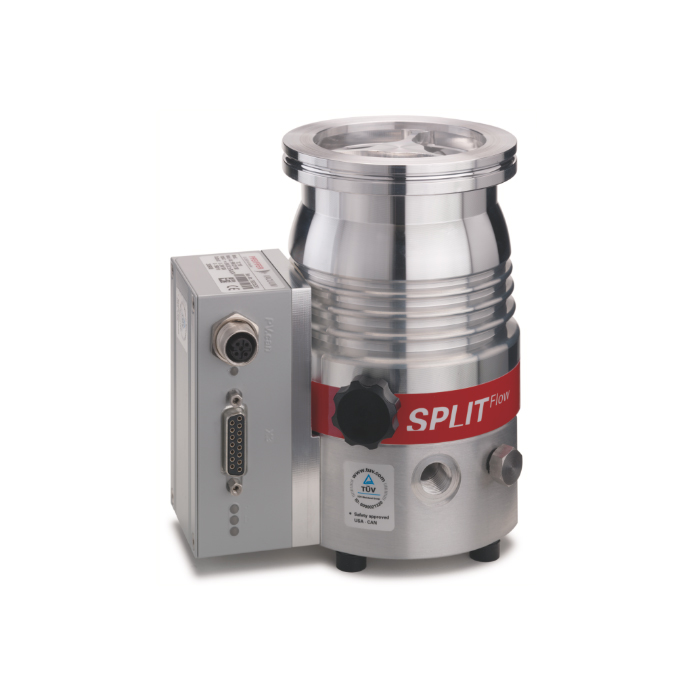

Pfeiffer SplitFlow 50 Turbo Pump with TCP 110 Controller, DN 63 ISO-K, 2000015250 / PM P04 340 A / PMP04340A

Pfeiffer SplitFlow 50 Features:

• Small yet powerful turbopump based on HiPace technology
• With a pumping speed up to 53 l/s for N2 at the high vacuum flange and 0,15 l/s at interstage pumping
• Integrated TC 110 drive electronics
• For installation in any orientation
• Ideal for analytical applications such as leak detection and mass spectrometry
• Extensive accessories expand the range of applications

SplitFlow 50 / PMP04340A Overview:

The Pfeiffer SplitFlow 50 / PM P04 340 A models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.

SplitFlow50 Scope of Delivery:

• Turbopump with electronic drive unit
• Protective cover for the high vacuum connection
• Protective cover for the fore-vacuum connection
• Operating instructions

SplitFlow50 Applications:

• Research and development
• Semiconductor manufacturing
• Mass spectrometers
• Electron microscopy

A&J Vacuum repair / rebuild and service Pfeiffer Splitflow50, HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, Pfeiffer Backing  Pumps along with all other  Pfeiffer  Vacuum Pumps and all other Pfeiffer Leak Detector  Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
