- Inlet Flange: DN 63 ISO-K
- Gas throughput at full rotational speed for He 7.3 hPa·l/s
- Pumping speed for H2 21 l/s
- Pumping speed (interstage pumping) for N2 0.15 l/s
Shopping Cart ( )
Pfeiffer SplitFlow 50 Turbo Pump with TCP 110 Controller, DN 63 ISO-K, 2000015250 / PM P04 340 A / PMP04340A
Condition:
New
Item#:PN23361
Mfr Part#:2000015250 / PM P04 340 A / PMP04340A
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer SplitFlow 50 Turbo Pump with TCP 110 Controller, DN 63 ISO-K, 2000015250 / PM P04 340 A / PMP04340A
Pfeiffer SplitFlow 50 Features:
- Small yet powerful turbopump based on HiPace technology
- With a pumping speed up to 53 l/s for N2 at the high vacuum flange and 0,15 l/s at interstage pumping
- Integrated TC 110 drive electronics
- For installation in any orientation
- Ideal for analytical applications such as leak detection and mass spectrometry
- Extensive accessories expand the range of applications
SplitFlow 50 / PMP04340A Overview:
The Pfeiffer SplitFlow 50 / PM P04 340 A models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
SplitFlow50 Scope of Delivery:
- Turbopump with electronic drive unit
- Protective cover for the high vacuum connection
- Protective cover for the fore-vacuum connection
- Operating instructions
SplitFlow50 Applications:
- Research and development
- Semiconductor manufacturing
- Mass spectrometers
- Electron microscopy
A&J Vacuum repair / rebuild and service Pfeiffer Splitflow50, HiPace 10, HiPace 30, Hipace 80, Hipace 300, Hipace 700 Turbo Pumps, Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer SplitFlow 50 Turbo Pump with TCP 110 Controller, DN 63 ISO-K, 2000015250 / PM P04 340 A / PMP04340A
Pfeiffer SplitFlow 50 Technical Data:
| Bearing | Hybrid |
| Compression ratio (interstage pumping/fore-vacuum) for Ar | 1.5 · 103 |
| Compression ratio (interstage pumping/fore-vacuum) for H2 | 2 · 101 |
| Compression ratio (interstage pumping/fore-vacuum) for He | 5 · 101 |
| Compression ratio (interstage pumping/fore-vacuum) for N2 | 9 · 102 |
| Compression ratio for Ar | 2.1 · 1010 |
| Compression ratio for H2 | 1.3 · 106 |
| Compression ratio for He | 1.8 · 106 |
| Compression ratio for N2 | 1 · 108 |
| Cooling method, optional | Air/Water |
| Cooling method, standard | Convection |
| Cooling water flow | 75 l/h |
| Cooling water flow, max | 75 l/h |
| Cooling water flow, min | 75 l/h |
| Cooling water temperature | 5-25 °C | 41-77 °F | 278-298 K |
| Current max. | 4,6 A |
| Electronic drive unit | TM 700 |
| Flange (in) | DN 63 ISO-K |
| Flange (interstage pumping) | M5 |
| Flange (out) | G ¼" |
| Fore-vacuum max. for N2 | 20 hPa | 15 Torr | 20 mbar |
| Gas throughput at full rotational speed for Ar | 0.46 hPa·l/s |
| Gas throughput at full rotational speed for H2 | 110 hPa·l/s |
| Gas throughput at full rotational speed for He | 7.3 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 1.8 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Mounting orientation | Any |
| Operating voltage: V DC | 24 (± 5 %) V DC |
| Permissible magnetic field max. | 5 mT |
| Power consumption max. | 110 W |
| Protection category | IP54 |
| Pumping speed (interstage pumping) for Ar | 0.13 l/s |
| Pumping speed (interstage pumping) for H2 | 0.3 l/s |
| Pumping speed (interstage pumping) for He | 0.16 l/s |
| Pumping speed (interstage pumping) for N2 | 0.15 l/s |

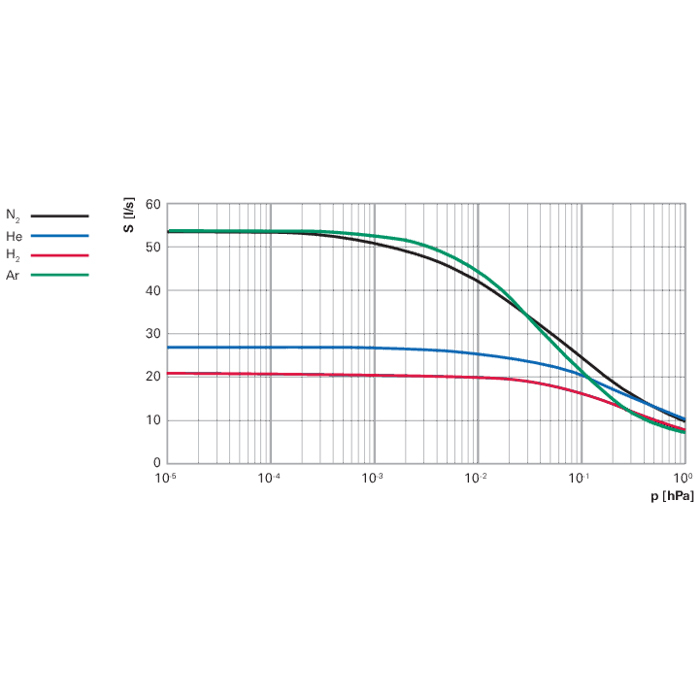

| Pumping speed for Ar | 53 l/s |
| Pumping speed for H2 | 21 l/s |
| Pumping speed for He | 27 l/s |
| Pumping speed for N2 | 53 l/s |
| Rotation speed ± 2 % | 49,000 rpm | 49,000 min-1 |
| Run-up time | 1.3 min |
| Sound pressure level | ≤48 dB(A) |
| Ultimate pressure according to PNEUROP | < 4 · 10-7 hPa | < 3 · 10-7 Torr | < 4 · 10-7 mbar |
| Ultimate pressure without gas ballast | 4 · 10-7 hPa | 3 · 10-7 Torr | 4 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 2.3 kg | 5.07 lb |
