- Final Pressure: 1.5 mbar
- Max. Pumping Speed: 0.7 cfm (50 Hz)
- Max. Back Pressure: 1.1 bar
- Motor Speed: 1500 min-1 (50 Hz)
Shopping Cart ( )

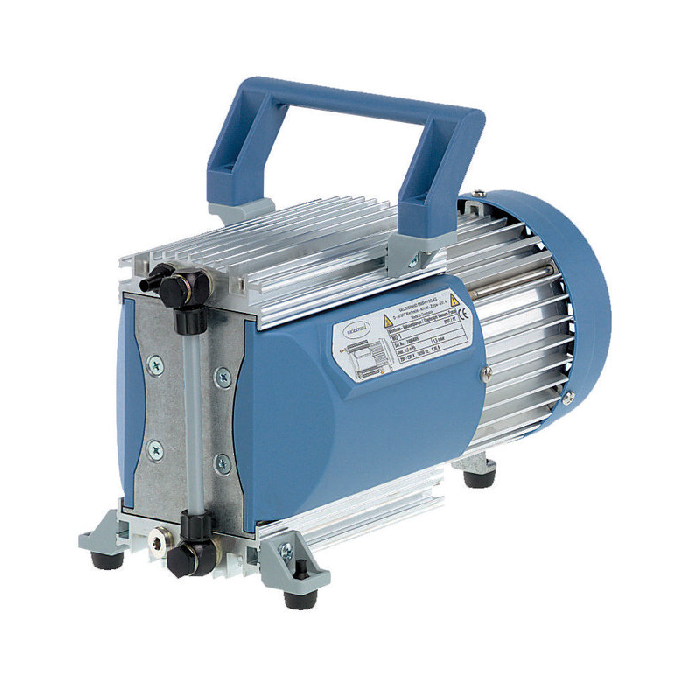

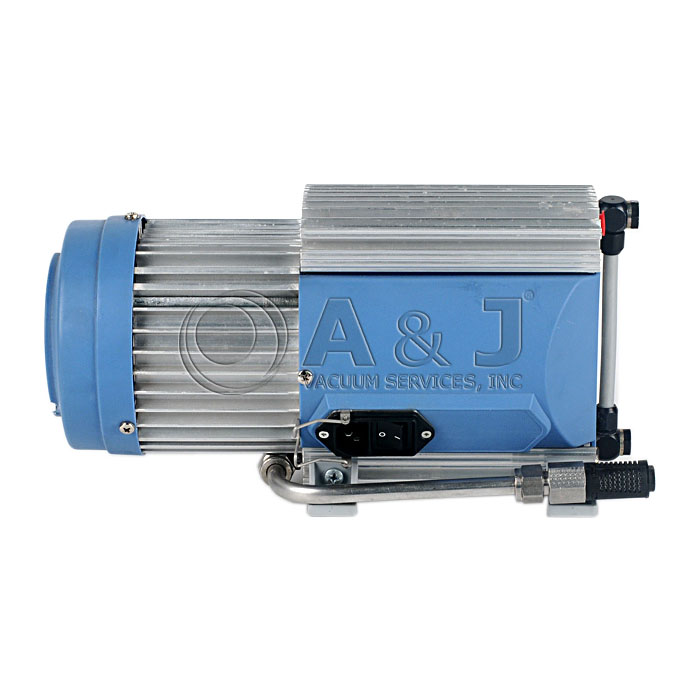

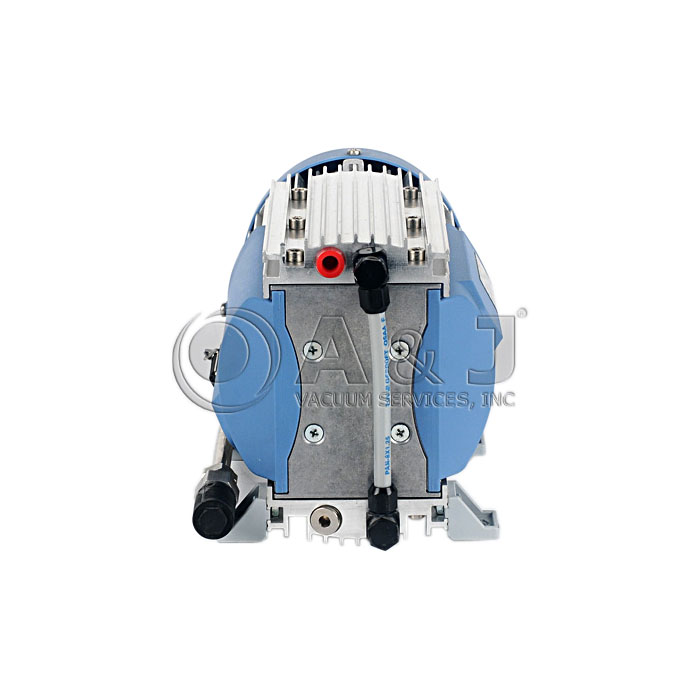

Vacuubrand MD 1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.7 cfm, 100-120V/200-230V 50/60 Hz, Vacuubrand MD1, 696087 / 20696087
Condition:
Discontinued
Item#:PN07533
Mfr Part#:696087 / 20696087
Manufacturer:Vacuubrand
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Please Note: This pump has been replaced with new model with a new motor specification. Please follow this link to view replacement model. Click Here
Vacuubrand MD 1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.7 cfm, 100-120V/200-230V 50/60 Hz, Vacuubrand MD1, 696087 / 20696087
The Vacuubrand MD1 diaphragm pump is an excellent choice for oil-free evacuation and pumping of non-corrosive gases down to 1.5 mbar ultimate vacuum.
The three-stage design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps.
The Vacuubrand MD1 is an ultra-low vibration pump with very long diaphragm lilfetimes and stable ultimate vacuum documented with years of testing.
With a flow path consisting of aluminum and selected plastics (diaphragms and valves made of PTFE/FKM and FKM, respectively) the Vacuubrand MD1 pumps are suitable for a wide range of applications with non-corrosive gases.
Features:
-
Contamination free vacuum pumping
-
High flow rate even near ultimate vacuum
-
Excellent ultimate vacuum
-
Whisper quiet and low vibration
-
Longong diaphragm life, maintenance free drive system design
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Please Note: This pump has been replaced with new model with a new motor specification. Please follow this link to view replacement model. Click Here
Vacuubrand MD 1 Diaphragm Vacuum Pump, Ultimate Pressure 1.5 mbar, Pumping Speed 0.7 cfm, 100-120V/200-230V 50/60 Hz, Vacuubrand MD1, 696087 / 20696087
| Technical data | Unit | MD 1 |
|---|---|---|
| Number of heads / stages | 4 / 3 | |
| Max. pumping speed at 50/60 Hz | m3/h | 1.2 / 1.4 |
| Max. pumping speed at 50/60 Hz | cfm | 0.7 / 0.8 |
| Ultimate vacuum (abs.) | mbar/torr | 1.5 / 1.1 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 6 mm | |
| Outlet connection | Silencer / G1/8" | |
| Rated motor power | kW | 0.08 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 42 | |

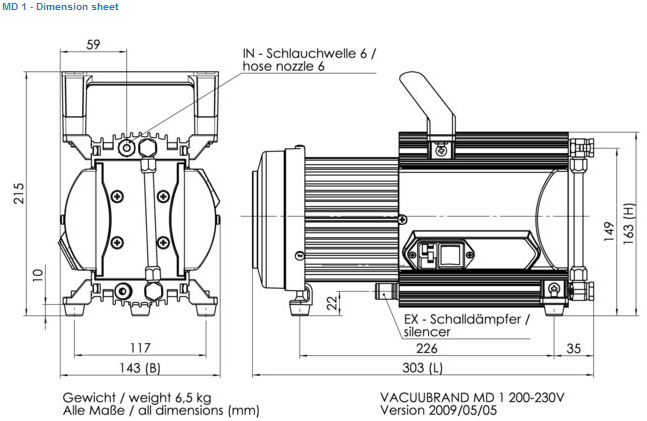

| Dimensions (L x W x H) | mm | 303 x 143 x 163 |
| Weight | kg | 6.5 |
| Noise level at 50 Hz, typ. | dBA | 40 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. |
