- Ultimate Vacuum: 70 mbar
- Max. Back Pressure: 2 bar
- Motor Speed: 1500 min-1 (50 Hz)
- Max. Pumping Speed: 2.4 cfm (50 Hz)
Shopping Cart ( )
Vacuubrand ME 4 NT Diaphragm Dry Vacuum Pump, Ultimate Pressure 70 mbar, Pumping Speed 2.4 cfm, 220-230 V, 50/60 Hz, 731100, 20731100
Condition:
Remanufactured
Call us for Availability
Item#:PN07552
Mfr Part#:731100,207311
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand ME 4 NT Diaphragm Dry Vacuum Pump, Ultimate Pressure 70 mbar, Pumping Speed 2.4 cfm, 220-230 V, 50/60 Hz, 731100, 20731100
Vacuubrand ME 4 NT Overview:
Vacuubrand ME 4 NT Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, allowing a wide range of applications for non-corrosive gases. The one-stage construction provides the advantageous combination of high pumping speedd and an ultimate vacuum down to 70 mbar. The highly flexible fabric-reinforced doublee diaphragm made of FKM is ideal for extended operating life. The new NT-series features further improved performance data.
Vacuubrand ME 4 NT Features:
- Contamination-free pumping and evacuation
- High flow rate even near ultimate vacuum
- Whisper quiet
- ME 4 NT with low vibration and higher pumping speed
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs

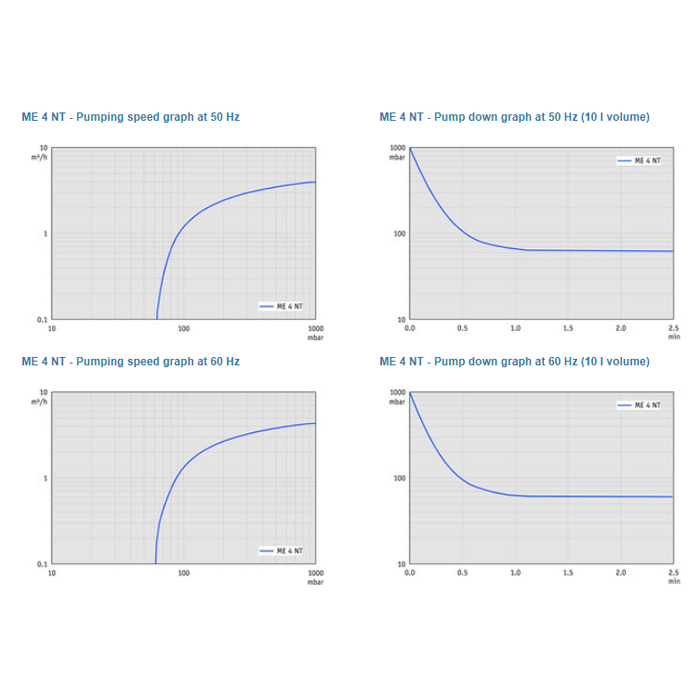

Vacuubrand ME 4 NT Pumping Speed:

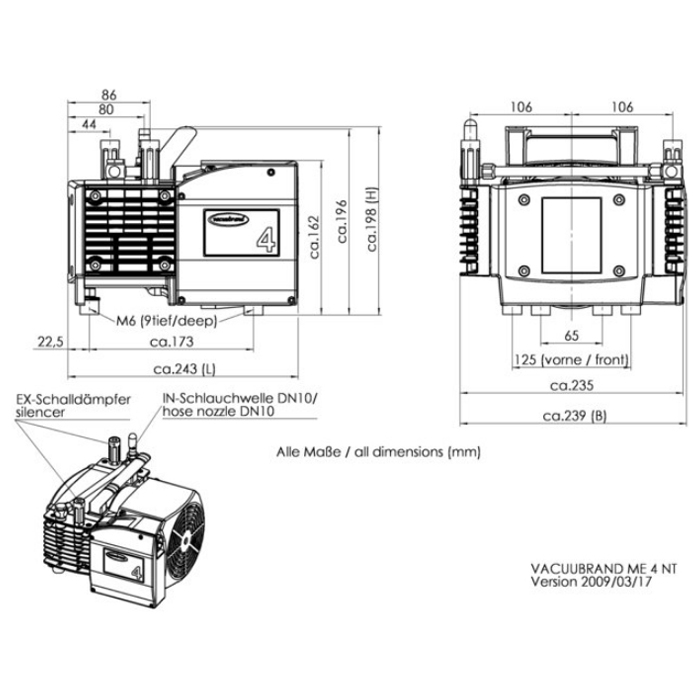

Vacuubrand ME 4 NT Dimensions:
Click Here for Vacuubrand ME 4 NT Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand ME 4 NT Diaphragm Dry Vacuum Pump, Ultimate Pressure 70 mbar, Pumping Speed 2.4 cfm, 220-230 V, 50/60 Hz, 731100, 20731100
Vacuubrand ME 4 NT Overview:
| Technical data | Unit | ME 4 NT |
|---|---|---|
| Number of heads / stages | 2 / 1 | |
| Max. pumping speed at 50/60 Hz | m3/h | 4.0 / 4.4 |
| Max. pumping speed at 50/60 Hz | cfm | 2.4 / 2.6 |
| Ultimate vacuum (abs.) | mbar/torr | 70 / 52 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 2 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | 2 x silencer / G1/4" | |
| Rated motor power | kW | 0.18 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 243 x 239 x 198 |
| Weight | kg | 11.0 |
| Noise level at 50 Hz, typ. | dBA | 45 |
| NRTL certification | Canada and the USA | |
| ATEX conformity (only 230V) | II 3/- G IIC T3 X Internal Atm. only | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Accessories | Vacuum regulator valve with manometer (20696840) VACUU·LAN® Mini-Network (22614455) Rubber vacuum tubing DN 8 mm (20686001) |
Click Here for Vacuubrand ME 4 NT Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
