Vacuubrand MV 10C NT VARIO Chemistry Diaphragm Pump, CVC 3000, 100-120V / 50-60Hz, US Power Cord, 6.8 CFM, 0.6 mbar, 744703 / 20744703

Condition: New

Item#:PN19579

Mfr Part#:744703 / 20744703

Manufacturer:BRANDTECH / Vacuubrand

Price upon request

Request a repair estimate Request sales quote Financing available

New Vacuubrand MV 10C NT VARIO Chemistry Diaphragm Pump, CVC 3000, 100-120V / 50-60Hz, US Power Cord, 6.8 CFM, 0.6 mbar, 744703 / 20744703

Features:

Vacuum controller: CVC 3000
Number of heads / stages: 8 / 4
Max. pumping speed: 6.8 CFM
Ultimate vacuum (abs.) mbar/torr: 0.6 / 0.45

Overview
Specifications
Service & Repair

Vacuubrand MV 10C NT VARIO Chemistry Diaphragm Pump, CVC 3000, 100-120V / 50-60Hz, US Power Cord, 6.8 CFM, 0.6 mbar, 744703 / 20744703

Vacuubrand MV 10C NT VARIO Features:

Automaticelectronic adaptation of the vacuum level throughout the process for high process reliability and unattended operation
Extraordinary diaphragm life for minimum operational and servicing costs
Easily operated CVC 3000 vacuum controller with clear text menus, with integrated venting valve
Short process times due to zero-fluctuation (hysteresis-free) vacuum control
Excellent chemical resistance
PC 3010 NT VARIO: excellent environmental friendliness due to efficient solvent recovery

MV 10C NT VARIO / 20744703 Overview:

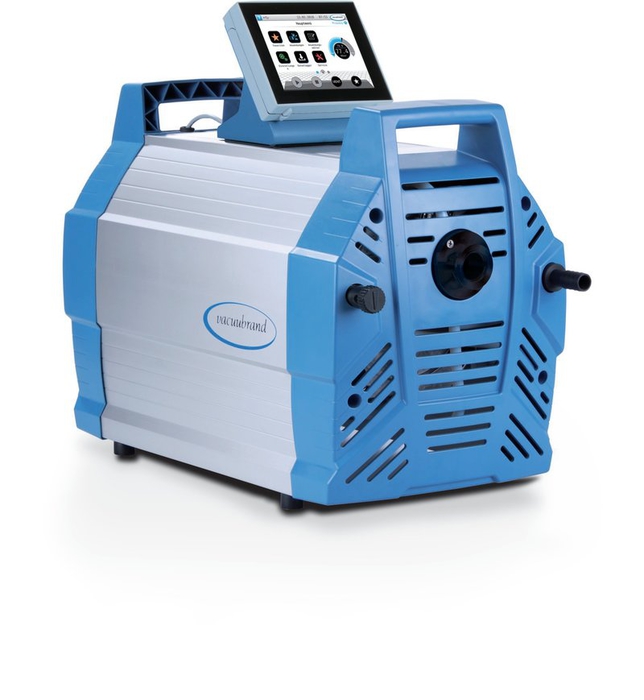

Vacuubrand MV 10C NT VARIO® Corrosive Diaphragm Dry Vacuum Pump provide precise vacuum control by of the diaphragm pump's motor speed.

The Vacuubrand MV10C NT VARIO® is a two stage chemistry corrosion resistant diaphragm pump the meets medium vacuum requirements for most chemical solvents.

The on demend motor speed control results in unpatalleled lnght of service intervals for all wearing internal parts. The controller provides fully automatic evaporations without any need of parameter input. The pump design offers exceptionally high chemical resistance supporting almost universal usage in chemistry and pharmaceutics.

The Vacuubrand PC3010 NT VARIO pumping unit relies on a well-proven operating concept for example for evaporation of large amounts of solvents. The inlet separator (AK) retains particles and liquid droplets, the waste vapor condenser at the outlet (EK) is highly efficient and compact.

A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

This item is non-returnable/non-refundable

Vacuubrand MV 10C NT VARIO Chemistry Diaphragm Pump, CVC 3000, 100-120V / 50-60Hz, US Power Cord, 6.8 CFM, 0.6 mbar, 744703 / 20744703

Vacuubrand MV 10C NT VARIO Technical Data:

Vacuum controller		CVC 3000
Number of heads / stages		8 / 4

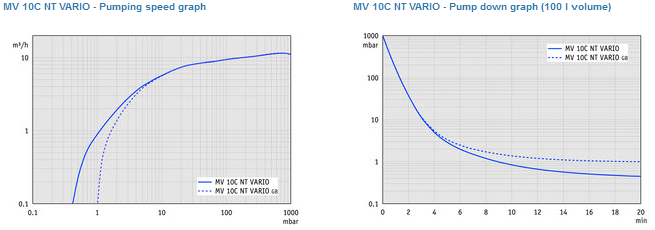

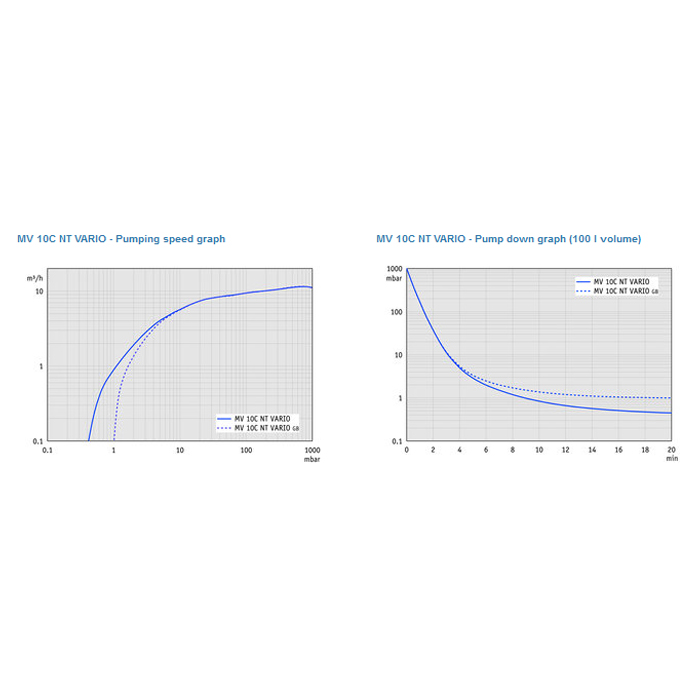

Max. pumping speed	m3/h	11.6
Max. pumping speed	cfm	6.8
Ultimate vacuum (abs.)	mbar/torr	0.6 / 0.45
Ultim. vac. (abs.) with gas ballast	mbar/torr	1.2 / 0.9
Ambient temperature range (operation)	°C	10 - 40
Ambient temperature range (storage)	°C	-10 - 60
Max. back pressure (abs.)	bar	1.1
Inlet connection		Small flange KF DN 25
Outlet connection		Hose nozzle DN 15 mm
Rated motor power	kW	0.53
Motor speed range	min-1	30 - 2400
Degree of protection		IP 40

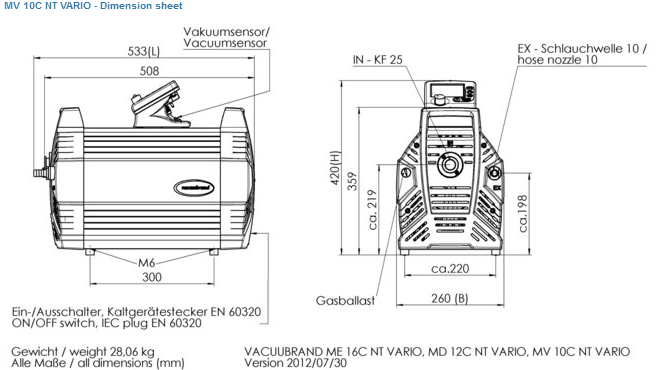

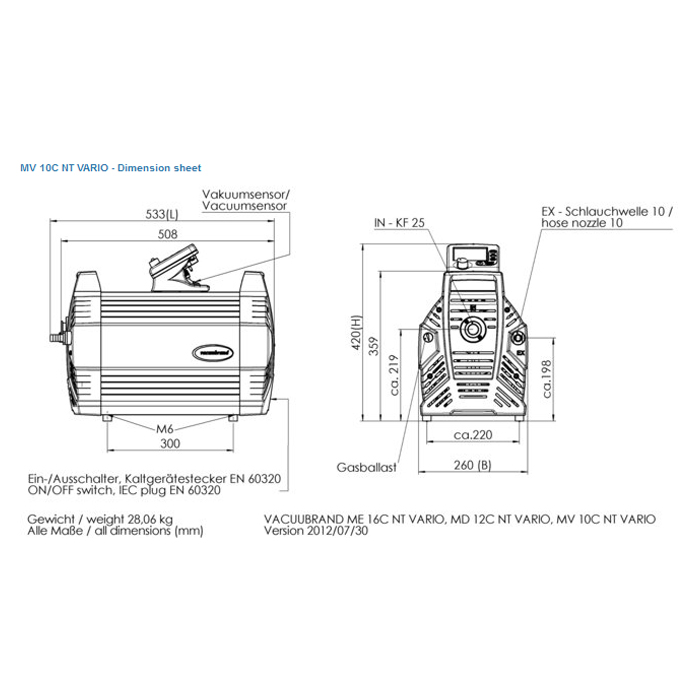

Dimensions (L x W x H)	mm	533 x 260 x 420
Weight	kg	28.1
Noise level at 50 Hz, typ.	dBA	47
ATEX conformity (only 230V)		II 3G IIC T3 X Internal Atm. only
Items supplied		Pumping unit completely mounted, ready for use, with manual.

Get started with your repair:

We can have a repair estimate ready for your equipment within the hour of submission.

Request a repair estimate

Start your equipment repair process by creating a Service RMA.

Generate Service RMA

High quality service guaranteed

A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.

We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

AJVS repair process:

Repair Steps

Full incoming inspection and run up time check, vibration check, drive inspection.
Full disassembly of the pump, decontamination and cleaning.
Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
