Edwards iGX 100L Dry Vacuum Pump, 200-230 V, 50/60 Hz, A536-10-958, A53610958
Condition:
Remanufactured
In Stock
Item#:PN00255
Mfr Part#:A53610958
Manufacturer:Edwards Vacuum
Features:
Edwards Vacuum iGX100L Dry Vacuum Pump, 200-230 V, 50/60 Hz, A53610958
Edwards iGX100L Overview:
The iGX Dry Vacuum Pump Series sets new standards for zero maintenance between major overhauls. Improved efficiency lowers the cost of ownership and provides continuous pumping duty throughout the pressure range.
iGX drypumps include Ethernet connectivity allowing key data to be viewed via web pages, as well as a comprehensive set of networking options to assure continuous pump availability.
iGX pumps are available in a wide range of peak speeds and variants to address applications from clean through to medium-duty processes. A modular design allows users to configure iGX drypumps to suit individual fab requirements. An ultra-compact footprint allows installation options including on-tool, close proximity, or remote.
Lower Utilities Cost:
Typically a 40% saving can be made on utilities cost over an entire fab.
-
Based on a 300 m fab in the US, containing 200 tools, 537 pumps
-
70% iGX pumps, 30% iH pumps
-
iGX fitted with constant flow water valve
Designed for Energy Efficiency:
-
High performance motors and inverter drives
-
Low operating power consumption
-
Lower power standby mode using Active Utility Control (AUC)
-
-
Nitrogen dilution can be tuned to the application requirement
-
Minimizes gas usage
-
-
Highly efficient cooling
-
High conductivity materials and good design enables low water flow
-
-
Precision ceramic bearings
-
Very high load capability for reliability
-
Low noise and vibration
-
Ethernet Connectivity:
The iGX Series includes unique web serving functionality that allows viewing of key parameters through a simple Ethernet connection and browser. Any user can simply connect to the pump to view a range of information, such as:
-
Operating status
-
Key parameters
-
Parameter setpoints
-
Alert summary

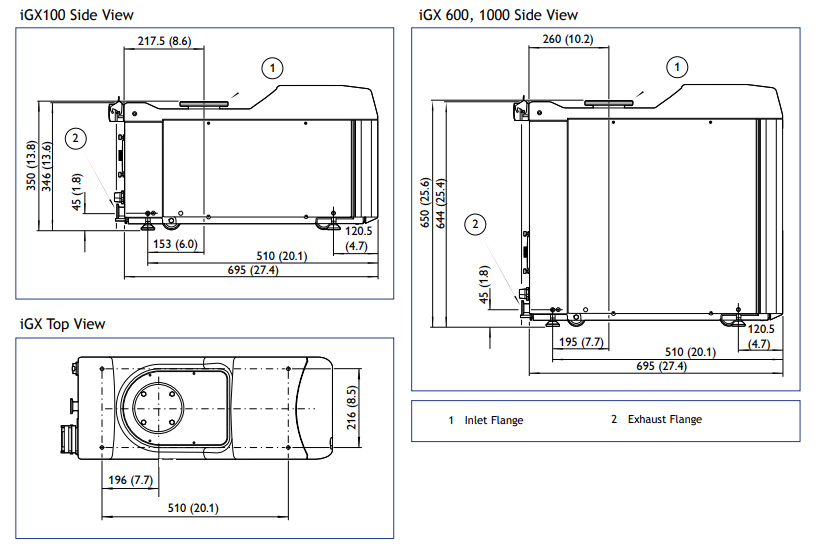

Edwards iGX100L Dimensions:
Click Here for Edwards iGX 100 Manual
A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards Vacuum iGX100L Dry Vacuum Pump, 200-230 V, 50/60 Hz, A53610958
Edwards iGX100L Technical Data:
| Peak speed | 105 m3h-1 |
| 62 cfm | |
| 1750 l min-1 | |
| Ultimate pressure | 5.00E-03 mbar |
| 3.75E-03 Torr | |
| 0.50 Pa | |
| Power at 700 Torr exhaust | |
| Ultimate | 1 kW |
| AUC (Active Utility Controller) | 0.05 kW |
| Water inlet* | 1 slm |
| Nitrogen | 0 slm |
| Footprint excluding exhaust | 0.20 m2 |
| Weight | 120 kg |
| Inlet connection | ISO63 |
| Outlet connection | NW25 |
| Noise at ultimate | < 55 dB(A) |
Click Here for Edwards iGX 100 Manual
A&J Vacuum Services offers full repair/service of Edwards Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
