- P/N PM C01 696
- Display Controll Unit
- Like New !
Shopping Cart ( )

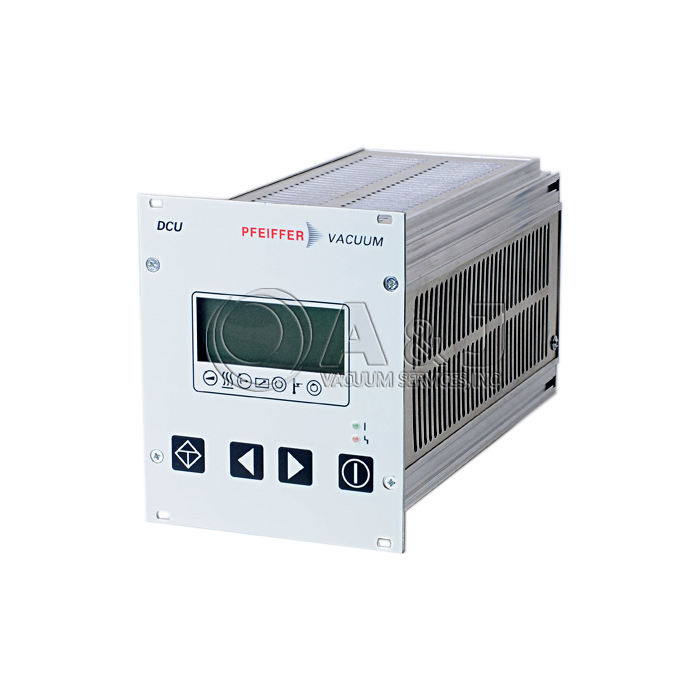

Pfeiffer Vacuum DCU 300 Turbo Pump Controller, Display Control Unit, PMC01696
Condition:
Remanufactured
Call us for Availability
Item#:PN00348
Mfr Part#:PMC01696
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum DCU 300 Turbo Pump Controller, Display Control Unit, PMC01696
Overview:
The Display Control Unit DCU300 / PM C01 696 is an operating unit for Pfeiffer drive units. It enables control over all the main parameters of the unit. Additionally, the connection of a vacuum gauge is possible.
The DCU is fitted in a housing suitable for mounting in a 19"/3HE rack.
The DCU provides the following connection options:
- Electronic drive unit for turbopump (X2)
- Pressure gauge (X3)
- Serial interface RS 485
The display and operating unit DCU-300 may only be used to control Pfeiffer Electronic Drive Units and their peripheral units.
The units DCU 100 - DCU 600 have been designated protection class 1 and must always be connected with the earthed conductor (PE) via the mains cable.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
This item is non-returnable/non-refundable
Pfeiffer Vacuum DCU 300 Turbo Pump Controller, Display Control Unit, PMC01696
Technical Data:
Ambient Temperature: 5 - 40 C
Mains Requirement (Power Consumption): 350 VA
Mains Requirement (Voltage Range): 90-132/185-265 V AC, 50/60 Hz
Output Current: 4.1 A
Output Voltage: 72 V DC
Protection Category: IP 20
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
