- Pumping speed (N2): 250 l/s
- Base Pressure: 5 x 10-9 mbar
- Dry Vacuum System
- Inlet Flange DN 100 CFF
Shopping Cart ( )
Varian Task V 301 Dry Turbo Pumping System, DN 100 CFF, 120 V, 50/60 Hz, 9698911
Condition:
Remanufactured
Call us for Availability
Item#:PN17563
Mfr Part#:9698911
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:

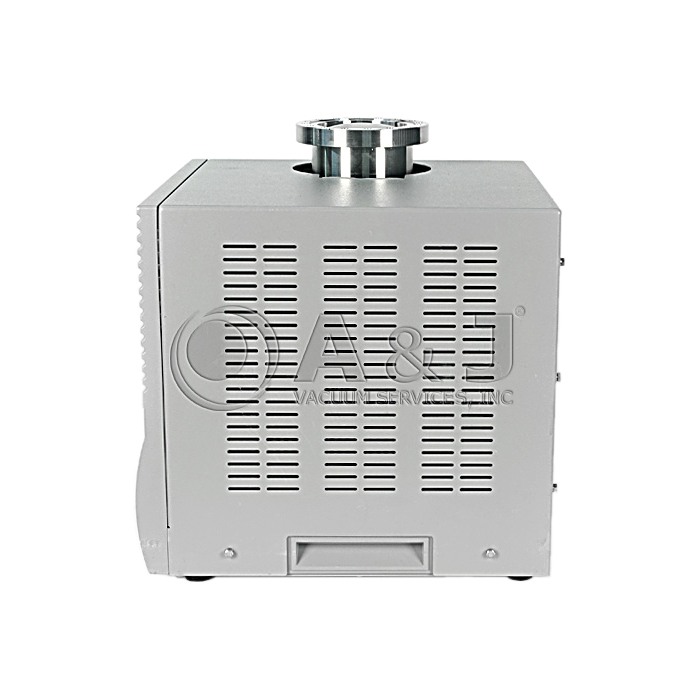

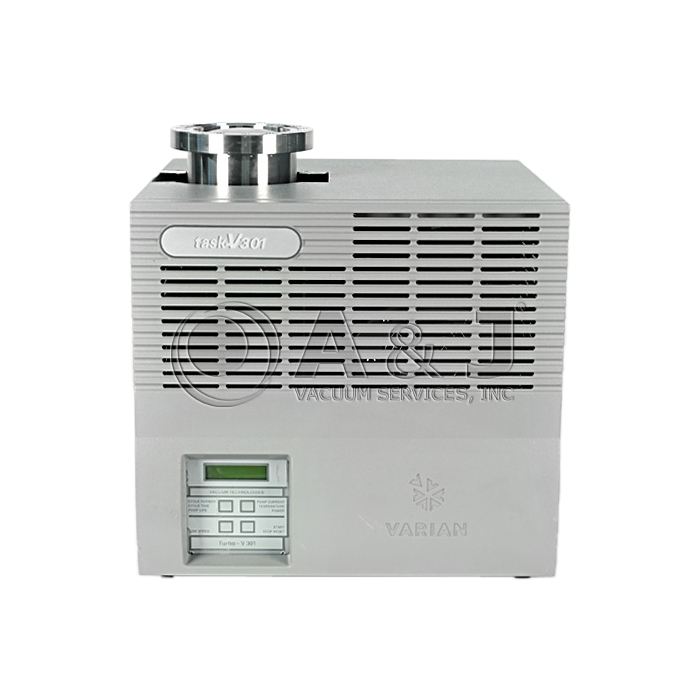

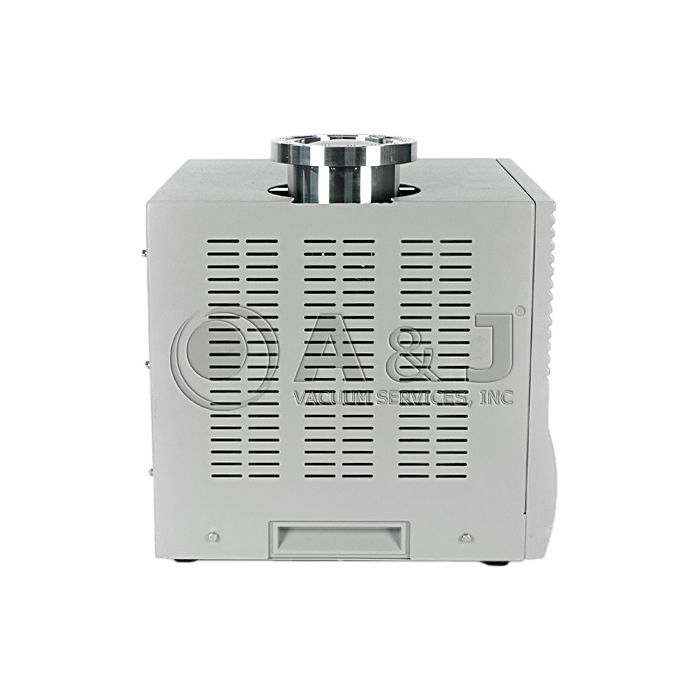

The Varian Task Dry V 301 is an indoor, bench-top turbo pumping system that is comprised of an SH-110 scroll backing pump, V 301 turbo pump and V 301 AG turbo pump controller. The Task produces an oil-free high vacuum, while maintaining one button operation. The system features a DN 100 CFF inlet flange.
The SH 110 scroll pump is a hermetic, dry scroll vacuum pump suitable for pumping air or inert gases. The pump is not intended to pump toxic, corrosive, explosive, or particulate-forming gases.
The V 301 AG controller is a microprocessor-based frequency converter with self-diagnostic and protection features to ensure the highest degree of reliability. It displays all of the relevant operating parameters and pump status information.
Features:
- One button operation
- 120 VAC, 50/60 Hz
- Oil free high vacuum performance
- CE and CSA approvals
- Lifting hand holds
- Manual turbo vent valve
- Compact console
- Air-cooled vented case
This item is non-returnable/non-refundable
Base Pressure: 5 x 10-9 mbar
Pumping Speed:
- N2: 250 l/s
- H2: 200 l/s
- He: 220 l/s
Rotational Speed: 963 Hz
Operating Position: Vertical
Voltage / Frequency: 120 V, 50/60 Hz
Weight: 53.2 kg / 117.3 lbs
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
