Varian Turbo V 250 Turbo Pump Controller, Power Supply, 9699503S007
Condition:
In Stock
Item#:PN07098
Mfr Part#:9699503S007
Manufacturer:Agilent Technologies / Varian
Features:
Overview:
The Varian Turbo V 250 Turbo Pump Controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer

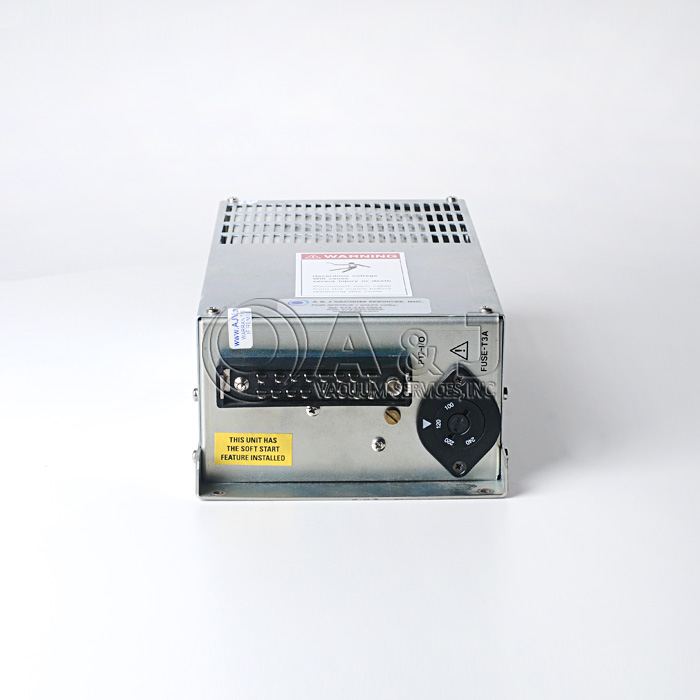

- Left panel with input/output connector
- Right panel with pump connector and hand held terminal connector
- PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section
- PCB external input/output interface
The power supply and the 3-phase output converts the single phase (50-60 Hz0 AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo V Pump.
The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
It manages signals from sensors, input/output connection information to be displayed and gives outputs for a fully automatic operation.
A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.
The controller can be operated by remote signals via the left panel connector and may be monitored/reprogrammed using the optional hand held terminal via the right panel connector.
This Controller is designed to be used with the Varian V 250 Turbomolecular Pump.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Technical Data:
Input:
- Voltage: 100, 120, 220, 240 Vac ± 10%, 1-phase
- Frequency: 47 to 63 Hz
- Power: 450 VA maximum
Output:
- Voltage: 54 Vac nominal ± 10%, 3-phase
- Frequency: 933 Hz, ± 2%
- Power: 150 W maximum
Fuse: T3A (slow blow) disregarding the mains
Unit is fully rebuilt and comes with a FULL 6-MONTH WARRANTY!
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
