- Voltage: 100, 120, 220, 240 Vac ± 10%, 1-phase
- Water Cooling: 320 W
- Air Cooling: 220 W
- Output Power: 420 W maximum
Shopping Cart ( )
Varian V 550 CU Turbo Pump Controller, 120V, 9699544S016
Condition:
Remanufactured
Call us for Availability
Item#:PN07158
Mfr Part#:9699544S016
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:
Varian V 550 CU Turbomolecular Pump Controller, 120V, 9699544S016
Varian V 550 CU Overview:
The Varian Turbo-V 550 series controllers are microprocessor controlled, solid-state, frequency converters with self diagnostic and self-protection features. The controllers drive the Turbo-V 550 turbopump during the starting phase by controlling the voltage and current respect to the speed reached by the pump. They incorporate all the facilities required for the automatic operation of the Turbo-V 550 pump series.
Remote start/stop, pump status signals, fore pump start/stop, interlock control (for pressure switch, water flow switch, etc.) capability, are provided via auxiliary connectors.

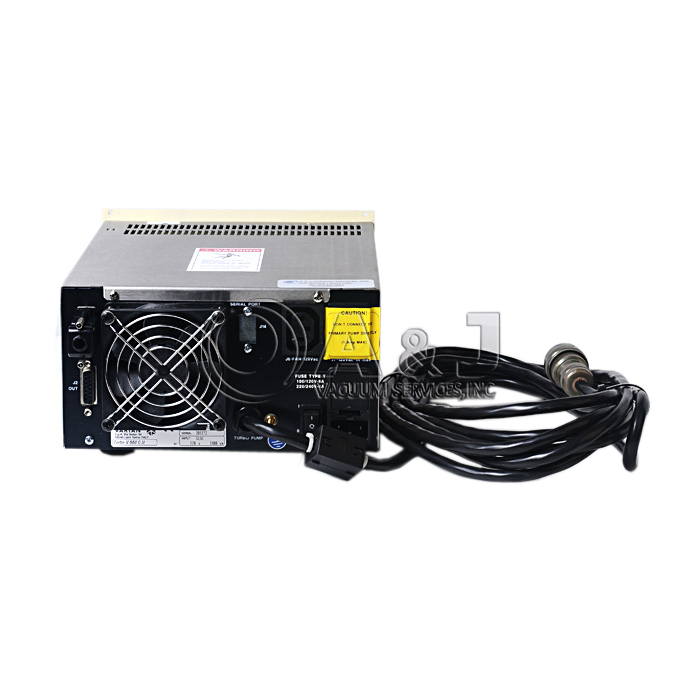

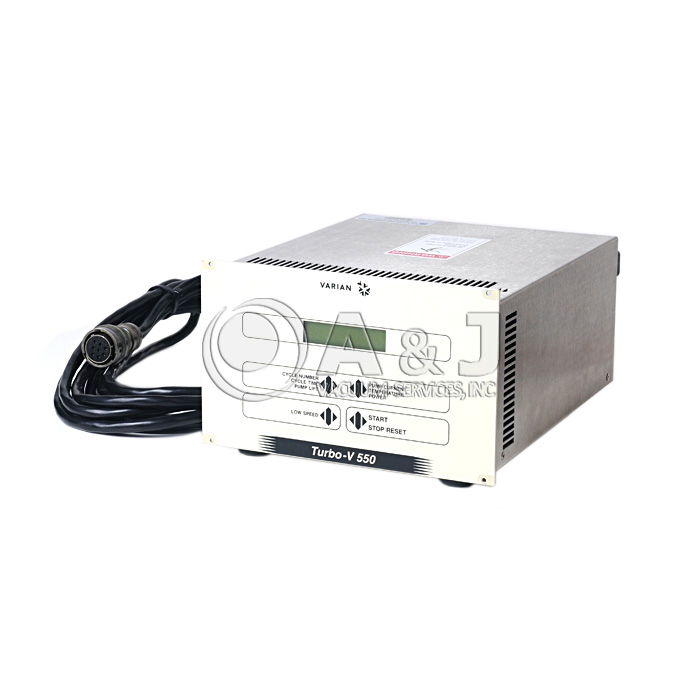

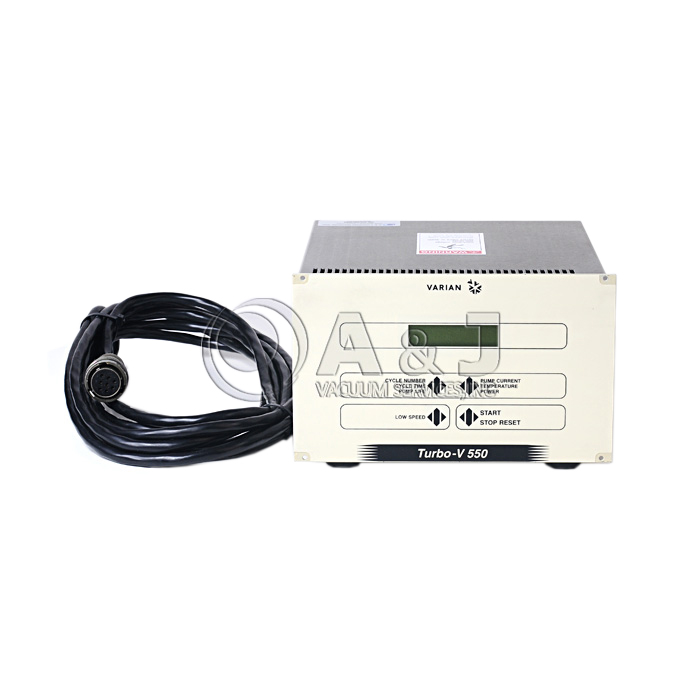

The Varian V 550 series controllers are provided with a front panel with an LCD alphanumeric display to indicate the operating conditions/parameters of the Turbo-V pump and a keyboard, and a rear panel with input/output connectors.
The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer
- Front panel display and keyboard
- Rear panel with input/output connectors
PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits. The power supply converts the single phase (50-60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump.
The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
The V 550 manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation.
An EEPROM internal to the microprocessor is used to store pump operating parameters and the input/output programmed information.
The controller can be operated via:
- Front panel switches
- Remote signals via rear panel connectors
- RS 232/485/422 serial link

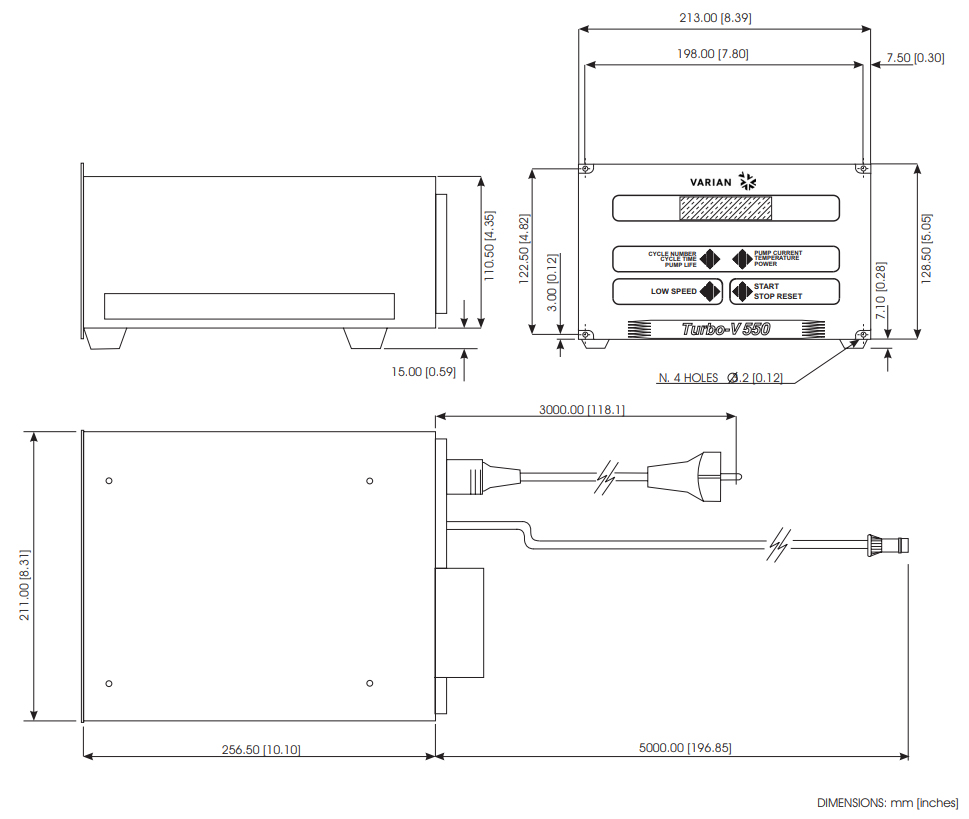

Varian V 550 CU Dimensions:
Unit is fully rebuilt and comes with a FULL 6-MONTH WARRANTY!
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Click Here for Varian V 550 CU Manual
A&J Vacuum Services offers full repair/service of Varian Pumps, along with all other brands offered on our website. AJVS also services Varian Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Varian V 550 CU Turbomolecular Pump Controller, 120V, 9699544S016

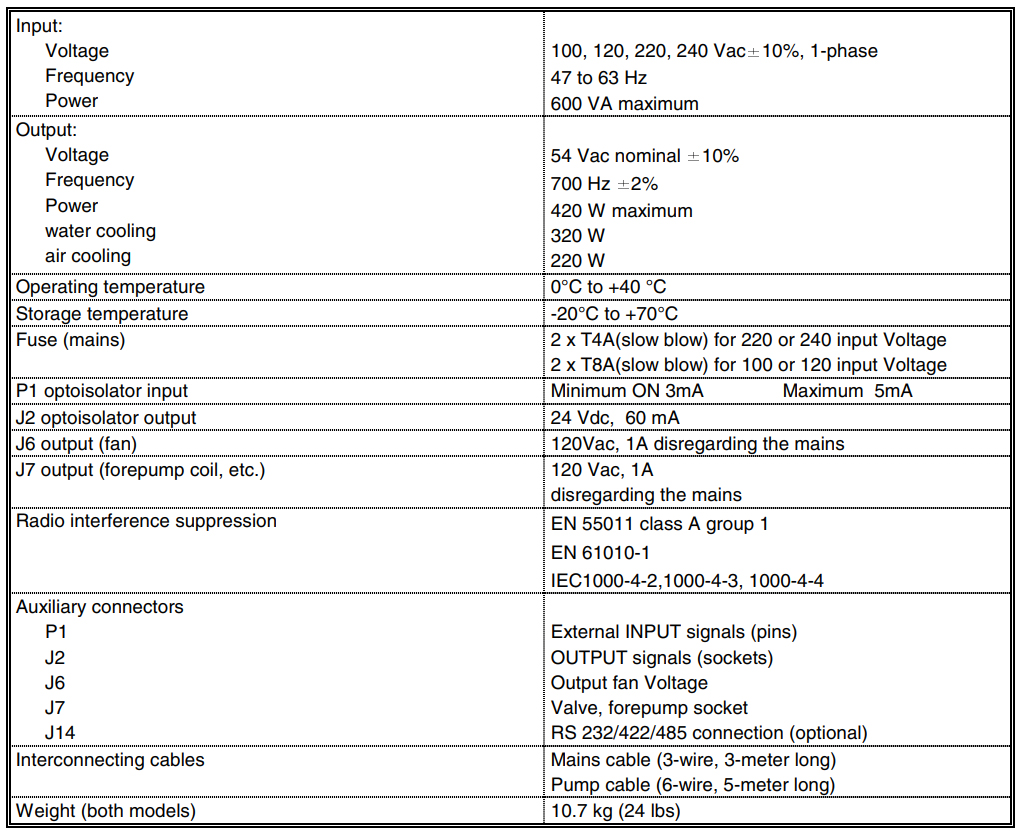

Varian V 550 CU Technical Data:
Click Here for Varian V 550 CU Manual
A&J Vacuum Services offers full repair/service of Varian Pumps, along with all other brands offered on our website. AJVS also services Varian Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
