- Direct Replacement for ADP-31
- Temperature Range of +20 °C to 240 °C
- Capacity 1 Cubic Foot (27 liter)
- Digital Control Panel

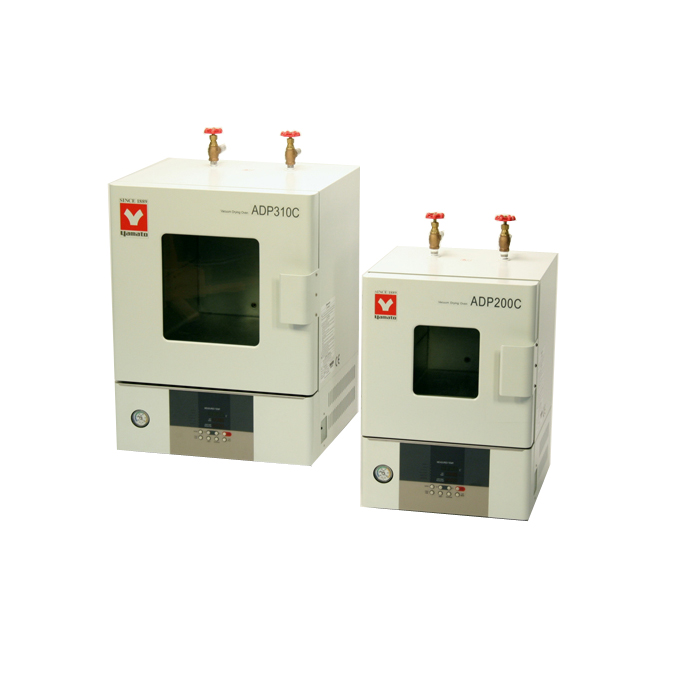

Yamato ADP-300C Vacuum Oven, Programmable, 1 Cubic Foot, 27 Liter 115V 10A 50/60Hz, Maximum Temp 240 C, ADP300C
Yamato ADP-300C Vacuum Oven Features:
- Operating Temperature Range of +20 C to 240 C, compare to +5 C to +240C on ADP21
- New VS4 Controller with Programmable Features

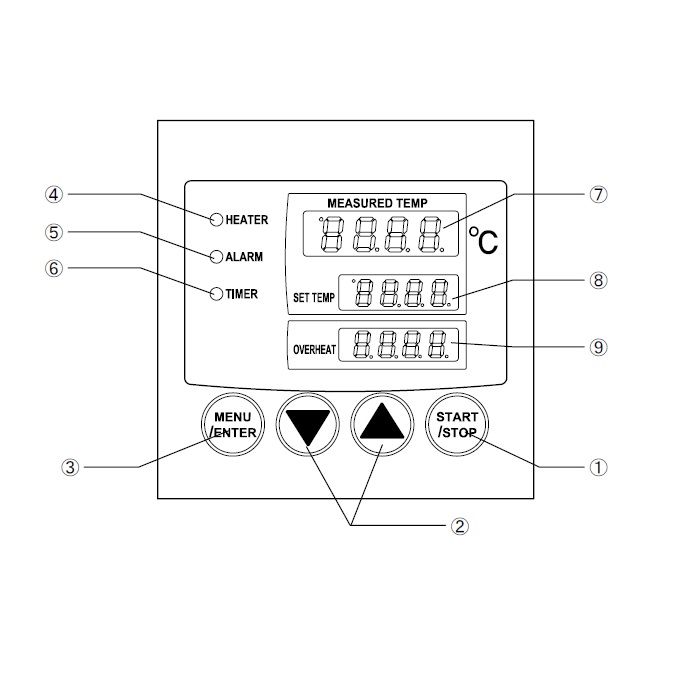

- ADP300C offers Digital Readout on Control Panel
- 18 mm Purge and Vacuum Ports
- PID Control by microprocessor
ADP-300C Vacuum Oven / ADP300C Overview:
The Yamato ADP-300C Vacuum Oven, Programmable,1 Cubic Foot, 10 Liters 115V 10A 50/60Hz, is the direct replacement for Yamato ADP-31 vacuum oven. The new Yamato ADP-300C has many advantages over discontinued ADP-31 Vacuum Ovens.

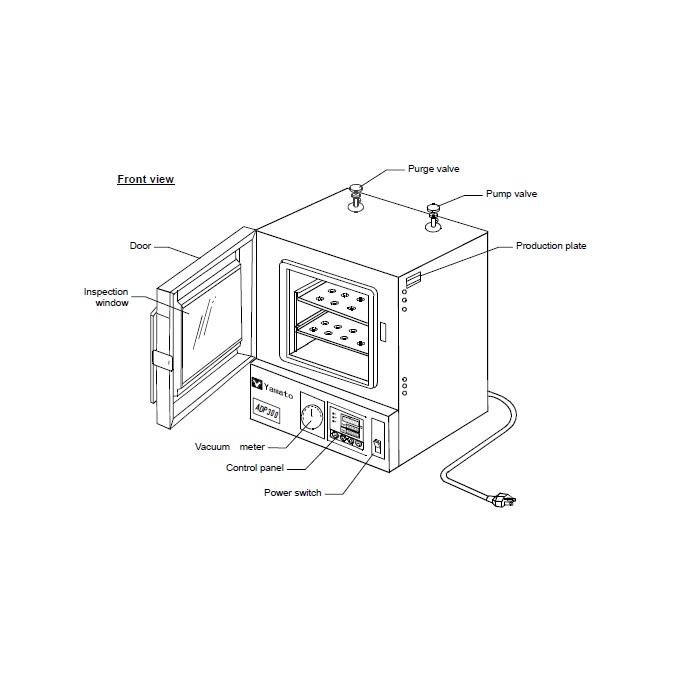

The Yamato ADP-300C range from +20 C to +240 C (465 F), Vacuum range from atmosphere to 0.75 Torr. Vacuum and Vent valves are located on top of the ADP-300C with 18 mm hose barb for Vacuum hose connections. That Yamato ADP-300 has a footprint of 16.8 x 17.6 x 21inch. ADP-300C voltage requirement 115 VAC at 50/60 Hz, 10 Amps, we also offer Yamato ADP-310C unit with same specifications as the ADP-300C but requires 220 VAC 50/60Hz, 5.5 Amps. For full list of ADP-300C and ADP-310C. Please refer to specification Tap, or operating manual.
Yamato ADP-31, Yamato ADP-300C, Yamato ADP-300C, Yamato ADP-310C, Yamato DP-43C, and Yamato DP-63C Vacuum Ovens are commonly used in laboratories as well as in manufacturing sites in wide range of Industry segments.
ADP300C VacuumOven Applications:
- Vacuum Drying
- Vacuum outgasing
- Clean Process production
- Curing / Drying
- Finish baking
- Shrink fitting
- Steralization
- Burn-in
- Vacuum bonding
- Aging / Annealing
A&J Vacuum services and repairs all Yamato products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Yamato ADP-300C Vacuum Oven, Programmable, 1 Cubic Foot, 27 Liter 115V 10A 50/60Hz, Maximum Temp 240 C, ADP300C
Yamato ADP-300C Vacuum Oven Technical Data:
| Performance ADP200C ADP210C ADP300C ADP310C | ||||
| System | Vacuum drying by decompressed chamber direct heating | |||
| Operating temperature range | Room temp.+20 to 240°C | |||
| Operating pressure range | 101 to 0.1 kPa (at absolute pressure) | |||
| Temp. control accuracy | ±1.5°C (at 150°C) | |||
| Max. temp. reaching time |
Approx. 70 min. (no load, no vacuum) |
Approx. 100 min. (no load, no vacuum) |
||
| Components | ||||
| Interior Material | Type 304 Stainless steel | |||
| Exterior Material | Cold rolled steel plate with baked-on melamine resin finish | |||
| Door | Single swing door | |||
| Heat insulating material | Rock wool | |||
| Heating method | Decompressed chamber direct heating | |||
| Heater |
Mica heater, 0.68kW |
Mica heater, 1.05kW |
||
| Vacuum gauge | Bourdon tube type, 101 to 0kPa (Gauge pressure) | |||
| Observation window | Tempered glass (12 mm thickness) and polycarbonate resin plate | |||
| Controller | ||||
| Temp. control method | PlD control by microprocessor | |||
| Temp. setting method | Digital setting by ▲/▼ keys | |||
| Temp display method | Digital display | |||
| Safe Device | ||||
| Safety countermeasures | Electric leakage breaker | |||
| Standard | ||||
| Internal dimensions(W×D×Hmm) |
200×250×200 |
300×300×300 |
||
| External dimensions(W×D×Hmm) |
427×447×535 |
527×499×639 |
||
| Internal capacity |
10 L |
27 L |
||
| Shelf plate with standard load |
Approx. 30 kg/piece |
Approx. 30 kg/piece |
||
| Shelf rest step number |
2 steps |
3 steps |
||
| Shelf rest pitch |
63mm |
71mm |
||
| Vacuum port | 18mm O.D. | |||
| Power source 50/60Hz | 115V, single phase, 7A |
220V, single phase, 4A | 115V, single phase, 10 A |
220V, single phase, 5.5 A |
| Weight |
Approx. 30 kg |
Approx. 55 kg |
||
| Accessories | ||||
| Shelf plate |
Stainless steel, 2 pcs |
Stainless steel, 3 pcs |
||
| Adaptor for vacuum hose | 18mm O.D. 1 pc | |||
| Earth adaptor | 1 pc | |||
| Optional Accessories | ||||
| Additional shelf plate | ||||
A&J Vacuum services and repairs all Yamato products available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
