- Operating Temperature Range -20°C to Room Temp.
- 115V Single phase 50/60Hz
- Liquid Capacity 15 L
Shopping Cart ( )

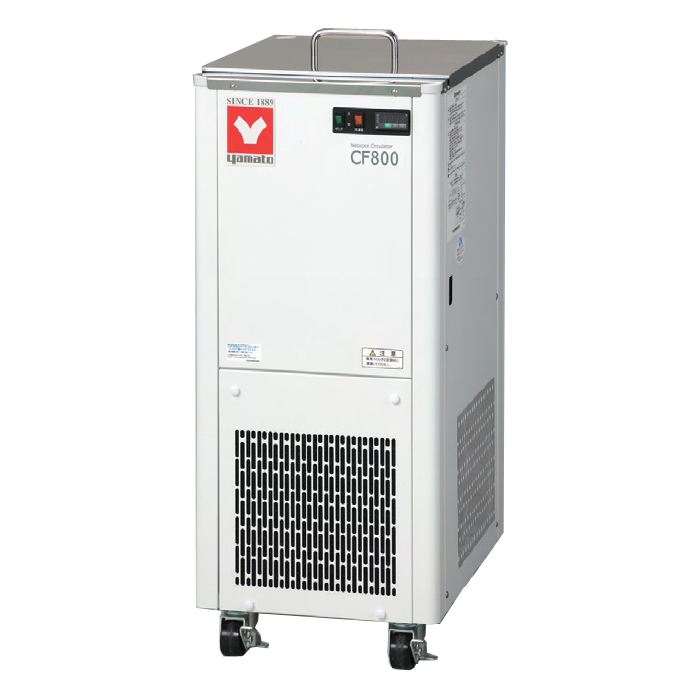

Yamato CF 800 Cooling Water Circulator 16L 115V 12.5A 50/60Hz, CF800
Condition:
Discontinued
Item#:PN19996
Mfr Part#:CF-800
Manufacturer:Yamato Scientific
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Yamato Scientific CF 800 Cooling Water Circulator 16L 115V 5.6A 50/60Hz, CF800, CF-800 Chiller
Description:
The Yamato CF 301 and Yamato CF 800 series of Cooling Water Circulators represents a standard type of water temperature control. Yamato water chillers are equipped with a newly developed easy operation controller, and digital setting and indication.
The Yamato CF 301 and CF 800 have great operating temperature from Room Temperature down to -20C.
CF 301 water chiller operates on Non-chlorofluorocarbon Coolant, R404A for Refrigeration
Yamato CF 301 is one of the best water chillers in it's line.
Main Features of CF 301 Include:
-

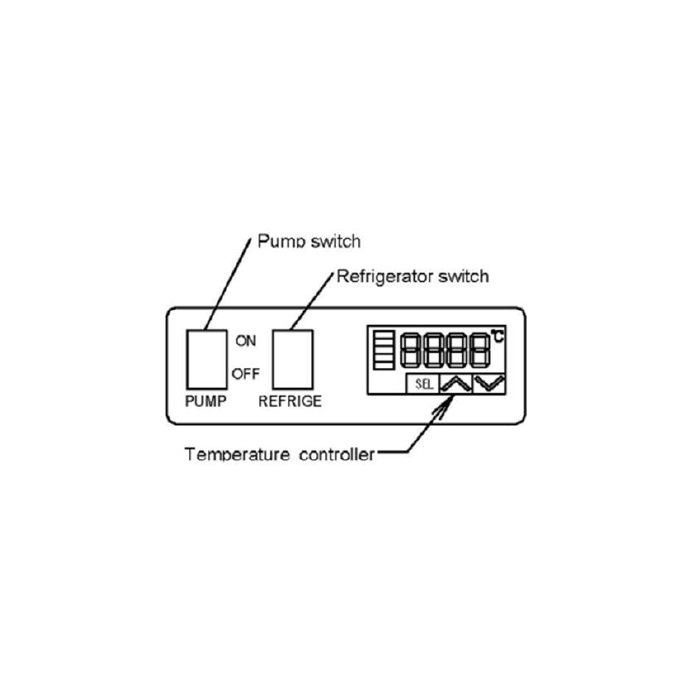

Water Proof Touch Panel with LED Indicator and Sheet Key for Easier Setting
-
Minimized Cooling Liquid Dilution and/or Loss by fixing Heat-resistant Lid
-
Capacity Approx 16 L (Liquid amount 14 L)
-
Remote ON/OFF usable as an energy saver to auto-
switch off the circulator after rotary evaporation
process is finished -
Less energy use and less cooling capacity loss by
fixing the heat-resistant lid -
Water proof touch panel with big LED display and
Sheet Key for easier setting
Yamato CF800C Specifications:
-
Operating temp. range: -20oC~Room temp.
-
Temp. control accuracy: ±2oC
-
Cooling capacity: ~1050W (770Kcal/h) at Liquid Temp. 10°C
-
Temp. Control: Refrigerator On/Off Control
-
Refrigerator: Air Cooling 600W
-
Coolant: R404A
-
Water Bath Dimension(mm): Internal Dia.300 x H235
-
Water capacity: ~16L (Liquid Amount 14L)
-
Power Source (50/60Hz): AC115V 14A
-
Weight 119 lbs, Shipping Weight 151 lbs. Ships via Freight
