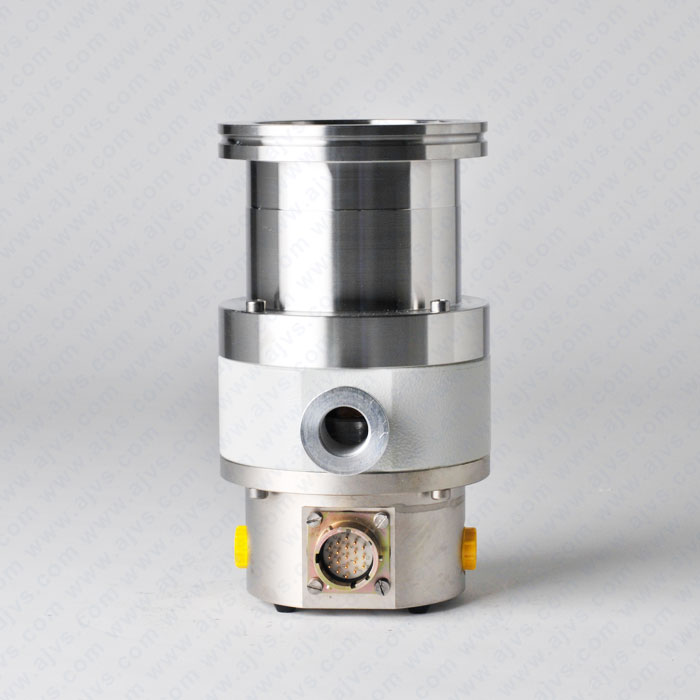

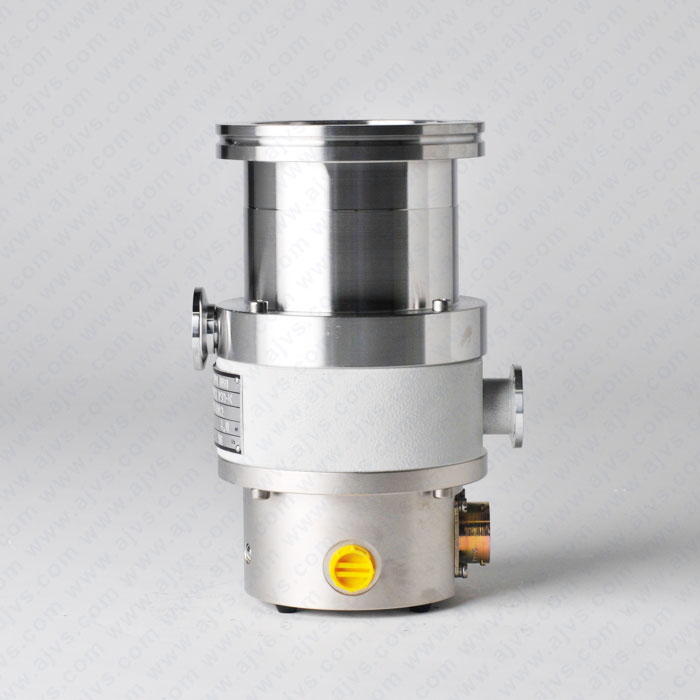

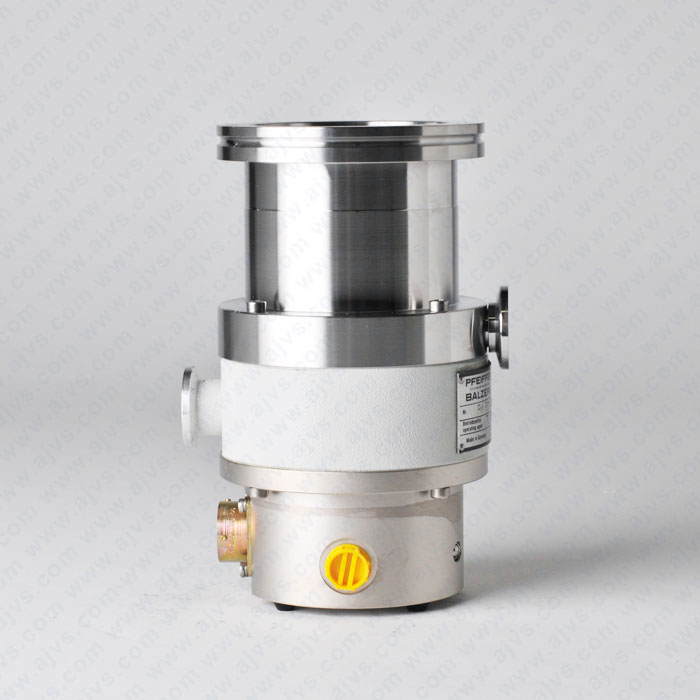

Pfeiffer Vacuum TPH 062, PMP02540 Turbo Pump, DN-63 ISO Inlet Flange, DN-16 Outlet Flange.

Fully rebuilt Pfeiffer Vacuum TPH 062 PMP02540 Turbo Pump coupled with a DN-63 ISO Inlet Flange and DN-16 Outlet Flange. This particular Turbomolecular Drag Pump has a pumping velocity of 56 liters per second and a final pressure of 1x(10^10). It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TPH 062 Turbo Pump comes with an entire 12-Month Warranty.

Overview:

• Pumping speed: 56 l/sec for N2
• DN-63 ISO Inlet Flange
• DN-16 Outlet Flange
• Ultimate pressure with rotary vane pump 1x(10^10) Mbar
• Air or Water Cooling required / available.
• This Pfeiffer pump package is fully rebuilt and comes with a  FULL 12-MONTH WARRANTY!

This Pfeiffer Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.

Technical Data: Turbomolecular pump   TPH 062 TPH 062 TPU 062 Nominal connection of diameter Inlet/Outlet   DN 40 ISO-KF DN 16 ISO-KF DN 63 ISO-K/DN 63 CF-F DN 16 ISO-KF Volume flow rate for N2 He H2 l/s l/s l/s 30 40 34 56 52 45 Recommended backing pump: m3/h 1,5 1,5 Electronic drive unit   TCP 121 (TCP 121) / 380   Compression ratio for N2 He H2   1 · 108 7 · 103 6 · 102 1 · 108 7 · 103 6 · 102 Theoretical final mbar 10-11 10-11 pressure Final pressure 1) Final pressure 1) Final pressure 1) mbar mbar mbar <1 · 10-10 <1 · 10-9 <1 · 10-8 <1 · 10-10 <1 · 10-9 <1 · 10-8 Rated rotation speed Stand-by rotation 1/min 1/min 90000 60000 90000 60000 Run-up time2) Operating fluid filling3) min 3 cm 2 4 2 4 Type of cooling, standard Water temperature at cooling water connection ° C Konvektion/Convection/Convection 5 - 25 5 - 25 Cooling water con-sumption with water-cooling Permissible ambient temperature for air cooling l/h ° C 15 0 - 35 15 0 - 35 Permissible magnetic field, max.4) Weight mT kg 7 3,6 7 3,6/3,8

Main Features: Turbomolecular Pumps TPH 062 1 HV flange 4 Fore vacuum flange 6 Venting connection 8 Cooling water connection 61 Connection to electronic drive unit click to enlarge

Turbo Pump Applications

• Freeze drying - packaging industry
• Degassing, casting, dry vacuum smelting (super-pure metals)
• Incandescent lamp manufacturing
• Electronic tubes
• Thin film deposition
• Space simulation
• Cryogenic research
• Electron microscopy
• Nuclear physics, Plasma physics, High energy physics
• Particle accelerators - Storage rings

Technology

A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.

A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.
