- Like New !!!
- Reducing Adapter ISO63 to KF 25, and protection screen Included
- Protective Inlet screen Included
- Outlet Silencer Installed
Shopping Cart ( )

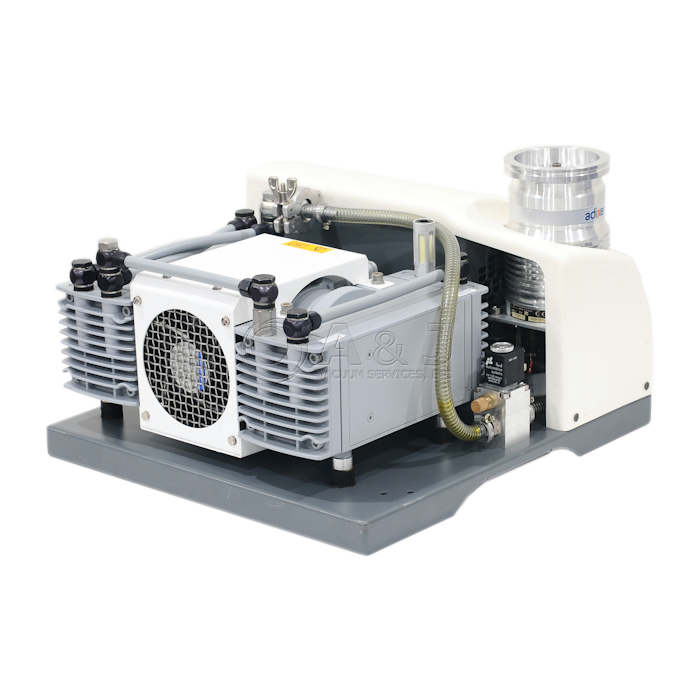

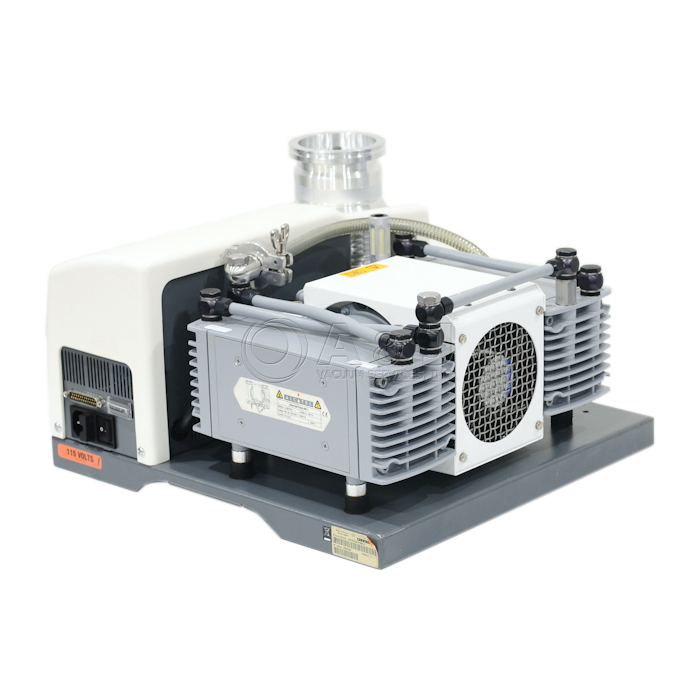

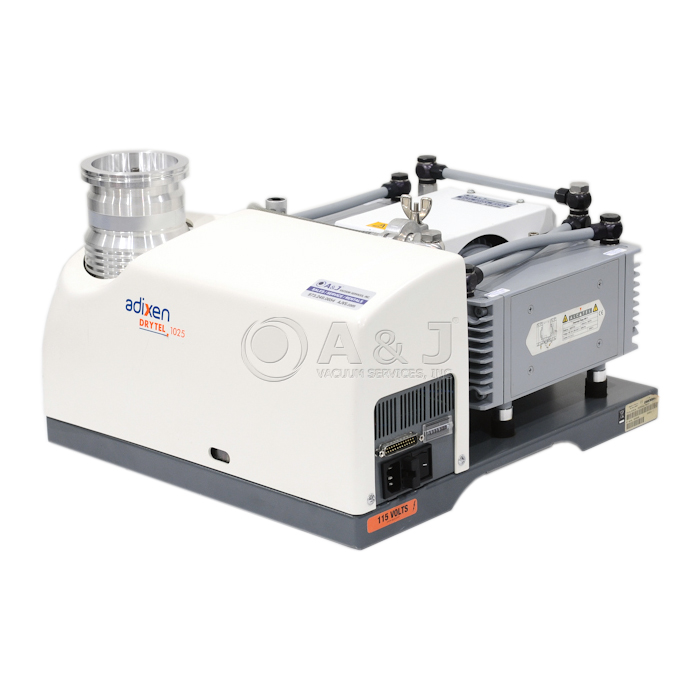

Adixen Drytel 1025 Turbo Pumping Station, with MDP 5011 Turbo Pump and Adixen AMD-4 Dry Diaphragm Pump, 115/220 VAC Set to 115 VAC, D025AQNNS710
Condition:
Remanufactured
In Stock
Item#:PN21650
Mfr Part#:D025AQNNS710
Manufacturer:Adixen / Alcatel
Features:
Adixen Drytel 1025 Turbo Pumping Station, with MDP 5011 Turbo Pump and Adixen AMD-4 Dry Diaphragm Pump, 115/220 VAC Set to 115 VAC, D025AQNNS710
Drytel 1025 / D025AQNNS710 Overview:
The Adixen Drytel 1025 series of products are dry pumping systems that include an Alcatel MDP 5011 or also known as Adixen MDP5011 Turbo molecular drag pump (MDP) or a hybrid turbo pump (AMH) and an oil-free forepump. Designed to be used on a bench top or easily integrated into a system, these units provide a dry, clean vacuum from atmosphere to 10-6 mbar (Torr).
Please note: System is curently set to U.S. 115 VAC, it can be changed to high 220 VAC.
Alcatel Drytel 1025 Station has a complete offer of tiny dry pumping groups for high vacuum applications.
The Drytel 1025 System Includes:
- Alcatel MDP5011 Turbo Drag Pump
- Alcatel AMD4 Diaphragm Dry Vacuum Pump
Please note: System does not include Venting valve or remote control connector.
The two pumping stages working in series (MDP5011 and AMD 4 diaphragm pump) don’t require any lubricant to operate, permitting use on ultra-clean processes.
The Drytel 1025 Pumping Station series is the least expensive solution to achieve a clean vacuum down to 10-6 mbar.
Drytel1025 Applications:
- Semiconductor
- Analytical Instrumentation
- Pharmaceutical
- Chemical
- Research and Development laboratories
- Backing of turbomolecular pumps
- Loadlock pumping
- Mass spectrometry
- Surface analysis
- Ion pump evacuation
- Cryopump regeneration
- Calibration
- Gas industry
- Gas lines
A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service Alcatel Drytel 1025 Turbo Pumping Stations, Drytel 30, Drytel 31, Drytel 100, Adixen Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Adixen Drytel 1025 Turbo Pumping Station, with MDP 5011 Turbo Pump and Adixen AMD-4 Dry Diaphragm Pump, 115/220 VAC Set to 115 VAC, D025AQNNS710
Adixen Drytel 1025 Technical Data:
| Pumping Speed (l/s) | N2: 7.5 He: 4 H2: 3 |
| Ultimate Pressure (mbar) | 10-6 mbar |
| Backing pump pumping rate | 1.2 m3/h |
| Maximum Inlet Pressure | 5 mbar |
| Mains Voltage | 100 / 115 / 200 / 230 / 240 |
| Frequency | 50/60 Hz |
| Start-up Time (min) | 2 |
| Cooling System | Air |
| Maximum Ambient Temperature (°C) | 0 to 40 |
| Maximum Power Consumption (VA) | <160 |
| Standard Flange | 63 ISO-K |
| Outlet Silencer | Installed |
| Noise Level | <56 dBA |
| Unit weight | 55 lbs | 25 kg |
A&J Vacuum Services, Inc. AJVS Rrepair / Rebuild and Service Alcatel Drytel 1025 Turbo Pumping Stations, Drytel 30, Drytel 31, Drytel 100, Adixen Vacuum pumps, Alcatel Turbo Pumping Stations along with all other Adixen Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Adixen Drytel 1025, Alcatel Drytel 1025, Drytel 1025 Pumping System, Drytel Turbo System
Adixen MDP 5011 Manual, Alcatel 5011, MDP 5011
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
