- Complete Dry Turbo Station
- Inlet Flange: DN 100 ISO-K
- Secondary Turbo Pump Pumping Speed: N2: 100 l/s
- Max Inlet Pressure: 1 x 10-1 mbar
Adixen Turbo Dry Vacuum Pumping System, 100 l/sec, 110/115 VAC, 50/60 Hz TurboStand ATP 100, PN22245
Adixen Turbomolecular Pumping Systems are the most reliable and cost-effective way of producing high vacuum. They are portable, fast-starting, and require minimal time to install.
This Adixen Turbostand Pumping System includes the following:
-
ATP 100 Turbo Pump
-
2021 SD Rotary Vane Vacuum Pump
-
ACT 600 T Pump Controller
-
Turbo Pump Cooling Fan
-
Automatic Vent Valve
-
Backing Pump Mist Eliminator
-
Backing Pump Isolation Valve
-
Mains cable
-
ACM 2000 Vacuum Gauge with PBR Vacuum Sensor
The Adixen Turbostand Vacuum Pumping System is equipped with inclet screen, which is 2.5 mm mesh that prevents foreign material from entering the Turbomolecular pump. The oil mist eliminator prevents the release of Rotary Vane Pump oil mist to atmosphere. The frame of this Turbostand Vacuum System consists of casters and leveling pads, or rubber pads; it is compact and its height can be adjusted. There's an optional vent valve that enables to softly vent back to the Turbomelcular pump to atmosphere. Also, there's an optional isolation valve, which enables isolation of the Rotary Vane Pump from the Turbomolecular pump and the vacuum chamber.
The ACM 2000 controller used with the Adixen Turbomolecular Dry Vacuum Pumping System, provides a digital display of the pressure or data through the graph function. It can operate up to 3 gauges and has 2 set-points per channel.
Due to a flexible design, the Adixen Turbomolecular Pumping Systems are available in a wide variety of system configurations and performance options.
Adixen Turbomolecular Pumping Systems combine an Adixen Turbomolecular Pump (ATP Series) from 80-400 l/s and a Pascal Series Rotary Vane Pump from 5-21m3/h or an ACP dry pump from 15-40 m3/h. These components have an excellent reputation for performance, low vibration, reliability and easy field maintainability.
Adixen Turbostand Features:
-
Compact - for installation on a workbench or inside an instrument
-
Adjustable - for easy integration
-
Robust - enough to incorporate valves, a vacuum chamber, gauges, etc...
-
Portable - for movement throughout your plant or lab
Applications:
-
R&D
-
Instrumentation
-
Industry
-
Aerospace
-
Optical Systems
Click Here for Adixen Turbostand Vacuum Pumping System Operating Instructions
Click Here for Adixen Turbostand Vacuum Pumping System Product Brochure
A&J Vacuum Rrepair / Rebuild and Service Adixen Turbo Pumping System Turbostand and Turbopack, Adixen Vacuum pumps, Adixen Dry Stations along with all other Adixen Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Adixen Turbo Dry Vacuum Pumping System, 100 l/sec, 110/115 VAC, 50/60 Hz TurboStand ATP 100, PN22245
Primary Pumping Speed: 21 m3/h
Secondary Turbo Pump Pumping Speed:
-
N2: 100 l/s
-
He: 60 l/s
-
H2: 40 l/s
Limit Pressure: 7 x 10-8 mbar
Max Inlet Pressure: 1 x 10-1 mbar
Inlet Flange: DN 100 ISO-K
Max Power: 0.8 KW
Weight: 50 kg / 110 lbs
A&J Vacuum Rrepair / Rebuild and Service Adixen Turbo Pumping System Turbostand and Turbopack, Adixen Vacuum pumps, Adixen Dry Stations along with all other Adixen Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Adixen Turbostand/Turbopack Vacuum Pumping System Operating Instructions
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Adixen Turbo Dry Vacuum Pumping System, 100 l/sec, 110/115 VAC, 50/60 Hz TurboStand ATP 100, PN22245
Adixen Turbomolecular Pumping Systems are the most reliable and cost-effective way of producing high vacuum. They are portable, fast-starting, and require minimal time to install.
This Adixen Turbostand Pumping System includes the following:
-
ATP 100 Turbo Pump
-
2021 SD Rotary Vane Vacuum Pump
-
ACT 600 T Pump Controller
-
Turbo Pump Cooling Fan
-
Automatic Vent Valve
-
Backing Pump Mist Eliminator
-
Backing Pump Isolation Valve
-
Mains cable
-
ACM 2000 Vacuum Gauge with PBR Vacuum Sensor
The Adixen Turbostand Vacuum Pumping System is equipped with inclet screen, which is 2.5 mm mesh that prevents foreign material from entering the Turbomolecular pump. The oil mist eliminator prevents the release of Rotary Vane Pump oil mist to atmosphere. The frame of this Turbostand Vacuum System consists of casters and leveling pads, or rubber pads; it is compact and its height can be adjusted. There's an optional vent valve that enables to softly vent back to the Turbomelcular pump to atmosphere. Also, there's an optional isolation valve, which enables isolation of the Rotary Vane Pump from the Turbomolecular pump and the vacuum chamber.
The ACM 2000 controller used with the Adixen Turbomolecular Dry Vacuum Pumping System, provides a digital display of the pressure or data through the graph function. It can operate up to 3 gauges and has 2 set-points per channel.
Due to a flexible design, the Adixen Turbomolecular Pumping Systems are available in a wide variety of system configurations and performance options.
Adixen Turbomolecular Pumping Systems combine an Adixen Turbomolecular Pump (ATP Series) from 80-400 l/s and a Pascal Series Rotary Vane Pump from 5-21m3/h or an ACP dry pump from 15-40 m3/h. These components have an excellent reputation for performance, low vibration, reliability and easy field maintainability.
Adixen Turbostand Features:
-
Compact - for installation on a workbench or inside an instrument
-
Adjustable - for easy integration
-
Robust - enough to incorporate valves, a vacuum chamber, gauges, etc...
-
Portable - for movement throughout your plant or lab
Applications:
-
R&D
-
Instrumentation
-
Industry
-
Aerospace
-
Optical Systems
Click Here for Adixen Turbostand Vacuum Pumping System Operating Instructions
Click Here for Adixen Turbostand Vacuum Pumping System Product Brochure
A&J Vacuum Rrepair / Rebuild and Service Adixen Turbo Pumping System Turbostand and Turbopack, Adixen Vacuum pumps, Adixen Dry Stations along with all other Adixen Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

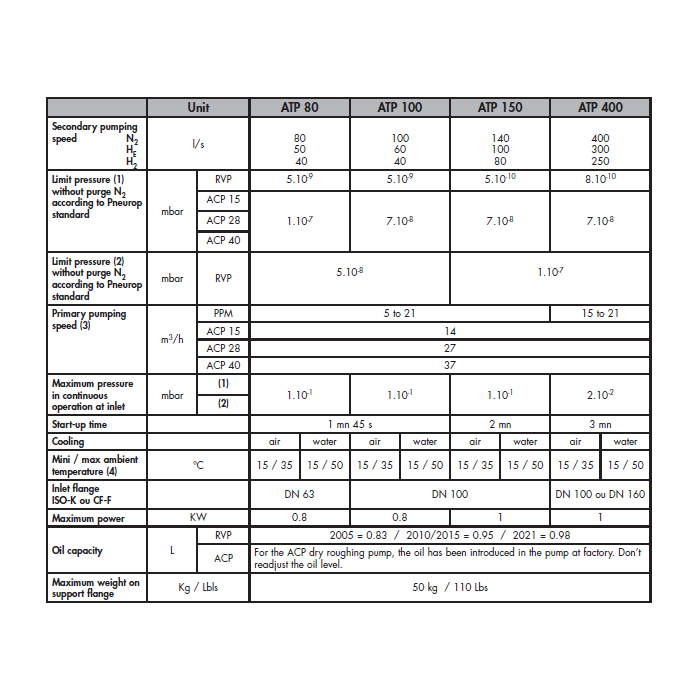

Specifications
