- Peak pumping speed (60 Hz): 152 L/m, 9.1 m³/hr, 5.5 cfm
- Peak pumping speed (50 Hz): 120 L/m, 7.2 m³/hr, 4.2 cfm
- Light weight of 54 lbs
- Ultimate pressure: 2.6 × 10-2 mbar
Shopping Cart ( )
Agilent IDP 7 Dry Scroll Pump, (9.1 m3/h 60Hz, 7.2 m3/h 50Hz) Single Phase, 115/220 VAC, 50/60 Hz, X3807-64000, Agilent IDP-7, Agilent IDP7
Condition:
New
Item#:PN20547
Mfr Part#:X3807-64000
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:
Agilent IDP 7 Dry Scroll Pump, (9.1 m3/h 60Hz, 7.2 m3/h 50Hz) Single Phase, 115/220 VAC, 50/60 Hz, X3807-64000, IDP-7
The Agilent Technologies IDP-7 Dry Scroll Vacuum Pump is an innovative, compact, high-performance, oil-free vacuum pump that is suitable for a wide variety of applications.
IDP Scroll Pump made by Agilent Technologies has a Innovative hermetic design, which fully isolate the bearing and motor from the vacuum space, which prevents leakage and allows recovery of process gases.
This Standard version of IDP-7 pump, Agilent part number X3807-64000, IS NOT equipped with Integral Inlet Isolation Valve whis is designed to protect backstreem of air through the scroll module in case of IDP power failure.
Turbo Pumps and other High Vacuum Systems and High Vacuum Instruments wil be protected from sudden pressure rise. The Agilent Dual Platform Scroll Design makes this pump trully outstanding in performance. Scroll pump provide a long service life with predicable pumping performance.
Agilent IDP7 pump offers easy installation and vacuum system integration
Small footprint and lighter weight makes this scroll pump a trully portable pump.
IDP-7 pump innovative scroll design reduces noise and vibration without using additional sound enclosures.
Agilent Scroll Pump has no hydrocarbon exhaust and oil mist filter is required.
IDP-7 Scroll Pump Features:
- Oil-free, for no contamination of the vacuum system
- Hermetic design with fully isolated motor and bearings
- Single sided scroll design
- Lower base pressure than diaphragm pumps
- Light weight of 54 lbs
- Low noise and vibration
- IDP-7 pump is design for easy Tip Seal Service, avrage IDP7 tip seal replacement may take between 15-30 minutes
Agilent IDP Scroll Pump Applications Include:
- General Labolatories
- Gas Chromatography (GC/MC) Mass Specs
- Liquid Chromatography Mass Spectrometry (LC/MC)
- Mass Spectrometry
- Vacuum Systems
- Agilent Turbo Pump Bavking Pump
- ICP-MS Mass Spectrometry
- Time of Flight (TOF Systems)
- Electron Microscopy
- Scaning Electron Microscopy (SEM)
IDP Scroll Pumps in Vacuum Research:
- Physics Research
- High Vacuum Applications
- Light Accelerators Research and Development
- UHV Research and Development
Click Here for Agilent IDP-7 Instructions Manual P/N X3807-64000
Click Here for Agilent IDP Scroll Pump broshure IDP-7, IDP-10, IDP-15
A&J Vacuum also repair / rebuild and service Agilent IDP7 / X3807-64000 Dry Scroll pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Agilent IDP 7 Dry Scroll Pump, (9.1 m3/h 60Hz, 7.2 m3/h 50Hz) Single Phase, 115/220 VAC, 50/60 Hz, X3807-64000, IDP7

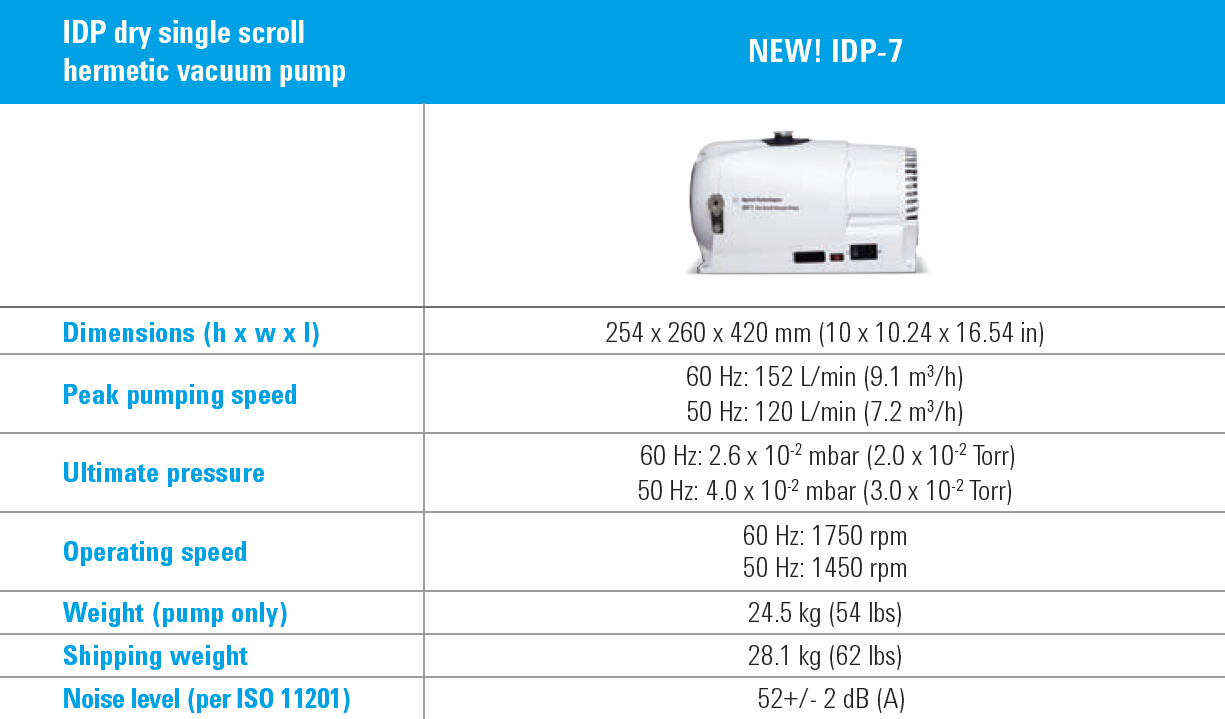

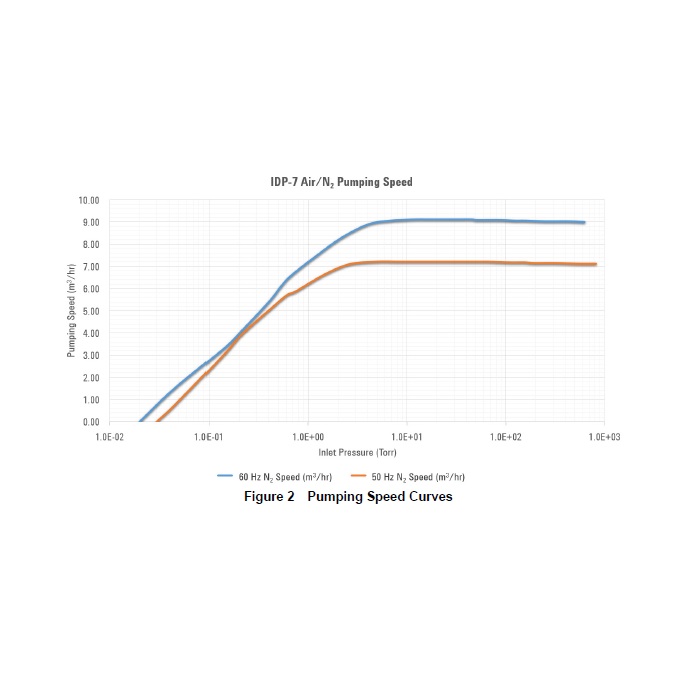

Peak pumping speed (60 Hz): 152 L/m, 9.1 m³/hr, 5.5 cfm
Peak pumping speed (50 Hz): 120 L/m, 7.2 m³/hr, 4.2 cfm
Ultimate pressure: 2.6 × 10-2 mbar (2.0 x10-2 Torr, 33 Pa)
Inlet Connection: NW 25 KF
Exhaust Connection: NW 16 KF
Gas Ballast Connection: 1⁄8-in. female nat’l pipe thread
Weight: 54 lbs
Click Here for Agilent IDP-7 Instructions Manual P/N X3807-64000
Click Here for Agilent IDP Scroll Pump broshure IDP-7, IDP-10, IDP-15
A&J Vacuum also repair / rebuild and service Agilent IDP7 / X3807-64000 Dry Scroll pumps along with all other Agilent Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
