- Nominal Pumping Speed (50 Hz): 14.6 cfm
- Inlet Flange: DN 25
- Ultimate Pressure (closed): 2 x 10-3 mbar
- Noise Level (50 Hz): 50 dBA
Shopping Cart ( )

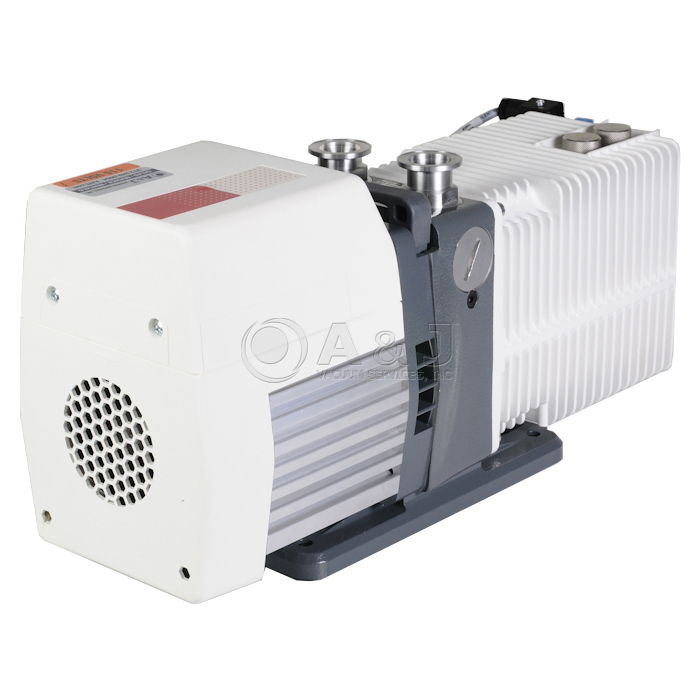

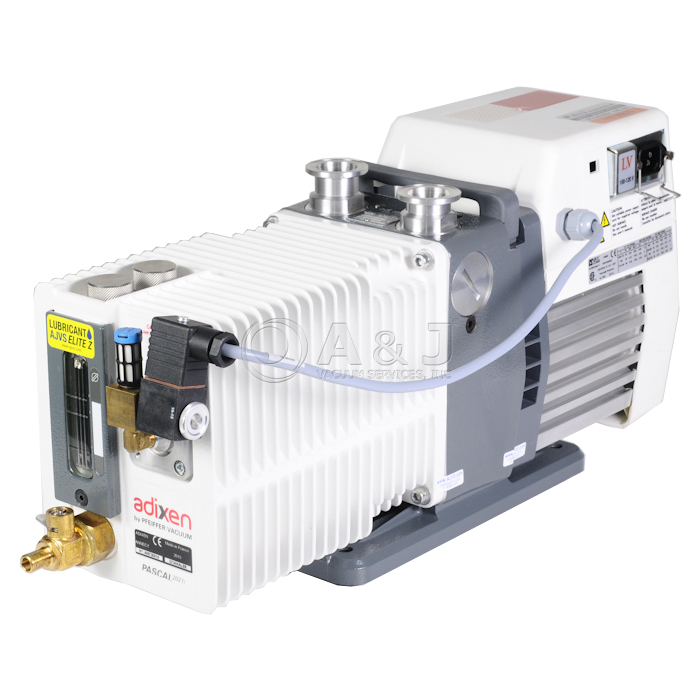

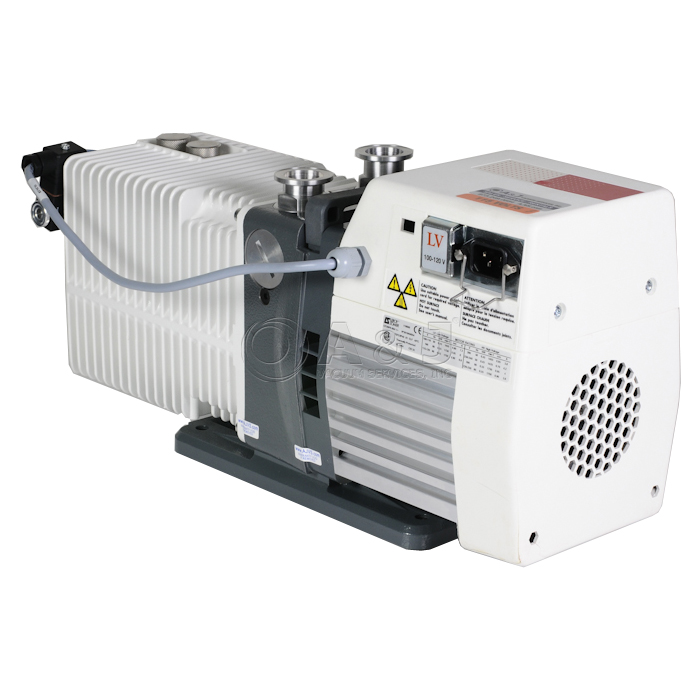

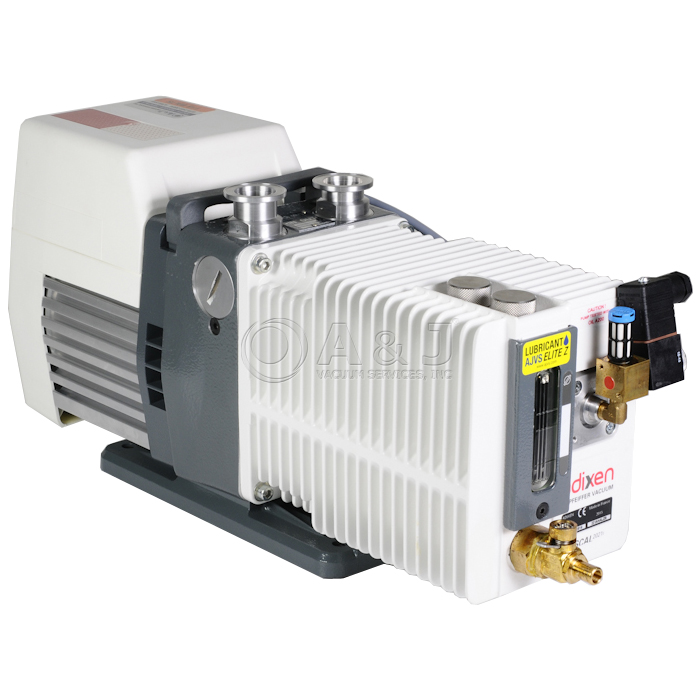

Alcatel Adixen 2021i Vacuum Pump, Rotary Vane Pump, 115 VAC, Hydrocarbon Oil, Elite Z, 14.6 CFM
Condition:
Remanufactured
Call us for Availability
Item#:PN06432
Mfr Part#:AM740414
Manufacturer:Adixen / Alcatel
Features:
Adixen 2021i Vacuum Pump, Rotary Vane Pump, 115 VAC, Hydrocarbon Oil, Elite Z, R with KF-25 Inlet Flange and KF-25 Outlet Flange, Also known as Alcatel 2021i Instrument pump.
Alcatel/Adixen 2021I Overview:
Fully remanufactured Alcatel Adixen 2021i Pascal Dual Stage Rotary Vane Pump coupled with a KF-25 Inlet Flange and KF-25 Outlet Flange.
This Alcatel Adixen 2021 Rotary Vane Pump has a peak pumping velocity of 10.6cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Alcatel/Adixen 2021 Pump comes with an entire 12-Month Warranty.
- Peak Pumping Speed: 10.6cfm
- KF-25 Inlet Flange
- KF-25 Outlet Flange
- Ultimate pressure 1 x 10-3 Torr.
- 115 VAC
- This pump is fully rebuilt and comes with a FULL 12-MONTH WARRANTY!
Alcatel/Adixen 2021I Applications:
- Gas analyzers
- Leak detection
- Mass spectrometers
- Other spectrometers
- Electron microscopes
- Surface analyzers
- Centrifuges
- Sterilization
- Electron tubes
- Lamps
- TV tubes (CRT)
- Refrigeration
- Air conditioning
- Drying
- Distillation
- Metallurgy
- Free drying
- CVD.LPCVD
- Ion implantation
- Dry etching
- Load-lock
- Cryogenics
- Gas recovery
- Oxygen pumping
Alcatel/Adixen 2021I Technology:
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.
A&J Vacuum services and repairs Alcatel/Adixen Rotary Vane Pumps Pumps, along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Adixen 2021i Vacuum Pump, Rotary Vane Pump, 115 VAC, Hydrocarbon Oil, Elite Z, R with KF-25 Inlet Flange and KF-25 Outlet Flange, Also known as Alcatel 2021i Instrument pump.
Alcatel/Adixen 2021I Technical Data:
| Inlet Flange: | DN 25 |
| Outlet Flange: | DN 25 |
| Nominal Pumping Speed (50 Hz): | 14.6 cfm |
| Ultimate Pressure (closed): | 2 x 10-3 mbar |
| Ultimate Pressure (open): | 10-2 mbar |
| Water Vapor Pressure (50 Hz): | 7 mbar |
| Noise Level (50 Hz): | 50 dBA |
| Oil Capacity: | 0.98 l |
| Weight: | 67 lbs |
A&J Vacuum Rrepair / Rebuild and Service Alcatel 2015 Vacuum Pumps Adixen 2015 pumps, Alcatel Turbo Pumping Stations along with all other Alcatel Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
