- Pumping Speed N2 l/s: 140
- Fully Remanufactured and Certified
- Rotation Speed: 27000 rpm
- Exhaust Flange: DN25
Shopping Cart ( )

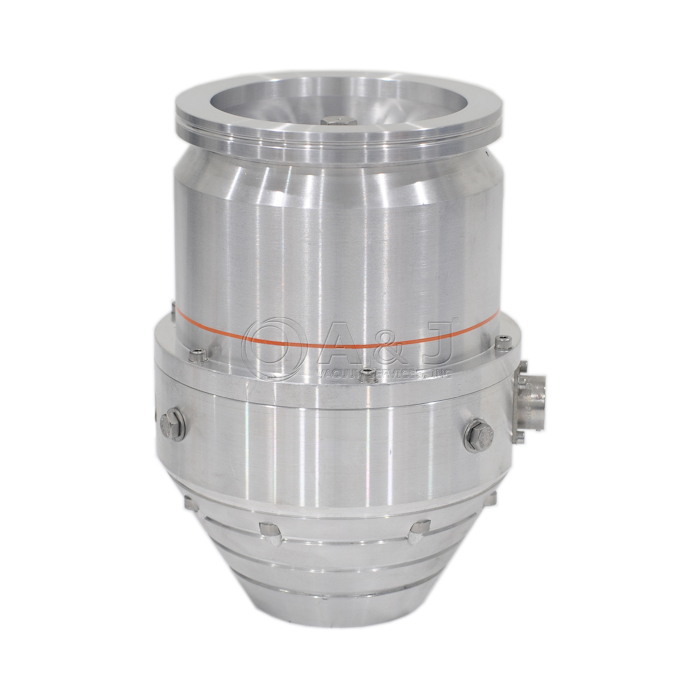

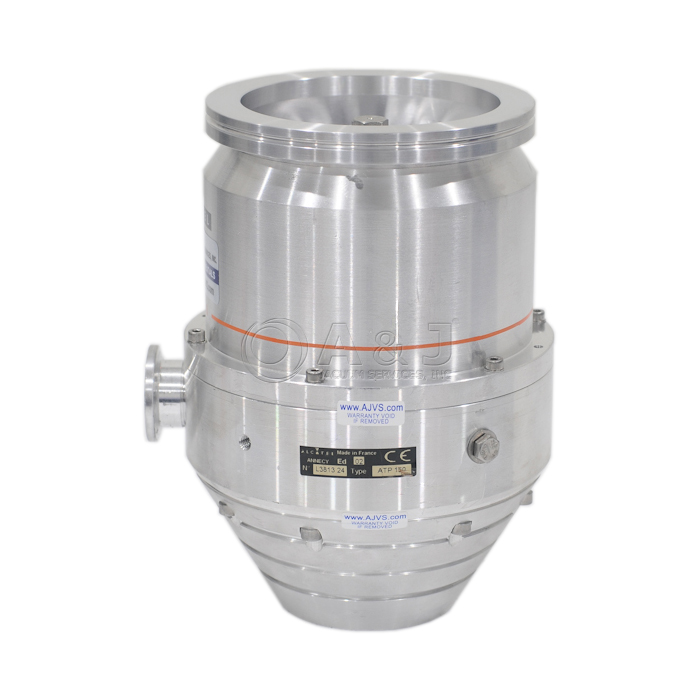

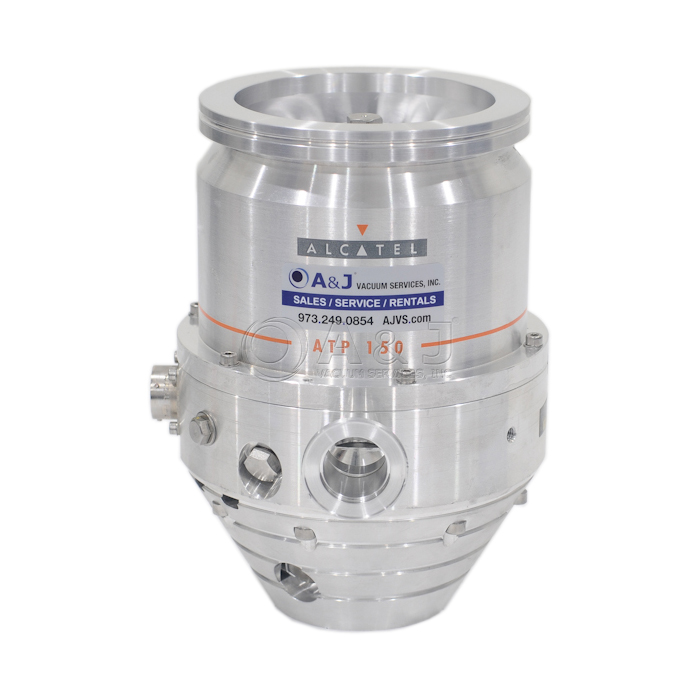

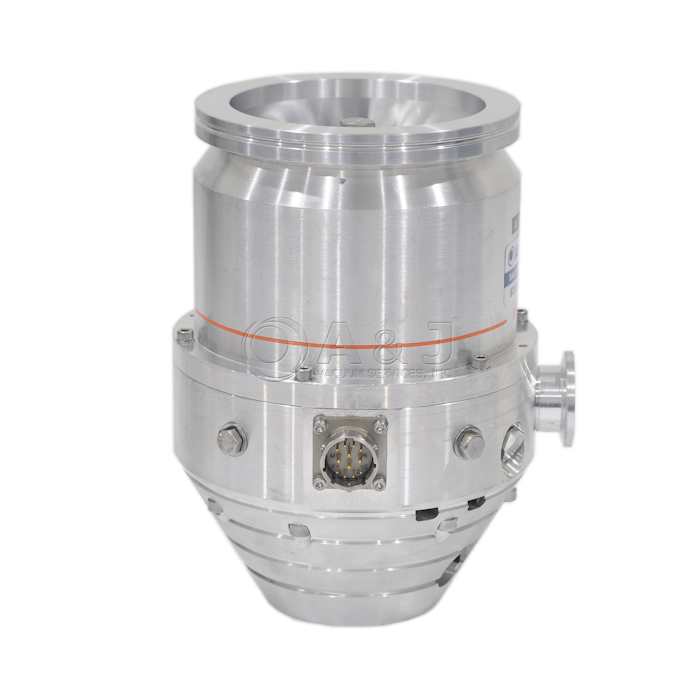

Alcatel Adixen ATP 150 Turbo Pump, L381324, DN-100 ISO-K, Natural Ambient Cooling
Condition:
Remanufactured
Call us for Availability
Item#:PN22846
Mfr Part#:L381324
Manufacturer:Adixen / Alcatel
Price upon request
CONTACT US
Features:
Alcatel Adixen ATP150 Turbo Pump, L381324, DN-100 ISO-K, Ambient Cooling, ATP 150 Ambient Cooled
Alcatel Adixen ATP 150 Overview:
The reliable and sturdy design of Alcatel ATP150 Turbo Pumps ensures performance suited to the fields of application concerned.
Adixen ATP 150, ATP 400 and ATP 900 have machined rotors and stators and low rotational speed to provide increased resistance to air inrush, minimal gyroscopic effect and low ball bearing stress.
Adixen ATP 150 Turbo Pump bearings can be relubricated by the end user at site by using Alcatel Adixen PFPE Lubrication Syringe for Turbo Pump Bearings ABG 400, Old PN 101924 and New PN 200029
Alcatel ATP 150 Turbo Pump is also known as Adixen ATP150 Turbo Pump. ATP-150 Pump was design to operate in many different of Vacuum fields. This version of the ATP turbomolecular pump uses ambient cooling. The ATP Turbo could also be cooled with ATP Cooling Fan PN07046 or it can be water cooled PN00193.
Alcatel Adixen ATP 150 Applications:
- Space simulation
- Thin Film Deposition
- UHV Systems
- CD Manufacturing
- DVD Manufacturing
- Industry: Cryogenics, Freeze drying, Vacuum drying, etc.
- Instrumentation: Mass spectrometry, Surface analysis, etc.
- Research and Development: Ultra-high vacuum systems, Particle accelerators, etc.
- Air Cooling and Water Cooling Available
Alcatel Adixen ATP 150 Main Characteristics:
- Ceramic ball bearings lubricated with grease
- Adjustable rotation speed between 6000 and 27000 rpm
- Natural convection, air or water cooling
- "C" version for corrosive application with nitrogen purge
- "HPC" high pressure version for semiconductor applications
Pfeiffer TMH 063 Dimensions:
Click Here for Alcatel/Adixen ATP Brochure
A&J Vacuum also repair / rebuild and service Alcatel ATP-150, ATP-400 and ATP-900 Turbo Pumps along with all other Alcatel Adixen Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Alcatel Adixen ATP150 Turbo Pump, L381324, DN-100 ISO-K, Ambient Cooling, ATP 150 Ambient Cooled
Alcatel Adixen ATP 150 Technical Data:
Click Here for Alcatel/Adixen ATP Brochure
A&J Vacuum also repair / rebuild and service Alcatel ATP-150, ATP-400 and ATP-900 Turbo Pumps along with all other Alcatel Adixen Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
