- Complete Dry Turbo Station
- DN-160 ISO Inlet Flange
- ACP 28 Dry Pump
- Pumping Speed N2: 400 l/s
Shopping Cart ( )

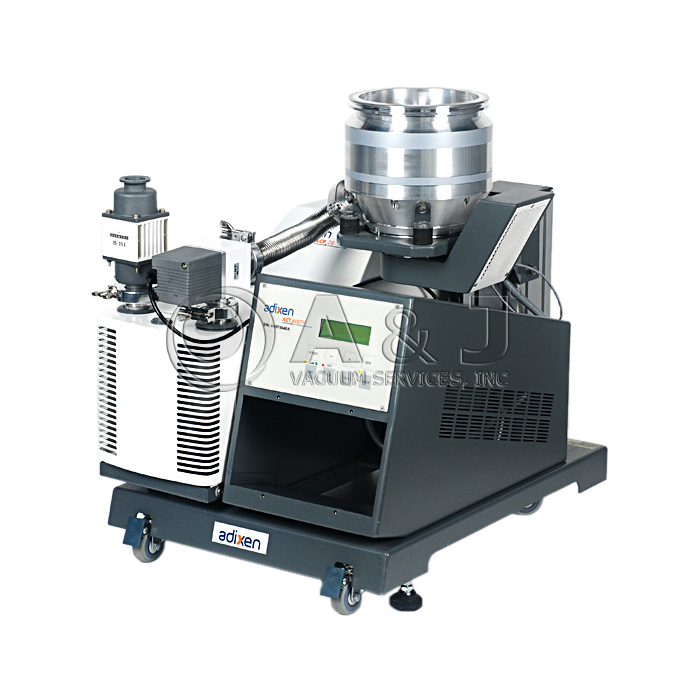

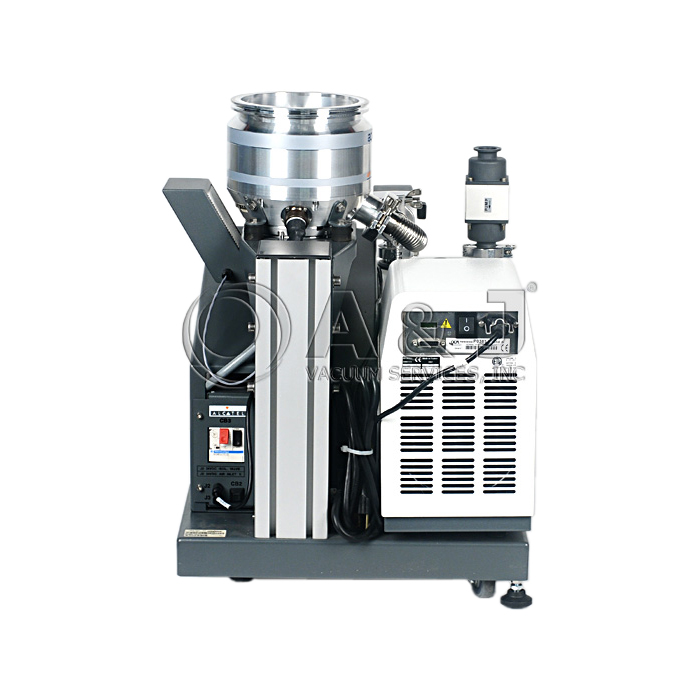

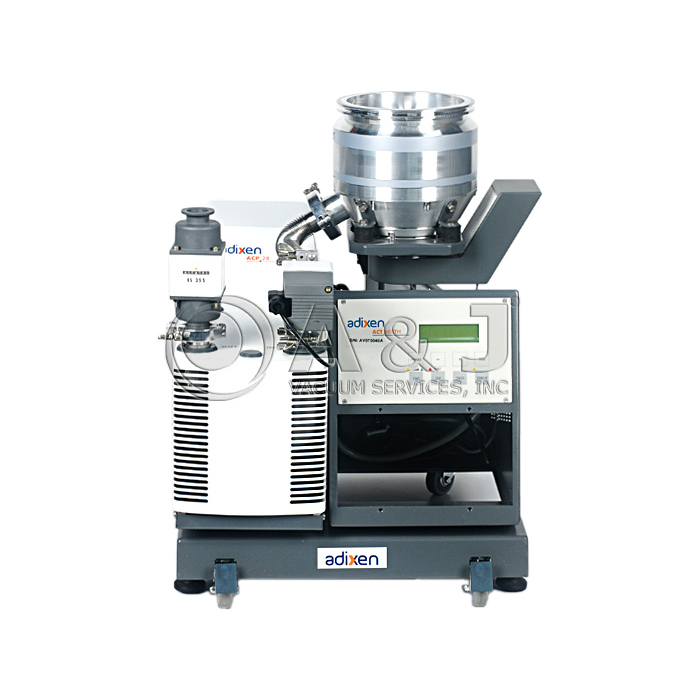

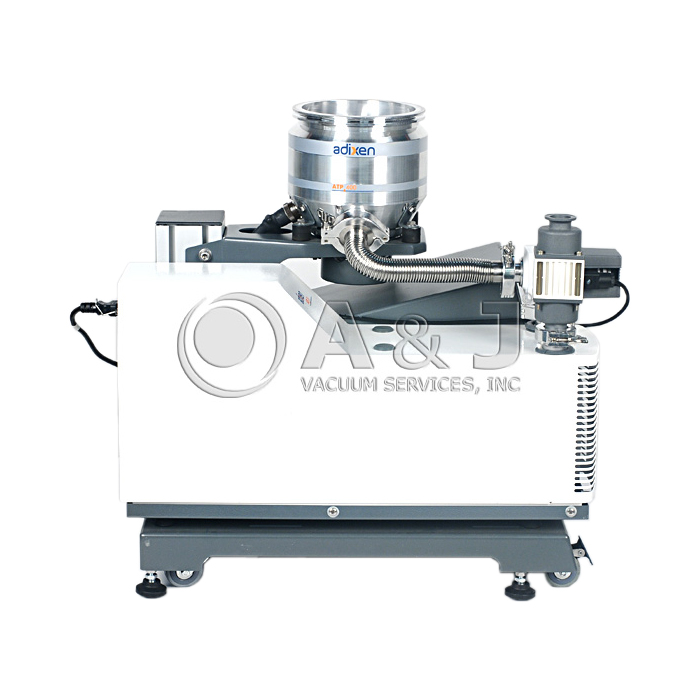

Alcatel Adixen Turbomolecular Dry Vacuum Pumping System, 400 l/sec, 110 VAC, GSDANASN0FB
Condition:
Demo
Out of Stock
Item#:PN17355
Mfr Part#:GSDANASN0FB
Manufacturer:Adixen / Alcatel
Features:
Alcatel Adixen Turbomolecular Dry Vacuum Pumping System, 400 l/sec, 110 VAC, GSDANASN0FB
Alcatel Adixen Turbomolecular Dry Vacuum Pumping System Features:
- Compact - for installation on a workbench or inside an instrument
- Adjustable - for easy integration
- Robust - enough to incorporate valves, a vacuum chamber, gauges, etc...
- Portable - for movement throughout your plant or lab
Turbomolecular Dry Vacuum Pumping System / GSDANASN0FB Overview:
Turbomolecular Pumping Systems are the most reliable and cost-effective way of producing high vacuum. They are portable, fast-starting, and require minimal time to install.
This Adixen Turbo Pumping Station includes the following:
-
ATP 400 Turbo Pump
-
ACP 28 Dry Vacuum Pump
-
ACT 600 TH Pump Controller
-
Cooling Fan
-
Mist Eliminator
-

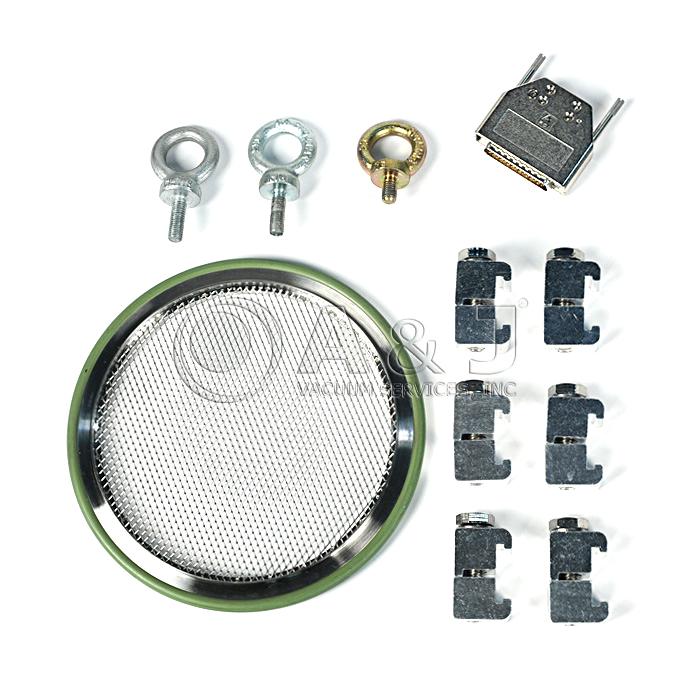

Inlet Screen
-
Mounting Hardware
Due to a flexible design, the Adixen Turbomolecular Pumping Systems are available in a wide variety of system configurations and performance options.
Adixen Turbomolecular Pumping Systems combine an Adixen Turbomolecular Pump (ATP Series) from 80-400 l/s and a Pascal Series Rotary Vane Pump from 5-21m3/h or an ACP dry pump from 15-40 m3/h. These components have an excellent reputation for performance, low vibration, reliability and easy field maintainability.
TurbomolecularDryVacuumPumpingSystem Applications:
- R&D
- Instrumentation
- Industry
- Aerospace
- Optical Systems
This item is non-returnable/non-refundable
Alcatel Adixen Turbomolecular Dry Vacuum Pumping System, 400 l/sec, 110 VAC, GSDANASN0FB
Alcatel Adixen Turbomolecular Dry Vacuum Pumping System Technical Data:
| Primary Pumping Speed | 27 to 37 m3/h |
| Secondary Pumping Speed | N2: 400 l/s He: 300 l/s H2: 250 l/s |
| Limit Pressure | 7 x 10-8 mbar |
| Max Inlet Pressure | 2 x 10-2 mbar |
| Inlet Flange | DN 160 ISO-K |
| Max Power | 1 KW |
| Weight | 77 kg / 170 lbs |
Adixen ACP28 ACP40 Dry Pump Catalog, Alcatel ACP
Adixen ATP150 ATP400 ATP900 Series Turbo Pump Manual, Alcatel ATP 150 ATP 400Pump Manual, ATP 900 Pump Manual
Alcatel Adixen Turbomolecular Dry Vacuum Pumping System
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
