Alcatel ADP 122P Dry Pump, Adixen ADP 122P, Dry Vacuum Pump, BFADP122P

Condition: Remanufactured

Call us for Availability

Item#:PN20364

Mfr Part#:ADP122P, BFADP122P

Manufacturer:Adixen / Alcatel

Price upon request

Request a repair estimate Request sales quote Financing available

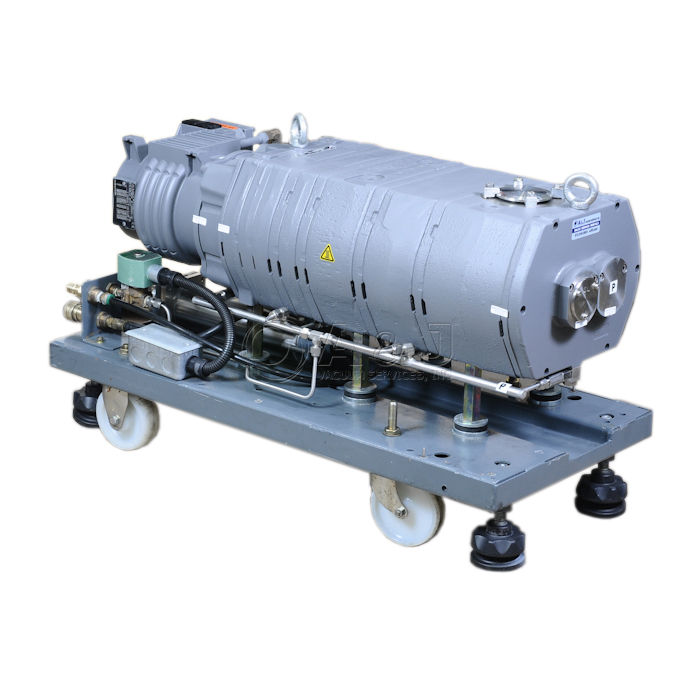

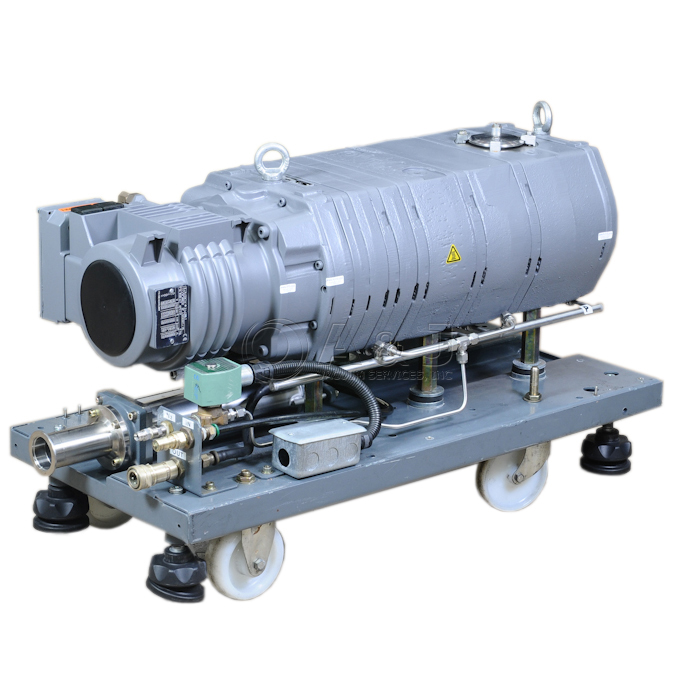

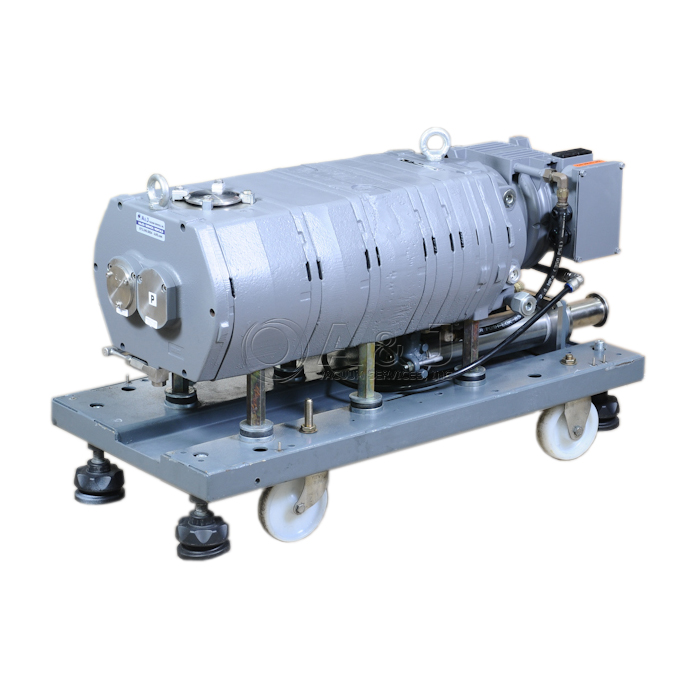

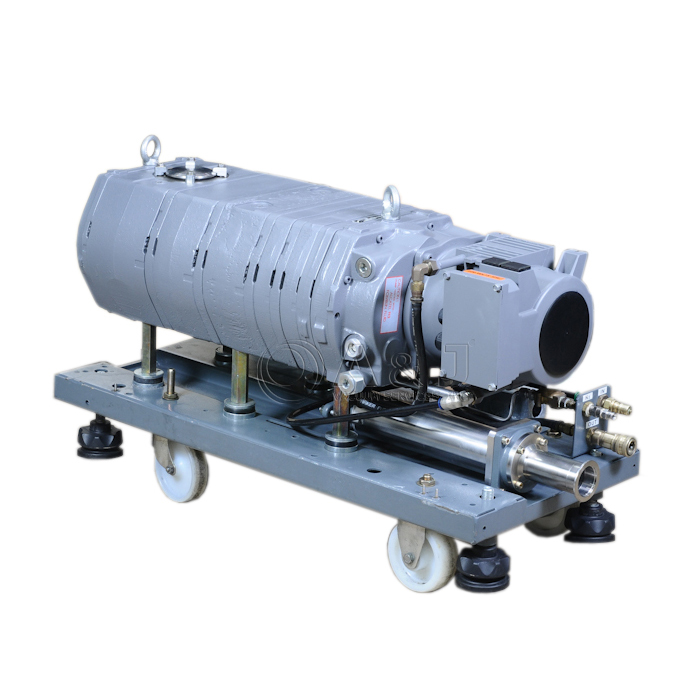

Remanufactured Fully Re-manufactured Alcatel ADP122P Industrial Dry Pump, also known as Adixen ADP122P with N2 Purge option, Pump without a controller or side panels.

Features:

ADP 122P with N2 Purge Option
BFADP122P
Peak Pumping Speed: 95 m3/h 50 Hz - 112 m3/h 60 Hz
Water Cooling Flow: 1.5 l/h

Overview
Specifications
Manuals
MFR Brochures
Service & Repair

Fully Re-manufactured Alcatel ADP122P Industrial Dry Pump, also known as Adixen ADP122P with N2 Purge option, Pump without a controller or side panels.

Adixen ADP-122P High reliability to process

• Wide interstage channels are able to accommodate large quantities of powder and particles.
• Direct wireing
• Vertical pumping on each stage which prevents particulate accumulation in the swept volume.

Semiconductor fab rules compliant

• Compact: the series 2 model is only 390 mm wide.
• Clean Technology: Alcatel technology is a frictionless and oil-free pump mechanism. There is no risk of particulate contamination.
• Quiet Operation: All models include an integrated silencer, eliminating the need for an additional external silencer.

ADP 122 Pump has a Low cost of ownership

• ADP 122 Low power consumption at working pressures and at Ultimate Pressure.
• With moderate heat generation, series 2 water consumption is extremely low.
• Nitrogen Purge level is easily set by the customer. Pumps for clean applications do not require any purge.

Typical ADP 122 applications:

• ADP 122 LM, ADS 602 LM:
        Load Lock, Transfer Chambers, PVD, Sputtering
• ADP 122 P, ADS 602 P, ADS 1202 P, ADS 1802 P:
        Ashing, Stripping, Dielectric - Poly Etch, Implant Source, Medium CVD
• ADS 602 H, ADS 1202 H, ADS 1802 H:
        PECVD, LPCVD

Click Here for Alcatel ADP 122P Manual

A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

This item is non-returnable/non-refundable

Fully Re-manufactured Alcatel ADP122P Industrial Dry Pump, also known as Adixen ADP122P with N2 Purge option, Pump without a controller or side panels.

ADP 122 P Technical Data:

Peak Pumping Speed:	95 m3/h 50 Hz - 112 m3/h 60 Hz
Ultimate Pressure:	3 x 10 -2 mbar 50 hz - 1.5 x 10 - 2 mbar
Water Cooling Flow:	1.5 l/h
Power:	200 / 240 / 380 / 415 - 50 Hz 200 / 240 / 380 / 480 - 60 Hz
Inlet:	NW 50
Exhaust Port:	NW 40
Weight:	400 lbs

Click Here for Alcatel ADP 122P Manual

Alcatel ADP 122, Adixen ADP 122, ADP122 Manual, Adixen ADP122 Manual

Alcatel Adixen ADP 122 ADS 602 Dry Pump Broshure

Get started with your repair:

We can have a repair estimate ready for your equipment within the hour of submission.

Request a repair estimate

Start your equipment repair process by creating a Service RMA.

Generate Service RMA

High quality service guaranteed

A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.

We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

AJVS repair process:

Repair Steps

Full incoming inspection and run up time check, vibration check, drive inspection.
Full disassembly of the pump, decontamination and cleaning.
Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
