- Wide Measuring Range 1333 to 3 x 10-4 mbar
- Wide Measuring Range 1000 to 3 x 10-4 Torr
- NW25-KF Stainless Steel Flange
Shopping Cart ( )
Edwards APGX-H-NW25 Linear Convection Vacuum Gauge, Stainless Steel, D02392000
Condition:
New
In Stock
Item#:PN19740
Mfr Part#:D02392000
Manufacturer:Edwards Vacuum
Features:

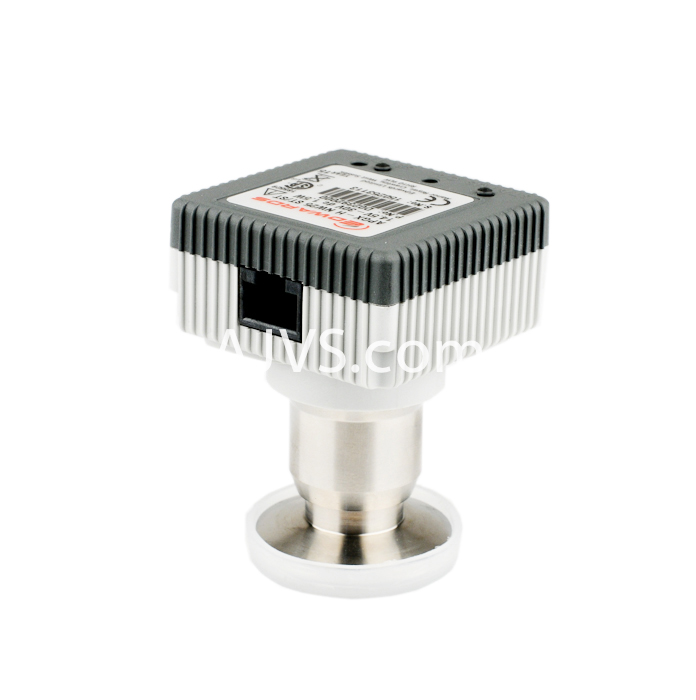

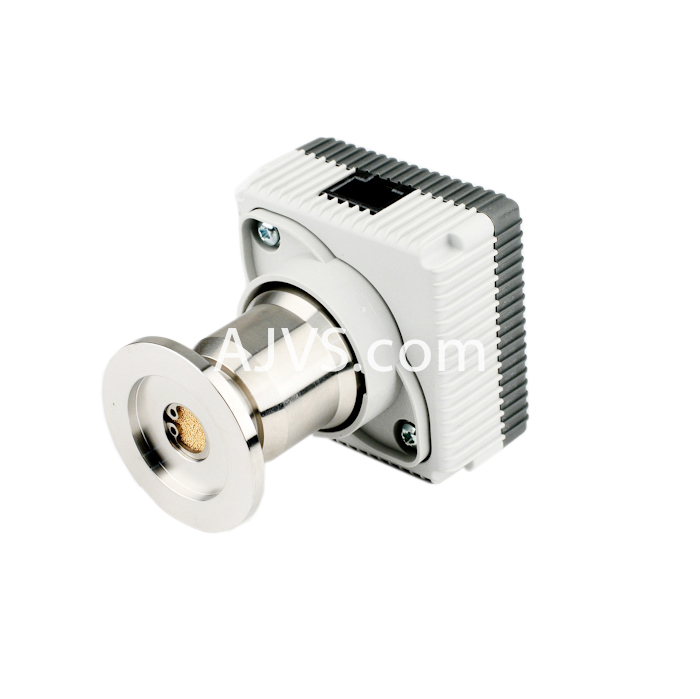

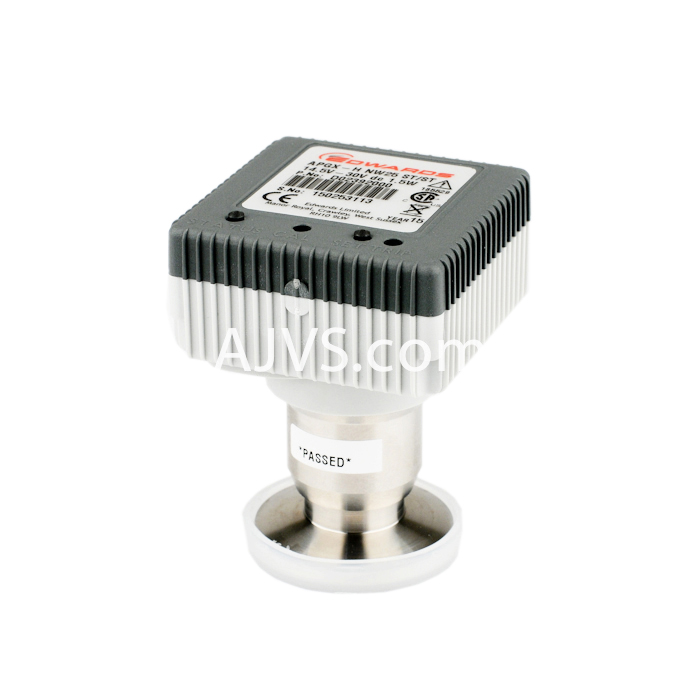

Edwards APGX-H-NW25 Linear Convection Vacuum Gauge, Stainless Steel, D02392000
APGX-H-NW25 Linear Convection Vacuum Gauge / D02392000 Overview:
Edwards APGX-H-NW25 (Stainless Steel) Linear Convection Vacuum Gauge has a wide measuring range from 1333 to 3 x 10-4 mbar (1000 to 2.3 x 10-4 Torr). The use of APGX-H-NW16 convection technology ensures accuracy and sensitivity are maintained to the top of the range.
The Edwards APGX-H-NW25 is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status.
The Edwards APGX-H-NW25 uses the constant temperature principle in which the cooling effect of the gas on the filament is overcome by varying the voltage applied, which in turn maintains a constant resistance and keeps the circuit in equilibrium. This voltage is therefore a measure of the pressure in the gauge tube. It should be noted that different gasses have different thermal properties and as such the output of Edwards APGX-H-NW16 is gas dependant.
A&J Vacuum services and repairs Edwards Vacuum Measurement Transmitters, along with all other Edwards Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Edwards APGX-H-NW25 Linear Convection Vacuum Gauge, Stainless Steel, D02392000
Edwards APGX-H-NW25 Linear Convection Vacuum Gauge Technical Data:
| Connection Inlet Flange | DN 25 ISO-KF (NW25) |
| Weight | 0.170 kg | 0.4 lb |
| Power Supply Voltage | DC 14.5-30V |

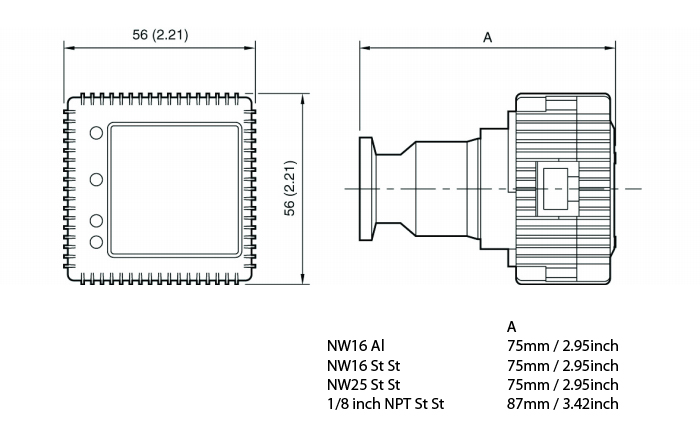

| Dimension Length | 2.20 in | 56.00 mm |
| IP Rating | IP40 |
| Power Supply Frequency | DC Voltage |
| Dimension Height | 2.95 in | 75.00 mm |
| Dimension Width | 2.20 in | 56.00 mm |
| Connector Electrical Power | RJ45 (FCC 68) - Female |
| Recommended Controller | ADC - Gauge Controller TAG - Turbo & Instrument Controller TIC - Instrument Controller |
| Temperature Ambient Operation Min | 5.00 °C | 41.00 °F | 278.15 K |
| Temperature Ambient Storage Min | -30.00 °C | -22.00 °F | 243.15 K |
| Temperature Ambient Storage Max | 70.00 °C | 158.00 °F | 343.15 K |
| Classification Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar Rough Vacuum: 1000 mbar - 1 mbar Above Atmospheric Pressure: 1000 - 2000 mbar |
| Classification Principle of Measurement | Pirani convection |
| Material Abbreviation | St St |
| Material Exposed to Vacuum | Tungsten; Phospor-bronze; Stainless steel (316L); Nickel; Fluoroelastomer; PTFE |
| Material Filament | Tungsten |
| Pressure Absolute Inlet Continous Max | 1.000 × 10⁶ Pa |
| Pressure Inlet Max Overpressure | 1.000 × 10⁶ Pa |
| Temperature Baking Max | 70.00°C | 158.00 °F | 343.15 K |
| Measurement Uncertainty | ±15% of full scale |
| Power consumption Max String | 1.5W |
| Pressure Measurement Max | 1.333 × 10⁵ Pa |
| Pressure Measurement Min | 0.030 Pa |

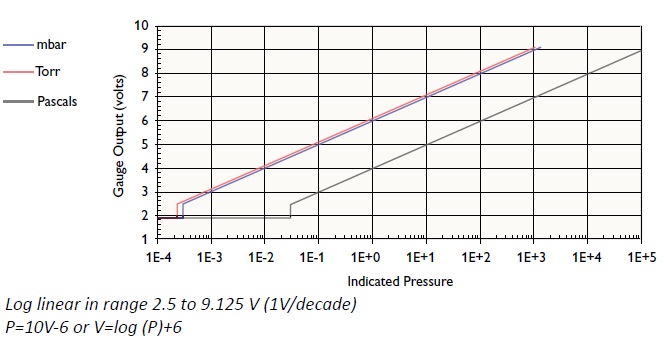

| Communication Interfaces Customer | 0-10 V (analog output - linear) |
| Connection Electrical Comms Interface Connector | RJ45 (FCC 68) - Female |
| Setpoint Quantity | 1 |
| Status Indicator | LED |
| Variant Gauges | APGX-H |
