- Displacement (swept volume) 50 Hz 32.2 m3h-1 / 19 ft3min-1
- Speed (Pneurop 6602) 50 Hz 27.5 m3h-1 / 16.2 ft3min-1
- Ultimate vacuum (total pressure) without gas ballast 1 x 10-3 mbar / 7.5 x 10-4 Torr
- Inlet connection NW25 flange
Shopping Cart ( )
Edwards E2M28 Rotary Vane Vacuum Pump, Hydrocarbon Oil, Dual Stage, 100/200 V, Single Phase, 50Hz, A373-15-904
Condition:
New
Item#:PN15720
Mfr Part#:A37315904
Manufacturer:Edwards Vacuum
Features:
Edwards E2M28 Rotary Vane Vacuum Pump, Hydrocarbon Oil, Dual Stage, 100/200 V, Singe Phase, 50Hz, A37315904
Edwards E2M28 Overview:
The E2M28 Rotary Vane Pump is a two-stage, direct drive, sliding vane pump. The pump is oil-sealed and designed for reliable, long-term operation in both laboratory and industrial environments. The pump is a free-standing unit. The drive is provided through a flexible coupling by a single-phase or three-phase (four pole) motor.
The motors are totally enclosed and are cooled by the motor-cooling fan which directs air along the motor fins.
The single-phase motors have a thermal overload device. When the motor is too hot, the thermal overload device switches off the pump. The thermal overload device has an automatic reset; when the motor cools down, the device resets and the motor will restart. The single phase motors have an on/off switch.
An oil pressure system lubricates the pump shaft bearing surfaces and rotor sealing faces. The pump has an oil distribution valve which prevents discharge of oil to the pump interior (suckback) after the pump stops. The pumping chambers are air-tight, so this arrangement prevents air suckback unless the gas-ballast valve is open.
You can inspect the level and condition of oil in the oil box reservoir through the oil sight-glass. An oil filler-plug is fitted to the top of the oil box. The pump has an oil drain-plug to allow gravity oil drain.
The pump has an inlet-port, outlet nozzle and gas-ballast control. The pump is mounted on an aluminum alloy baseplate on rubber pads.
Edwards E2M28 Rotary Vane Vacuum Pump Applications:
- Analytical instruments - LCMS
- Automotive
- Beam lines and high energy physics
- Centrifuges, ultra-high speed
- Coating
- Cryogenics
- Degassing/curing - oil, epoxy resin
- Distillation/extraction/filtration
- Freeze drying
- Furnaces
- Gas bottle filling/emptying
- Gel drying
- Glove boxes, ovens
- Laboratory bench top vacuum
- Lasers, gas recovery and re-circulation
- Leak detectors, Helium
- Load locks and transfer chambers
- Refrigeration manufacture
- Rotary, centrifugal evaporators
- Solvent recovery
- Surface science instruments
- Turbomolecular backing pumps
Edwards E2M28 Rotary Vane Vacuum Pump Features:
- The pump is designed for reliable, long‑term operation.
- Thermal overload device prevents overheating (single phase only).
- The drive is provided through a flexible coupling by a single‑phase or three‑phase (four pole) motor.
- The motors are totally enclosed and are cooled by the motor cooling fan.
- Full height O ring sealed oil sight glass for easy checking of oil level and condition.
- Large sight glass and operating oil range.
- IE3 energy efficient 3 phase motor used with E2M28.

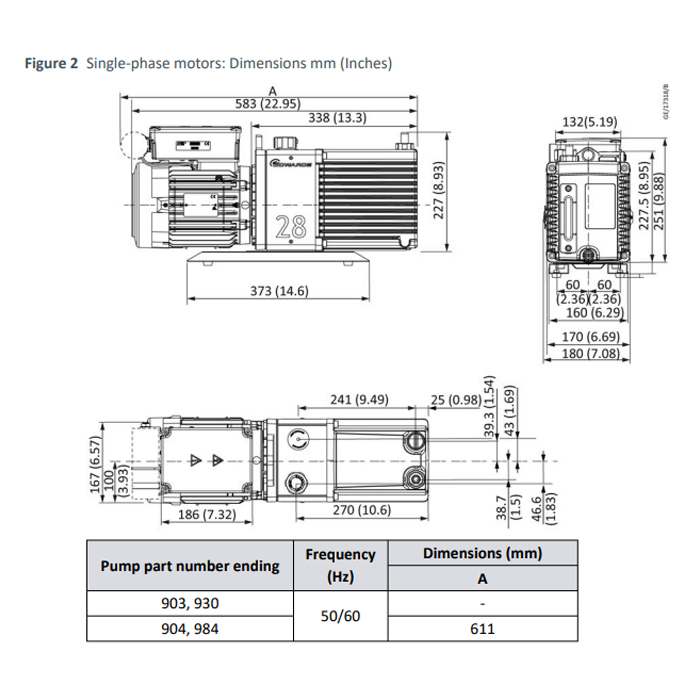

Edwards E2M28 Dimensions:
A&J Vacuum also repair / rebuild and service all Edwards E2M1.5, E2M2, E2M5, E2M8, E2M12, E2M28 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Edwards E2M28 Rotary Vane Vacuum Pump, Hydrocarbon Oil, Dual Stage, 100/200 V, Singe Phase, 50Hz, A37315904
Edwards E2M28 Technical Data:
| Displacement (swept volume) | |
| 50 Hz | 32.2 m3h-1 / 19 ft3min-1 |
| 60 Hz | 38.9 m3h-1 / 22.3 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 27.5 m3h-1 / 16.2 ft3min-1 |
| 60Hz | 33.0 m3h-1 / 19.5 ft3min-1 |
| Ultimate vacuum (total pressure) | |
| without gas ballast | 1 x 10-3 mbar / 7.5 x 10-4 Torr |
| with gas ballast | 1.5 x 10-2 mbar / 1.1 x 10-2 Torr |
| with Fomblin® | 1 x 10-2 mbar / 7.5 x 10-3 Torr |
| Inlet connection | NW25 flange |
| Outlet connection** | Nozzle 15 mm external Ø removable from 3/4 in BSP tapped hole |
| Max allowed pressure at outlet | 0.5 bar gauge / 7 psig |
| Max inlet pressure for water vapour | 30 mbar / 23 Torr |
| Max water vapour pumping rate | 0.7 kg h-1 |
| Operating temperature range | 13 – 40 °C |
| Nominal rotation speed | 1440 / 1720 rpm |
| Motor power 50 Hz | 0.75 kW |
| Motor power 60 Hz | 0.90 kW |
| Power Connector 1-ph* | IEC EN60320 C19 |
| Weight | 44 kg / 97 lbs |
| Noise | 57 dB(A) @ 50 Hz |
| Oil capacity - max | 1.5 litre |
| Oil capacity - min | 1.2 litre |
| Recommended oil (supplied) | Ultragrade 19 |
A&J Vacuum also repair / rebuild and service all Edwards E2M1.5, E2M2, E2M5, E2M8, E2M12, E2M28 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
