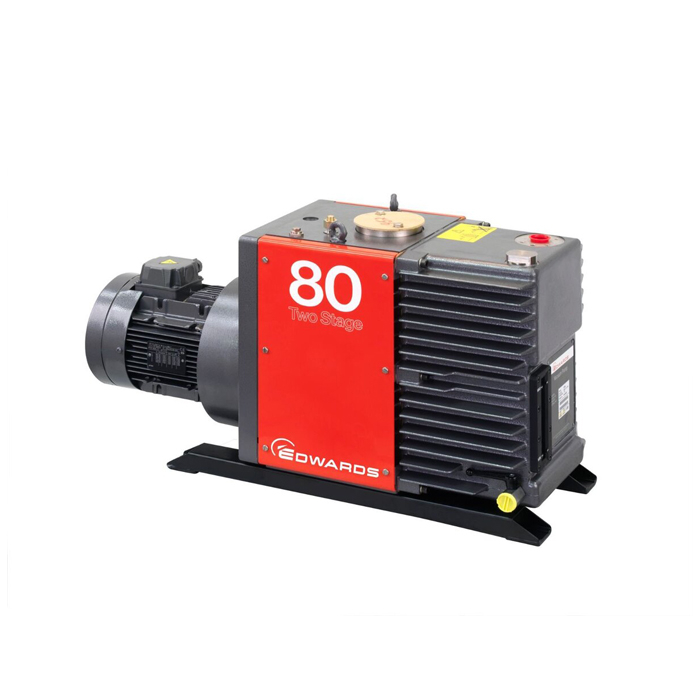

E2M80 Series - Rotary Vane Pump

Reliable operation
Minimal noise
High GB flow rate
Swift acting inlet valve
Connection inlet flange: DN 40 ISO-F
Connection vacuum outlet flange: DN 25 ISO-KF (NW25)
Cooling method: Air Cooling (forced - fan)
Pressure ultimate: 1.000 × 10⁻³ mbar
Power supply voltage: 3Ph 380-400V 50Hz / 230/460V 60Hz
Unique mode selection switch: enables high vacuum and high throughput operation from single pump

E2M80 / A36504940 Overview:

This Edwards Rotary Vane Pump has a peak pumping velocity of 52.97 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.

The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation.

E2M80 Scope of Delivery:

Installation, operation and maintenance instructions

E2M80 Applications:

Analytical instruments
Laboratory bench table
Backing Turbomolecular pump
Freeze drying
Research and development
In scientific and laboratory applications, the E2M0.7-2.5 and E2M18/28 are the ideal partners for your turbomolecular pump
In Industrial applications, E2M18/28, E2M40/80 and E2M175/275 offer very robust solutions in demanding applications

A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Condition:

New

Edwards E2M80 FX Vacuum Pump, Dual Stage Rotary Vane, 3Ph 380-400V 50Hz / 230/460V 60Hz, ISO40 Inlet Flange, NW25 Outlet Flange, A36517940

Item#: PN57681 Mfr Part#: A36517940 Manufacturer: Edwards Vacuum

PRICE: $0.00

YOU PAY: $15,699.28

Tariff charges are calculated during checkout

Edwards E2M80 FX Vacuum Pump, Dual Stage Rotary Vane, 3Ph 380-400V 50Hz / 230/460V 60Hz, ISO40 Inlet Flange, NW25 Outlet Flange, A36517940

Edwards E2M80 Features:

Reliable operation
Minimal noise
High GB flow rate
Swift acting inlet valve
Connection inlet flange: DN 40 ISO-F
Connection vacuum outlet flange: DN 25 ISO-KF (NW25)
Cooling method: Air Cooling (forced - fan)
Pressure ultimate: 1.000 × 10⁻³ mbar
Power supply voltage: 3Ph 380-400V 50Hz / 230/460V 60Hz
Unique mode selection switch: enables high vacuum and high throughput operation from single pump

E2M80 / A36517940 Overview:

E2M80 Scope of Delivery:

Installation, operation and maintenance instructions

E2M80 Applications:

Analytical instruments
Laboratory bench table
Backing Turbomolecular pump
Freeze drying
Research and development
In scientific and laboratory applications, the E2M0.7-2.5 and E2M18/28 are the ideal partners for your turbomolecular pump
In Industrial applications, E2M18/28, E2M40/80 and E2M175/275 offer very robust solutions in demanding applications

Condition:

New
