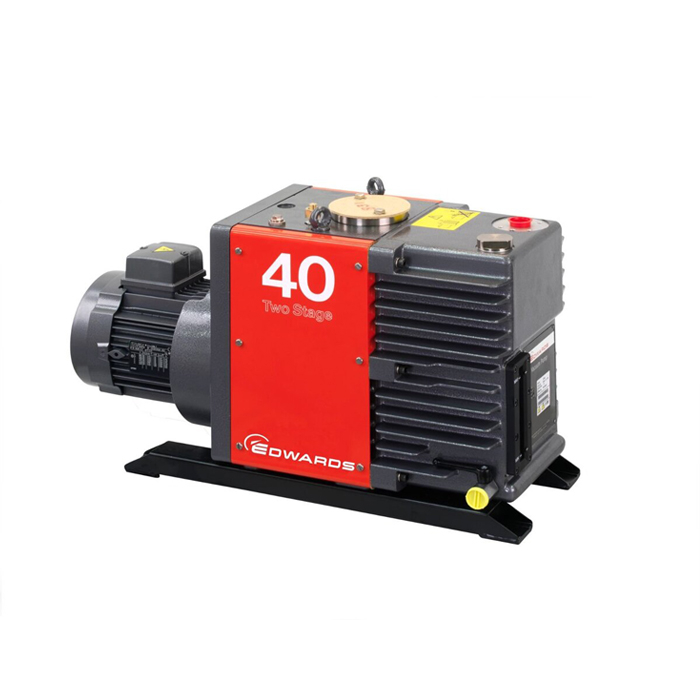

Edwards E2M40 Vacuum Pump for use with Ultragrade Oil, Dual Stage Rotary Vane, 3Ph 200V 50/60Hz / 380V 60 Hz, ISO40 Inlet Flange, NW25 Outlet Flange, A36404934
Edwards E2M40 Features:
- Reliable operation
- Minimal noise
- High GB flow rate
- Swift acting inlet valve
- Connection inlet flange: DN 40 ISO-F
- Connection vacuum outlet flange: DN 25 ISO-KF (NW25)
- Cooling method: Air Cooling (forced - fan)
- Pressure ultimate: 1.000 × 10⁻³ mbar
- Power supply voltage: 3Ph 200V 50/60Hz / 380V 60Hz
- Unique mode selection switch: enables high vacuum and high throughput operation from single pump
E2M40 / A36404934 Overview:
This Edwards Rotary Vane Pump has a peak pumping velocity of 25.9 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.
E2M40 Scope of Delivery:
- Installation, operation and maintenance instructions
E2M40 Applications:
- Analytical instruments
- Laboratory bench table
- Backing Turbomolecular pump
- Freeze drying
- Research and development
- In scientific and laboratory applications, the E2M0.7-2.5 and E2M18/28 are the ideal partners for your turbomolecular pump
- In Industrial applications, E2M18/28, E2M40/80 and E2M175/275 offer very robust solutions in demanding applications
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards E2M40 FX Vacuum Pump, Dual Stage Rotary Vane, 3Ph 380-400V 50Hz / 230/460V 60Hz, ISO40 Inlet Flange, NW25 Outlet Flange, PFPE Prepared, A36417940
Edwards E2M40 Features:
- Reliable operation
- Minimal noise
- High GB flow rate
- Swift acting inlet valve
- Connection inlet flange: DN 40 ISO-F
- Connection vacuum outlet flange: DN 25 ISO-KF (NW25)
- Cooling method: Air Cooling (forced - fan)
- Pressure ultimate: 1.000 × 10⁻³ mbar
- Power supply voltage: 3Ph 380-400V 50Hz / 230/460V 60Hz
- Unique mode selection switch: enables high vacuum and high throughput operation from single pump
E2M40 / A36417940 Overview:
This Edwards Rotary Vane Pump has a peak pumping velocity of 25.9 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.
E2M40 Scope of Delivery:
- Installation, operation and maintenance instructions
E2M40 Applications:
- Analytical instruments
- Laboratory bench table
- Backing Turbomolecular pump
- Freeze drying
- Research and development
- In scientific and laboratory applications, the E2M0.7-2.5 and E2M18/28 are the ideal partners for your turbomolecular pump
- In Industrial applications, E2M18/28, E2M40/80 and E2M175/275 offer very robust solutions in demanding applications
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
