- Pumping speed (N2): 65 l/s
- Compression ratio (N2): 1 x 10-8
- Inlet flange: KF 40
- Outlet flange: KF 16
Shopping Cart ( )

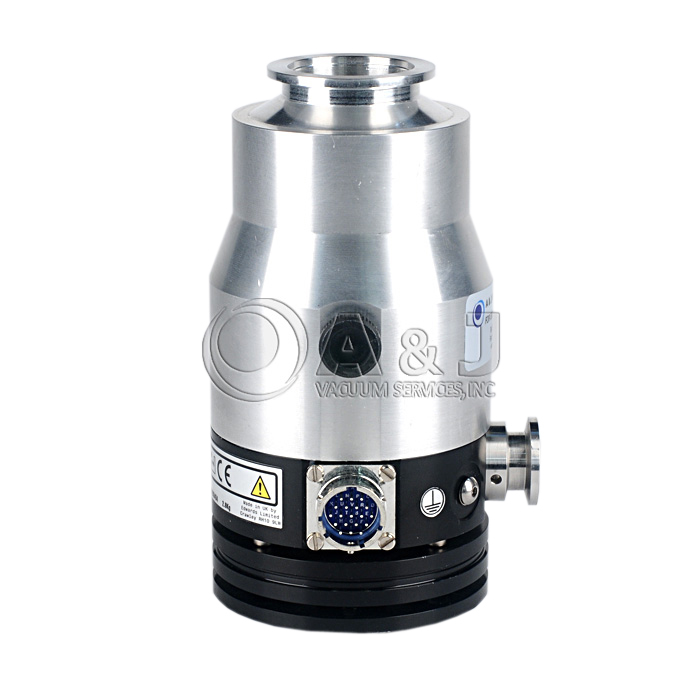

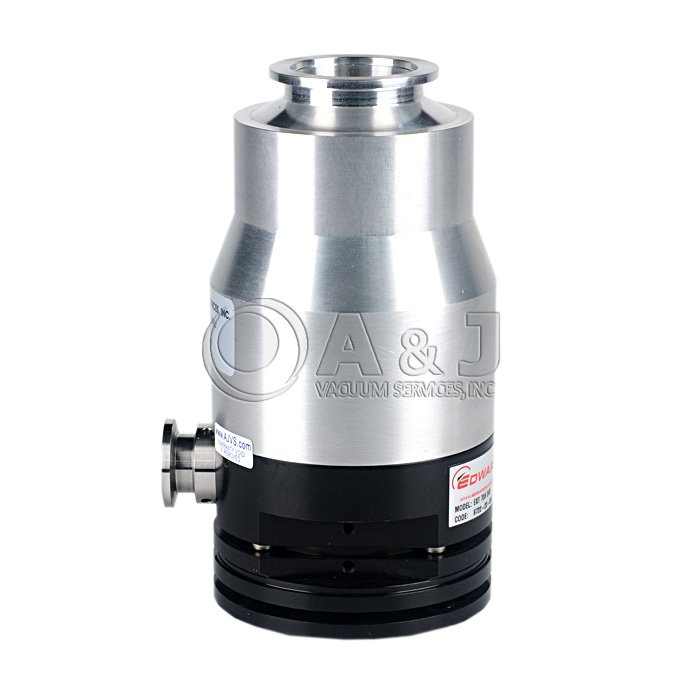

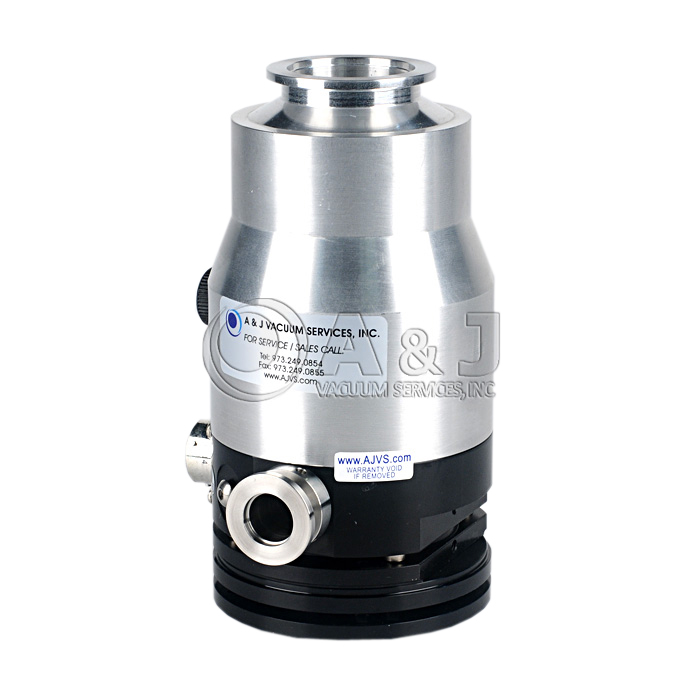

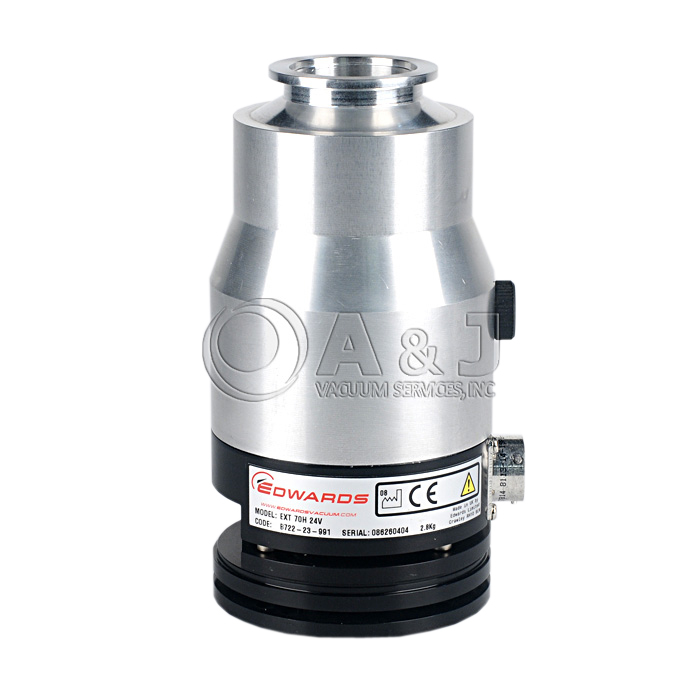

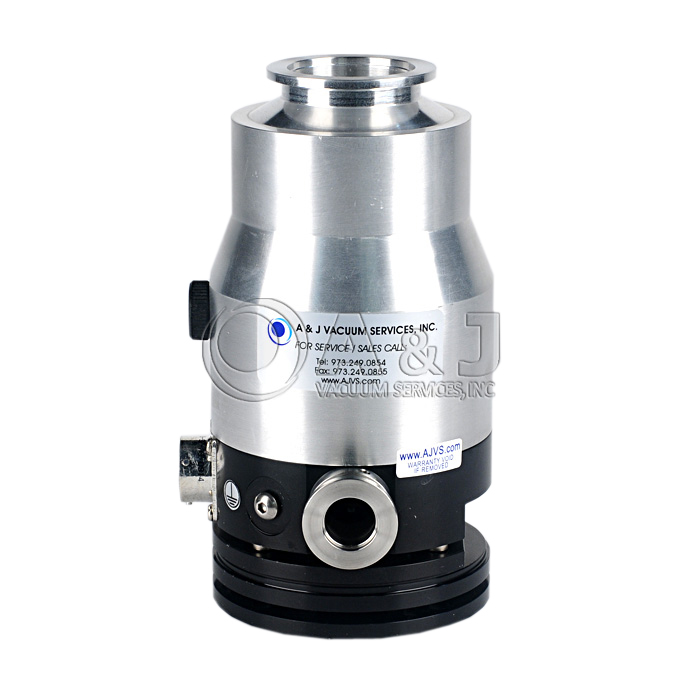

Edwards EXT 70H Turbo Pump, B72223991
Condition:
Remanufactured
Call us for Availability
Item#:PN15300
Mfr Part#:B72223991
Manufacturer:Edwards Vacuum
Price upon request
CONTACT US
Features:
Edwards EXT 70H Turbo Pump, B72223991
EXT 70H / B72223991 Overview:
The Edwards EXT Turbomolecular and compound molecular pumps provide a reliable, hydrocarbon-free and ultra high vacuum.
Utilizing mulit-stage axial flow turbines combined with magnetic and ceramic bearings, the EXT design provides oil and vibration free operation with minimal maintenance on high foreline pressure processes.
A&J Vacuum also repair / rebuild and service all Edwards EXT 70H / B72226991 with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Edwards EXT 70H Turbo Pump, B72223991
Edwards EXT 70H Technical Data:
- Inlet Flange: NW 40
- Outlet Flange: NW 16
- Pumping Speed:
- Nitrogen: 65 l/s
- Helium: 60 l/s
- Hydrogen: 50 l/s
- Compression Ratio:
- Nitrogen: 1 x 10-8
- Helium: 4 x 10-5
- Hydrogen: 3 x 10-4
- Ultimate Pressure: 10-9 mbar
- Rotational Speed: 90000 rpm
A&J Vacuum also repair / rebuild and service all Edwards EXT 70H / B72226991 with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
