Found 6 products
Item#: PN00362 Mfr Part#: B72243000 / B722-43-000 Manufacturer: Edwards Vacuum
PRICE: $5,900.00
WEB SAVINGS: $405.00
YOU PAY: $5,495.00

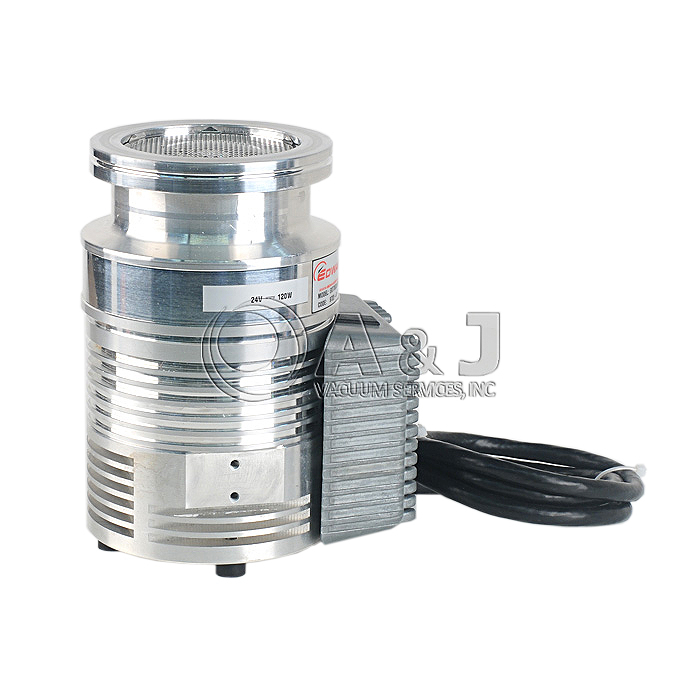

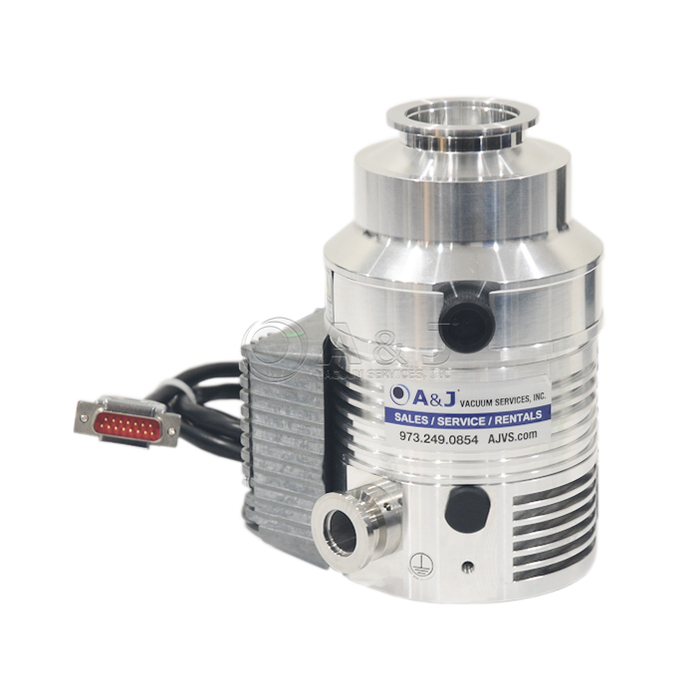

Edwards EXT 75 DX Compound Turbo Vacuum Pump, DN 40 NW, B72243000



This Pump Has Become Obsolete - Please Call For Availability.



Edwards EXT 75 DX Overview


The Edwards EXT75DX / B72243000 is a hybrid bearing compound turbo pump that combines the proven technology of a ceramic mechanical lower bearing, a dry permanent magnetic upper bearing and Holweck drag stage with the added convenience of an on-board 24V controller allowing parallel and serial communication compatible with Edwards TAG and TIC controllers.

Edwards EXT 75DX It is available with either a DN 40 NW, ISO 63, DN 63 CF or an ISO 100 inlet flange with an N2 pumping speed of up to 66 ls-1. A basic pump system would require an EXT75DX pump, a TAG or TIC controller, either an air or water cooling accessory and a suitable backing pump.



Edwards EXT 75 DX Features


  • Compatible with TIC turbo instrument controller
  • Multiple communication modes available including parallel mode, which allows traditional control signal interface and serial mode, which allows RS232 interface
  • Numerous user configurable parameters via RS232 interface including vent valve control settings, normal speed indication, stand-by running speed, programmable power settings, power consumption and pump temperature
  • Enhanced monitoring capabiltiy including pump speed, power and temperature



Edwards EXT 75 DX Dimensions


Edwards EXT75DX Compound Turbo Pump, DN 100 ISO, B722-46-000, B72246000, EXT-75DX, EXT 75DX


Click Here for Edwards EXT 75 DX Manual


A&J Vacuum also Repair / Rebuild and Rervice all Edwards EXT and nEXT Turbo Pumps Edwards Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN21621 Mfr Part#: B72245000 Manufacturer: Edwards Vacuum
PRICE: $5,995.00
WEB SAVINGS: $445.00
YOU PAY: $5,550.00

Edwards EXT75DX Turbo Pump, DN 100 ISO, B722-45-000, B72245000, EXT 75DX



Edwards EXT 75 DX Overview


The Edwards EXT75DX / B72245000 is a hybrid bearing compound turbo pump that combines the proven technology of a ceramic mechanical lower bearing, a dry permanent magnetic upper bearing and Holweck drag stage with the added convenience of an on-board 24V controller allowing parallel and serial communication compatible with Edwards TAG and TIC controllers.

Edwards EXT 75DX It is available with either a DN 40 NW, ISO 63, DN 63 CF or an ISO 100 inlet flange with an N2 pumping speed of up to 66 ls-1. A basic pump system would require an EXT75DX pump, a TAG or TIC controller, either an air or water cooling accessory and a suitable backing pump.



Edwards EXT 75 DX Features


  • Compatible with TIC turbo instrument controller
  • Multiple communication modes available including parallel mode, which allows traditional control signal interface and serial mode, which allows RS232 interface
  • Numerous user configurable parameters via RS232 interface including vent valve control settings, normal speed indication, stand-by running speed, programmable power settings, power consumption and pump temperature
  • Enhanced monitoring capabiltiy including pump speed, power and temperature



Edwards EXT 75 DX Dimensions


Edwards EXT75DX Compound Turbo Pump, DN 100 ISO, B722-45-000, B72245000, EXT-75DX, EXT 75DX


Click Here for Edwards EXT 75 DX Manual


A&J Vacuum also Repair / Rebuild and Rervice all Edwards EXT and nEXT Turbo Pumps Edwards Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN00352 Mfr Part#: B722-41-000 / B72241000 Manufacturer: Edwards Vacuum
Price upon request

Edwards EXT 75 DX Compound Turbo Vacuum Pump, DN 63 ISO, B72241000



This Pump Has Become Obsolete - Please Call For Availability.



Edwards EXT 75 DX Overview


The Edwards EXT75DX / B72241000 is a hybrid bearing compound turbo pump that combines the proven technology of a ceramic mechanical lower bearing, a dry permanent magnetic upper bearing and Holweck drag stage with the added convenience of an on-board 24V controller allowing parallel and serial communication compatible with Edwards TAG and TIC controllers.

Edwards EXT 75DX It is available with either a DN 40 NW, ISO 63, DN 63 CF or an ISO 100 inlet flange with an N2 pumping speed of up to 66 ls-1. A basic pump system would require an EXT75DX pump, a TAG or TIC controller, either an air or water cooling accessory and a suitable backing pump.



Edwards EXT 75 DX Features


  • Compatible with TIC turbo instrument controller
  • Multiple communication modes available including parallel mode, which allows traditional control signal interface and serial mode, which allows RS232 interface
  • Numerous user configurable parameters via RS232 interface including vent valve control settings, normal speed indication, stand-by running speed, programmable power settings, power consumption and pump temperature
  • Enhanced monitoring capabiltiy including pump speed, power and temperature



Edwards EXT 75 DX Dimensions


Edwards EXT75DX Compound Turbo Pump, DN 100 ISO, B722-46-000, B72246000, EXT-75DX, EXT 75DX


Click Here for Edwards EXT 75 DX Manual


A&J Vacuum also Repair / Rebuild and Rervice all Edwards EXT and nEXT Turbo Pumps Edwards Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN07010 Mfr Part#: B722-42-000 / B72242000 Manufacturer: Edwards Vacuum
Price upon request

Edwards EXT75DX Compound Turbo Pump, DN 63 CF, B722-42-000 / B72242000, EXT 75DX



Edwards EXT 75 DX / B7222 42 000 Overview


The Edwards EXT75DX / B72245000 is a hybrid bearing compound turbo pump that combines the proven technology of a ceramic mechanical lower bearing, a dry permanent magnetic upper bearing and Holweck drag stage with the added convenience of an on-board 24V controller allowing parallel and serial communication compatible with Edwards TAG and TIC controllers.

Edwards EXT 75DX It is available with either a DN 40 NW, ISO 63, DN 63 CF or an ISO 100 inlet flange with an N2 pumping speed of up to 66 ls-1. A basic pump system would require an EXT75DX pump, a TAG or TIC controller, either an air or water cooling accessory and a suitable backing pump.



Edwards EXT 75 DX Features


  • Compatible with TIC turbo instrument controller
  • Multiple communication modes available including parallel mode, which allows traditional control signal interface and serial mode, which allows RS232 interface
  • Numerous user configurable parameters via RS232 interface including vent valve control settings, normal speed indication, stand-by running speed, programmable power settings, power consumption and pump temperature
  • Enhanced monitoring capabiltiy including pump speed, power and temperature



Edwards EXT 75 DX Dimensions


Edwards EXT75DX Compound Turbo Pump, DN 63 CF, B722-42-000, B72242000, EXT-75DX, EXT 75DX


Click Here for Edwards EXT 75 DX Manual


A&J Vacuum also Repair / Rebuild and Rervice all Edwards EXT and nEXT Turbo Pumps Edwards Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN15821 Mfr Part#: B72246000 Manufacturer: Edwards Vacuum
Price upon request

Edwards EXT75DX Compound Turbo Pump, DN 100 ISO, B722-46-000, B72246000, EXT-75DX



Edwards EXT 75 DX Overview


The Edwards EXT75DX / B72246000 is a hybrid bearing compound turbo pump that combines the proven technology of a ceramic mechanical lower bearing, a dry permanent magnetic upper bearing and Holweck drag stage with the added convenience of an on-board 24V controller allowing parallel and serial communication compatible with Edwards TAG and TIC controllers.

Edwards EXT 75DX It is available with either a DN 40 NW, ISO 63, DN 63 CF or an ISO 100 inlet flange with an N2 pumping speed of up to 66 ls-1. A basic pump system would require an EXT75DX pump, a TAG or TIC controller, either an air or water cooling accessory and a suitable backing pump.

Turbo Pump for Thermo Scientific™ ISQ™ Series Single Quadrupole GC-MS Systems



Edwards EXT 75 DX Features


  • Compatible with TIC turbo instrument controller
  • Multiple communication modes available including parallel mode, which allows traditional control signal interface and serial mode, which allows RS232 interface
  • Numerous user configurable parameters via RS232 interface including vent valve control settings, normal speed indication, stand-by running speed, programmable power settings, power consumption and pump temperature
  • Enhanced monitoring capabiltiy including pump speed, power and temperature



Edwards EXT 75 DX Dimensions


Edwards EXT75DX Compound Turbo Pump, DN 100 ISO, B722-46-000, B72246000, EXT-75DX, EXT 75DX


Click Here for Edwards EXT 75 DX Manual


A&J Vacuum also Repair / Rebuild and Rervice all Edwards EXT and nEXT Turbo Pumps Edwards Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
Item#: PN40692 Mfr Part#: B722-48-000 / B72248000 Manufacturer: Edwards Vacuum
Price upon request

Edwards EXT75DX REVERSED Turbo Pump, DN 63 ISO, B722-48-000 / B72248000 EXT 75 DX

Edwards EXT 75 DX Reversed Overview


The Edwards EXT75DX / B72248000 is a hybrid bearing compound turbo pump that combines the proven technology of a ceramic mechanical lower bearing, a dry permanent magnetic upper bearing and Holweck drag stage with the added convenience of an on-board 24V controller allowing parallel and serial communication compatible with Edwards TAG and TIC controllers.

Edwards EXT 75DX It is available with either a DN 40 NW, ISO 63, DN 63 CF or an ISO 100 inlet flange with an N2 pumping speed of up to 66 ls-1. A basic pump system would require an EXT75DX pump, a TAG or TIC controller, either an air or water cooling accessory and a suitable backing pump.



Edwards EXT 75 DX REVERSED Features


  • Compatible with TIC turbo instrument controller
  • Multiple communication modes available including parallel mode, which allows traditional control signal interface and serial mode, which allows RS232 interface
  • Numerous user configurable parameters via RS232 interface including vent valve control settings, normal speed indication, stand-by running speed, programmable power settings, power consumption and pump temperature
  • Enhanced monitoring capabiltiy including pump speed, power and temperature



Edwards EXT 75 DX Dimensions


Edwards EXT75DX Compound Turbo Pump, DN 100 ISO, B722-46-000, B72246000, EXT-75DX, EXT 75DX


Click Here for Edwards EXT 75 DX Manual


A&J Vacuum also Repair / Rebuild and Rervice all Edwards EXT and nEXT Turbo Pumps Edwards Vacuum Gauges with Edwards Scroll Vacuum Pumps Edwards Turbo Pump repair, Edwards Vane Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
