- Inlet Flange: NW 16
- Factory fitted delay opening inlet valve
- Ultimate Vacuum: 0.1 mbar
- Pumping speed 2 CFM / 3.5 m3h
Shopping Cart ( )
Edwards mXDS3S Dry Scroll Vacuum Pump with factory fitted delay opening inlet valve, 3.5m3h, 2 CFM 115 VAC +/- 10%, Single Phase, 50/60 Hz, A74402906, mXDS 3S
Condition:
New
Item#:PN40958
Mfr Part#:A74402906
Manufacturer:Edwards Vacuum
Features:
Edwards mXDS3S Dry Scroll Vacuum Pump with factory fitted delay opening inlet valve, 3.5m3h, 2 CFM 115 VAC +/- 10%, Single Phase, 50/60 Hz, A74402906, mXDS 3S
Edwards mXDS 3 / A74402906 Overview:
The Edwards mXDS3 is the new generation small completely oil free, dry scroll pumps with factory fitted delay opening inlet valve.

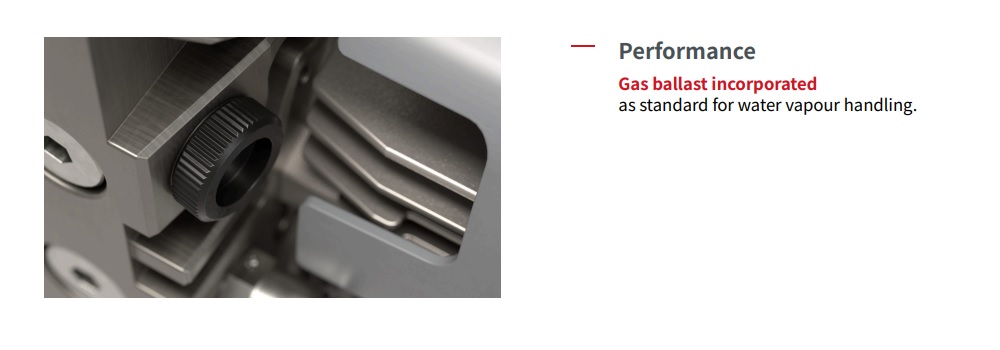

Edwards mXDS3 improves on legacy nXDS series pumps by offering small footprint with great base pressure and pumping speed, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.
Edwards mXDS3 pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally.
Edwards mXDS3 pumps are designed to be integrated system and pumping system.
Edwards mXDS 3 Features:
- Lubricant-free means totally clean and dry vacuum to prevent cross contamination.

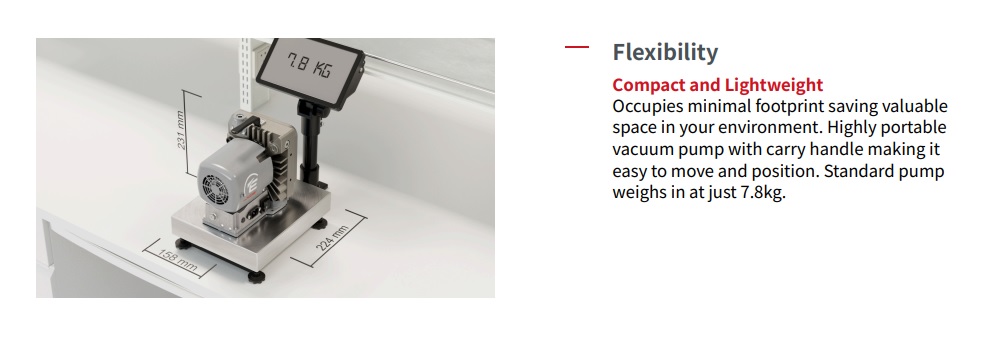

- Compact, at only 8 kg it is well suited for integration into OEM and analytical instruments, snall system builder and laboratories.
- Low maintenance, tip seal change when required(typically 2 years)

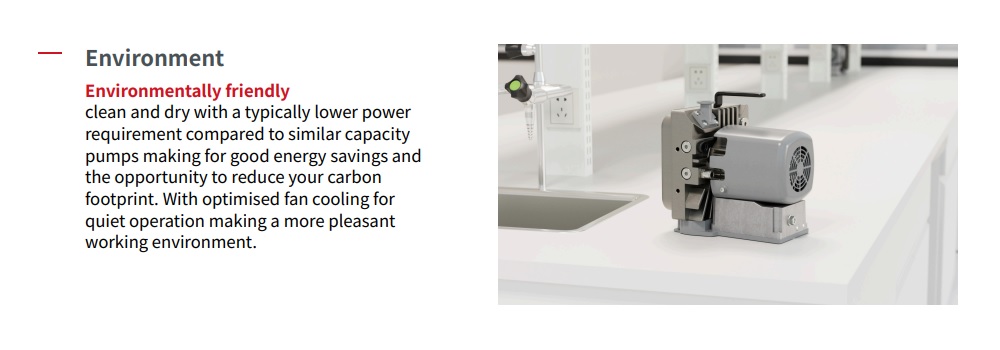

- Quiet Operation with low low noise level, it makes for better quality working enviroment.
Mains Cable p/n A50507000, 115 VAC 2M Included
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards mXDS3S Dry Scroll Vacuum Pump with factory fitted delay opening inlet valve, 3.5m3h, 2 CFM 115 VAC +/- 10%, Single Phase, 50/60 Hz, A74402906, mXDS 3S
Mains Cable p/n A50507000, 115 VAC 2M Included
Edwards mXDS 3 / A74402906 Technical Data:
|
Inlet Flange: |
NW 16 |
|
Exhaust Flange: |
1/8 BSP |
|
Noise Level: |
54.00 db |
|
Input Voltage: |
115 VAC (60 hz) |
|
Voltage Frequency: |
50/60 Hz |
|

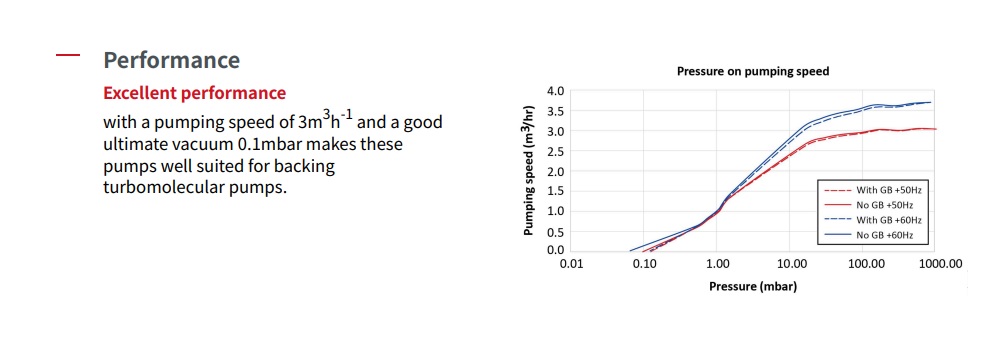

Pumping Speed: |
3.5 m3h-1 |
|
Total Pressure: |
0.1 mbar |
|
Weight: |
7.8 kg |
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS mXDS3, mXDS 3 SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or Click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards mXDS3 Scroll Pump Operating Instructions Manual mXDS 3 Scroll
Edwards mXDS3, MXDS 3 Scroll Pump Data Sheet
Edwards mXDS 3 Scroll Pump Performance Video
Edwards mXDS3 Scroll Pump Flexibility
Edwards mXDS3, mXDS 3 Scroll Pump Presentation
Item#:PN41118
Mfr Part#:GK7440001
Condition: In Stock
New
In Stock
$640.00
Item#:PN41119
Mfr Part#:GK7440002
Condition: In Stock
New
In Stock
Price upon request
Item#:PN41120
Mfr Part#:GK7440003
Condition: In Stock
New
In Stock
$168.00
Item#:PN41121
Mfr Part#:G74401607
Condition: Out of Stock
New
Price upon request
Item#:PN41122
Mfr Part#:G74401608
Condition: Out of Stock
New
$850.00

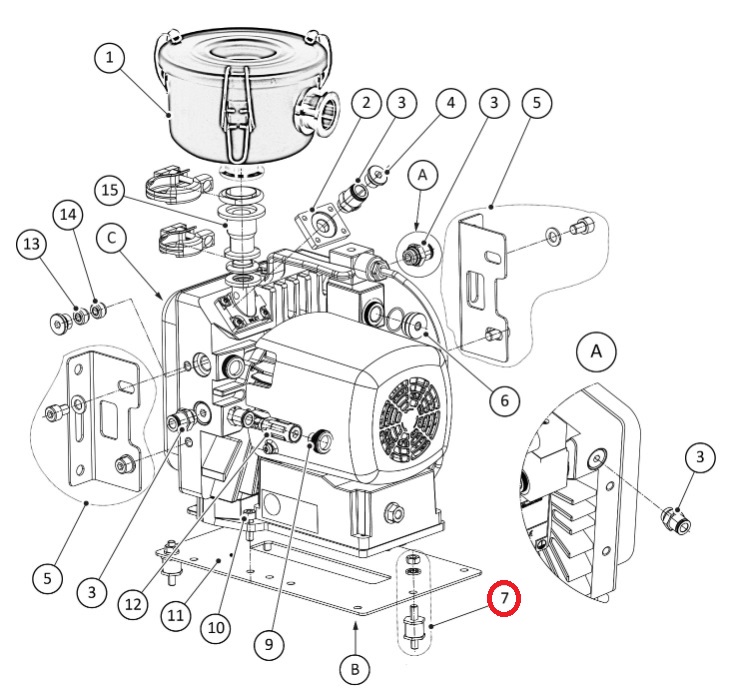

Item#:PN41100
Mfr Part#:A74402932
Condition: In Stock
New
In Stock
$98.00

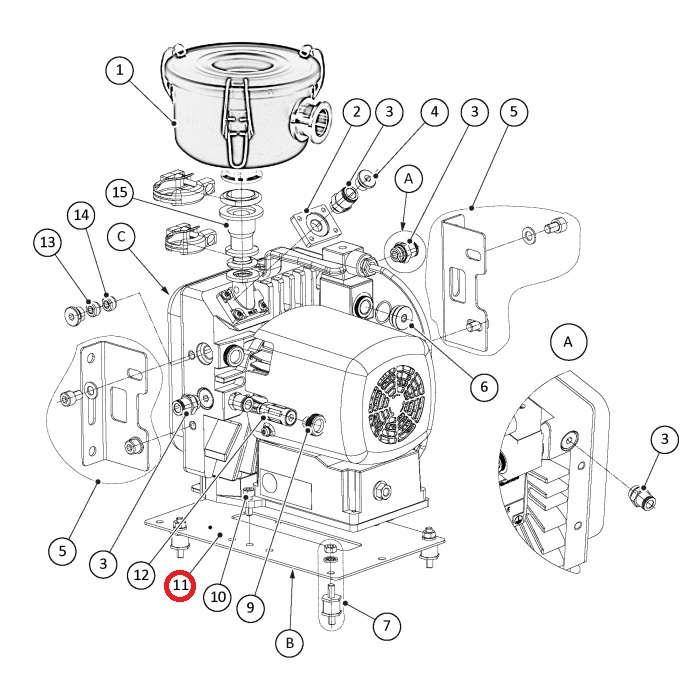

Item#:PN41101
Mfr Part#:A74402929
Condition: In Stock
New
In Stock
$167.00
Item#:PN41103
Mfr Part#:A74402927
Condition: In Stock
New
In Stock
$46.00

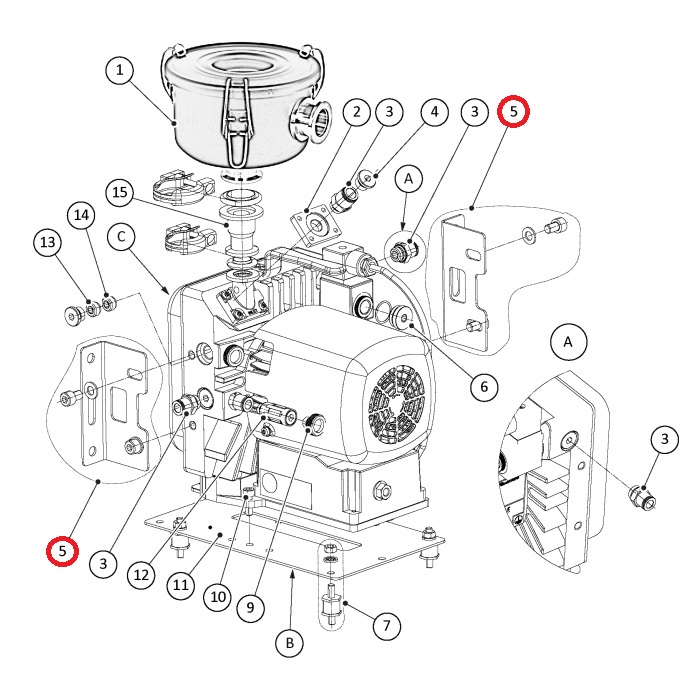

Item#:PN41104
