- Single phase, air cooled and quiet, dB(A) 55
- Pumping Speed of 30 m3/h, 18 cfm
- Inlet Flange NW 25
- Ultimate vacuum (total pressure) mbar <2 x 10-2
Shopping Cart ( )

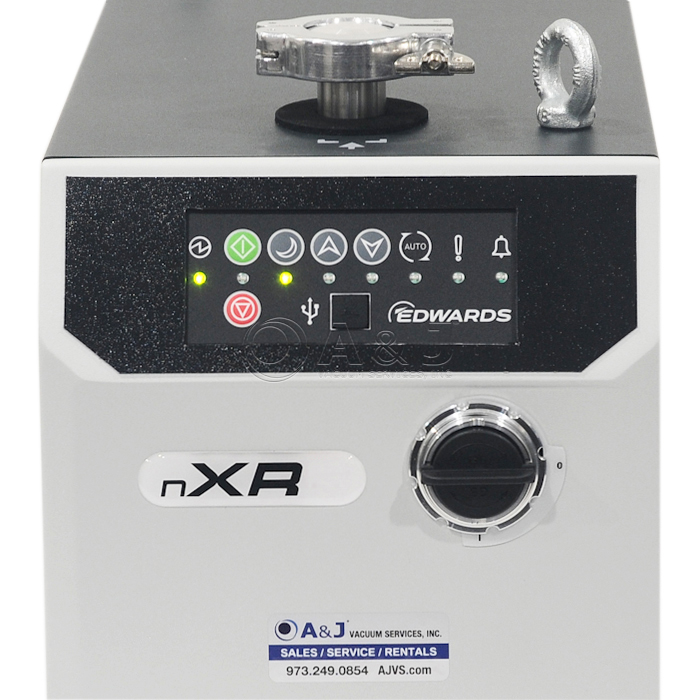

Edwards nXR30i Dry Pump, 18 cfm, 30 m3/h, Multi Stage Roots Pump, 100-127/ 200-240 VAC 50/60 Hz, A90301983, nXR 30i
Condition:
New
Item#:PN24589
Mfr Part#:A90301983
Manufacturer:Edwards Vacuum
Features:
New Edwards nXR30i Dry Pump, 18 cfm, 30 m3/h, Multi Stage Roots Pump, 100-127/ 200-240 VAC 50/60 Hz, A90301983, nXR 30i
Edwards nXR 30i / A90301983 Overview:
Brand new Edwards air cooled nXR30i multi stage rotts dry vacuum pump is designed to deliver aconsistent performance user flexibility in mind. Edwards nXR 30i pump is a high performance and yet compact dry vacuum pump. This new single phase pump nXR line is available with pumping speeds of 300up to 120 m3h: nXR30i, nXR40i, nXR60i, nXR90i and nXR120i. With lower inputpower and zero maintenance the Edwards nXR30i pump brings real high performance and cost benefits across a wide range of applications.
Edwards nXR 30i / A90301983 Features:
- Single phase, air cooled and quiet
- Pumping Speed of 30 m3/h, 18 cfm
- Zero contamination makes the difference. Totally oil free and dust free within the vacuum chamber.
- Flexibility of control – manual, remote contact closure and RS485 serial communication
- Based on field proven iXL range for peace of mind
- Compact footprint. Designed with size in mind. Seemless integration into analytical instruments and vacuum systems.
- Maintenance free for up to five years
Edwards nXR 30i Technology:
Performance is at the core atributeof nXRi line of dry vacuum pumps. The intelligent drive enables the system to achieve an enhanced performance plateau from single phase power supply and a consistent worldwide operation. The choice of control options are either manual, simple remote or serial communications. These may be utilised to provide real control for the system builder.
Edwards nXR30i / A90301983 provides a small footprint with quiet operation making it a convenient and flexible high performing, yet compact, vacuum pump. The oil-free non-contacting pump mechanism will provide extended operation with maximum up time, up to five year service life, with zero maintenance and no oil to dispose of.
Edwards nXR30i is the latest addition to the Edwards intelligent pumping line of dry vacuum pumps and is the ideal dry pump for Scientific OEMs, LCMS end users, ICPMS end users and in applications where a consistent performance, control and reliability are essential.
Click Here for Edwards nXR30i, nXR40i nXR40i nXR60i nXR90i and nXR120i Manual
A&J Vacuum Services offers full repair/service of Edwards Dry Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
New Edwards nXR30i Dry Pump, Multi Stage Roots Pump, 100-127/ 200-240 VAC 50/60 Hz, A90301983, nXR 30i

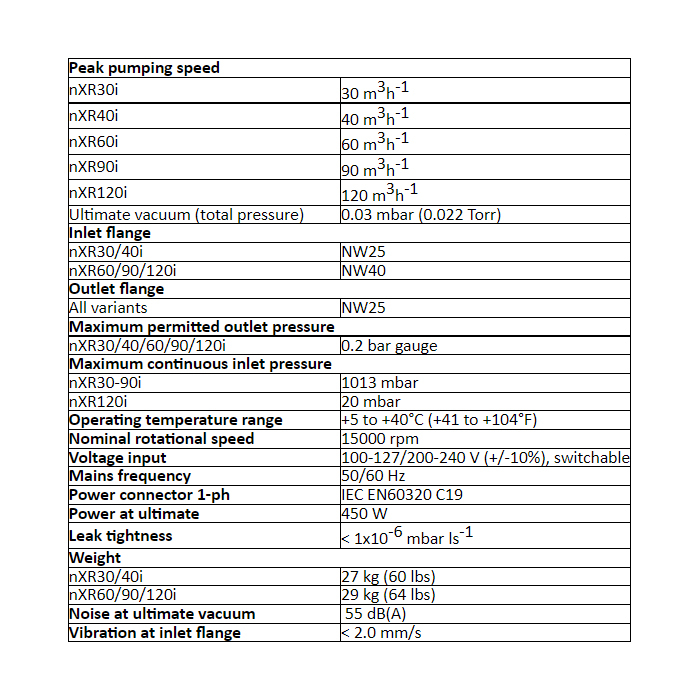

Edwards nXR30i / A90301983 Technical Data:
- Single phase, air cooled and quiet
- Pumping Speed of 30 m3/h, 18 cfm
- Inlet Flange NW 25
- Outlet Flange NW 25
- Rotational speed 15000 rpm
- Weight 27 kg (60 lbs)
- Voltage Input: 100-127/200-240 V (+/-10%), switchable
Click Here for Edwards nXR30i, nXR40i nXR40i nXR60i nXR90i and nXR120i Manual
A&J Vacuum Services offers full repair/service of Edwards Dry Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards nXR30i nXR40i nXR60i nXR90i nXR120i Instructions manual
Edwards nXR30i nXR40i nXR60i nXR90 nXR120 Dry Pump Data Sheet
Edwards nXRi Dry Pump Presentation Video
